| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_038T01_9000002530_17037cztM0_level2.evt | modeM0/AS1T03_038T01_9000002530_17037cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,573,760 | 120,703,680 |
| Size | 445.9 MB | 115.1 MB |
| Events in quadrant A | 3,001,636 | 828,701 |
| Events in quadrant B | 3,466,283 | 840,211 |
| Events in quadrant C | 3,074,930 | 792,274 |
| Events in quadrant D | 4,191,849 | 757,228 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12995 | 2 |
| B | 0 | 14256 | 2 |
| C | 0 | 13068 | 3 |
| D | 0 | 16896 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6265 | 45 | 0.718276% |
| B | 6265 | 142 | 2.266560% |
| C | 6264 | 55 | 0.878033% |
| D | 6264 | 410 | 6.545338% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

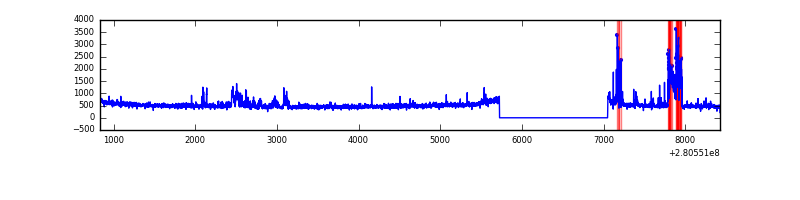

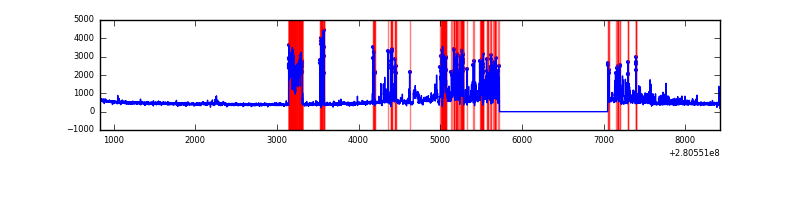

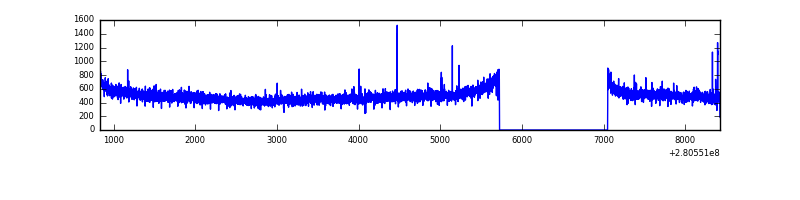

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7591 | 6267 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7591 | 6267 | 39 | 39 | 0.51% | 0.62% |  |
| C | 7590 | 6266 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7590 | 6266 | 297 | 297 | 3.91% | 4.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 30611 | 192.92 | 773 | 757 | 154.7 |
| A | 0 | 226 | 6945 | 39.99 | 773 | 757 | 154.7 |
| A | 12 | 194 | 5524 | 30.81 | 773 | 757 | 154.7 |
| B | 0 | 229 | 386224 | 2672.52 | 770 | 752 | 144.2 |
| B | 0 | 189 | 56493 | 386.46 | 770 | 752 | 144.2 |
| B | 12 | 111 | 16655 | 110.26 | 770 | 752 | 144.2 |
| C | 14 | 238 | 116730 | 692.45 | 729 | 735 | 167.5 |
| C | 3 | 233 | 92382 | 547.1 | 729 | 735 | 167.5 |
| C | 9 | 160 | 10460 | 58.05 | 729 | 735 | 167.5 |
| D | 1 | 52 | 835305 | 4826.02 | 721 | 696 | 172.9 |
| D | 15 | 0 | 337311 | 1946.43 | 721 | 696 | 172.9 |
| D | 5 | 222 | 120191 | 690.96 | 721 | 696 | 172.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

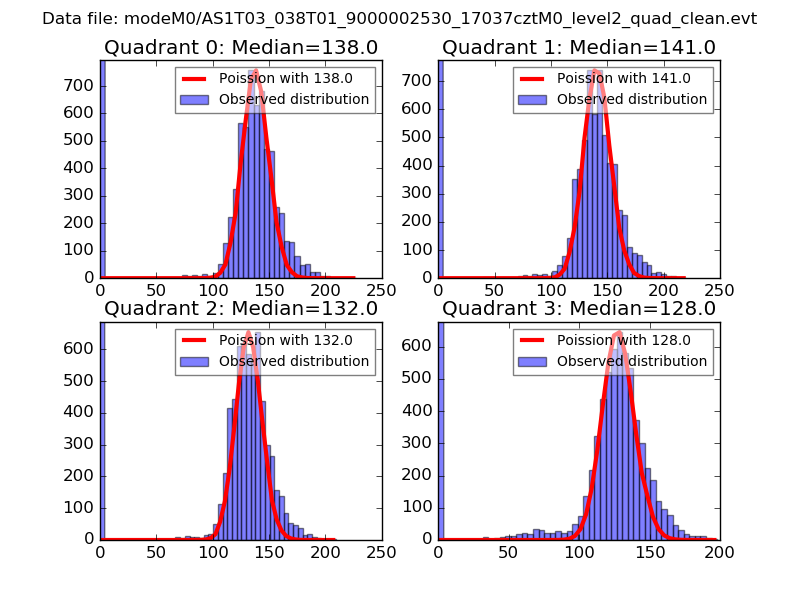

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

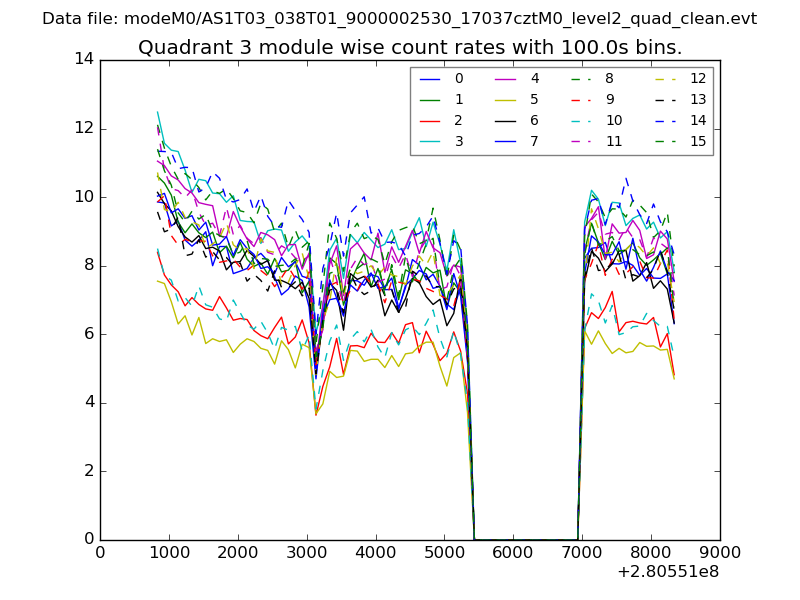

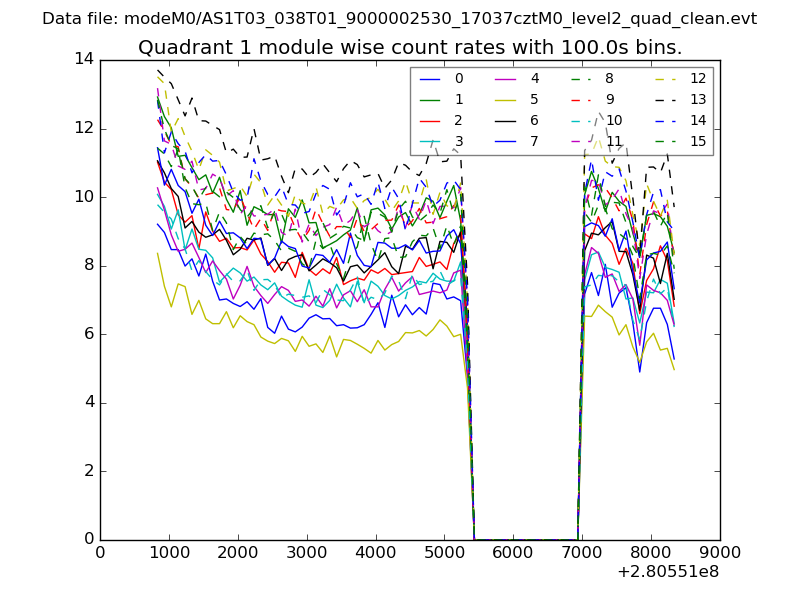

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

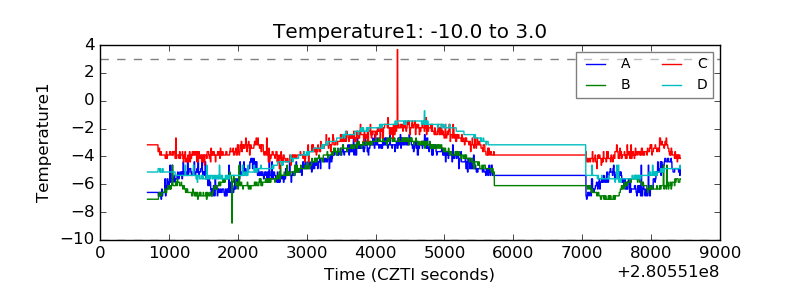

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

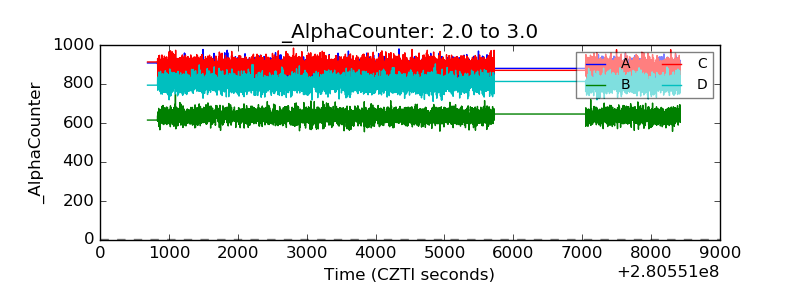

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
