| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_038T01_9000002530_17044cztM0_level2.evt | modeM0/AS1T03_038T01_9000002530_17044cztM0_level2_quad_clean.evt |
| Size (bytes) | 992,491,200 | 186,770,880 |
| Size | 946.5 MB | 178.1 MB |
| Events in quadrant A | 5,982,347 | 1,224,481 |
| Events in quadrant B | 6,015,560 | 1,248,629 |
| Events in quadrant C | 9,298,221 | 1,166,579 |
| Events in quadrant D | 7,900,981 | 1,136,828 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26529 | 2 |
| B | 0 | 26330 | 2 |
| C | 0 | 36565 | 2 |
| D | 0 | 32334 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 0 |
| B | 0 | 260 | 0 |
| C | 0 | 260 | 0 |
| D | 0 | 260 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12727 | 147 | 1.155025% |
| B | 12727 | 78 | 0.612870% |
| C | 12728 | 233 | 1.830610% |
| D | 12728 | 698 | 5.483972% |

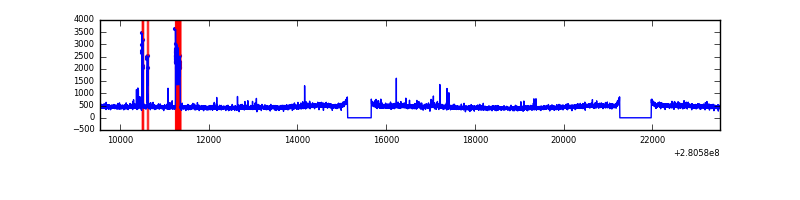

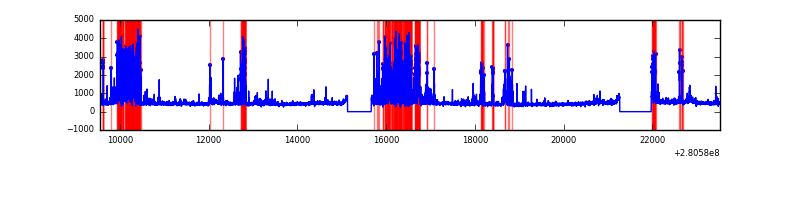

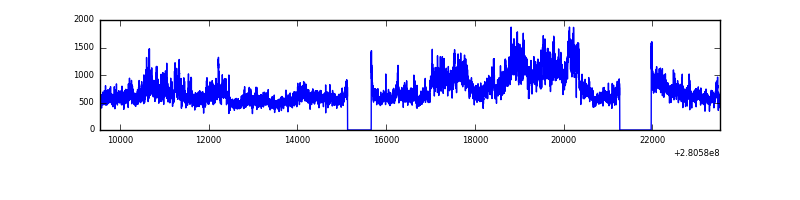

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13972 | 12729 | 81 | 81 | 0.58% | 0.64% |  |
| B | 13972 | 12729 | 20 | 20 | 0.14% | 0.16% |  |
| C | 13973 | 12730 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13973 | 12730 | 503 | 503 | 3.60% | 3.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 295187 | 986.23 | 1469 | 1435 | 297.9 |
| A | 4 | 2 | 26229 | 83.24 | 1469 | 1435 | 297.9 |
| A | 0 | 254 | 17973 | 55.52 | 1469 | 1435 | 297.9 |
| B | 3 | 209 | 90384 | 316.35 | 1470 | 1432 | 281.2 |
| B | 4 | 173 | 82160 | 287.11 | 1470 | 1432 | 281.2 |
| B | 4 | 216 | 46919 | 161.77 | 1470 | 1432 | 281.2 |
| C | 3 | 233 | 3365064 | 10282.44 | 1405 | 1407 | 327.1 |
| C | 14 | 238 | 213651 | 648.81 | 1405 | 1407 | 327.1 |
| C | 7 | 247 | 196578 | 596.62 | 1405 | 1407 | 327.1 |
| D | 1 | 52 | 1825999 | 5346.26 | 1406 | 1364 | 341.3 |
| D | 10 | 70 | 358715 | 1047.05 | 1406 | 1364 | 341.3 |
| D | 5 | 222 | 310540 | 905.9 | 1406 | 1364 | 341.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

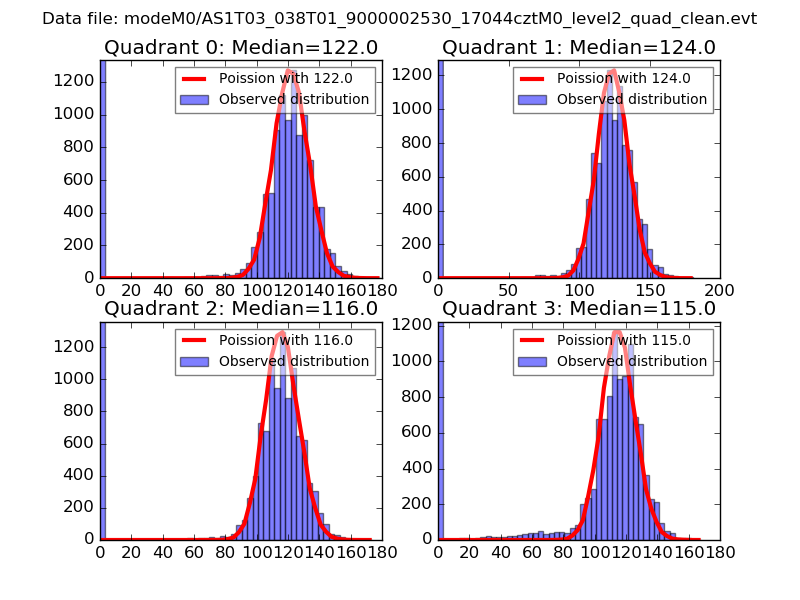

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

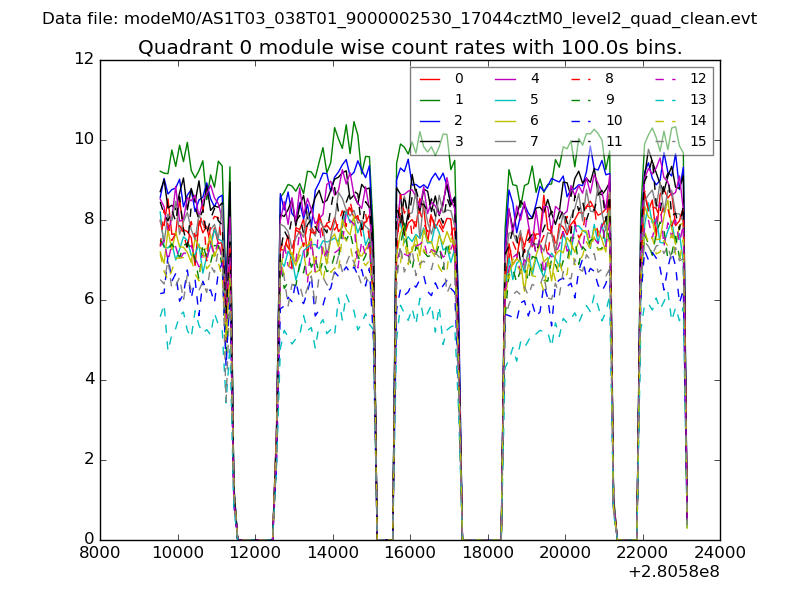

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

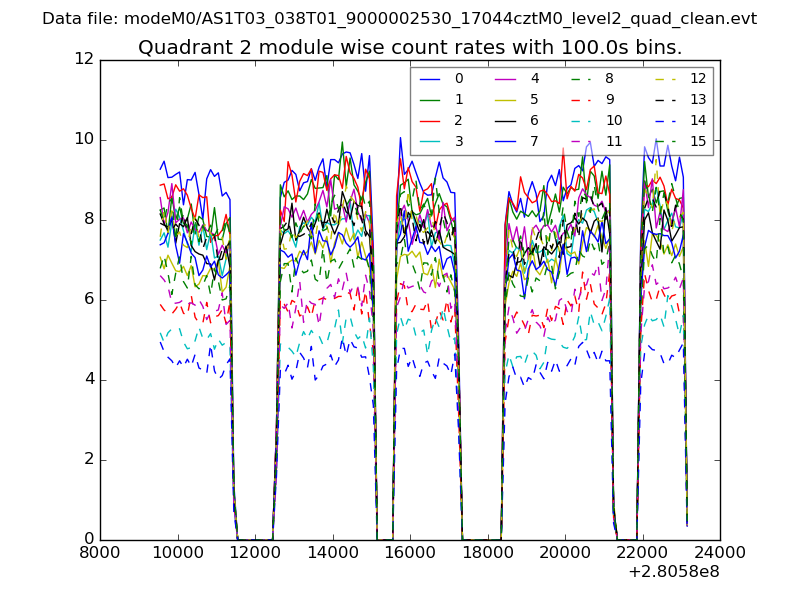

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

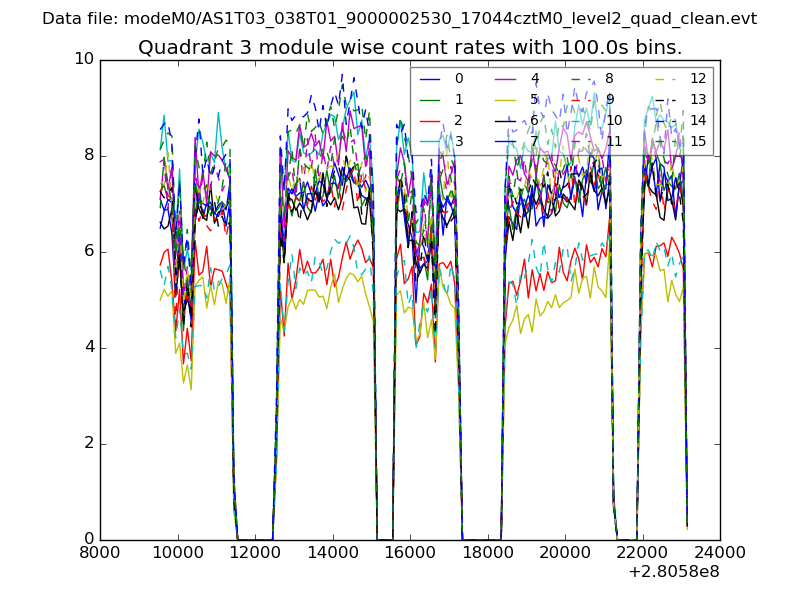

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

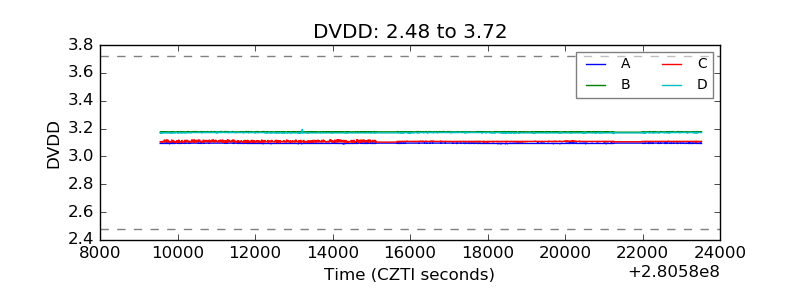

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
