| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_038T01_9000002530_17045cztM0_level2.evt | modeM0/AS1T03_038T01_9000002530_17045cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,978,880 | 90,930,240 |
| Size | 512.1 MB | 86.7 MB |
| Events in quadrant A | 2,967,536 | 587,419 |
| Events in quadrant B | 3,061,322 | 599,309 |
| Events in quadrant C | 6,450,449 | 544,076 |
| Events in quadrant D | 3,337,240 | 564,217 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13326 | 1 |
| B | 0 | 13420 | 1 |
| C | 0 | 23878 | 3 |
| D | 0 | 14521 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6571 | 24 | 0.365241% |
| B | 6572 | 37 | 0.562995% |
| C | 6571 | 730 | 11.109420% |
| D | 6571 | 90 | 1.369655% |

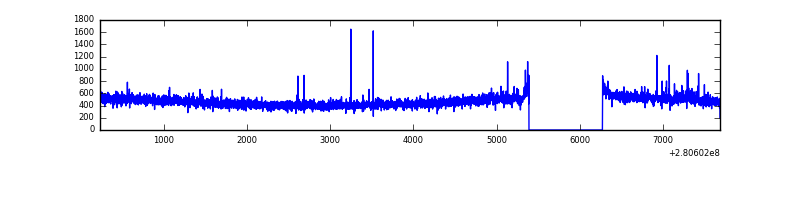

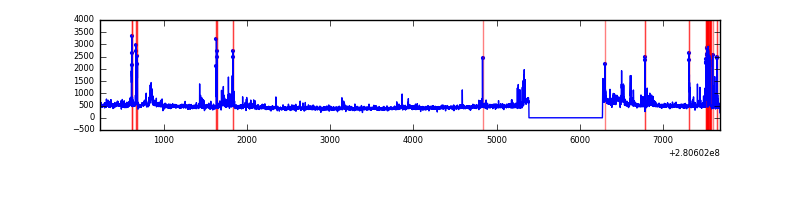

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7457 | 6573 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7458 | 6574 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7457 | 6572 | 218 | 218 | 2.92% | 3.32% |  |
| D | 7457 | 6573 | 46 | 46 | 0.62% | 0.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6710 | 38.15 | 770 | 753 | 156.1 |
| A | 3 | 137 | 5718 | 31.8 | 770 | 753 | 156.1 |
| A | 12 | 194 | 5525 | 30.56 | 770 | 753 | 156.1 |
| B | 12 | 111 | 17553 | 113.8 | 772 | 752 | 147.6 |
| B | 0 | 229 | 15852 | 102.28 | 772 | 752 | 147.6 |
| B | 11 | 111 | 15071 | 96.99 | 772 | 752 | 147.6 |
| C | 3 | 233 | 3497885 | 20702.73 | 722 | 724 | 168.9 |
| C | 14 | 238 | 110566 | 650.25 | 722 | 724 | 168.9 |
| C | 7 | 247 | 6921 | 36.69 | 722 | 724 | 168.9 |
| D | 5 | 222 | 187057 | 1018.27 | 752 | 728 | 183.0 |
| D | 2 | 14 | 154304 | 839.27 | 752 | 728 | 183.0 |
| D | 10 | 70 | 85706 | 464.39 | 752 | 728 | 183.0 |

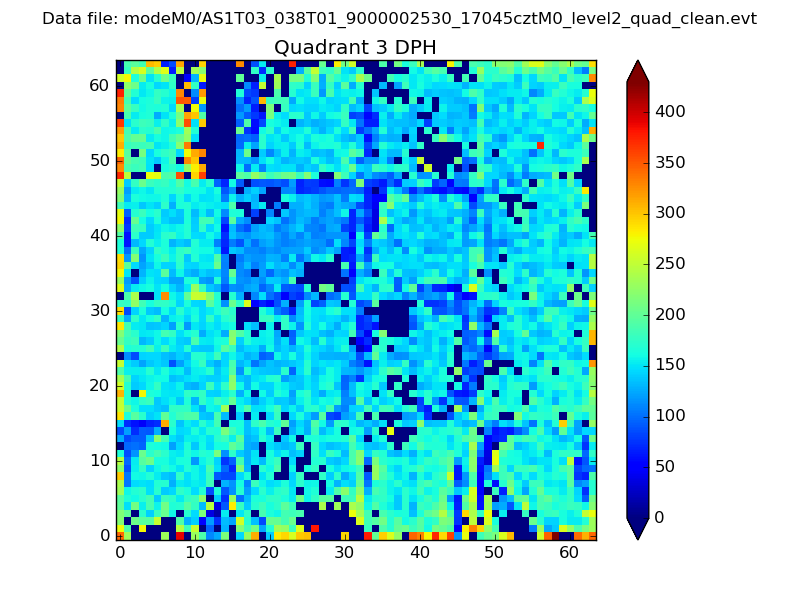

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

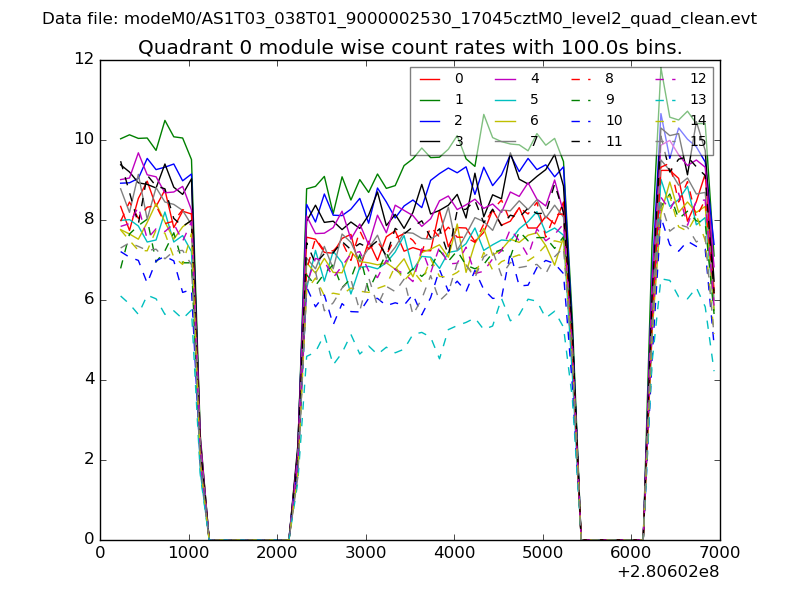

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

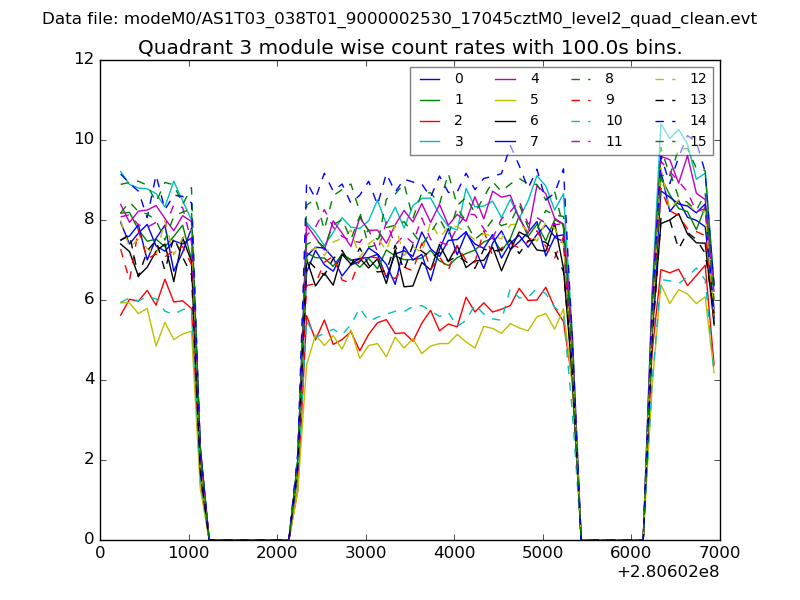

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

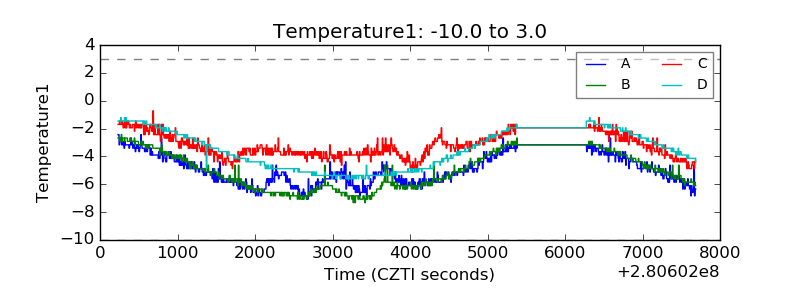

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

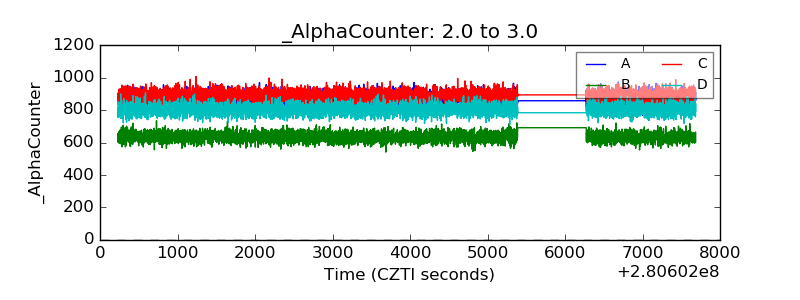

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

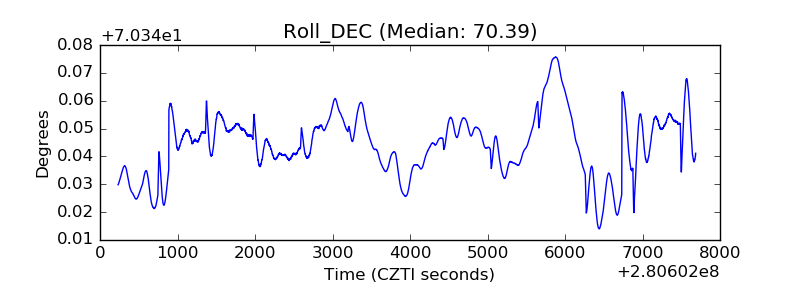

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
