| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_004T01_9000002532_17071cztM0_level2.evt | modeM0/AS1T03_004T01_9000002532_17071cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,992,960 | 99,146,880 |
| Size | 508.3 MB | 94.6 MB |
| Events in quadrant A | 3,708,208 | 623,759 |
| Events in quadrant B | 3,999,953 | 631,504 |
| Events in quadrant C | 4,027,269 | 607,513 |
| Events in quadrant D | 3,875,735 | 596,570 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16205 | 2 |
| B | 0 | 16755 | 2 |
| C | 0 | 17078 | 2 |
| D | 0 | 16916 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7813 | 227 | 2.905414% |
| B | 7814 | 274 | 3.506527% |
| C | 7814 | 254 | 3.250576% |
| D | 7814 | 149 | 1.906834% |

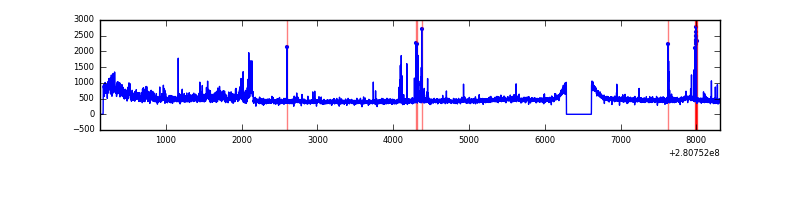

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8183 | 7815 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8184 | 7816 | 19 | 19 | 0.23% | 0.24% |  |
| C | 8184 | 7816 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8184 | 7816 | 15 | 15 | 0.18% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 11128 | 51.86 | 959 | 937 | 196.5 |
| A | 0 | 226 | 8346 | 37.7 | 959 | 937 | 196.5 |
| A | 3 | 137 | 7203 | 31.89 | 959 | 937 | 196.5 |
| B | 7 | 220 | 111427 | 598.42 | 954 | 928 | 184.7 |
| B | 3 | 209 | 42243 | 223.74 | 954 | 928 | 184.7 |
| B | 0 | 189 | 31563 | 165.91 | 954 | 928 | 184.7 |
| C | 3 | 233 | 315984 | 1464.86 | 911 | 915 | 215.1 |
| C | 14 | 238 | 139889 | 646.14 | 911 | 915 | 215.1 |
| C | 8 | 128 | 11663 | 49.97 | 911 | 915 | 215.1 |
| D | 5 | 222 | 200611 | 876.99 | 932 | 902 | 227.7 |
| D | 10 | 70 | 96356 | 419.17 | 932 | 902 | 227.7 |
| D | 2 | 234 | 33440 | 142.89 | 932 | 902 | 227.7 |

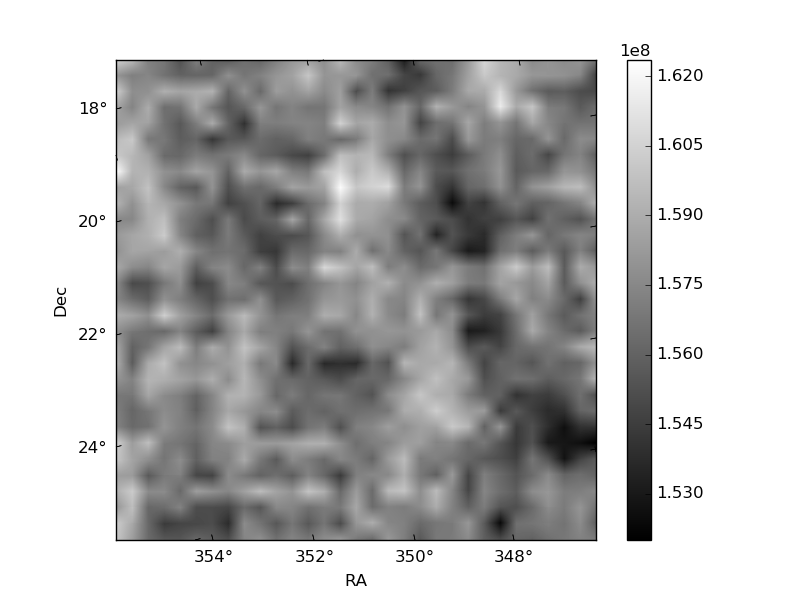

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

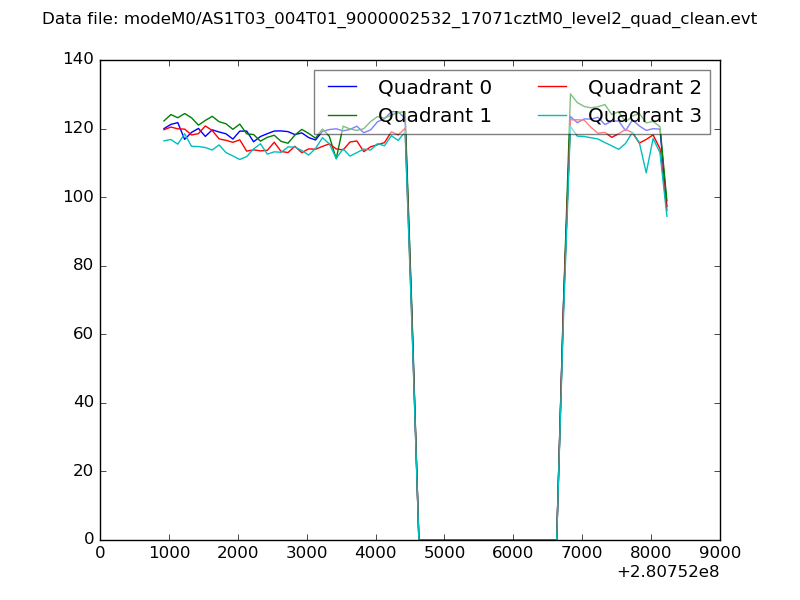

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

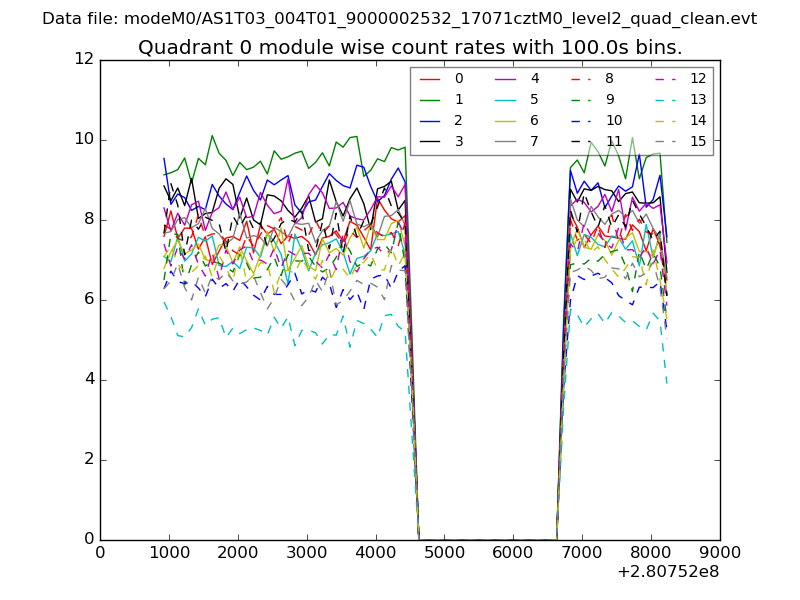

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

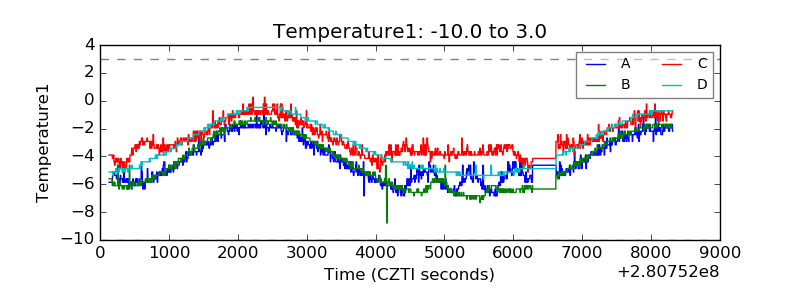

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

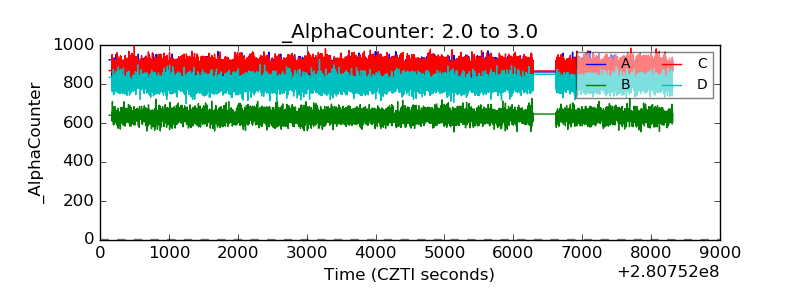

| Alpha Counter |  |
| _CPM_Rate |  |

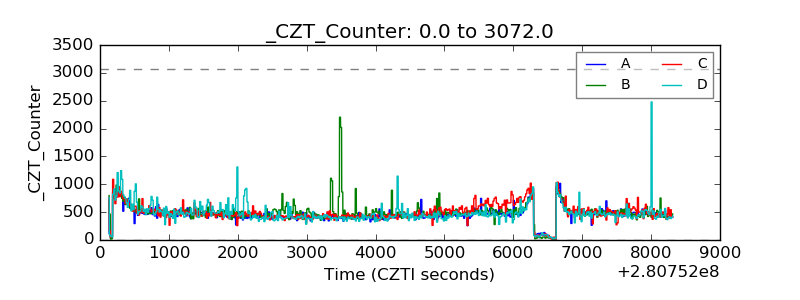

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

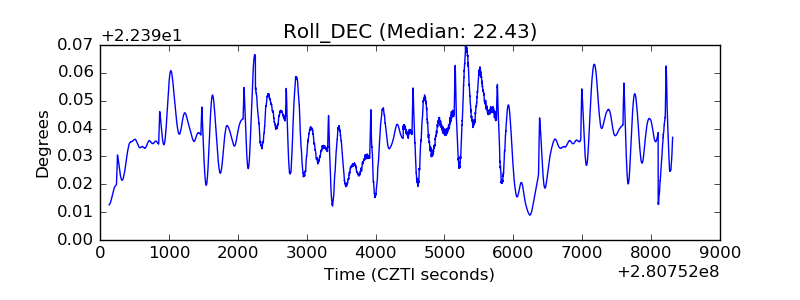

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
