| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T04_9000002534_17081cztM0_level2.evt | modeM0/AS1A05_004T04_9000002534_17081cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,514,880 | 77,803,200 |
| Size | 456.3 MB | 74.2 MB |
| Events in quadrant A | 3,166,717 | 487,363 |
| Events in quadrant B | 3,366,901 | 497,200 |
| Events in quadrant C | 4,057,270 | 466,333 |
| Events in quadrant D | 3,459,274 | 451,269 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13484 | 2 |
| B | 0 | 14045 | 2 |
| C | 0 | 16272 | 3 |
| D | 0 | 14726 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6512 | 45 | 0.691032% |
| B | 6512 | 77 | 1.182432% |
| C | 6511 | 117 | 1.796959% |
| D | 6511 | 91 | 1.397635% |

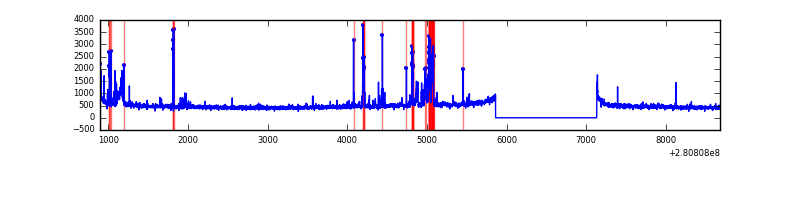

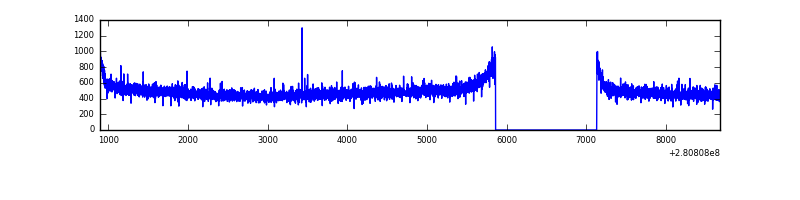

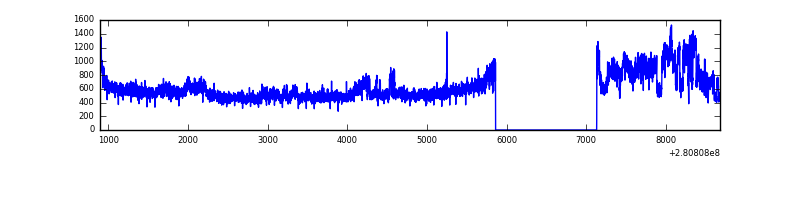

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7782 | 6513 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7782 | 6513 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7781 | 6512 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7781 | 6512 | 63 | 63 | 0.81% | 0.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 9948 | 55.43 | 821 | 804 | 165.0 |
| A | 0 | 226 | 7153 | 38.49 | 821 | 804 | 165.0 |
| A | 12 | 194 | 5956 | 31.23 | 821 | 804 | 165.0 |
| B | 0 | 189 | 63995 | 410.79 | 826 | 807 | 153.8 |
| B | 0 | 197 | 43635 | 278.43 | 826 | 807 | 153.8 |
| B | 12 | 111 | 17846 | 110.77 | 826 | 807 | 153.8 |
| C | 3 | 233 | 860522 | 4762.76 | 784 | 790 | 180.5 |
| C | 14 | 238 | 123753 | 681.19 | 784 | 790 | 180.5 |
| C | 7 | 247 | 14849 | 77.88 | 784 | 790 | 180.5 |
| D | 10 | 70 | 178359 | 933.83 | 783 | 759 | 190.2 |
| D | 1 | 52 | 173205 | 906.73 | 783 | 759 | 190.2 |
| D | 5 | 222 | 55747 | 289.13 | 783 | 759 | 190.2 |

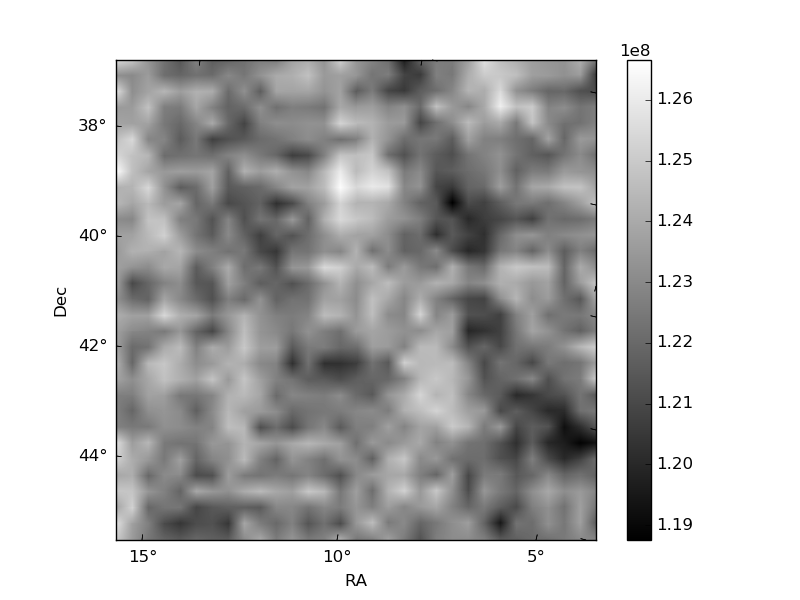

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

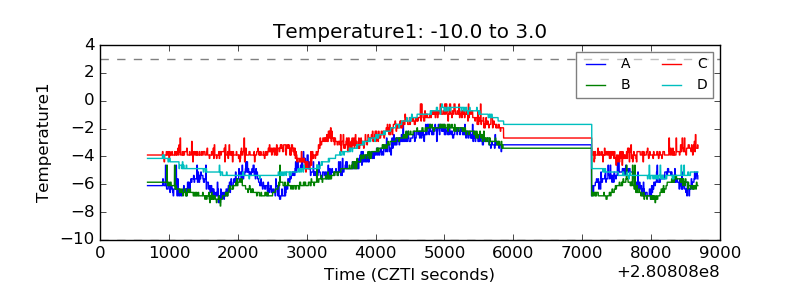

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

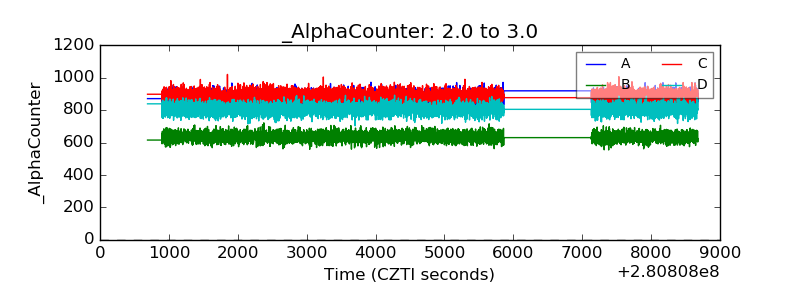

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

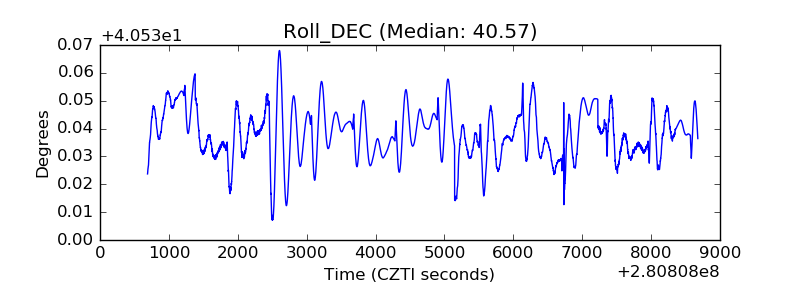

| _Roll_DEC |  |

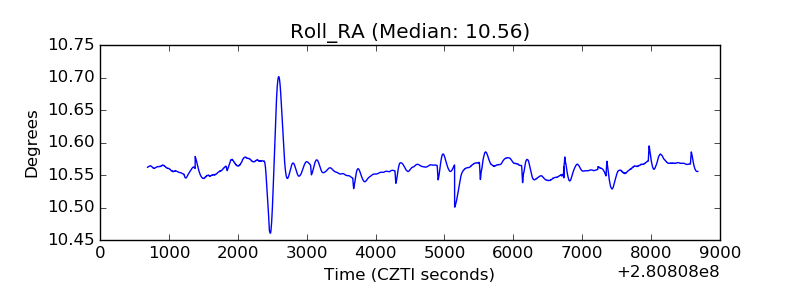

| _Roll_RA |  |
| Veto Counter |  |
