| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T04_9000002534_17088cztM0_level2.evt | modeM0/AS1A05_004T04_9000002534_17088cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,228,124,160 | 243,550,080 |
| Size | 1.1 GB | 232.3 MB |
| Events in quadrant A | 8,162,020 | 1,569,602 |
| Events in quadrant B | 8,855,585 | 1,575,492 |
| Events in quadrant C | 10,497,430 | 1,502,736 |
| Events in quadrant D | 8,465,291 | 1,492,383 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36616 | 3 |
| B | 0 | 37991 | 3 |
| C | 0 | 42629 | 3 |
| D | 0 | 37906 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 364 | 0 |
| B | 0 | 364 | 0 |
| C | 0 | 364 | 0 |
| D | 0 | 364 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17943 | 220 | 1.226105% |
| B | 17943 | 261 | 1.454606% |
| C | 17943 | 310 | 1.727693% |
| D | 17943 | 272 | 1.515911% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19728 | 17944 | 1 | 1 | 0.01% | 0.01% |  |
| B | 19728 | 17943 | 46 | 46 | 0.23% | 0.26% |  |
| C | 19728 | 17944 | 2 | 2 | 0.01% | 0.01% |  |
| D | 19728 | 17944 | 80 | 80 | 0.41% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 25923 | 55.74 | 2116 | 2064 | 428.1 |
| A | 0 | 226 | 18629 | 38.7 | 2116 | 2064 | 428.1 |
| A | 12 | 194 | 15758 | 31.99 | 2116 | 2064 | 428.1 |
| B | 7 | 220 | 314945 | 772.7 | 2110 | 2051 | 404.9 |
| B | 0 | 219 | 126839 | 308.17 | 2110 | 2051 | 404.9 |
| B | 0 | 197 | 60779 | 145.03 | 2110 | 2051 | 404.9 |
| C | 3 | 233 | 2211027 | 4667.72 | 2025 | 2037 | 473.2 |
| C | 14 | 238 | 308611 | 647.81 | 2025 | 2037 | 473.2 |
| C | 9 | 54 | 37353 | 74.62 | 2025 | 2037 | 473.2 |
| D | 10 | 70 | 237272 | 470.82 | 2064 | 2000 | 499.7 |
| D | 15 | 0 | 121896 | 239.93 | 2064 | 2000 | 499.7 |
| D | 1 | 52 | 110241 | 216.61 | 2064 | 2000 | 499.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

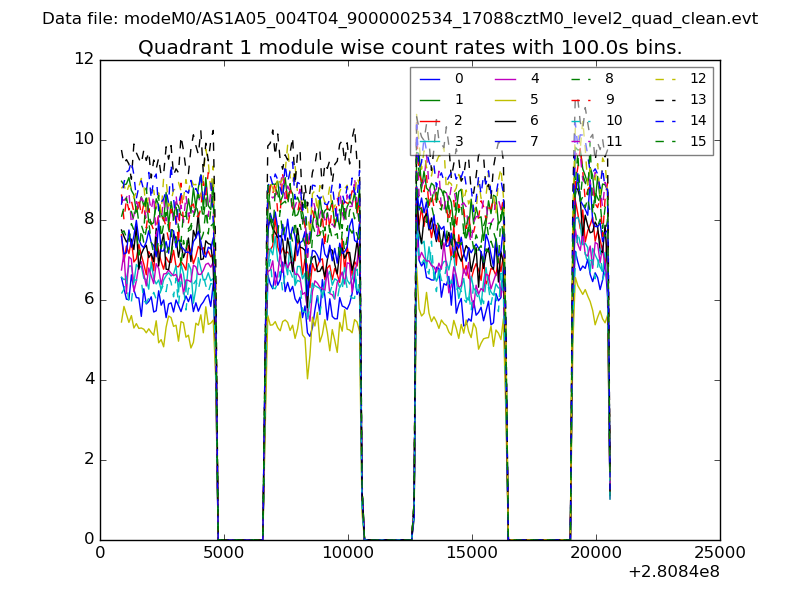

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

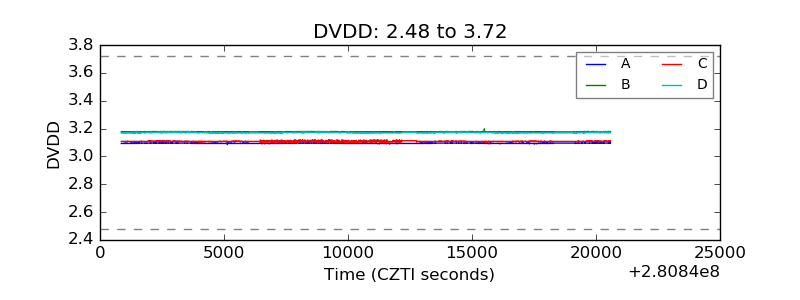

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

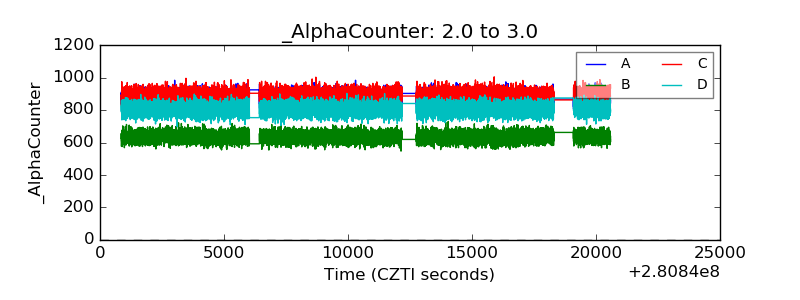

| Alpha Counter |  |

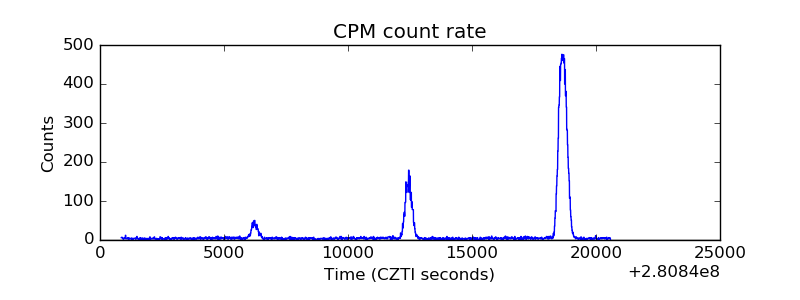

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

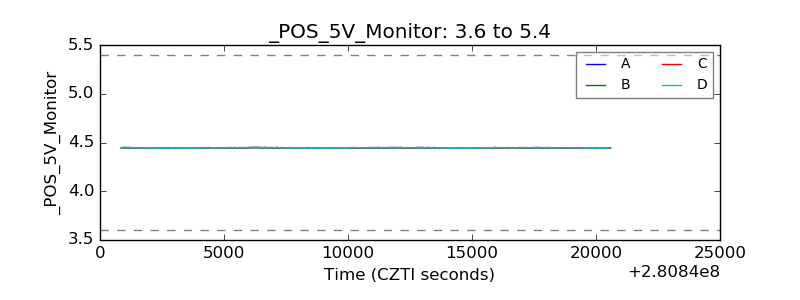

| +5 Volts monitor |  |
| _ROLL_ROT |  |

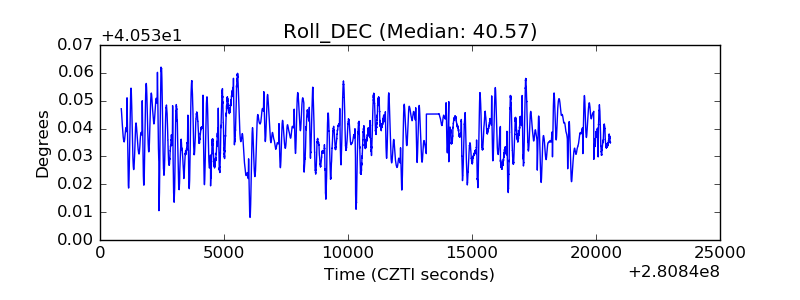

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
