| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T06_9000002536_17094cztM0_level2.evt | modeM0/AS1A05_004T06_9000002536_17094cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,040,960 | 91,512,000 |
| Size | 411.1 MB | 87.3 MB |
| Events in quadrant A | 3,057,506 | 594,724 |
| Events in quadrant B | 3,205,304 | 616,169 |
| Events in quadrant C | 3,180,350 | 578,545 |
| Events in quadrant D | 3,195,038 | 554,599 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12899 | 2 |
| B | 0 | 13277 | 2 |
| C | 0 | 13098 | 2 |
| D | 0 | 13589 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6121 | 35 | 0.571802% |
| B | 6121 | 45 | 0.735174% |
| C | 6121 | 62 | 1.012906% |
| D | 6121 | 53 | 0.865872% |

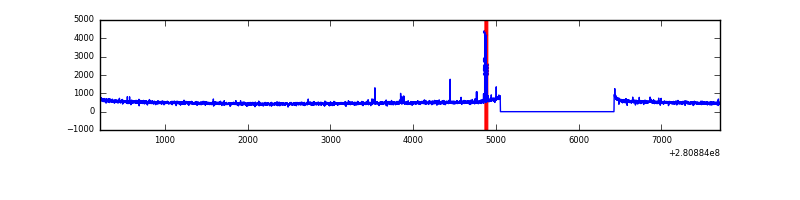

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7496 | 6122 | 17 | 17 | 0.23% | 0.28% |  |
| B | 7496 | 6122 | 4 | 4 | 0.05% | 0.07% |  |
| C | 7496 | 6122 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7496 | 6122 | 25 | 25 | 0.33% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 75379 | 482.6 | 775 | 762 | 154.6 |
| A | 0 | 226 | 6810 | 39.12 | 775 | 762 | 154.6 |
| A | 12 | 194 | 5582 | 31.17 | 775 | 762 | 154.6 |
| B | 0 | 197 | 26640 | 174.73 | 791 | 774 | 148.0 |
| B | 0 | 219 | 21948 | 143.03 | 791 | 774 | 148.0 |
| B | 0 | 189 | 19846 | 128.84 | 791 | 774 | 148.0 |
| C | 14 | 238 | 118700 | 674.93 | 756 | 763 | 174.7 |
| C | 3 | 233 | 71671 | 405.79 | 756 | 763 | 174.7 |
| C | 5 | 112 | 18737 | 102.86 | 756 | 763 | 174.7 |
| D | 5 | 222 | 146683 | 806.31 | 751 | 730 | 181.0 |
| D | 10 | 70 | 118518 | 650.71 | 751 | 730 | 181.0 |
| D | 15 | 0 | 45753 | 248.73 | 751 | 730 | 181.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

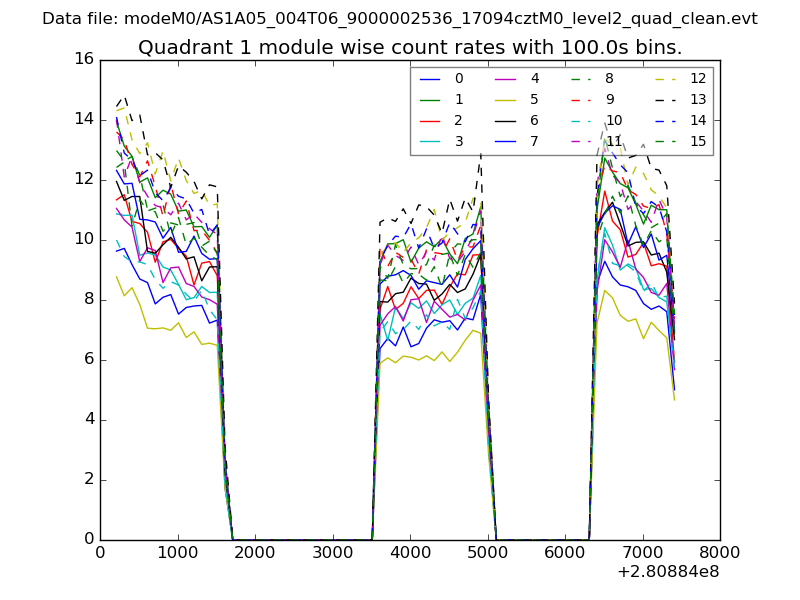

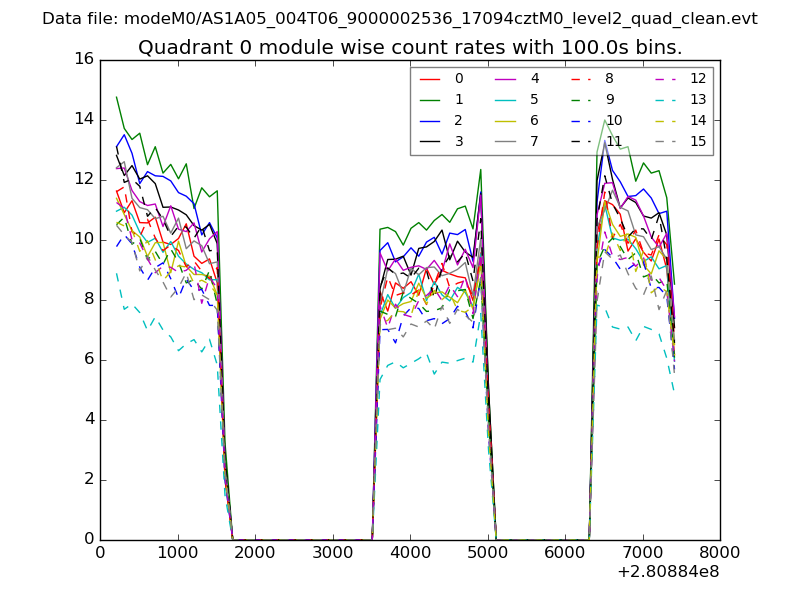

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

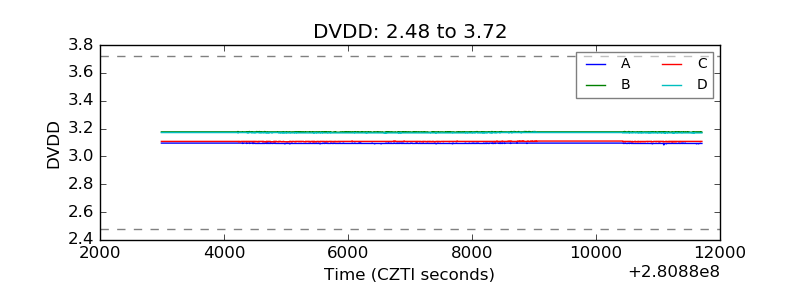

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

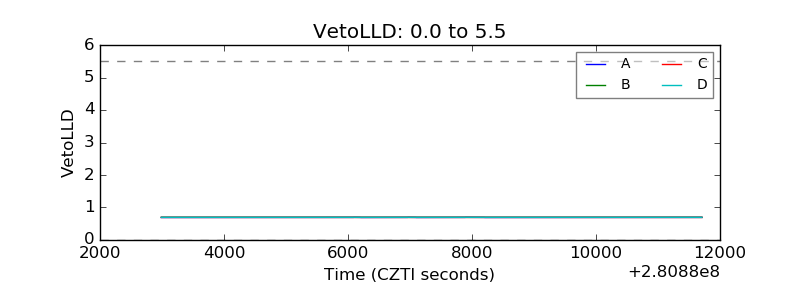

| Veto LLD |  |

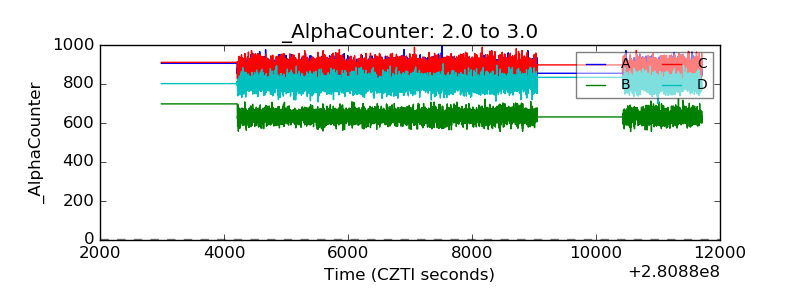

| Alpha Counter |  |
| _CPM_Rate |  |

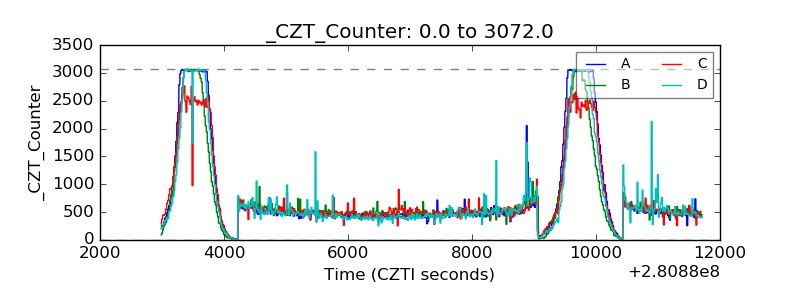

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

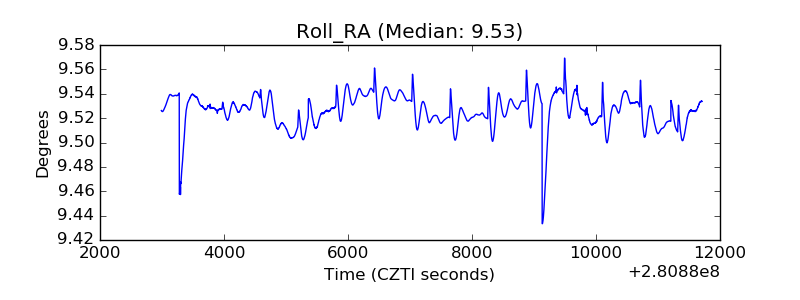

| _Roll_RA |  |
| Veto Counter |  |
