| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T06_9000002536_17098cztM0_level2.evt | modeM0/AS1A05_004T06_9000002536_17098cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,512,000 | 80,772,480 |
| Size | 482.1 MB | 77.0 MB |
| Events in quadrant A | 3,549,267 | 488,318 |
| Events in quadrant B | 3,742,516 | 494,055 |
| Events in quadrant C | 3,700,573 | 473,312 |
| Events in quadrant D | 3,803,994 | 464,771 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15678 | 2 |
| B | 0 | 15977 | 3 |
| C | 0 | 15828 | 2 |
| D | 0 | 16711 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7547 | 220 | 2.915066% |
| B | 7546 | 244 | 3.233501% |
| C | 7546 | 228 | 3.021468% |
| D | 7547 | 251 | 3.325825% |

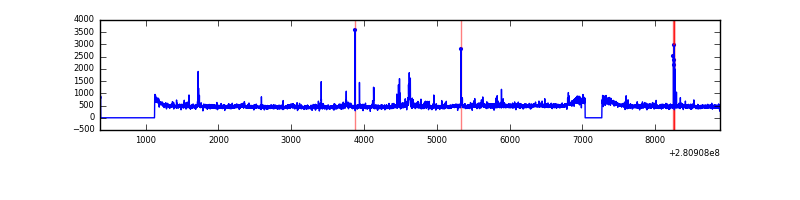

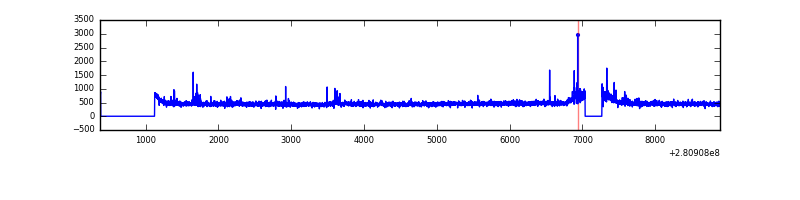

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8517 | 7548 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8516 | 7548 | 6 | 6 | 0.07% | 0.08% |  |
| C | 8516 | 7548 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8517 | 7547 | 68 | 68 | 0.80% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 70335 | 377.07 | 905 | 884 | 184.2 |
| A | 0 | 226 | 7836 | 37.74 | 905 | 884 | 184.2 |
| A | 3 | 137 | 6690 | 31.52 | 905 | 884 | 184.2 |
| B | 0 | 189 | 51142 | 287.15 | 909 | 883 | 175.0 |
| B | 0 | 229 | 34630 | 192.81 | 909 | 883 | 175.0 |
| B | 0 | 197 | 30187 | 167.42 | 909 | 883 | 175.0 |
| C | 14 | 238 | 134221 | 652.48 | 873 | 879 | 204.4 |
| C | 3 | 233 | 129749 | 630.6 | 873 | 879 | 204.4 |
| C | 7 | 247 | 23399 | 110.2 | 873 | 879 | 204.4 |
| D | 5 | 222 | 275350 | 1279.91 | 879 | 849 | 214.5 |
| D | 10 | 70 | 108246 | 500.76 | 879 | 849 | 214.5 |
| D | 1 | 52 | 62575 | 287.81 | 879 | 849 | 214.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

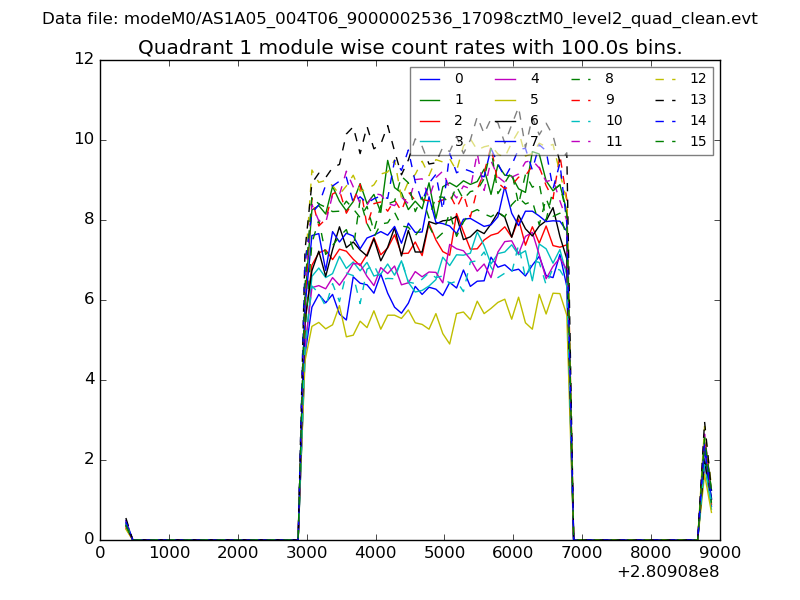

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

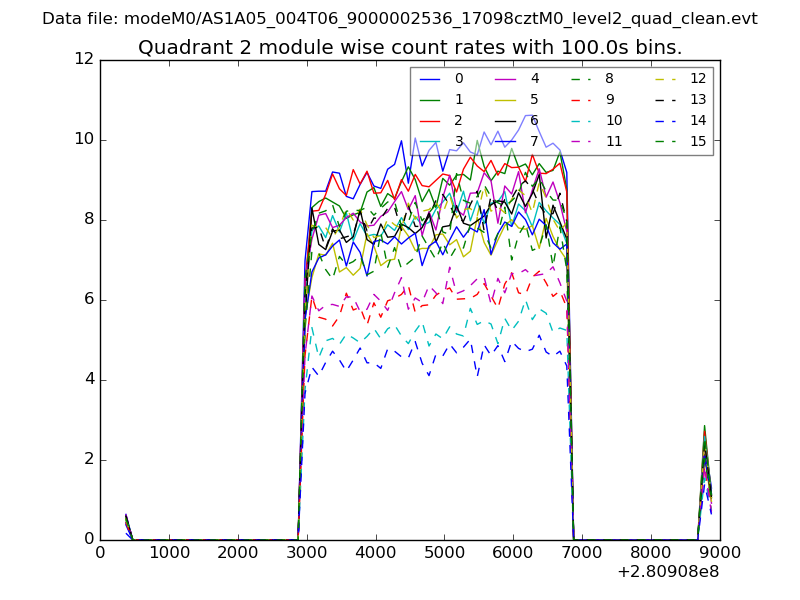

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

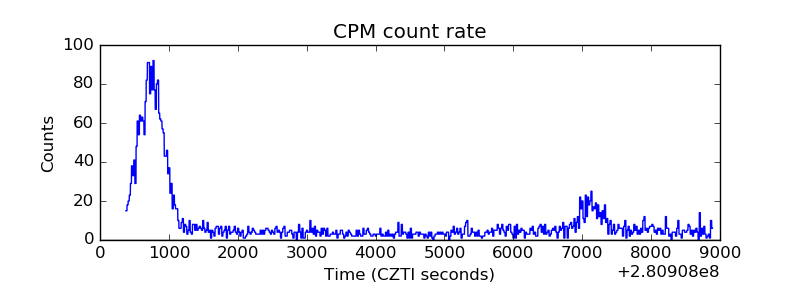

| _CPM_Rate |  |

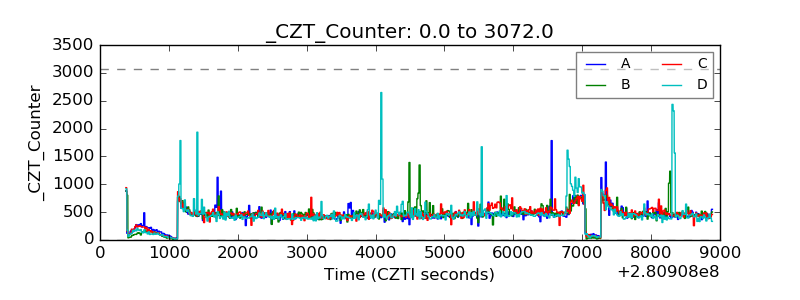

| CZT Counter |  |
| +2.5 Volts monitor |  |

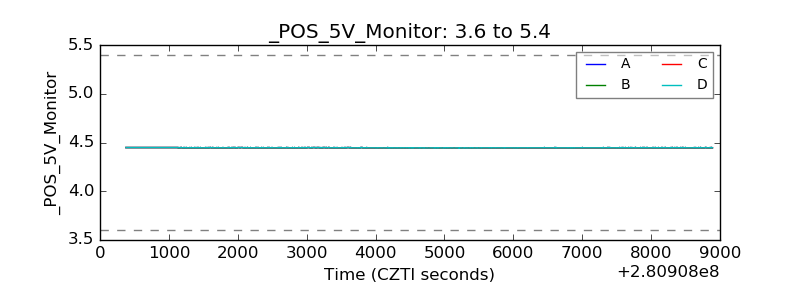

| +5 Volts monitor |  |

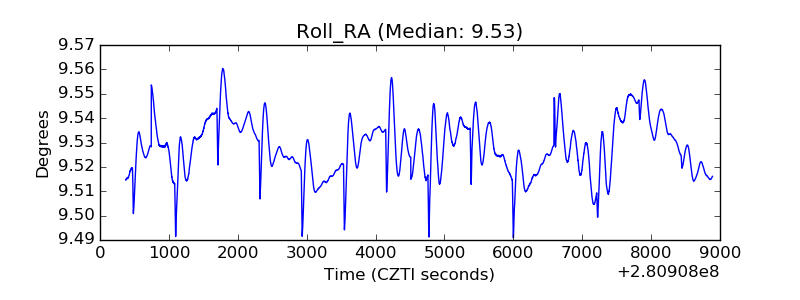

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
