| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002540_17122cztM0_level2.evt | modeM0/AS1A05_056T01_9000002540_17122cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,458,560 | 93,591,360 |
| Size | 420.1 MB | 89.3 MB |
| Events in quadrant A | 3,337,234 | 607,773 |
| Events in quadrant B | 3,184,744 | 635,223 |
| Events in quadrant C | 3,303,789 | 589,276 |
| Events in quadrant D | 3,091,610 | 568,506 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13920 | 2 |
| B | 0 | 13237 | 2 |
| C | 0 | 13639 | 2 |
| D | 0 | 13363 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6218 | 42 | 0.675458% |
| B | 6218 | 31 | 0.498553% |
| C | 6217 | 53 | 0.852501% |
| D | 6217 | 41 | 0.659482% |

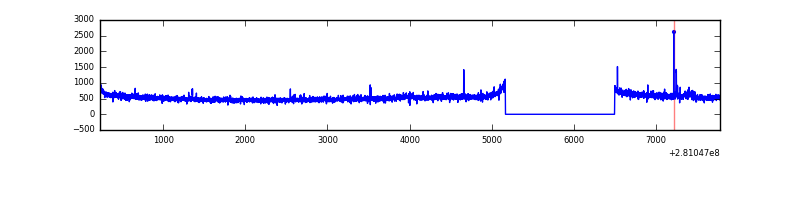

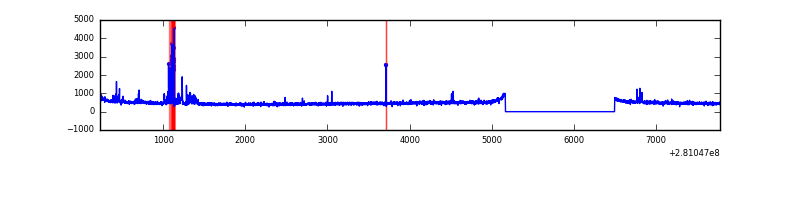

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7548 | 6219 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7548 | 6219 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7547 | 6218 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7547 | 6218 | 25 | 25 | 0.33% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 119842 | 746.35 | 799 | 785 | 159.5 |
| A | 4 | 2 | 112513 | 700.41 | 799 | 785 | 159.5 |
| A | 12 | 189 | 34513 | 211.44 | 799 | 785 | 159.5 |
| B | 12 | 111 | 18134 | 112.65 | 812 | 795 | 153.9 |
| B | 11 | 111 | 15358 | 94.62 | 812 | 795 | 153.9 |
| B | 14 | 111 | 13835 | 84.72 | 812 | 795 | 153.9 |
| C | 3 | 233 | 149873 | 826.13 | 773 | 781 | 180.5 |
| C | 14 | 238 | 120666 | 664.29 | 773 | 781 | 180.5 |
| C | 5 | 112 | 16620 | 87.77 | 773 | 781 | 180.5 |
| D | 5 | 222 | 176364 | 937.55 | 770 | 748 | 187.3 |
| D | 2 | 234 | 20618 | 106.08 | 770 | 748 | 187.3 |
| D | 1 | 52 | 17191 | 87.78 | 770 | 748 | 187.3 |

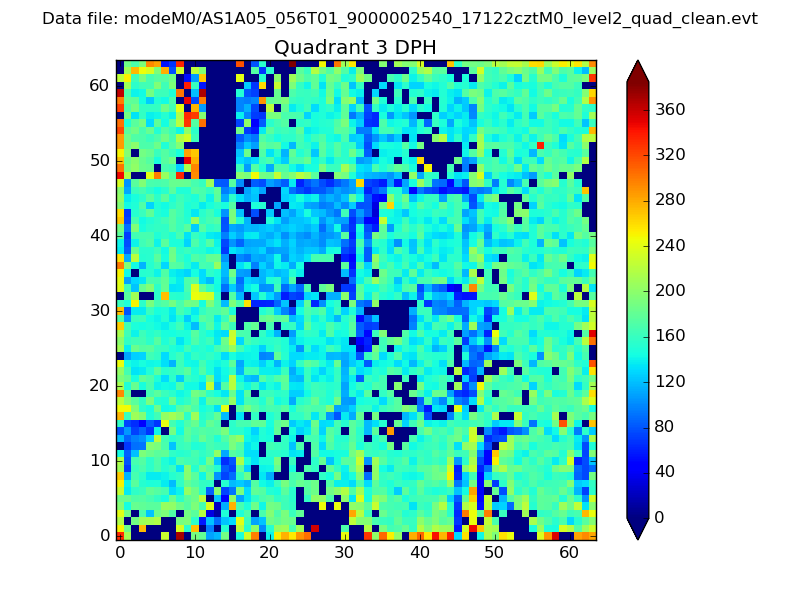

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

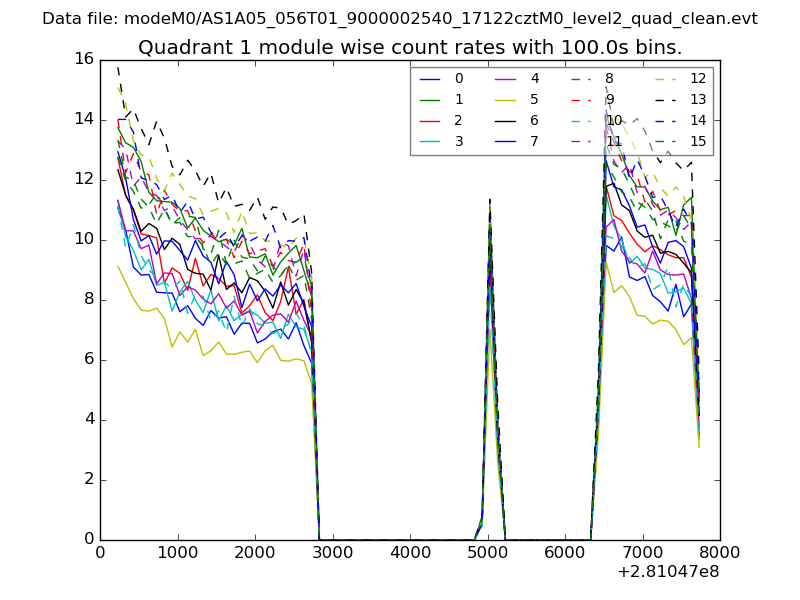

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

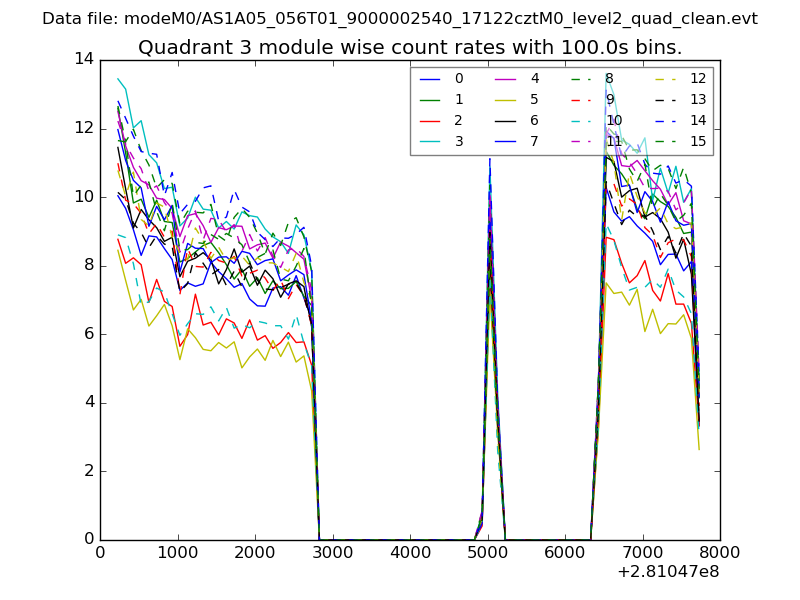

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

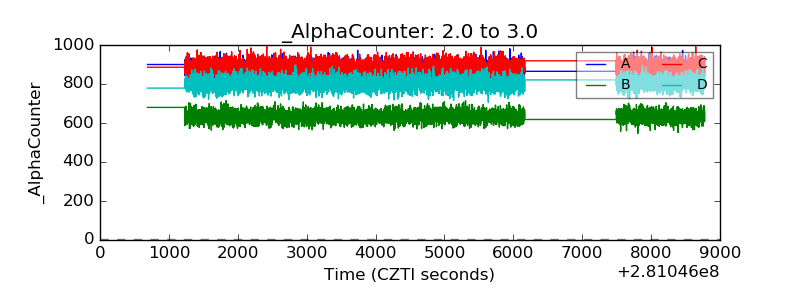

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

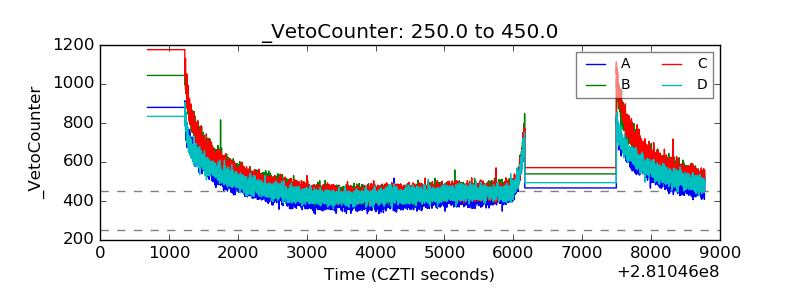

| Veto Counter |  |
