| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002540_17123cztM0_level2.evt | modeM0/AS1A05_056T01_9000002540_17123cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,758,720 | 96,134,400 |
| Size | 428.0 MB | 91.7 MB |
| Events in quadrant A | 3,259,822 | 623,112 |
| Events in quadrant B | 3,252,853 | 652,053 |
| Events in quadrant C | 3,554,796 | 608,463 |
| Events in quadrant D | 3,097,654 | 590,655 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13545 | 2 |
| B | 0 | 13367 | 2 |
| C | 0 | 14458 | 2 |
| D | 0 | 13242 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6270 | 47 | 0.749601% |
| B | 6270 | 50 | 0.797448% |
| C | 6270 | 67 | 1.068581% |
| D | 6270 | 23 | 0.366826% |

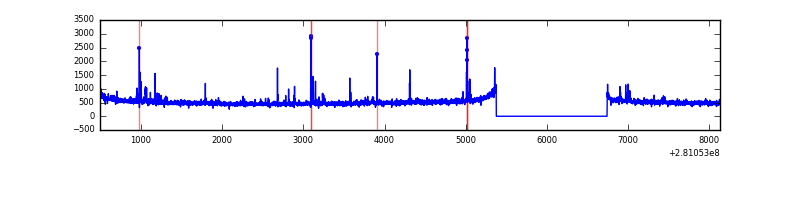

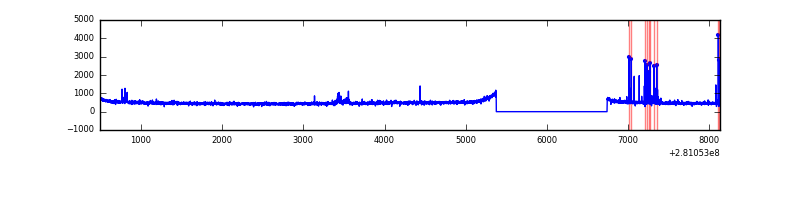

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7635 | 6271 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7635 | 6271 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7635 | 6271 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7635 | 6271 | 10 | 10 | 0.13% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 67118 | 408.06 | 814 | 799 | 162.5 |
| A | 12 | 96 | 50051 | 303.05 | 814 | 799 | 162.5 |
| A | 12 | 189 | 19033 | 112.19 | 814 | 799 | 162.5 |
| B | 0 | 219 | 23345 | 146.17 | 825 | 806 | 154.2 |
| B | 12 | 111 | 18239 | 113.05 | 825 | 806 | 154.2 |
| B | 11 | 111 | 15427 | 94.82 | 825 | 806 | 154.2 |
| C | 3 | 233 | 320127 | 1725.52 | 793 | 802 | 185.1 |
| C | 14 | 238 | 124213 | 666.87 | 793 | 802 | 185.1 |
| C | 5 | 112 | 10108 | 50.29 | 793 | 802 | 185.1 |
| D | 5 | 222 | 46357 | 238.85 | 792 | 771 | 190.9 |
| D | 11 | 176 | 41907 | 215.54 | 792 | 771 | 190.9 |
| D | 1 | 52 | 29187 | 148.89 | 792 | 771 | 190.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

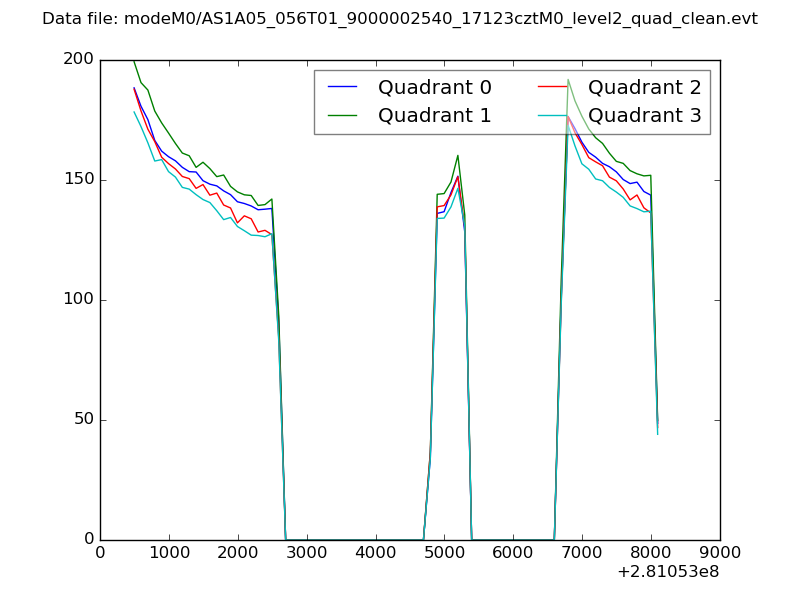

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

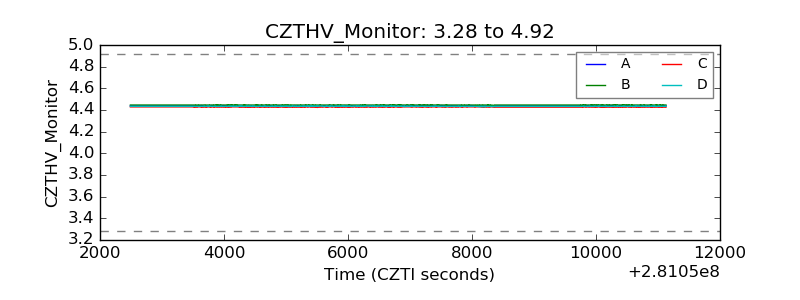

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

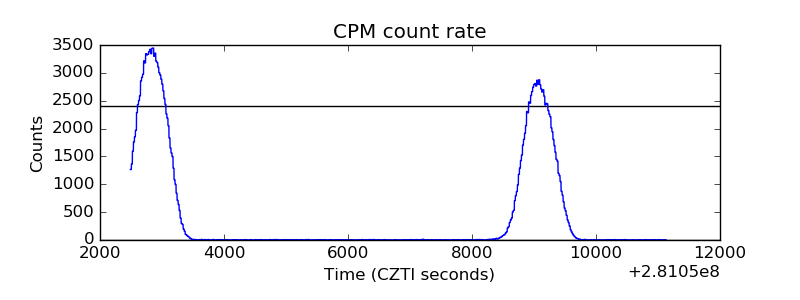

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

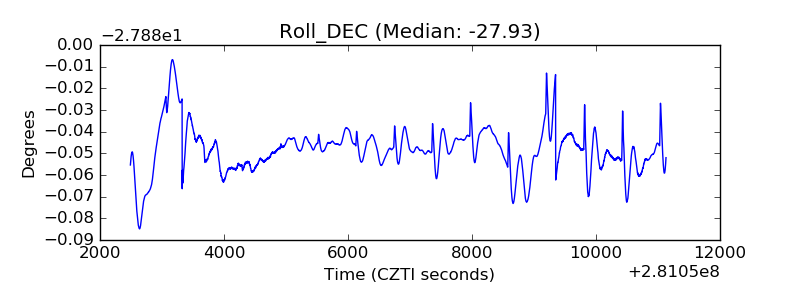

| _Roll_DEC |  |

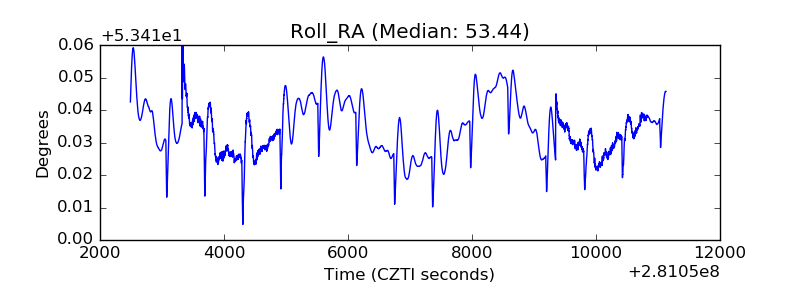

| _Roll_RA |  |

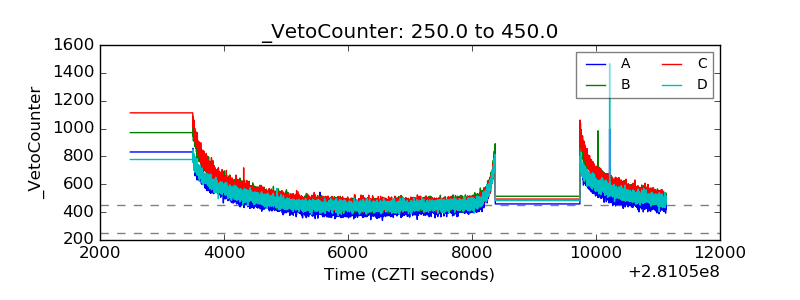

| Veto Counter |  |
