| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002540_17124cztM0_level2.evt | modeM0/AS1A05_056T01_9000002540_17124cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,300,800 | 93,058,560 |
| Size | 444.7 MB | 88.7 MB |
| Events in quadrant A | 3,156,203 | 599,742 |
| Events in quadrant B | 3,204,685 | 626,388 |
| Events in quadrant C | 4,267,760 | 580,816 |
| Events in quadrant D | 3,066,256 | 572,263 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13200 | 2 |
| B | 0 | 13188 | 3 |
| C | 0 | 16952 | 2 |
| D | 0 | 13149 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6288 | 43 | 0.683842% |
| B | 6287 | 32 | 0.508987% |
| C | 6287 | 118 | 1.876889% |
| D | 6287 | 20 | 0.318117% |

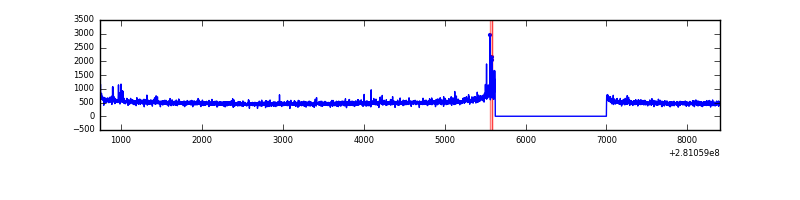

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7663 | 6289 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7662 | 6288 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7662 | 6288 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7662 | 6288 | 15 | 15 | 0.20% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 52578 | 322.71 | 802 | 787 | 160.5 |
| A | 12 | 189 | 23790 | 143.33 | 802 | 787 | 160.5 |
| A | 0 | 226 | 6766 | 37.25 | 802 | 787 | 160.5 |
| B | 12 | 111 | 18051 | 113.17 | 814 | 796 | 152.5 |
| B | 15 | 19 | 16941 | 105.89 | 814 | 796 | 152.5 |
| B | 11 | 111 | 15560 | 96.84 | 814 | 796 | 152.5 |
| C | 3 | 233 | 1067361 | 5839.97 | 784 | 792 | 182.6 |
| C | 14 | 238 | 120044 | 652.96 | 784 | 792 | 182.6 |
| C | 9 | 160 | 8559 | 42.53 | 784 | 792 | 182.6 |
| D | 11 | 176 | 53257 | 276.52 | 787 | 766 | 189.8 |
| D | 5 | 222 | 33538 | 172.64 | 787 | 766 | 189.8 |
| D | 2 | 234 | 21677 | 110.16 | 787 | 766 | 189.8 |

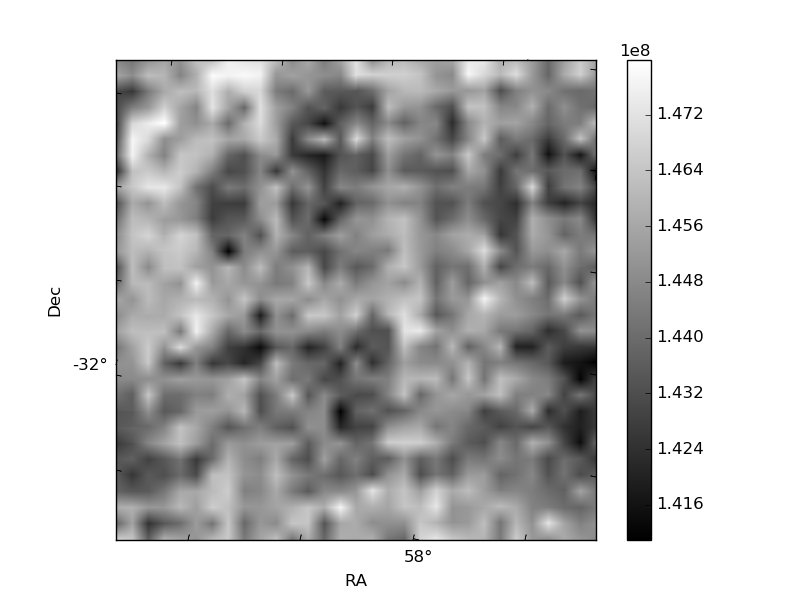

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

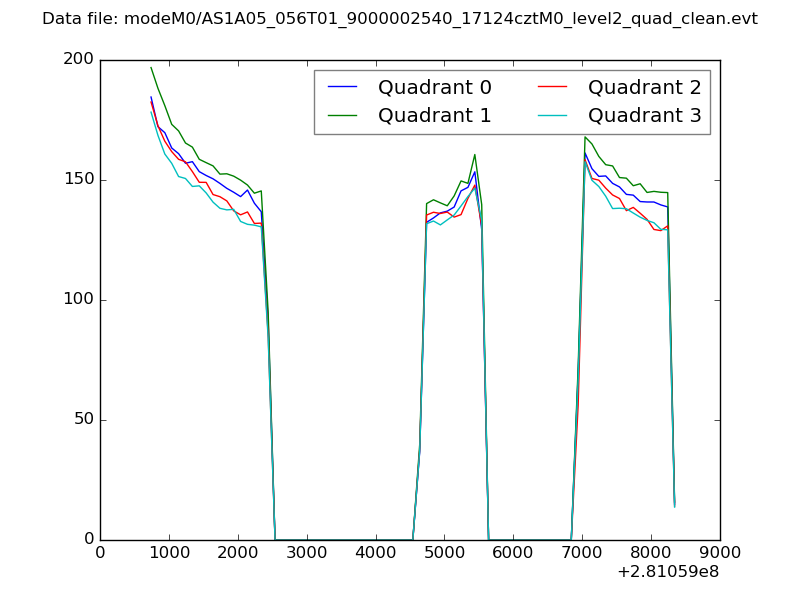

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

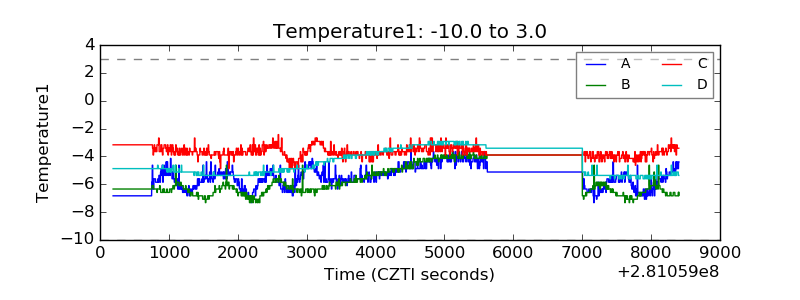

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

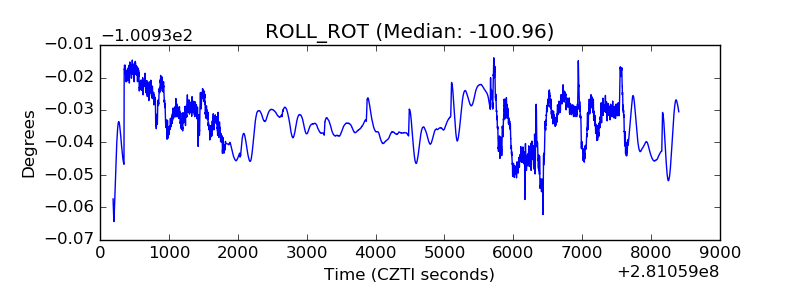

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

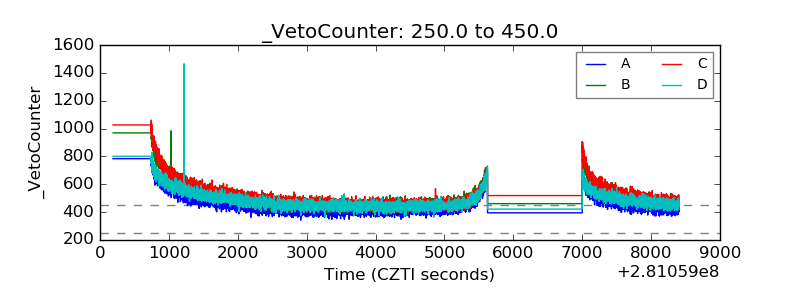

| Veto Counter |  |
