| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002540_17125cztM0_level2.evt | modeM0/AS1A05_056T01_9000002540_17125cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,497,920 | 87,071,040 |
| Size | 451.6 MB | 83.0 MB |
| Events in quadrant A | 3,124,702 | 553,555 |
| Events in quadrant B | 3,188,138 | 571,620 |
| Events in quadrant C | 4,439,868 | 531,360 |
| Events in quadrant D | 3,152,147 | 533,063 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13282 | 2 |
| B | 0 | 13296 | 2 |
| C | 0 | 17368 | 2 |
| D | 0 | 13601 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6416 | 50 | 0.779302% |
| B | 6415 | 56 | 0.872954% |
| C | 6415 | 169 | 2.634451% |
| D | 6416 | 21 | 0.327307% |

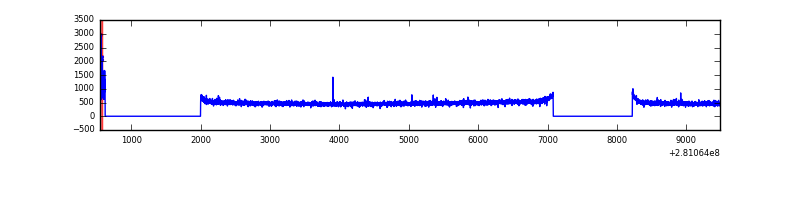

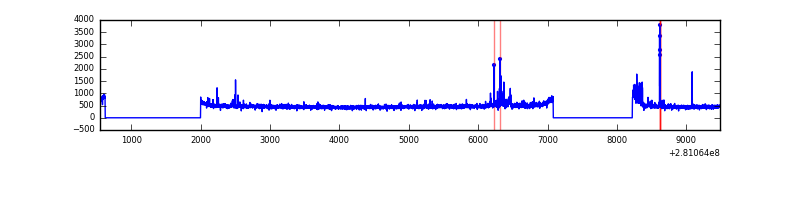

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8931 | 6418 | 3 | 3 | 0.03% | 0.05% |  |
| B | 8930 | 6417 | 1 | 1 | 0.01% | 0.02% |  |
| C | 8930 | 6417 | 3 | 3 | 0.03% | 0.05% |  |
| D | 8931 | 6418 | 6 | 6 | 0.07% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 24308 | 146.06 | 804 | 788 | 161.0 |
| A | 0 | 226 | 6870 | 37.77 | 804 | 788 | 161.0 |
| A | 12 | 189 | 6275 | 34.07 | 804 | 788 | 161.0 |
| B | 12 | 111 | 18696 | 115.87 | 813 | 795 | 154.5 |
| B | 11 | 111 | 16236 | 99.94 | 813 | 795 | 154.5 |
| B | 14 | 111 | 14219 | 86.89 | 813 | 795 | 154.5 |
| C | 3 | 233 | 1256853 | 6877.51 | 783 | 791 | 182.6 |
| C | 14 | 238 | 118549 | 644.78 | 783 | 791 | 182.6 |
| C | 5 | 112 | 8455 | 41.96 | 783 | 791 | 182.6 |
| D | 5 | 222 | 161408 | 836.26 | 792 | 770 | 192.1 |
| D | 2 | 234 | 22083 | 110.95 | 792 | 770 | 192.1 |
| D | 14 | 226 | 7741 | 36.29 | 792 | 770 | 192.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

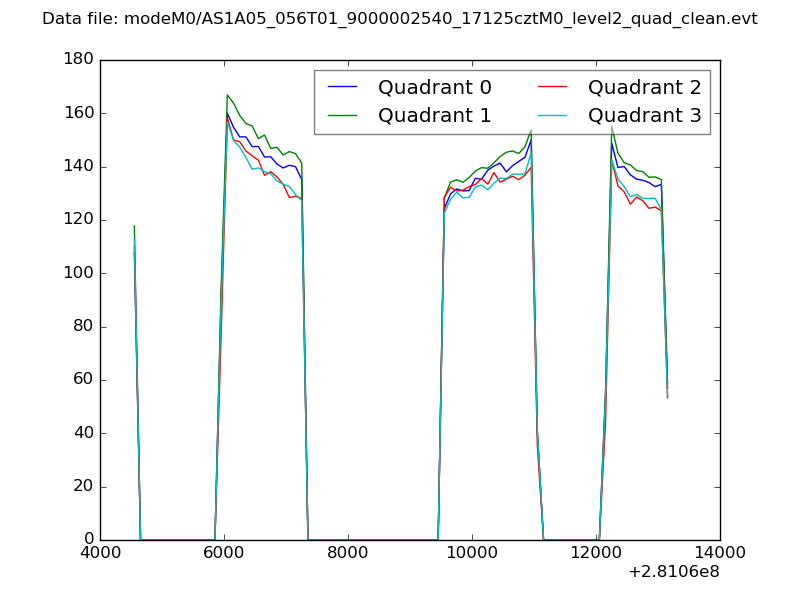

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

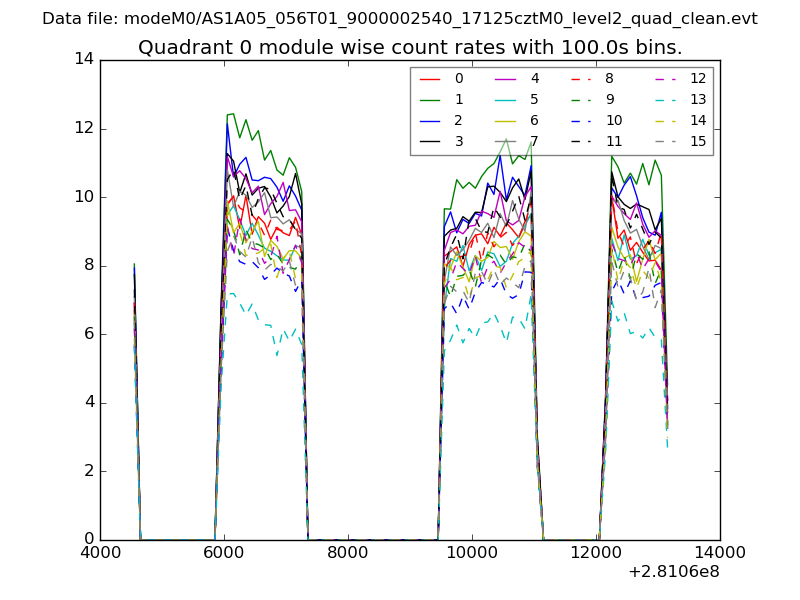

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

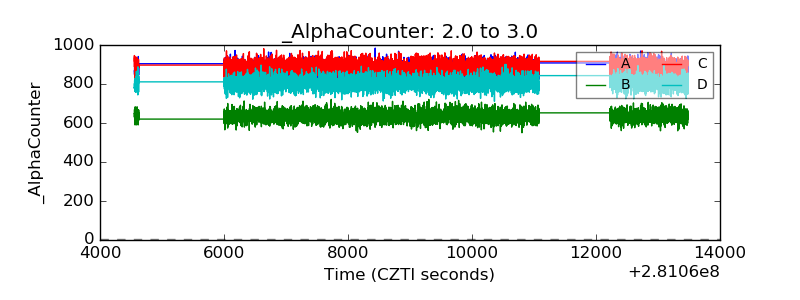

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

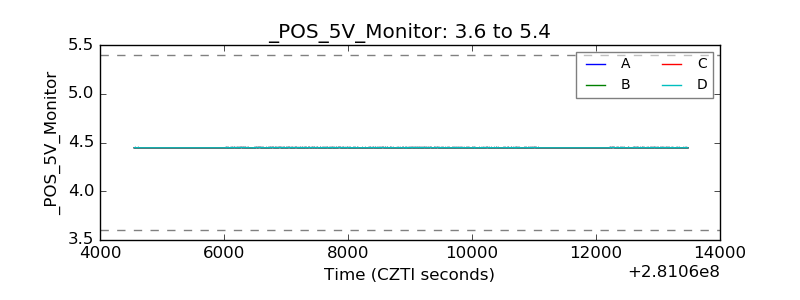

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

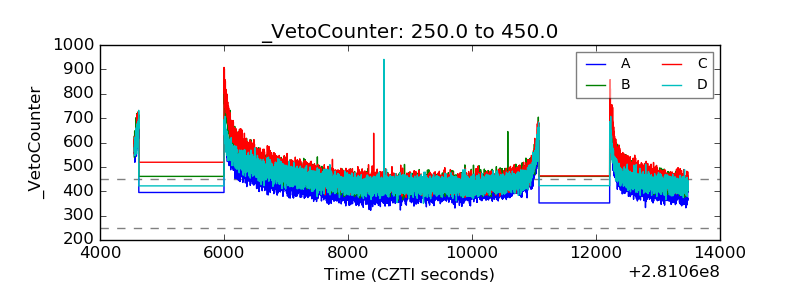

| Veto Counter |  |
