| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002540_17126cztM0_level2.evt | modeM0/AS1A05_056T01_9000002540_17126cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,234,560 | 83,108,160 |
| Size | 470.4 MB | 79.3 MB |
| Events in quadrant A | 3,272,303 | 516,131 |
| Events in quadrant B | 3,333,270 | 527,781 |
| Events in quadrant C | 4,285,643 | 494,924 |
| Events in quadrant D | 3,577,004 | 495,980 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14228 | 2 |
| B | 0 | 14230 | 2 |
| C | 0 | 17116 | 2 |
| D | 0 | 15345 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6921 | 73 | 1.054761% |
| B | 6922 | 93 | 1.343542% |
| C | 6922 | 162 | 2.340364% |
| D | 6921 | 111 | 1.603814% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7656 | 6922 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7657 | 6923 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7657 | 6923 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7656 | 6922 | 44 | 44 | 0.57% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 23287 | 131.4 | 845 | 830 | 170.9 |
| A | 0 | 226 | 7250 | 37.56 | 845 | 830 | 170.9 |
| A | 3 | 137 | 6274 | 31.85 | 845 | 830 | 170.9 |
| B | 12 | 111 | 19912 | 115.2 | 850 | 827 | 165.7 |
| B | 11 | 111 | 17325 | 99.58 | 850 | 827 | 165.7 |
| B | 14 | 111 | 15394 | 87.93 | 850 | 827 | 165.7 |
| C | 3 | 233 | 968032 | 5011.37 | 818 | 824 | 193.0 |
| C | 14 | 238 | 124376 | 640.16 | 818 | 824 | 193.0 |
| C | 5 | 112 | 6870 | 31.33 | 818 | 824 | 193.0 |
| D | 5 | 222 | 464740 | 2320.75 | 826 | 803 | 199.9 |
| D | 2 | 234 | 23437 | 113.22 | 826 | 803 | 199.9 |
| D | 14 | 226 | 8065 | 36.32 | 826 | 803 | 199.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

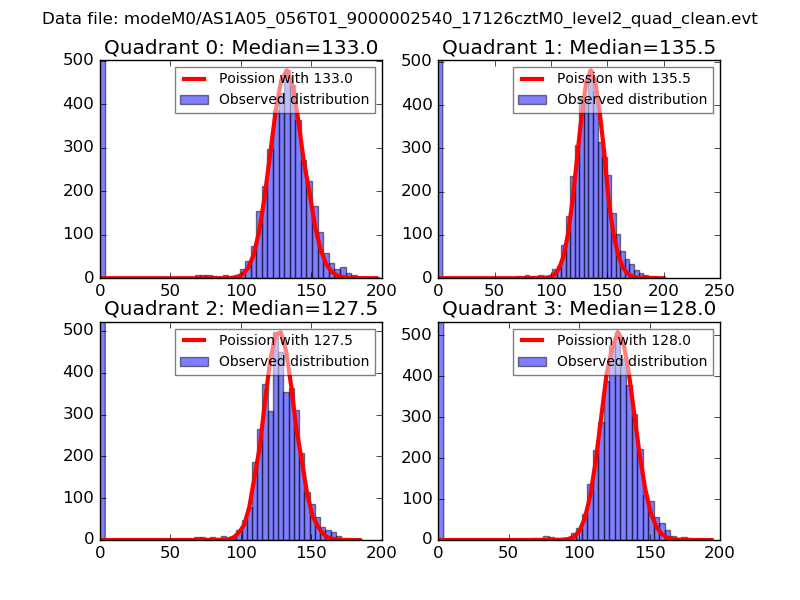

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

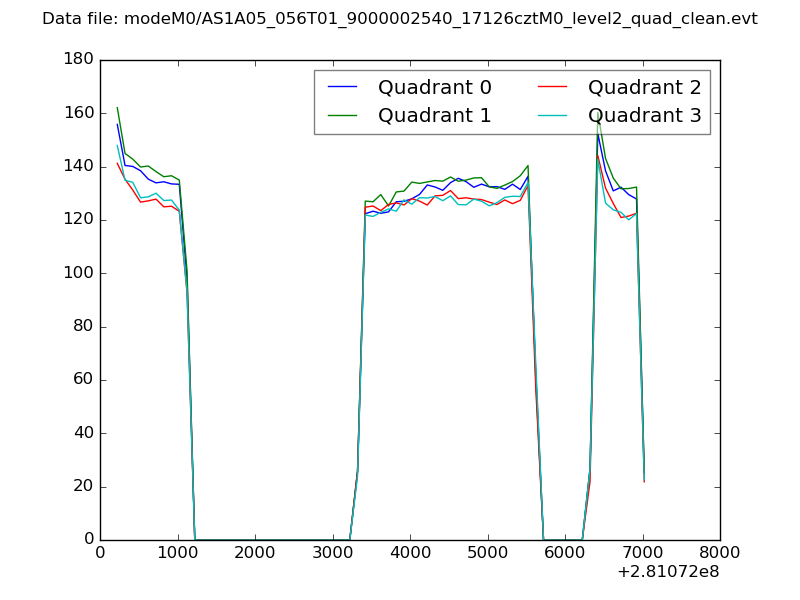

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

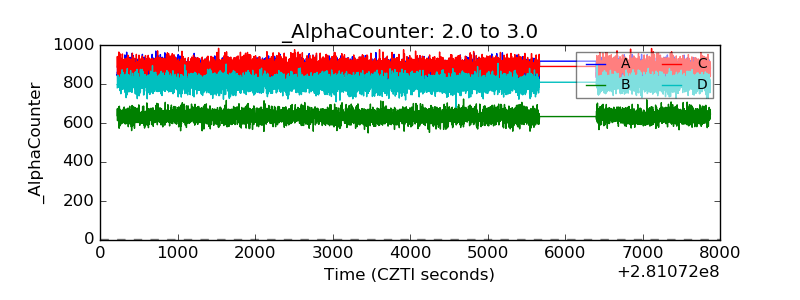

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

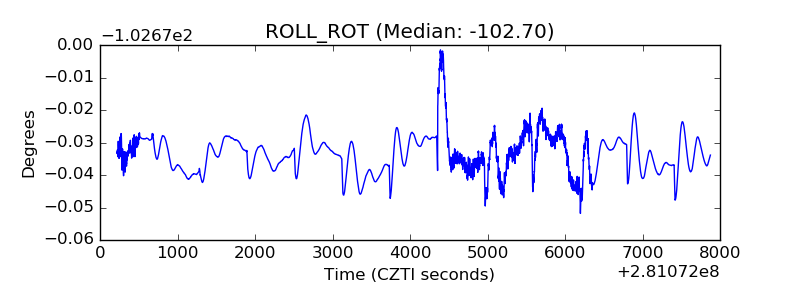

| _ROLL_ROT |  |
| _Roll_DEC |  |

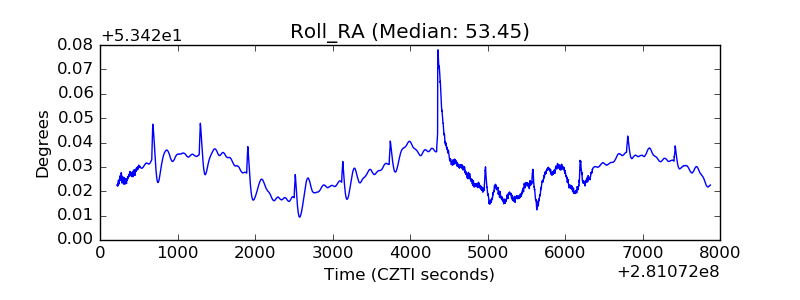

| _Roll_RA |  |

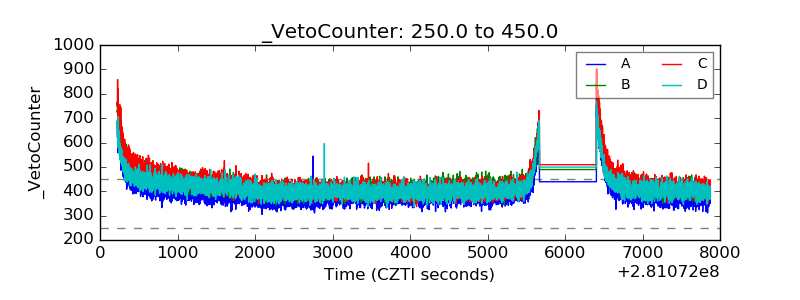

| Veto Counter |  |
