| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_194T03_9000002544_17151cztM0_level2.evt | modeM0/AS1A05_194T03_9000002544_17151cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,780,160 | 91,586,880 |
| Size | 503.3 MB | 87.3 MB |
| Events in quadrant A | 3,054,392 | 603,031 |
| Events in quadrant B | 3,243,191 | 617,308 |
| Events in quadrant C | 6,207,551 | 562,825 |
| Events in quadrant D | 3,067,391 | 566,193 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12841 | 3 |
| B | 0 | 13535 | 2 |
| C | 0 | 22772 | 2 |
| D | 0 | 13161 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6073 | 23 | 0.378726% |
| B | 6073 | 45 | 0.740985% |
| C | 6073 | 272 | 4.478841% |
| D | 6073 | 41 | 0.675119% |

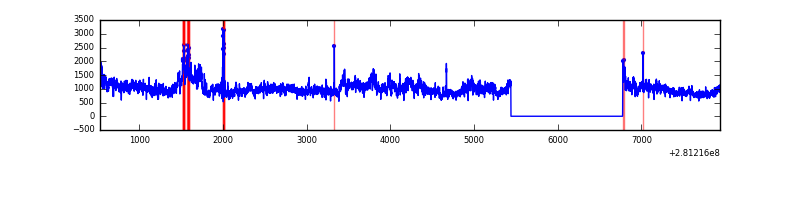

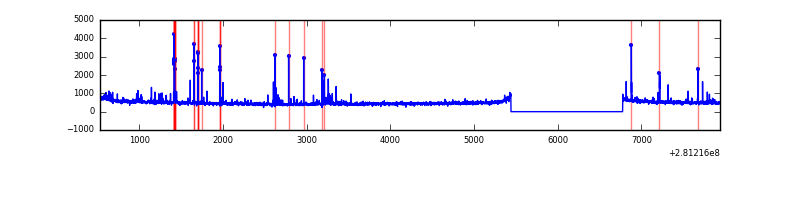

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

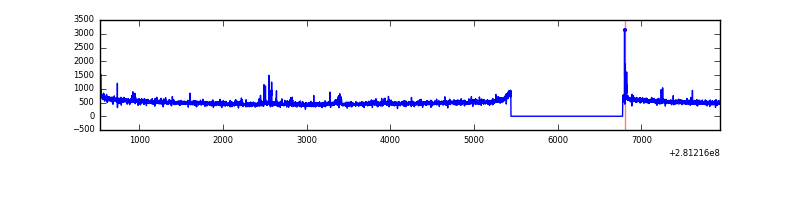

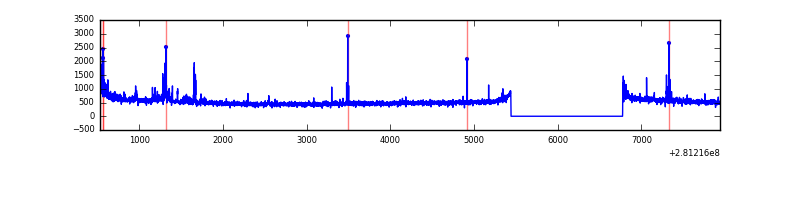

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7408 | 6074 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7408 | 6074 | 7 | 7 | 0.09% | 0.12% |  |
| C | 7408 | 6074 | 31 | 31 | 0.42% | 0.51% |  |
| D | 7408 | 6074 | 28 | 28 | 0.38% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 49488 | 316.08 | 774 | 761 | 154.2 |
| A | 12 | 96 | 25837 | 162.66 | 774 | 761 | 154.2 |
| A | 4 | 2 | 7773 | 45.48 | 774 | 761 | 154.2 |
| B | 0 | 197 | 72156 | 492.34 | 780 | 762 | 145.0 |
| B | 0 | 189 | 67780 | 462.16 | 780 | 762 | 145.0 |
| B | 4 | 48 | 16849 | 110.94 | 780 | 762 | 145.0 |
| C | 3 | 233 | 3183035 | 18730.02 | 738 | 743 | 169.9 |
| C | 14 | 238 | 113615 | 664.33 | 738 | 743 | 169.9 |
| C | 4 | 254 | 24106 | 137.51 | 738 | 743 | 169.9 |
| D | 1 | 52 | 94099 | 513.96 | 752 | 730 | 181.7 |
| D | 10 | 70 | 66934 | 364.43 | 752 | 730 | 181.7 |
| D | 2 | 234 | 24603 | 131.41 | 752 | 730 | 181.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

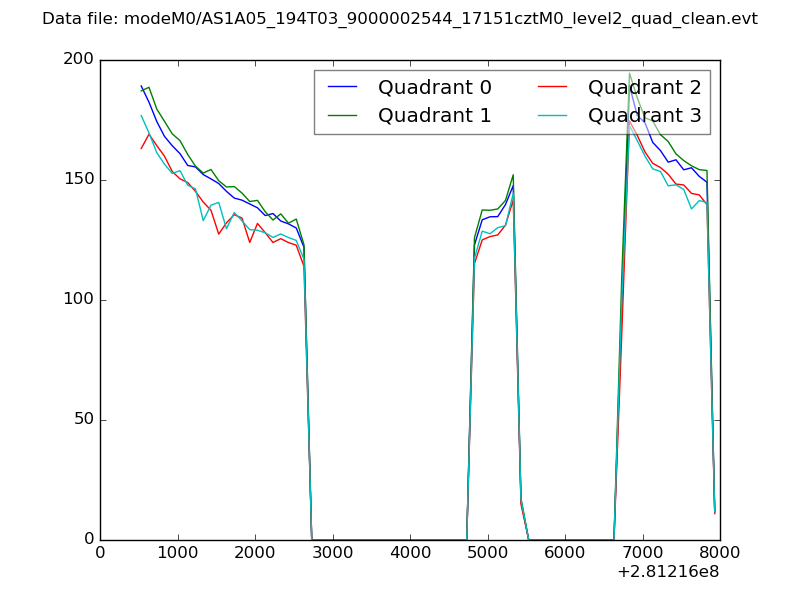

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

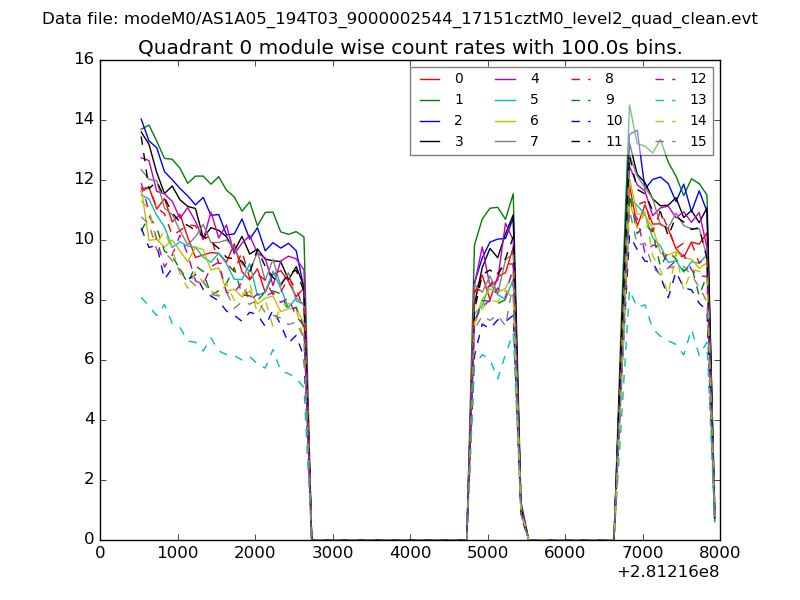

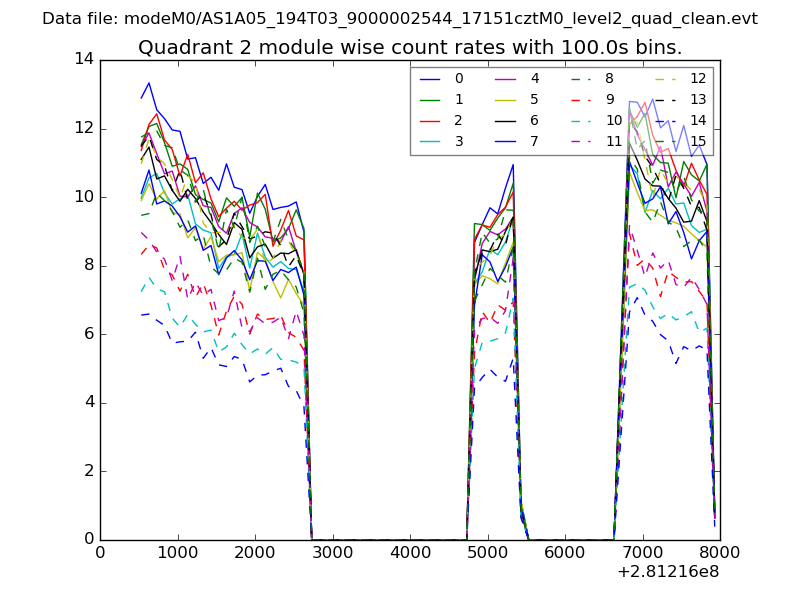

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

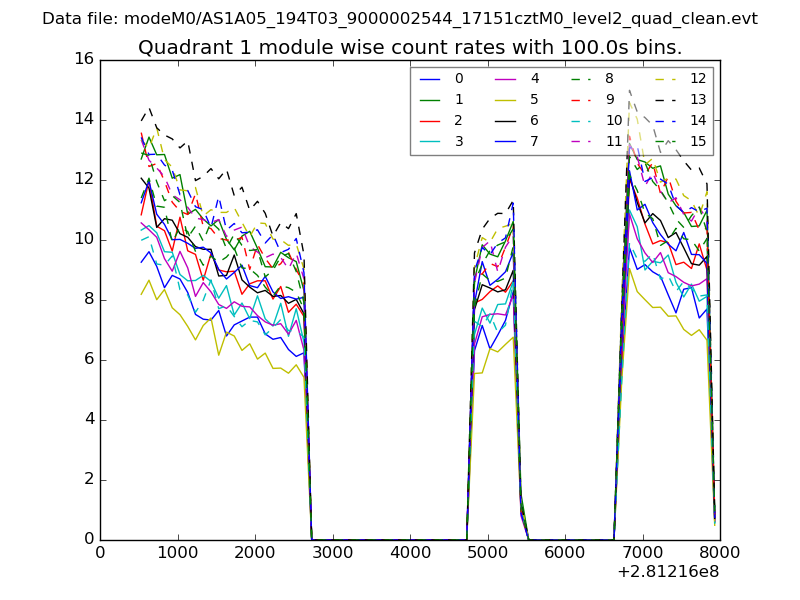

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

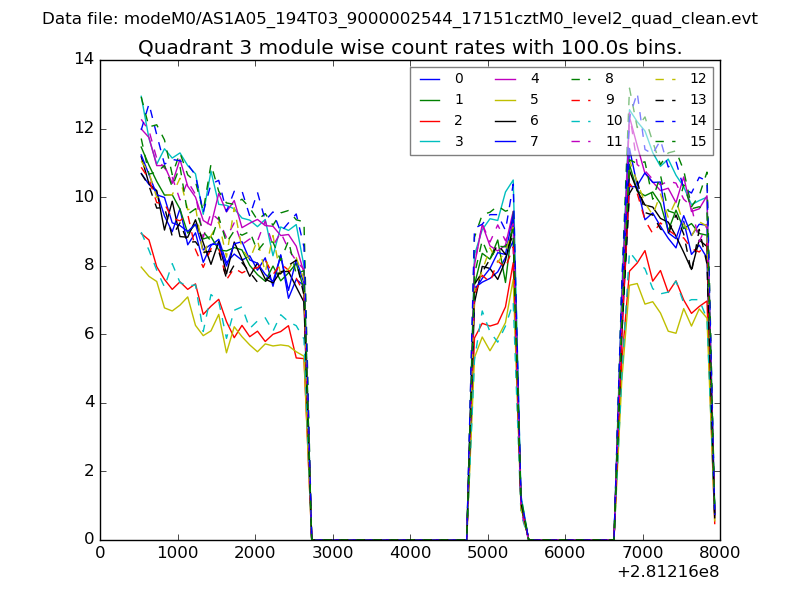

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

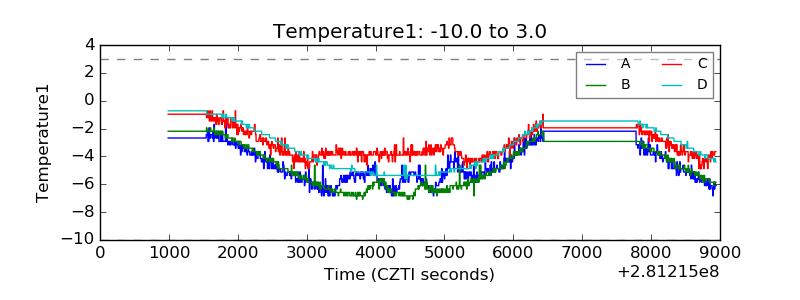

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

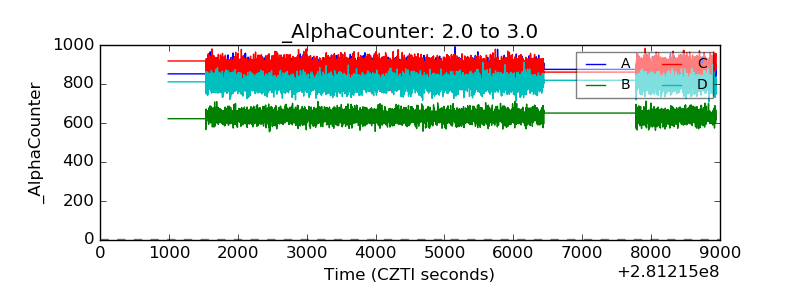

| Alpha Counter |  |

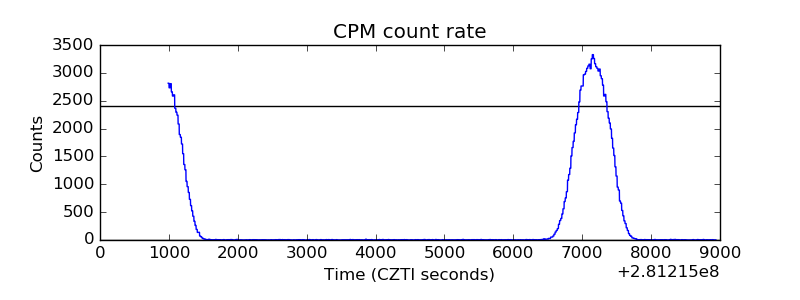

| _CPM_Rate |  |

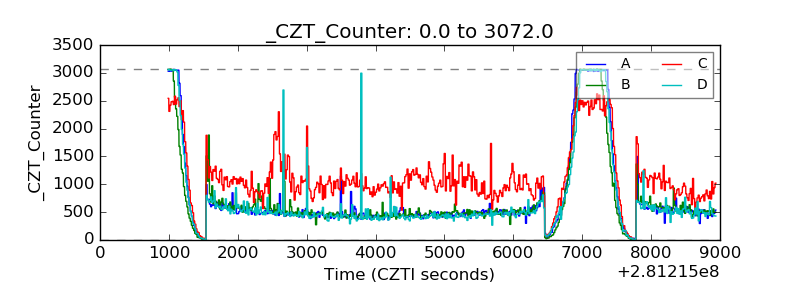

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

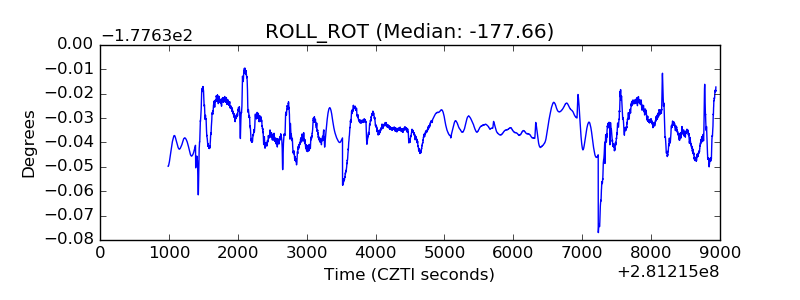

| _ROLL_ROT |  |

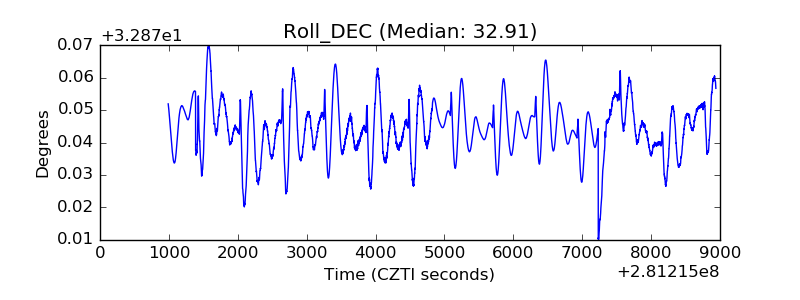

| _Roll_DEC |  |

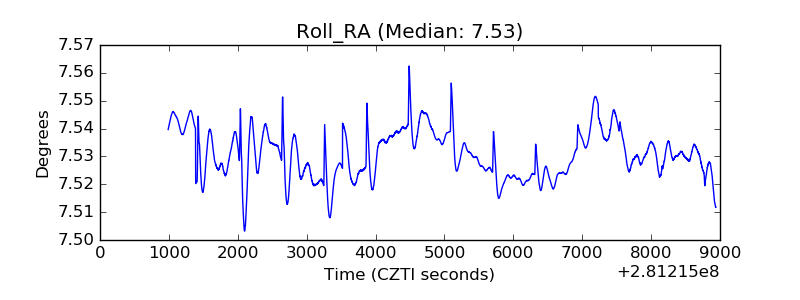

| _Roll_RA |  |

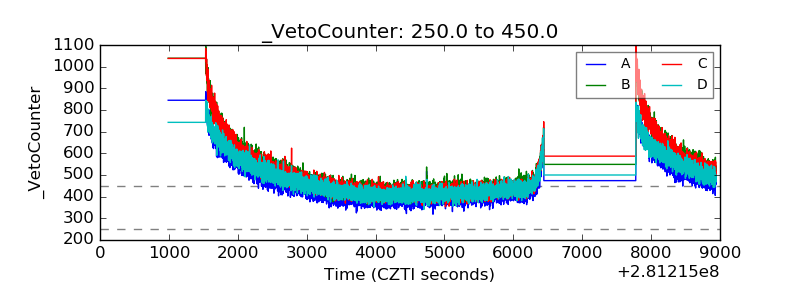

| Veto Counter |  |
