| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_059T01_9000002546_17166cztM0_level2.evt | modeM0/AS1T03_059T01_9000002546_17166cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,121,600 | 92,070,720 |
| Size | 428.3 MB | 87.8 MB |
| Events in quadrant A | 3,124,146 | 601,995 |
| Events in quadrant B | 3,168,587 | 622,333 |
| Events in quadrant C | 3,358,447 | 574,463 |
| Events in quadrant D | 3,529,973 | 557,383 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13163 | 2 |
| B | 0 | 13208 | 2 |
| C | 0 | 13807 | 2 |
| D | 0 | 14736 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6191 | 48 | 0.775319% |
| B | 6191 | 70 | 1.130674% |
| C | 6191 | 71 | 1.146826% |
| D | 6191 | 84 | 1.356808% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

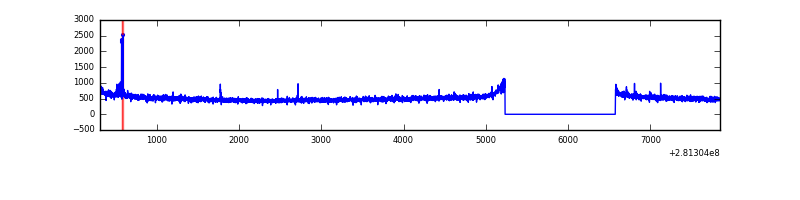

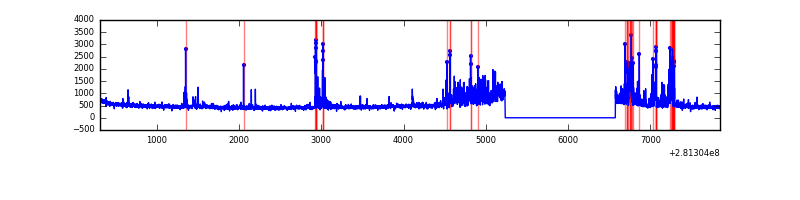

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7531 | 6192 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7531 | 6192 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7531 | 6192 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7531 | 6192 | 50 | 50 | 0.66% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 55595 | 342.11 | 797 | 783 | 160.2 |
| A | 4 | 2 | 8438 | 47.78 | 797 | 783 | 160.2 |
| A | 0 | 226 | 6867 | 37.97 | 797 | 783 | 160.2 |
| B | 4 | 48 | 29060 | 187.79 | 804 | 785 | 150.6 |
| B | 12 | 111 | 17977 | 114.18 | 804 | 785 | 150.6 |
| B | 11 | 111 | 15525 | 97.9 | 804 | 785 | 150.6 |
| C | 3 | 233 | 249961 | 1401.53 | 765 | 772 | 177.8 |
| C | 14 | 238 | 121411 | 678.52 | 765 | 772 | 177.8 |
| C | 13 | 61 | 5383 | 25.93 | 765 | 772 | 177.8 |
| D | 5 | 222 | 578637 | 3138.47 | 763 | 744 | 184.1 |
| D | 13 | 249 | 43294 | 231.08 | 763 | 744 | 184.1 |
| D | 2 | 234 | 21360 | 111.96 | 763 | 744 | 184.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

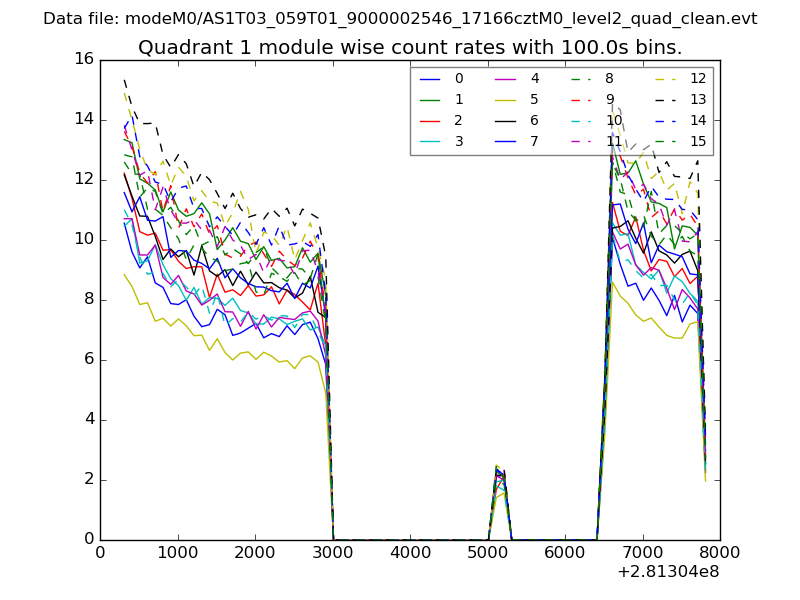

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

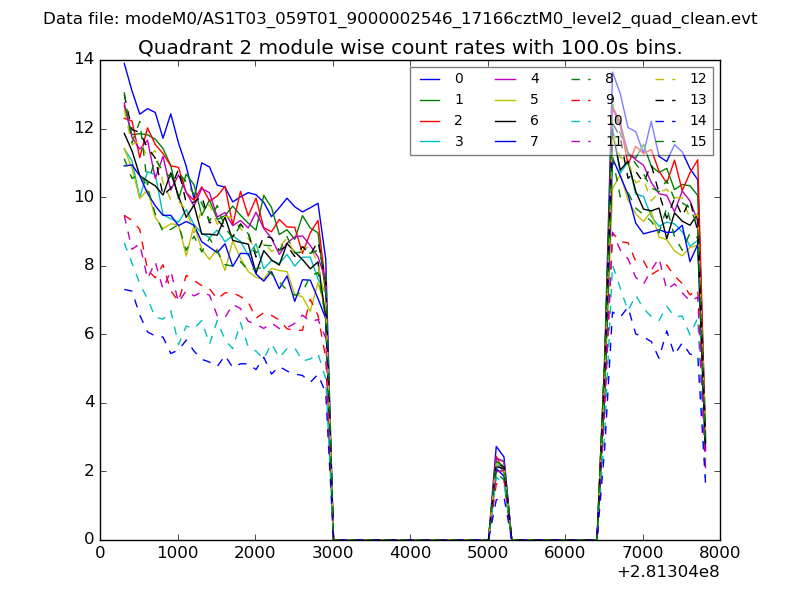

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

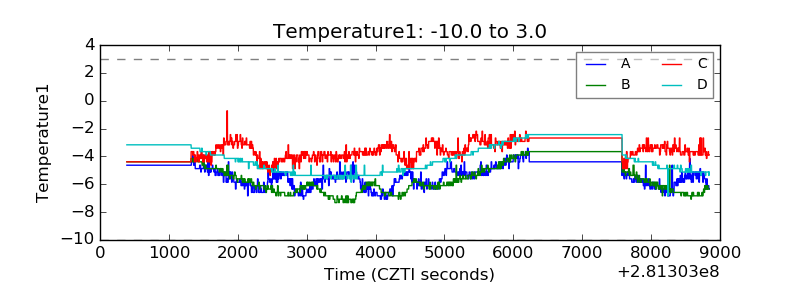

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

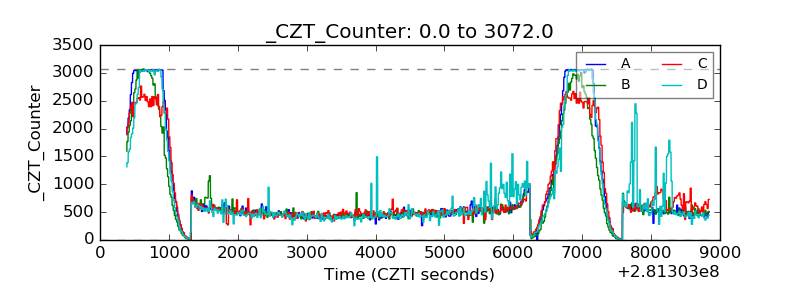

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

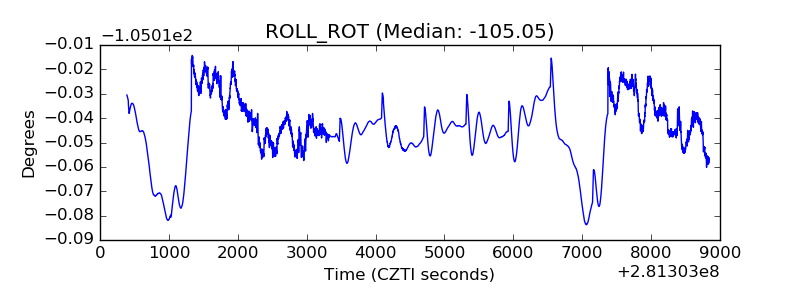

| _ROLL_ROT |  |

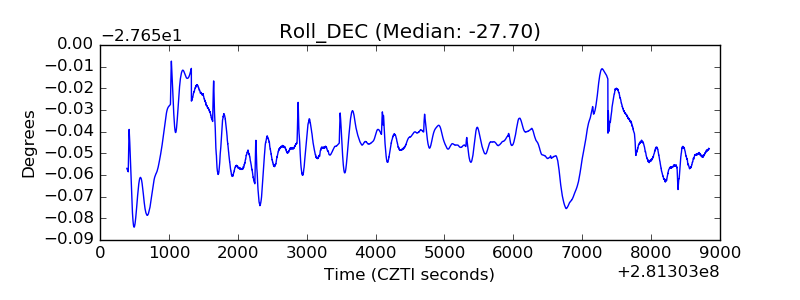

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
