| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_185T04_9000002548_17170cztM0_level2.evt | modeM0/AS1A05_185T04_9000002548_17170cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,288,000 | 81,976,320 |
| Size | 480.9 MB | 78.2 MB |
| Events in quadrant A | 3,439,856 | 504,475 |
| Events in quadrant B | 3,671,844 | 505,970 |
| Events in quadrant C | 3,719,143 | 486,343 |
| Events in quadrant D | 3,944,680 | 476,237 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15119 | 2 |
| B | 0 | 15704 | 2 |
| C | 0 | 15543 | 2 |
| D | 0 | 16900 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7318 | 38 | 0.519268% |
| B | 7318 | 89 | 1.216179% |
| C | 7318 | 93 | 1.270839% |
| D | 7317 | 86 | 1.175345% |

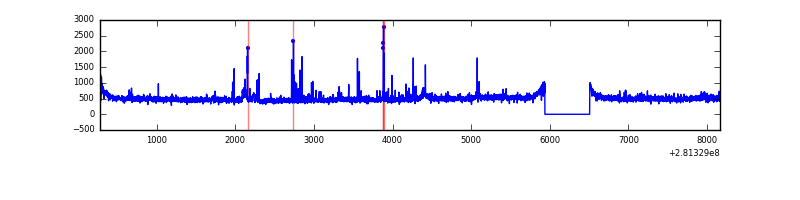

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

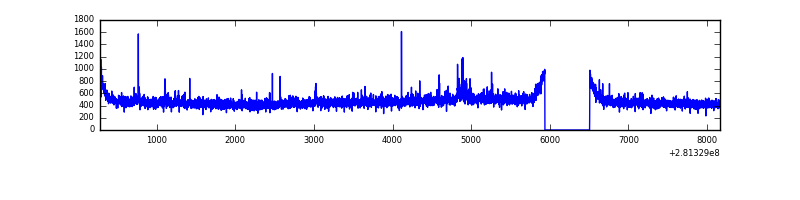

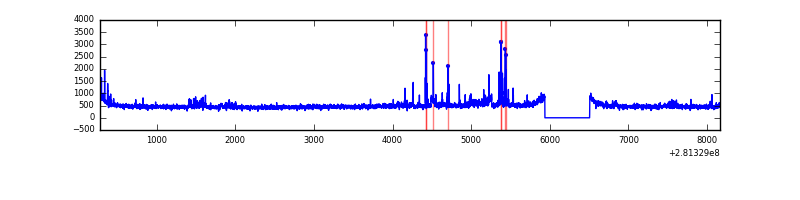

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7888 | 7319 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7888 | 7319 | 8 | 8 | 0.10% | 0.11% |  |
| C | 7888 | 7319 | 5 | 5 | 0.06% | 0.07% |  |
| D | 7887 | 7318 | 55 | 55 | 0.70% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 93941 | 530.01 | 868 | 849 | 175.6 |
| A | 12 | 96 | 8301 | 42.43 | 868 | 849 | 175.6 |
| A | 0 | 226 | 7509 | 37.92 | 868 | 849 | 175.6 |
| B | 0 | 219 | 64840 | 379.97 | 872 | 849 | 168.4 |
| B | 4 | 216 | 64546 | 378.23 | 872 | 849 | 168.4 |
| B | 0 | 189 | 38821 | 225.47 | 872 | 849 | 168.4 |
| C | 3 | 233 | 188237 | 944.08 | 840 | 845 | 198.5 |
| C | 14 | 238 | 129359 | 647.46 | 840 | 845 | 198.5 |
| C | 4 | 254 | 94093 | 469.78 | 840 | 845 | 198.5 |
| D | 5 | 222 | 609371 | 2939.06 | 845 | 819 | 207.1 |
| D | 12 | 233 | 69448 | 331.45 | 845 | 819 | 207.1 |
| D | 2 | 234 | 28344 | 132.93 | 845 | 819 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

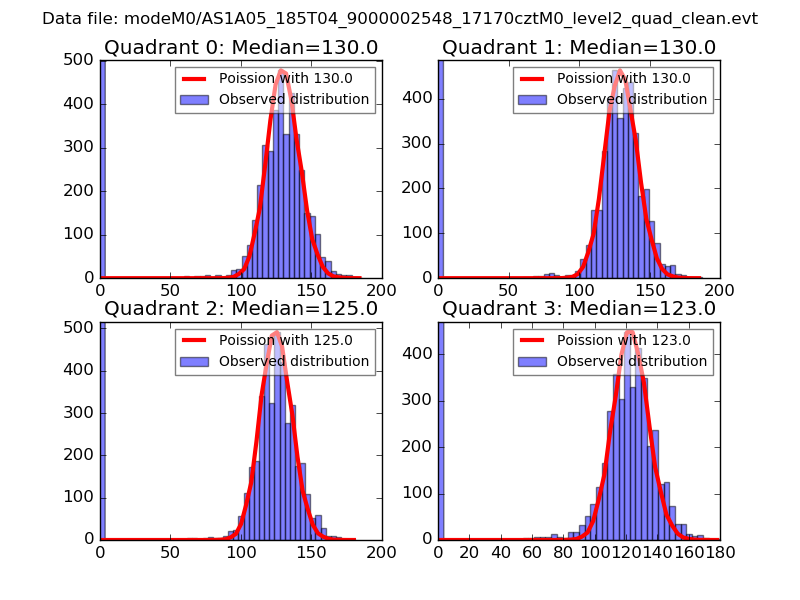

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

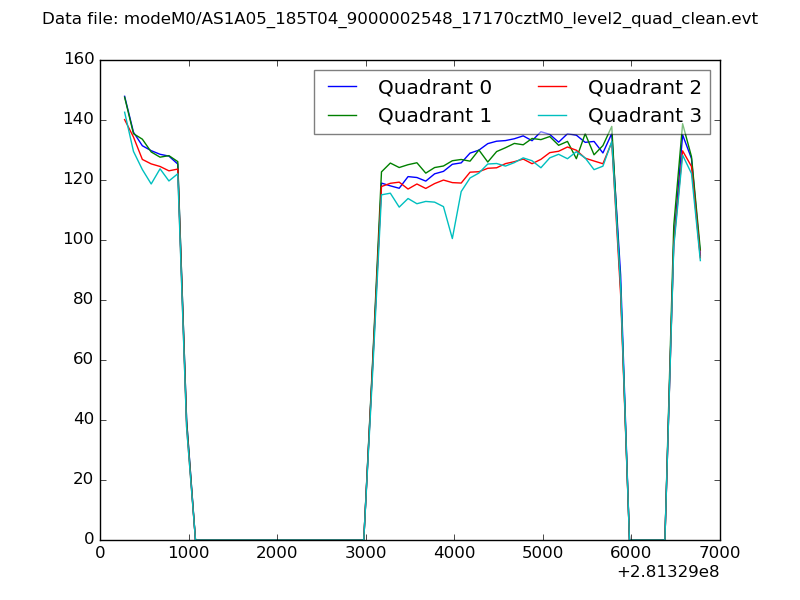

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

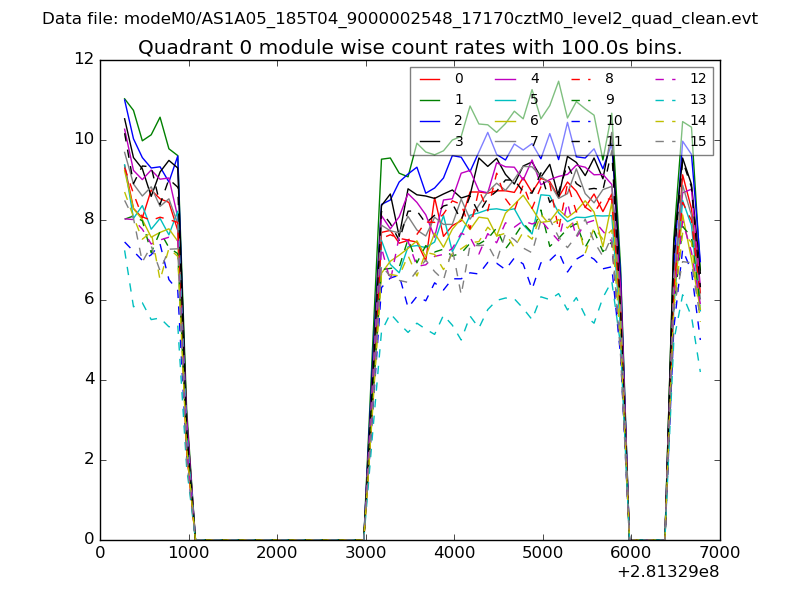

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

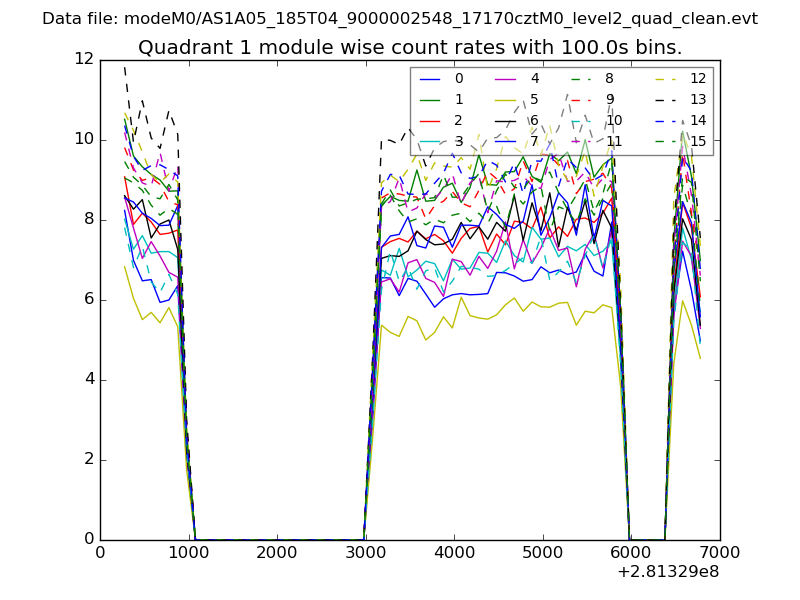

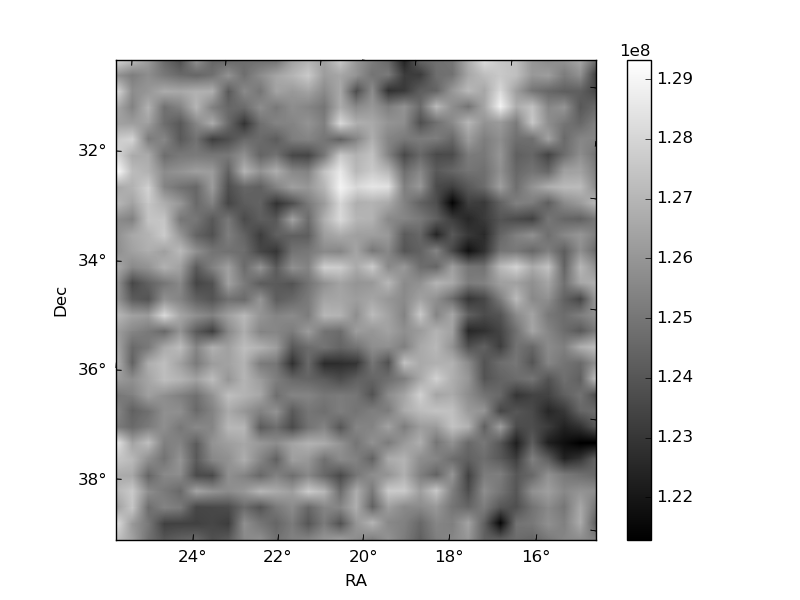

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

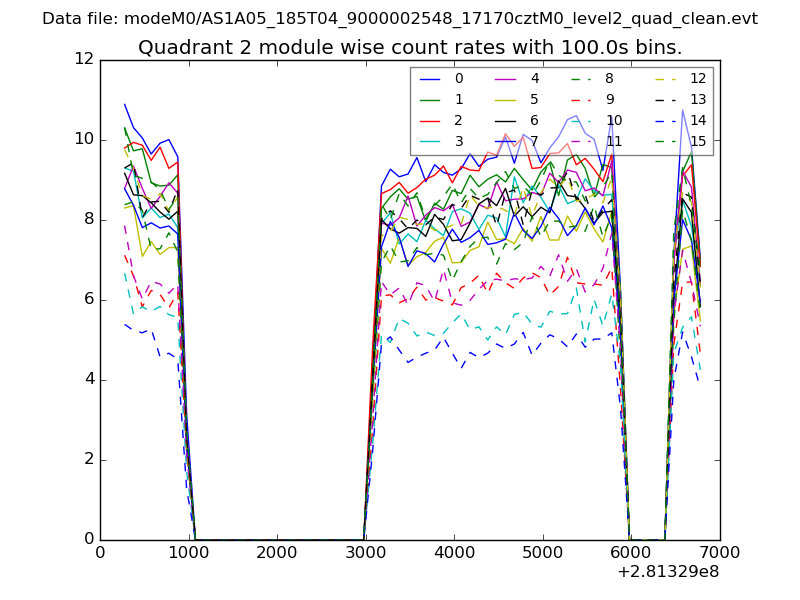

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

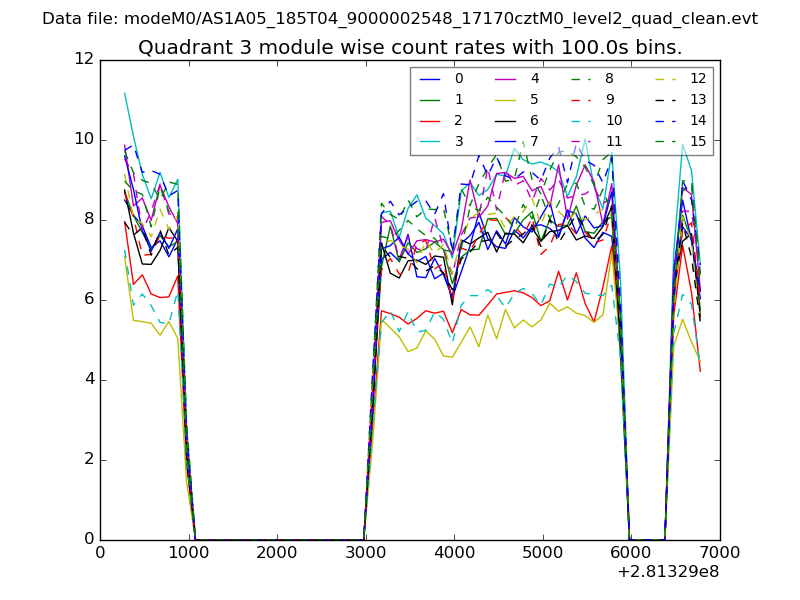

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

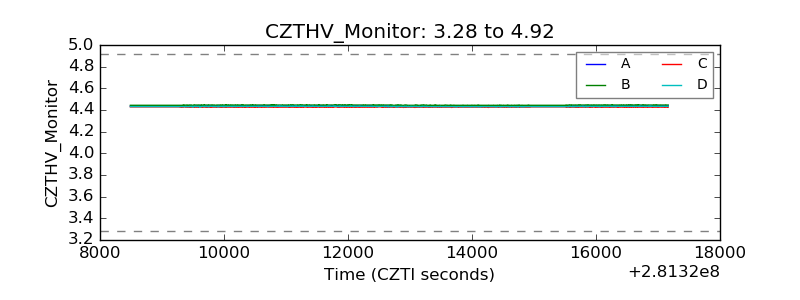

| CZT HV Monitor |  |
| D_VDD |  |

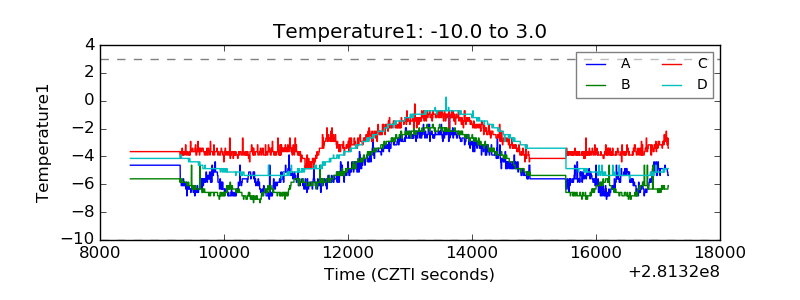

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

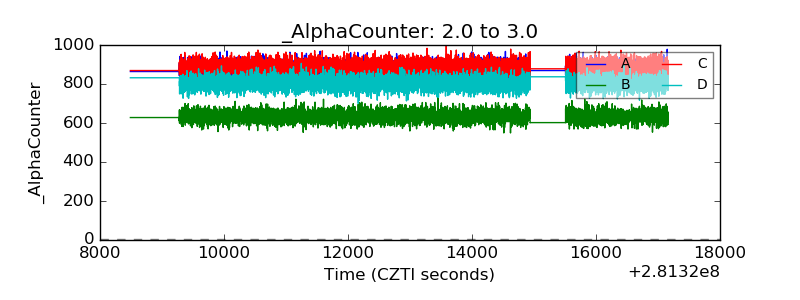

| Alpha Counter |  |

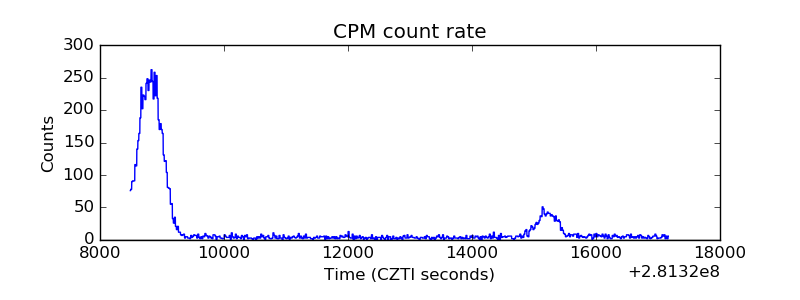

| _CPM_Rate |  |

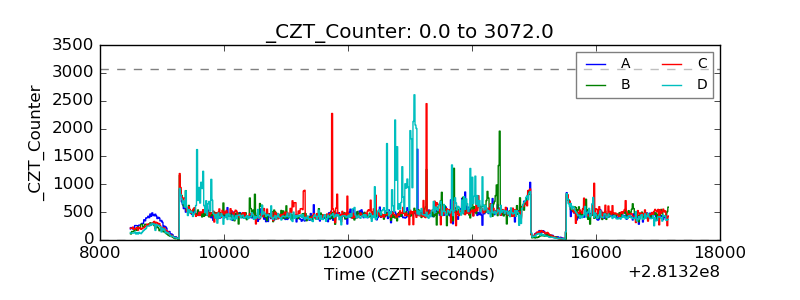

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

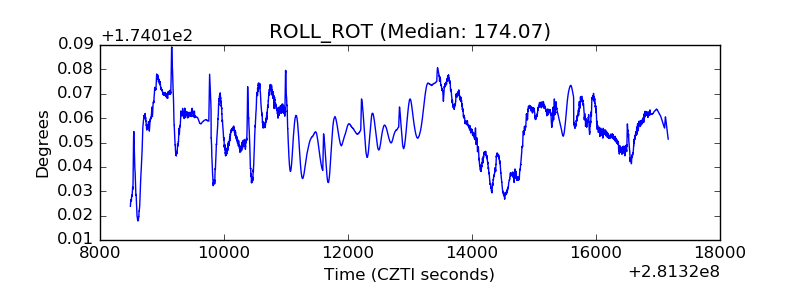

| _ROLL_ROT |  |

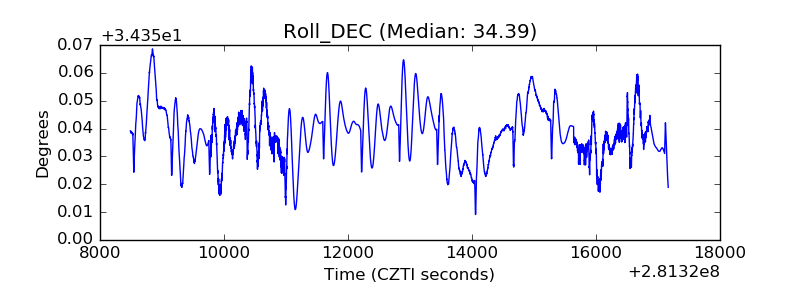

| _Roll_DEC |  |
| _Roll_RA |  |

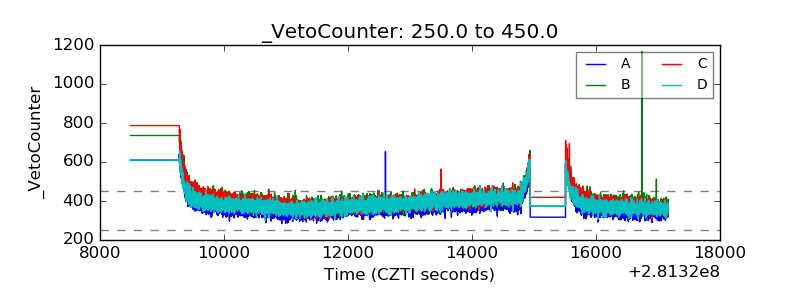

| Veto Counter |  |
