| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_185T04_9000002548_17175cztM0_level2.evt | modeM0/AS1A05_185T04_9000002548_17175cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,296,630,720 | 218,076,480 |
| Size | 1.2 GB | 208.0 MB |
| Events in quadrant A | 8,271,300 | 1,387,104 |
| Events in quadrant B | 8,520,828 | 1,388,381 |
| Events in quadrant C | 10,699,653 | 1,304,266 |
| Events in quadrant D | 10,577,360 | 1,302,118 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 364 | 0 |
| B | 0 | 364 | 0 |
| C | 0 | 364 | 0 |
| D | 0 | 364 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36446 | 4 |
| B | 0 | 36838 | 4 |
| C | 0 | 43217 | 4 |
| D | 0 | 43568 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17729 | 313 | 1.765469% |
| B | 17730 | 364 | 2.053017% |
| C | 17730 | 1014 | 5.719120% |
| D | 17730 | 628 | 3.542019% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

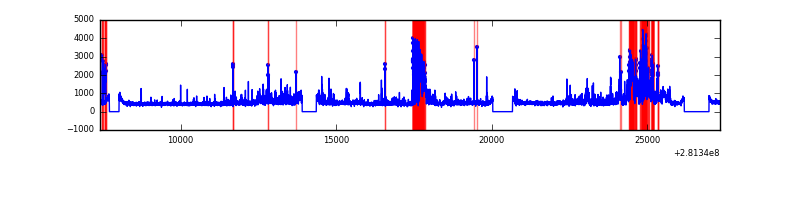

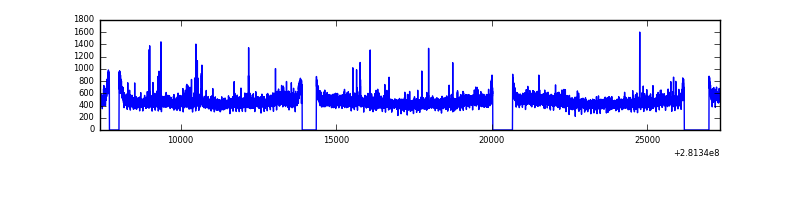

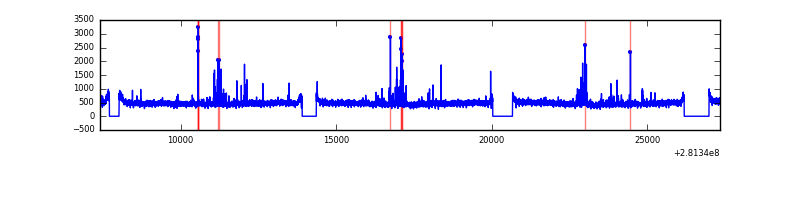

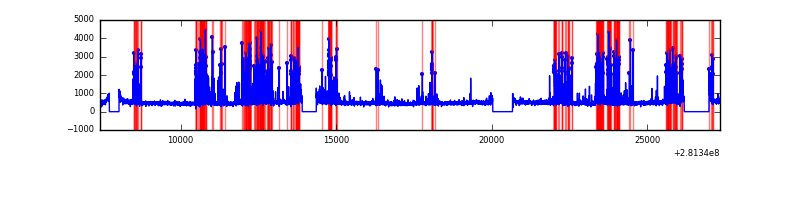

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19924 | 17729 | 0 | 0 | 0.00% | 0.00% |  |
| B | 19925 | 17731 | 13 | 13 | 0.07% | 0.07% |  |
| C | 19925 | 17732 | 449 | 449 | 2.25% | 2.53% |  |
| D | 19925 | 17731 | 398 | 398 | 2.00% | 2.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 132577 | 307.85 | 2105 | 2054 | 424.0 |
| A | 12 | 96 | 35907 | 79.84 | 2105 | 2054 | 424.0 |
| A | 0 | 226 | 18198 | 38.08 | 2105 | 2054 | 424.0 |
| B | 7 | 220 | 111513 | 273.46 | 2097 | 2041 | 400.3 |
| B | 0 | 197 | 68194 | 165.25 | 2097 | 2041 | 400.3 |
| B | 12 | 111 | 49121 | 117.61 | 2097 | 2041 | 400.3 |
| C | 4 | 254 | 2371655 | 5115.64 | 1985 | 1997 | 463.2 |
| C | 14 | 238 | 301887 | 647.41 | 1985 | 1997 | 463.2 |
| C | 3 | 233 | 241439 | 516.91 | 1985 | 1997 | 463.2 |
| D | 1 | 52 | 1394484 | 2830.57 | 2034 | 1975 | 492.0 |
| D | 5 | 222 | 635186 | 1287.13 | 2034 | 1975 | 492.0 |
| D | 15 | 0 | 579844 | 1174.64 | 2034 | 1975 | 492.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

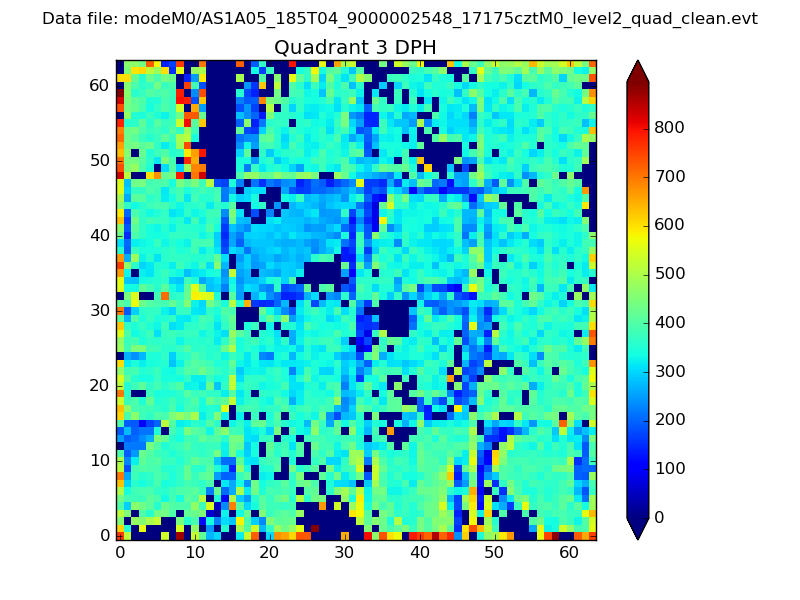

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

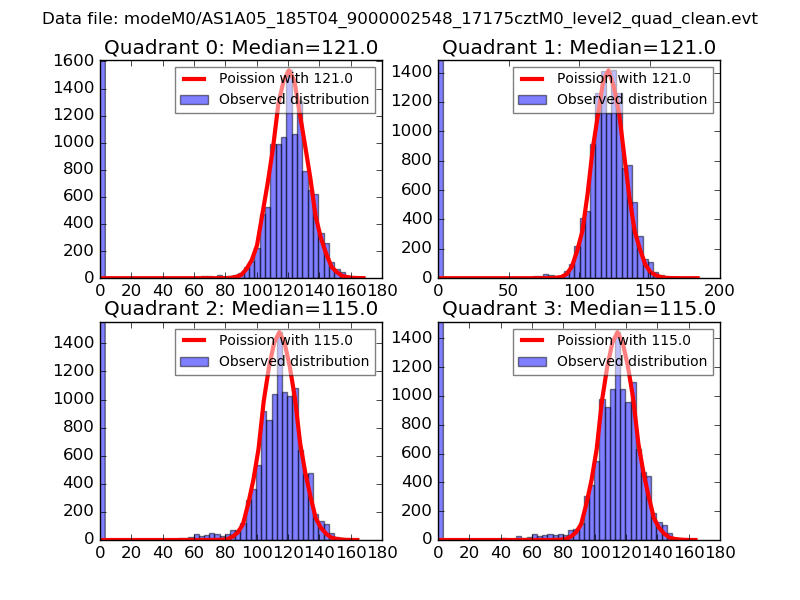

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

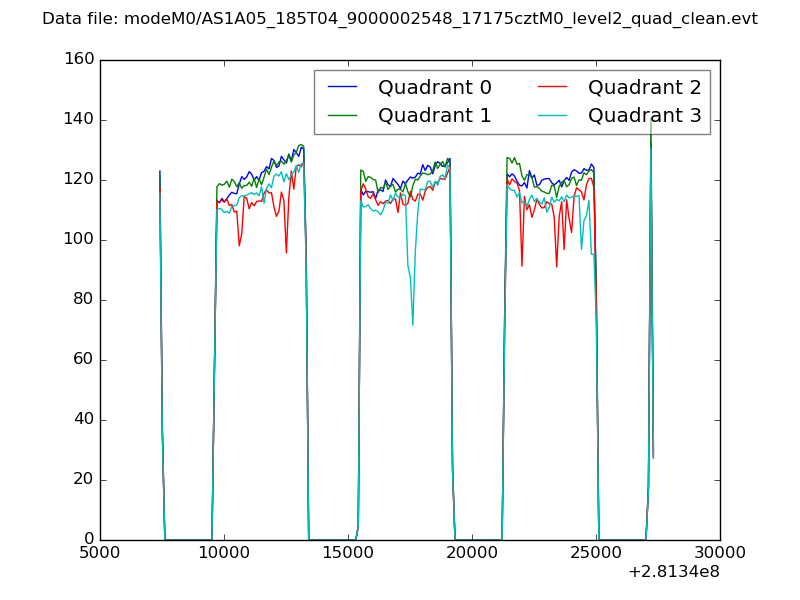

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

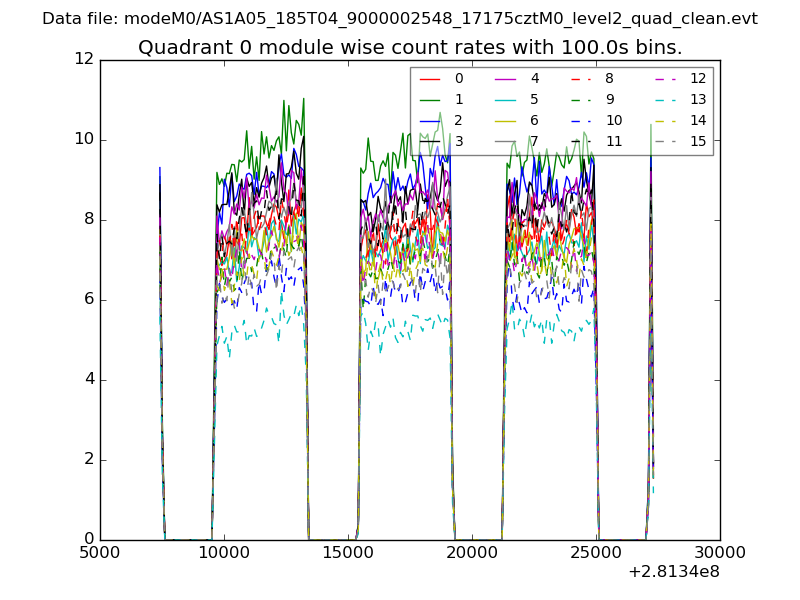

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

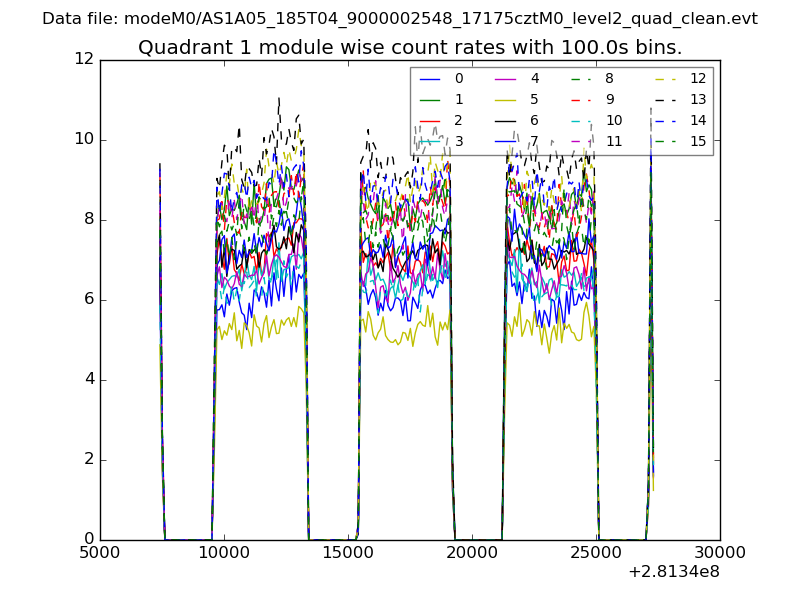

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

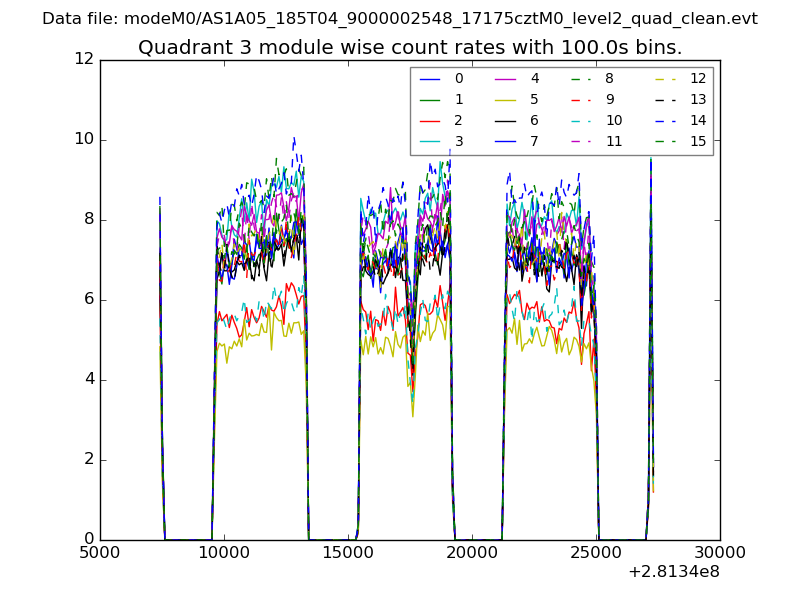

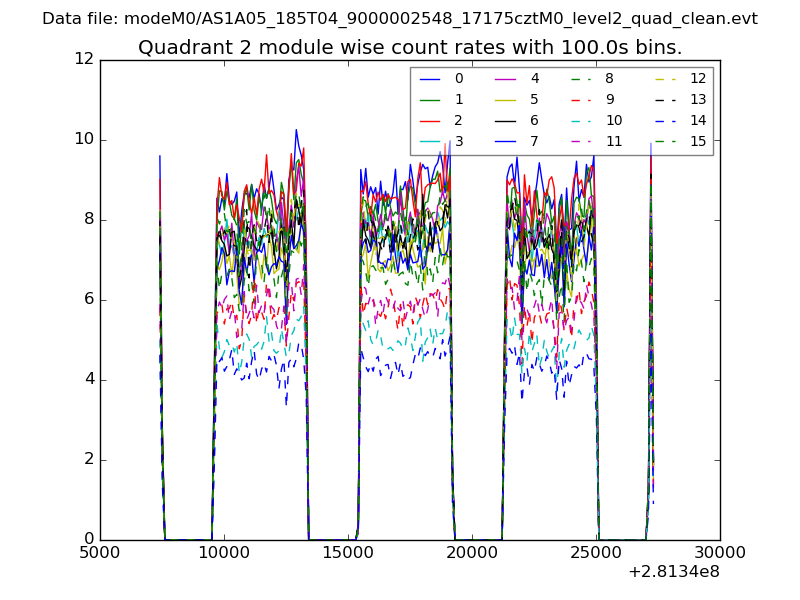

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

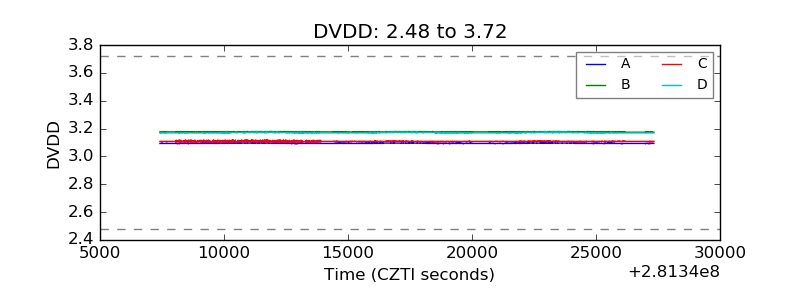

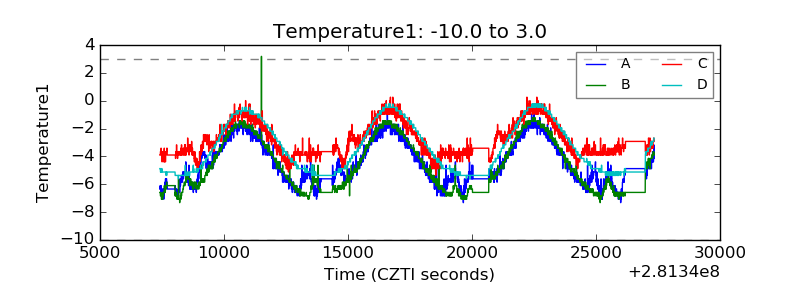

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

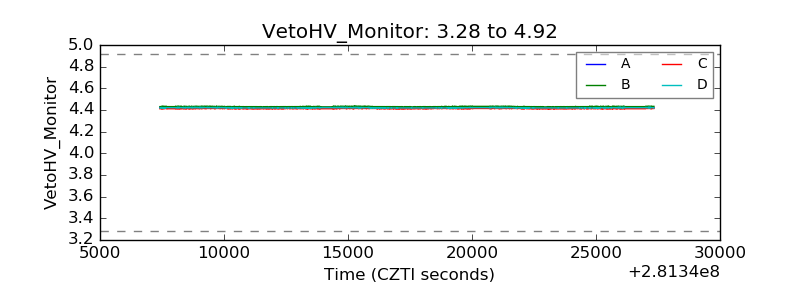

| Veto HV Monitor |  |
| Veto LLD |  |

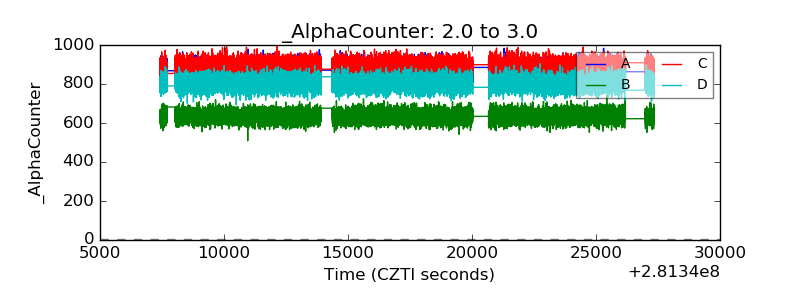

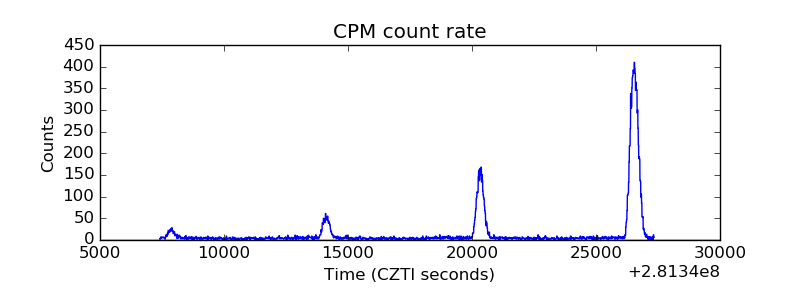

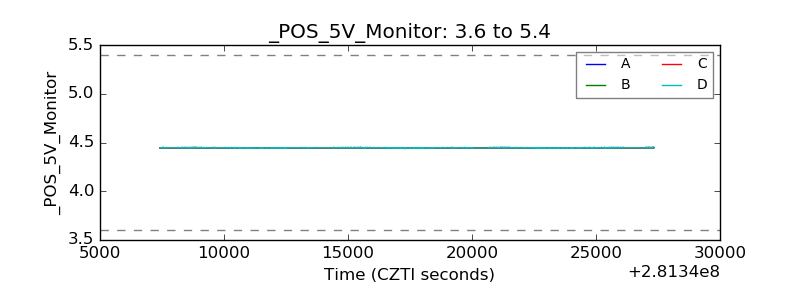

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

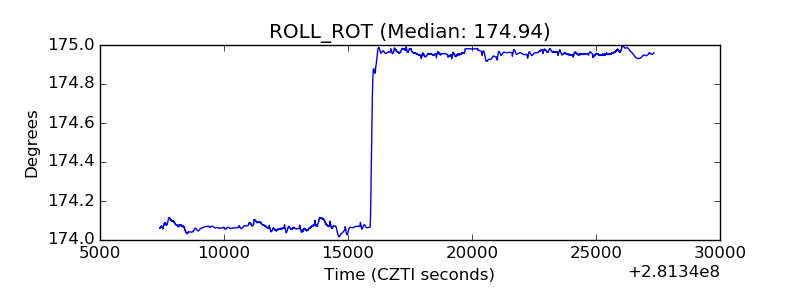

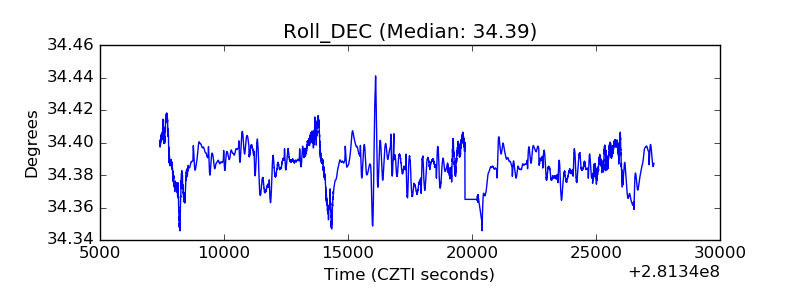

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

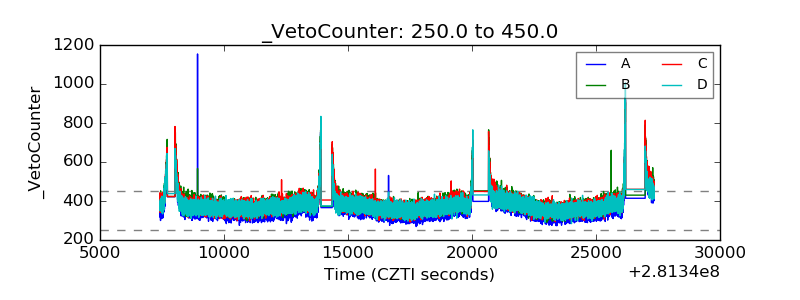

| Veto Counter |  |
