| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_185T04_9000002548_17183cztM0_level2.evt | modeM0/AS1A05_185T04_9000002548_17183cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,309,120 | 86,526,720 |
| Size | 423.7 MB | 82.5 MB |
| Events in quadrant A | 3,088,374 | 556,145 |
| Events in quadrant B | 3,307,316 | 560,099 |
| Events in quadrant C | 3,106,959 | 531,805 |
| Events in quadrant D | 3,511,769 | 519,189 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13464 | 2 |
| B | 0 | 13983 | 2 |
| C | 0 | 13377 | 2 |
| D | 0 | 14939 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6494 | 15 | 0.230982% |
| B | 6494 | 83 | 1.278103% |
| C | 6494 | 54 | 0.831537% |
| D | 6494 | 61 | 0.939329% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7589 | 6495 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7589 | 6495 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7589 | 6495 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7589 | 6495 | 51 | 51 | 0.67% | 0.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 28948 | 177.16 | 788 | 771 | 159.1 |
| A | 12 | 189 | 23901 | 145.42 | 788 | 771 | 159.1 |
| A | 15 | 174 | 10583 | 61.69 | 788 | 771 | 159.1 |
| B | 7 | 220 | 59078 | 387.67 | 792 | 773 | 150.4 |
| B | 4 | 216 | 40463 | 263.9 | 792 | 773 | 150.4 |
| B | 0 | 219 | 33210 | 215.67 | 792 | 773 | 150.4 |
| C | 14 | 238 | 116767 | 651.91 | 762 | 765 | 177.9 |
| C | 3 | 233 | 11372 | 59.61 | 762 | 765 | 177.9 |
| C | 0 | 79 | 6641 | 33.02 | 762 | 765 | 177.9 |
| D | 5 | 222 | 405048 | 2162.96 | 762 | 740 | 186.9 |
| D | 15 | 0 | 98047 | 520.57 | 762 | 740 | 186.9 |
| D | 10 | 70 | 63694 | 336.79 | 762 | 740 | 186.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

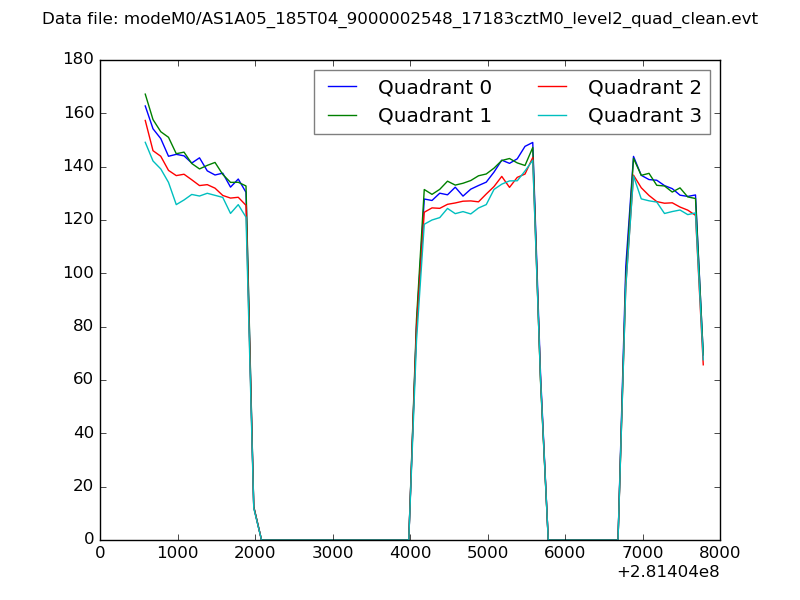

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

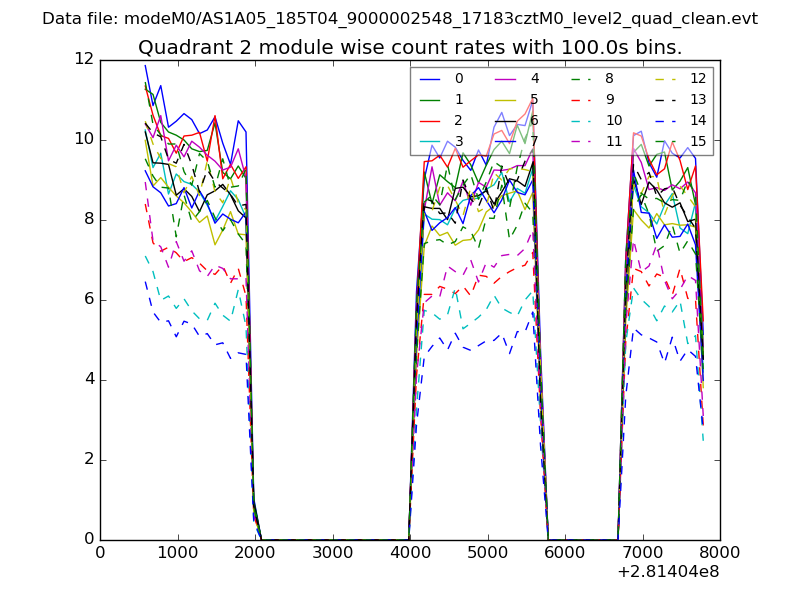

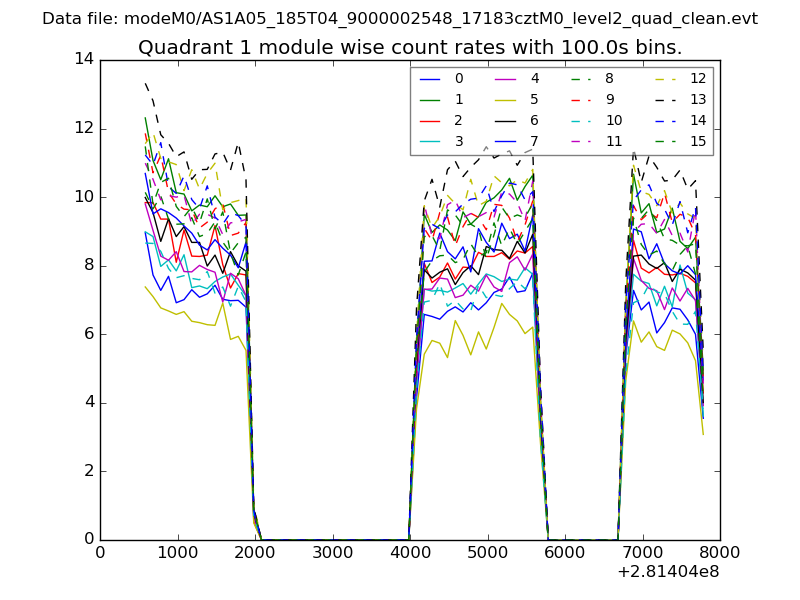

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

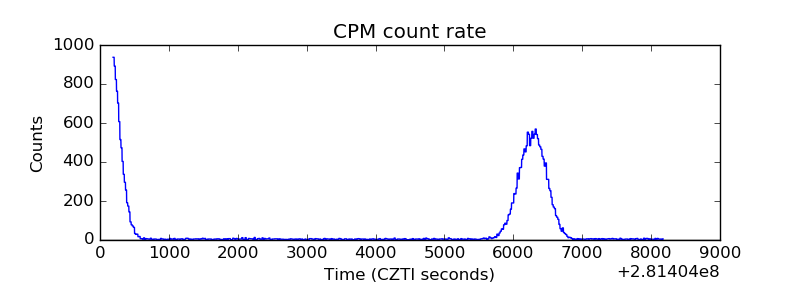

| _CPM_Rate |  |

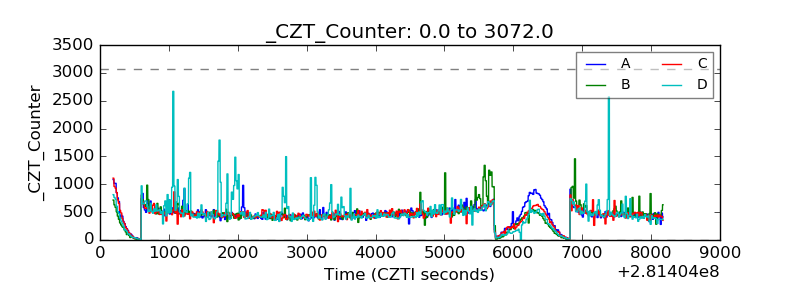

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

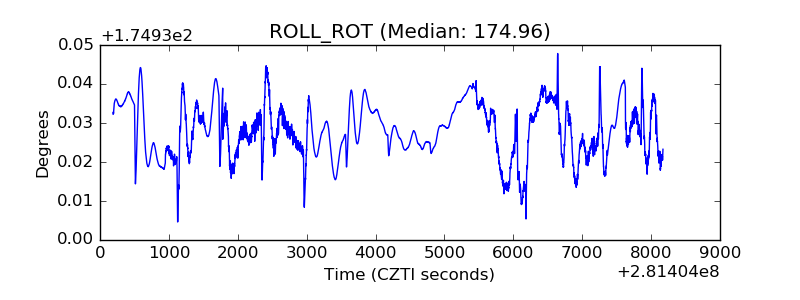

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

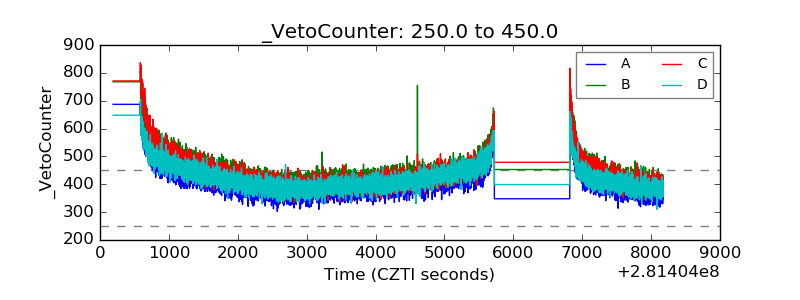

| Veto Counter |  |
