| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_185T04_9000002548_17212cztM0_level2.evt | modeM0/AS1A05_185T04_9000002548_17212cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,409,600 | 89,415,360 |
| Size | 437.2 MB | 85.3 MB |
| Events in quadrant A | 3,088,285 | 577,951 |
| Events in quadrant B | 3,227,566 | 582,932 |
| Events in quadrant C | 3,511,098 | 551,208 |
| Events in quadrant D | 3,609,037 | 536,922 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13562 | 2 |
| B | 0 | 13873 | 2 |
| C | 0 | 14617 | 2 |
| D | 0 | 15387 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6577 | 10 | 0.152045% |
| B | 6577 | 55 | 0.836248% |
| C | 6576 | 86 | 1.307786% |
| D | 6576 | 151 | 2.296229% |

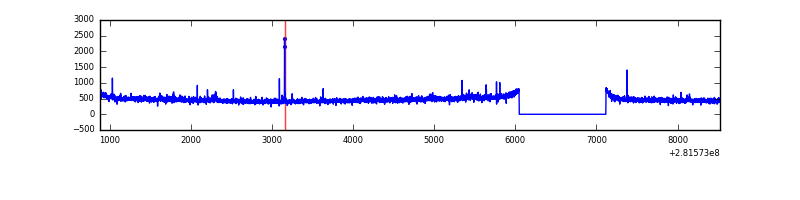

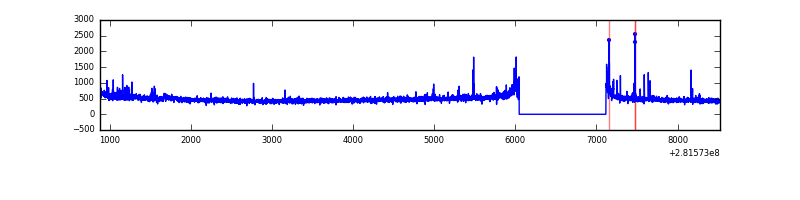

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7647 | 6578 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7647 | 6578 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7646 | 6577 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7646 | 6577 | 105 | 105 | 1.37% | 1.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 38813 | 237.8 | 789 | 772 | 160.0 |
| A | 9 | 143 | 13179 | 77.56 | 789 | 772 | 160.0 |
| A | 0 | 226 | 6966 | 38.72 | 789 | 772 | 160.0 |
| B | 0 | 197 | 25882 | 167.94 | 793 | 773 | 149.5 |
| B | 0 | 189 | 19770 | 127.06 | 793 | 773 | 149.5 |
| B | 0 | 198 | 18522 | 118.71 | 793 | 773 | 149.5 |
| C | 3 | 233 | 414594 | 2334.82 | 760 | 768 | 177.2 |
| C | 14 | 238 | 118003 | 661.44 | 760 | 768 | 177.2 |
| C | 5 | 112 | 6736 | 33.67 | 760 | 768 | 177.2 |
| D | 5 | 222 | 591912 | 3157.83 | 762 | 737 | 187.2 |
| D | 13 | 189 | 80165 | 424.27 | 762 | 737 | 187.2 |
| D | 2 | 234 | 29248 | 152.3 | 762 | 737 | 187.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

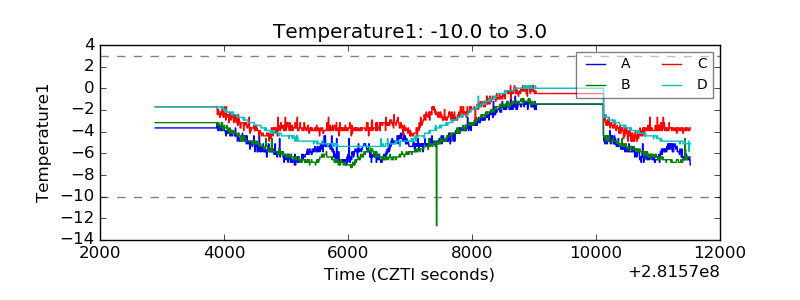

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

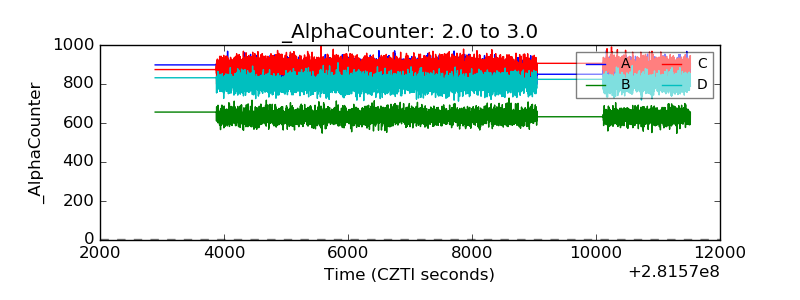

| Alpha Counter |  |

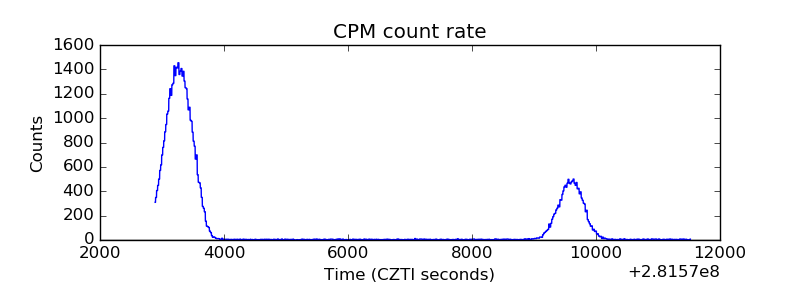

| _CPM_Rate |  |

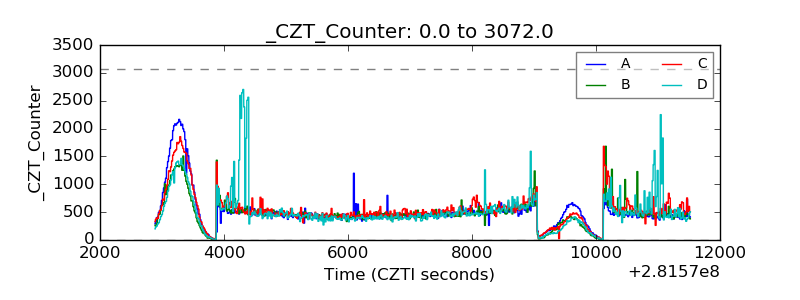

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

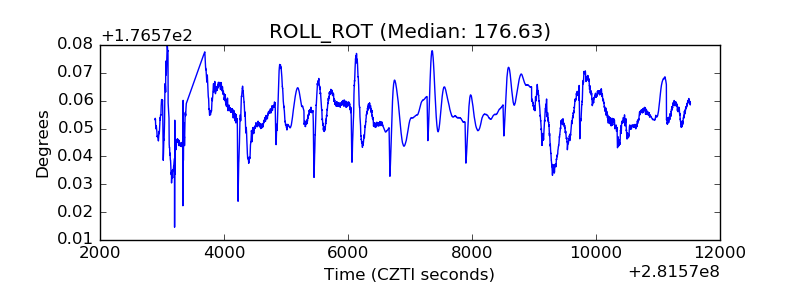

| _ROLL_ROT |  |
| _Roll_DEC |  |

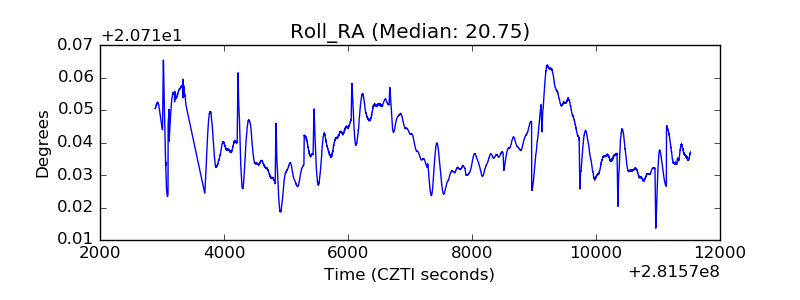

| _Roll_RA |  |
| Veto Counter |  |
