| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_185T04_9000002548_17222cztM0_level2.evt | modeM0/AS1A05_185T04_9000002548_17222cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,925,440 | 103,930,560 |
| Size | 458.6 MB | 99.1 MB |
| Events in quadrant A | 3,132,231 | 699,631 |
| Events in quadrant B | 3,291,976 | 694,466 |
| Events in quadrant C | 4,350,688 | 650,197 |
| Events in quadrant D | 3,352,506 | 653,791 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13598 | 1 |
| B | 0 | 14040 | 1 |
| C | 0 | 17519 | 1 |
| D | 0 | 14233 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6439 | 61 | 0.947352% |
| B | 6440 | 65 | 1.009317% |
| C | 6440 | 131 | 2.034161% |
| D | 6440 | 74 | 1.149068% |

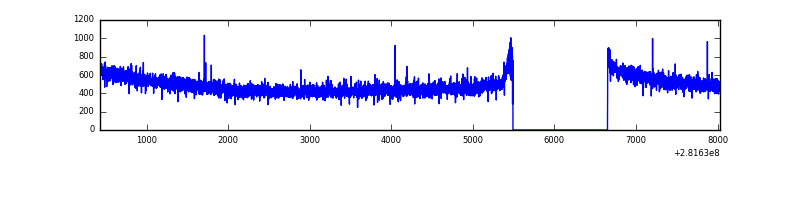

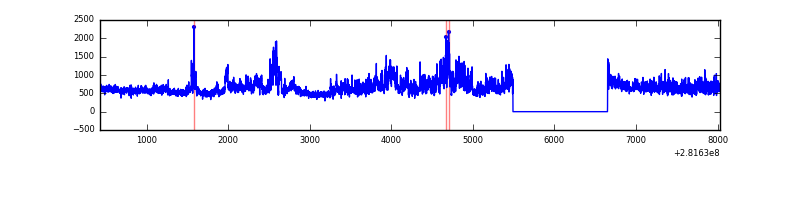

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7599 | 6439 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7600 | 6441 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7600 | 6441 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7600 | 6441 | 13 | 13 | 0.17% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7333 | 40.21 | 814 | 798 | 162.5 |
| A | 12 | 194 | 6009 | 32.06 | 814 | 798 | 162.5 |
| A | 3 | 137 | 5678 | 30.03 | 814 | 798 | 162.5 |
| B | 0 | 197 | 35767 | 228.55 | 803 | 782 | 153.1 |
| B | 0 | 189 | 31515 | 200.77 | 803 | 782 | 153.1 |
| B | 7 | 220 | 24734 | 156.47 | 803 | 782 | 153.1 |
| C | 3 | 233 | 1243555 | 6972.6 | 766 | 770 | 178.2 |
| C | 14 | 238 | 119018 | 663.43 | 766 | 770 | 178.2 |
| C | 13 | 61 | 5371 | 25.81 | 766 | 770 | 178.2 |
| D | 5 | 222 | 205615 | 1088.09 | 790 | 768 | 188.3 |
| D | 1 | 52 | 69070 | 362.8 | 790 | 768 | 188.3 |
| D | 10 | 70 | 27121 | 139.98 | 790 | 768 | 188.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

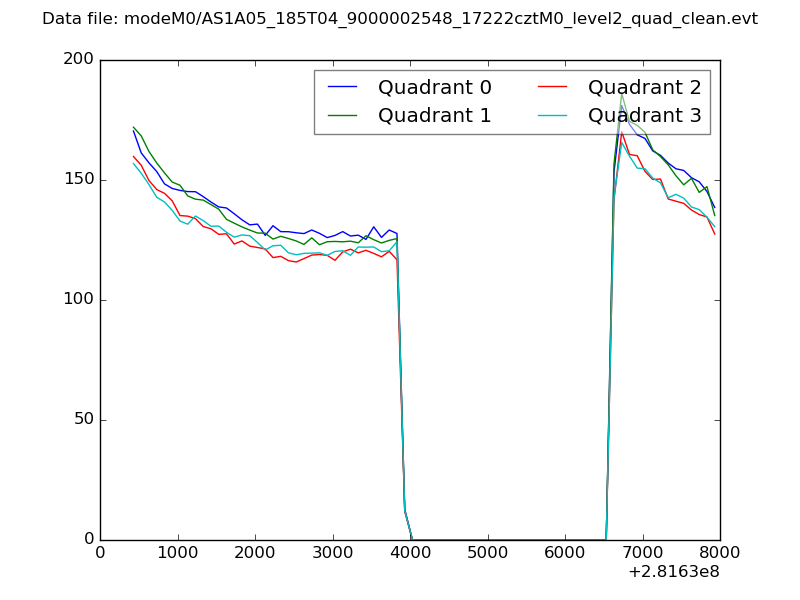

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

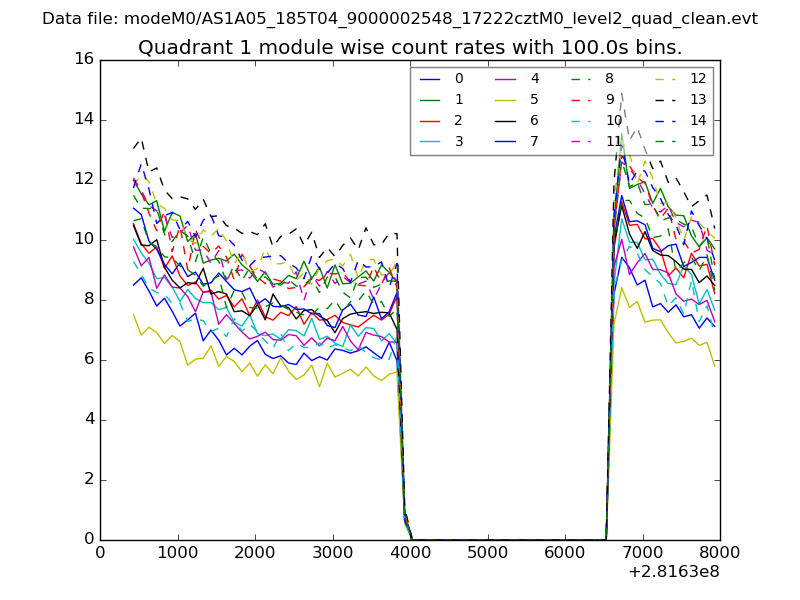

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

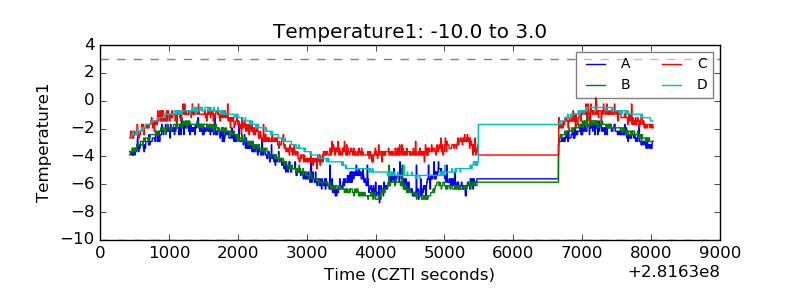

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

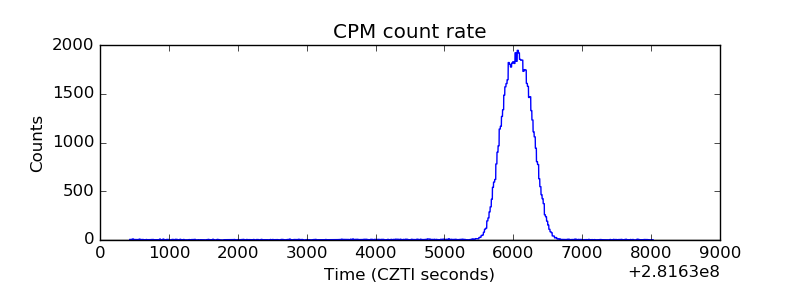

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

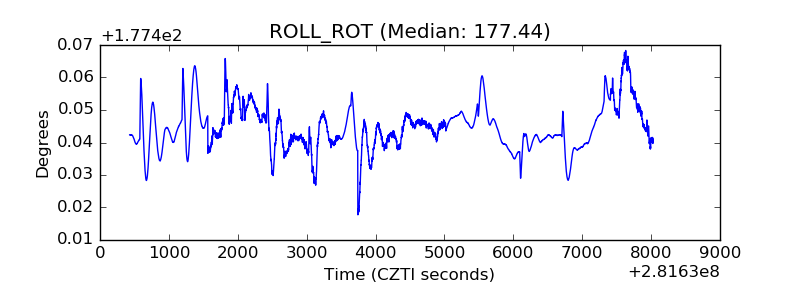

| _ROLL_ROT |  |
| _Roll_DEC |  |

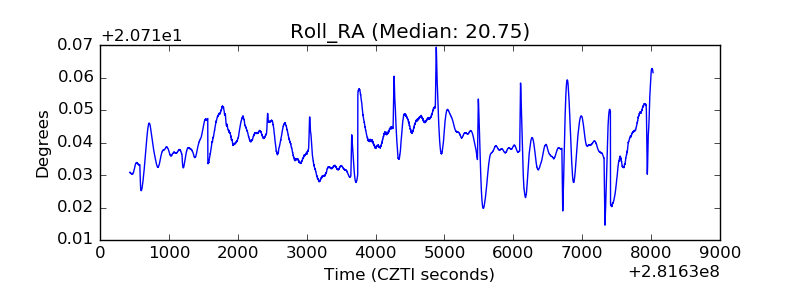

| _Roll_RA |  |
| Veto Counter |  |
