| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_063T01_9000002550_17242cztM0_level2.evt | modeM0/AS1T03_063T01_9000002550_17242cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,402,880 | 96,500,160 |
| Size | 503.0 MB | 92.0 MB |
| Events in quadrant A | 3,460,110 | 620,167 |
| Events in quadrant B | 3,802,636 | 629,303 |
| Events in quadrant C | 3,445,332 | 602,932 |
| Events in quadrant D | 4,779,677 | 572,722 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15043 | 3 |
| B | 0 | 16109 | 2 |
| C | 0 | 14855 | 2 |
| D | 0 | 18992 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7143 | 61 | 0.853983% |
| B | 7143 | 130 | 1.819964% |
| C | 7144 | 76 | 1.063830% |
| D | 7144 | 344 | 4.815230% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8913 | 7145 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8913 | 7145 | 12 | 12 | 0.13% | 0.17% |  |
| C | 8914 | 7146 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8914 | 7146 | 305 | 305 | 3.42% | 4.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 74770 | 412.16 | 878 | 858 | 179.3 |
| A | 0 | 226 | 12001 | 62.14 | 878 | 858 | 179.3 |
| A | 3 | 254 | 8427 | 42.21 | 878 | 858 | 179.3 |
| B | 7 | 220 | 171251 | 999.58 | 880 | 858 | 170.5 |
| B | 0 | 189 | 72930 | 422.8 | 880 | 858 | 170.5 |
| B | 0 | 244 | 30899 | 176.23 | 880 | 858 | 170.5 |
| C | 14 | 238 | 128747 | 648.56 | 840 | 845 | 197.2 |
| C | 3 | 233 | 22638 | 110.51 | 840 | 845 | 197.2 |
| C | 1 | 16 | 19256 | 93.36 | 840 | 845 | 197.2 |
| D | 15 | 0 | 1171756 | 5776.68 | 834 | 809 | 202.7 |
| D | 13 | 189 | 226250 | 1112.18 | 834 | 809 | 202.7 |
| D | 10 | 70 | 121104 | 593.46 | 834 | 809 | 202.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

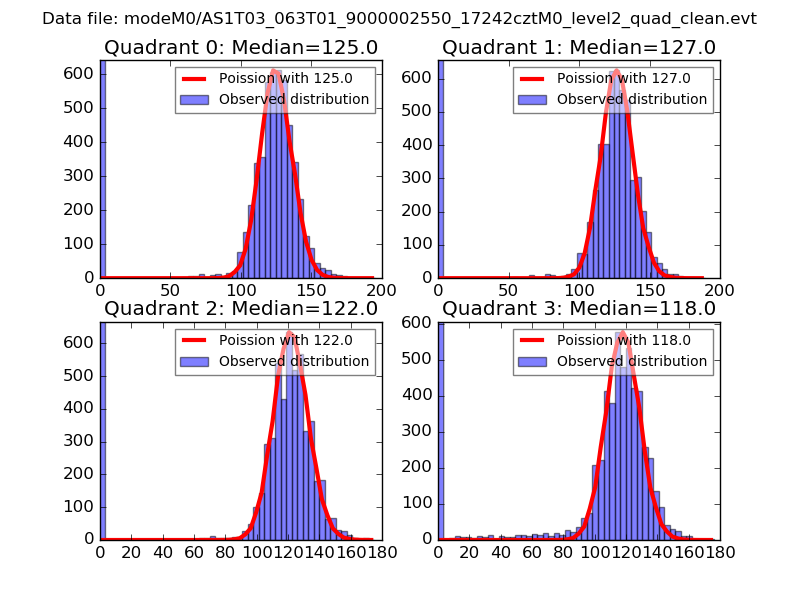

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

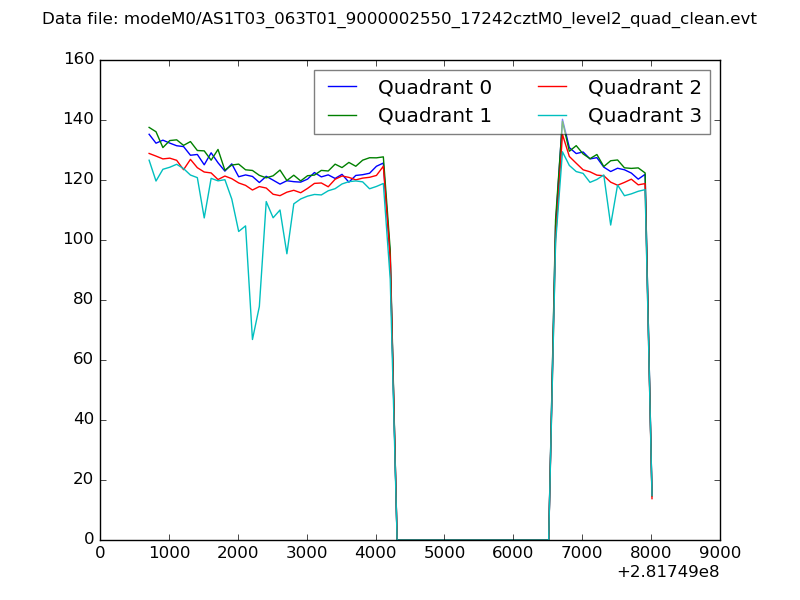

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
