| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_185T04_9000002552_17247cztM0_level2.evt | modeM0/AS1A05_185T04_9000002552_17247cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,625,280 | 82,281,600 |
| Size | 425.0 MB | 78.5 MB |
| Events in quadrant A | 3,191,750 | 513,743 |
| Events in quadrant B | 3,285,775 | 515,218 |
| Events in quadrant C | 3,219,767 | 492,463 |
| Events in quadrant D | 3,330,117 | 490,332 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13991 | 1 |
| B | 0 | 14111 | 1 |
| C | 0 | 13966 | 1 |
| D | 0 | 14608 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6886 | 68 | 0.987511% |
| B | 6886 | 68 | 0.987511% |
| C | 6886 | 76 | 1.103689% |
| D | 6886 | 82 | 1.190822% |

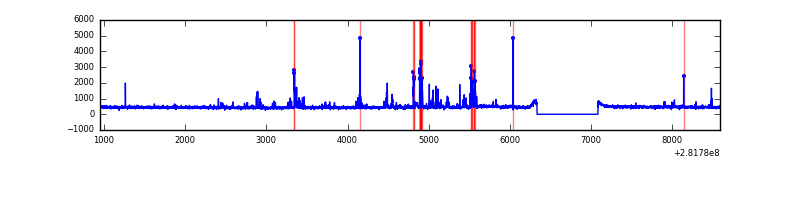

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7636 | 6886 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7636 | 6886 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7636 | 6887 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7636 | 6887 | 27 | 27 | 0.35% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 13046 | 72.69 | 824 | 804 | 168.4 |
| A | 15 | 174 | 10968 | 60.36 | 824 | 804 | 168.4 |
| A | 0 | 226 | 7905 | 42.17 | 824 | 804 | 168.4 |
| B | 0 | 197 | 34852 | 214.2 | 821 | 800 | 159.0 |
| B | 12 | 111 | 19366 | 116.79 | 821 | 800 | 159.0 |
| B | 7 | 220 | 18867 | 113.65 | 821 | 800 | 159.0 |
| C | 14 | 238 | 120387 | 646.14 | 786 | 788 | 185.1 |
| C | 3 | 233 | 20580 | 106.93 | 786 | 788 | 185.1 |
| C | 7 | 220 | 8462 | 41.46 | 786 | 788 | 185.1 |
| D | 10 | 70 | 181563 | 931.07 | 799 | 776 | 194.2 |
| D | 13 | 189 | 72790 | 370.88 | 799 | 776 | 194.2 |
| D | 2 | 234 | 31531 | 158.39 | 799 | 776 | 194.2 |

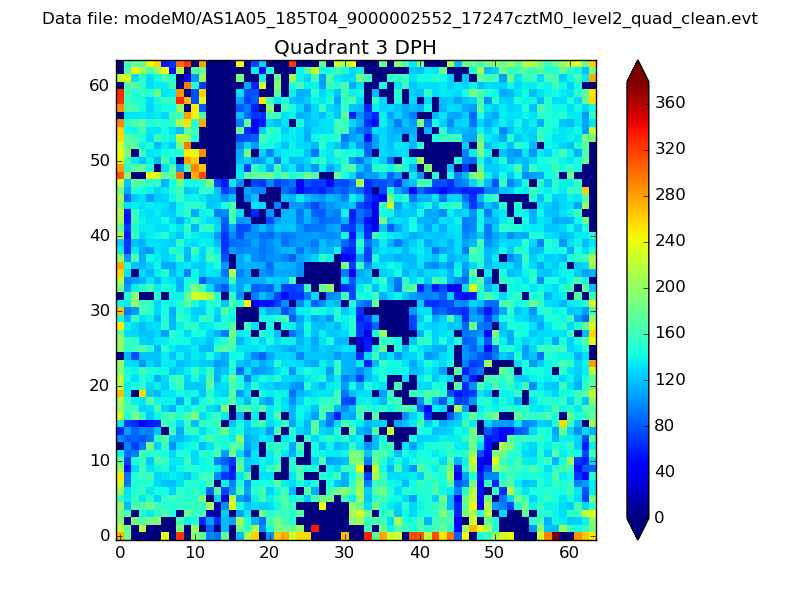

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

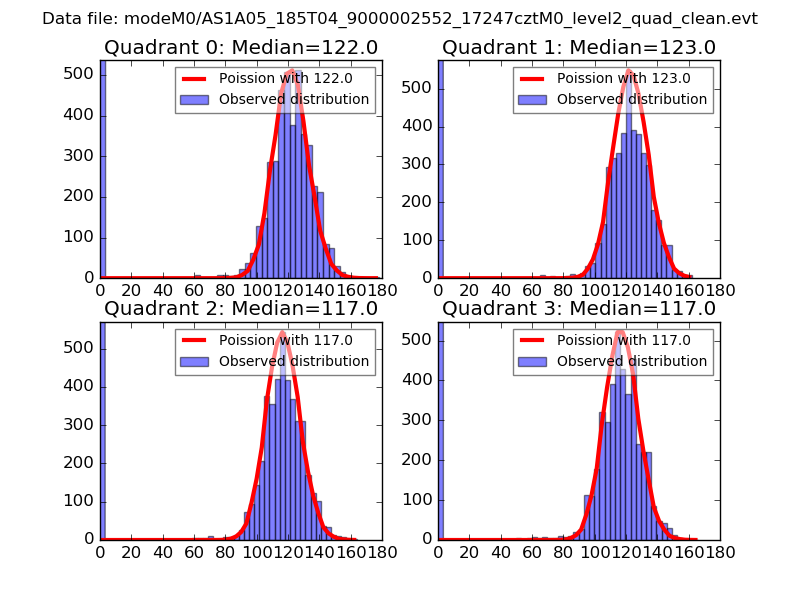

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

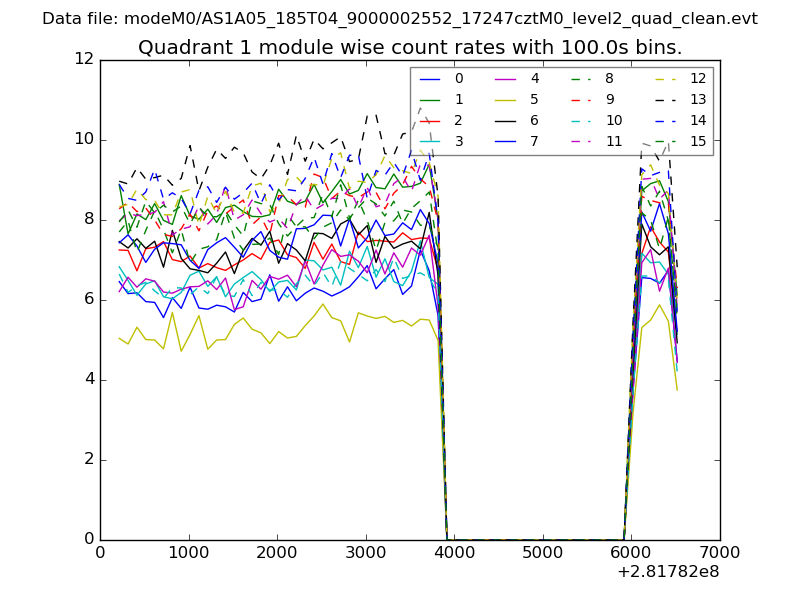

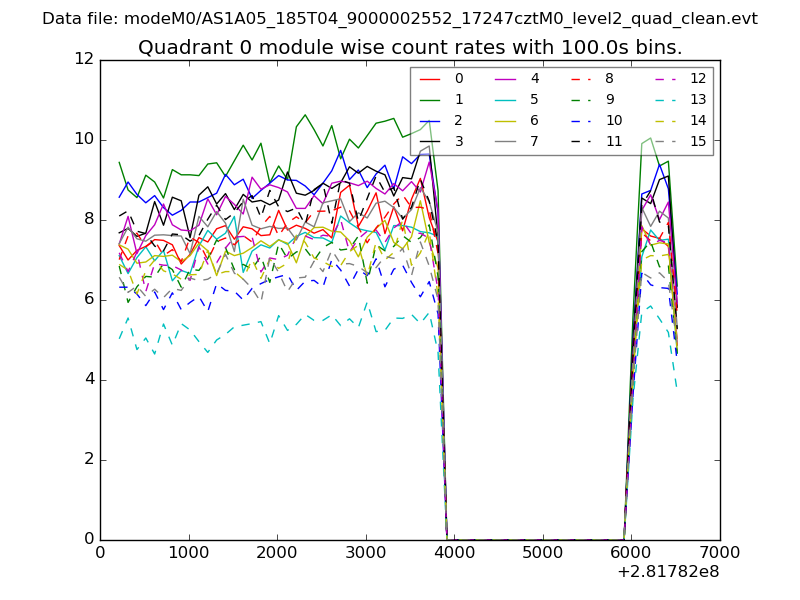

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

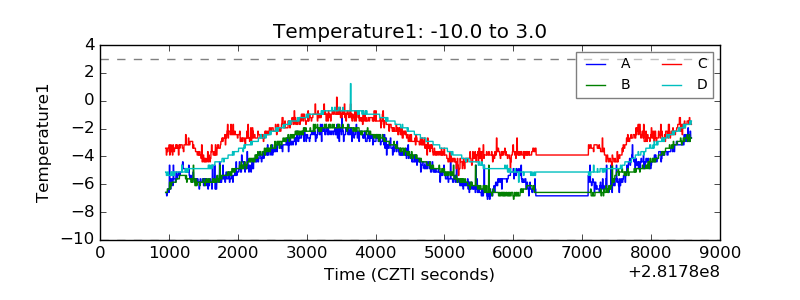

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

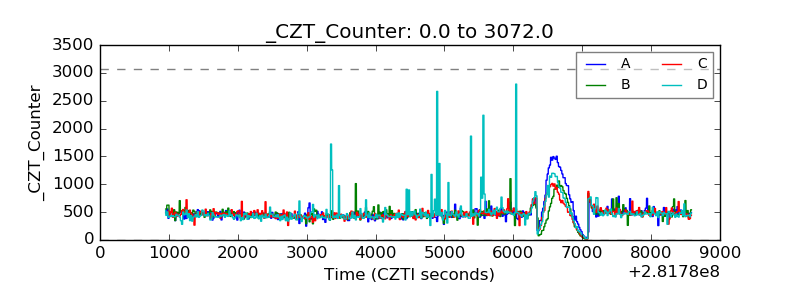

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

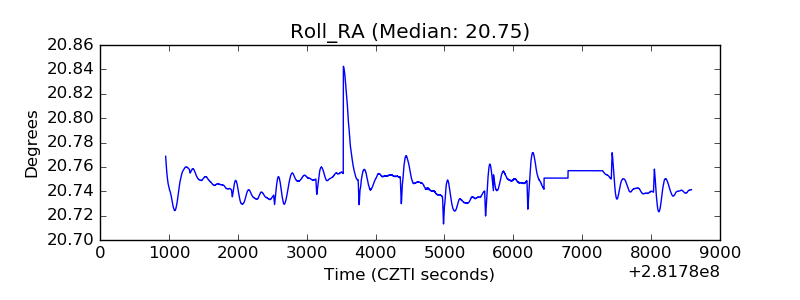

| _Roll_RA |  |
| Veto Counter |  |
