| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_185T04_9000002552_17255cztM0_level2.evt | modeM0/AS1A05_185T04_9000002552_17255cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,243,520 | 90,100,800 |
| Size | 414.1 MB | 85.9 MB |
| Events in quadrant A | 3,114,964 | 584,471 |
| Events in quadrant B | 3,214,093 | 591,607 |
| Events in quadrant C | 3,115,914 | 558,523 |
| Events in quadrant D | 3,274,901 | 551,407 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13214 | 2 |
| B | 0 | 13670 | 3 |
| C | 0 | 13231 | 2 |
| D | 0 | 14124 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6353 | 27 | 0.424996% |
| B | 6352 | 48 | 0.755668% |
| C | 6352 | 89 | 1.401134% |
| D | 6352 | 66 | 1.039043% |

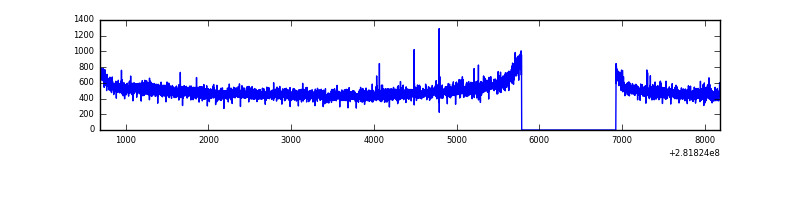

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7493 | 6354 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7492 | 6353 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7492 | 6353 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7492 | 6353 | 43 | 43 | 0.57% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 105742 | 668.77 | 780 | 765 | 157.0 |
| A | 0 | 226 | 13236 | 79.45 | 780 | 765 | 157.0 |
| A | 3 | 137 | 5700 | 31.44 | 780 | 765 | 157.0 |
| B | 0 | 189 | 100295 | 668.06 | 782 | 763 | 149.0 |
| B | 0 | 197 | 29026 | 189.7 | 782 | 763 | 149.0 |
| B | 0 | 198 | 18539 | 119.31 | 782 | 763 | 149.0 |
| C | 14 | 238 | 117146 | 664.06 | 752 | 758 | 175.3 |
| C | 3 | 233 | 52875 | 297.36 | 752 | 758 | 175.3 |
| C | 1 | 16 | 14299 | 77.26 | 752 | 758 | 175.3 |
| D | 13 | 189 | 140536 | 762.14 | 759 | 738 | 183.4 |
| D | 10 | 70 | 123675 | 670.22 | 759 | 738 | 183.4 |
| D | 1 | 52 | 97557 | 527.83 | 759 | 738 | 183.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

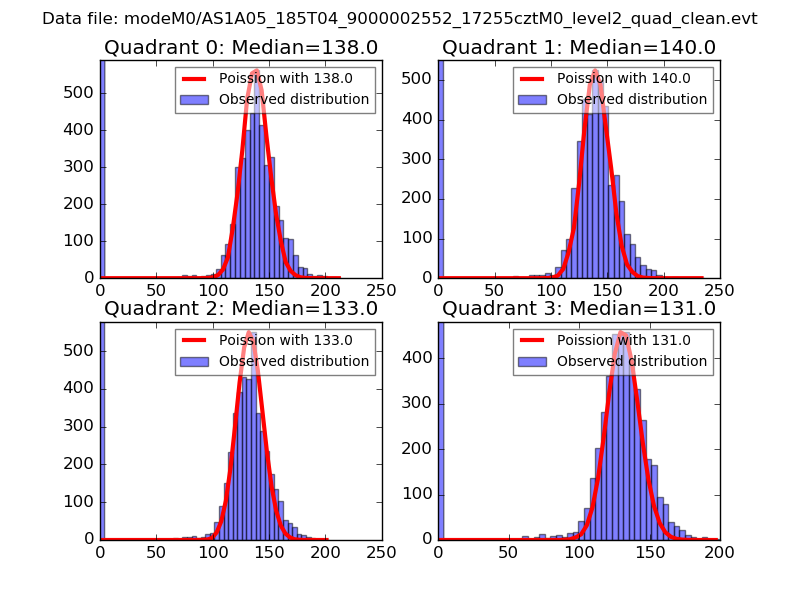

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

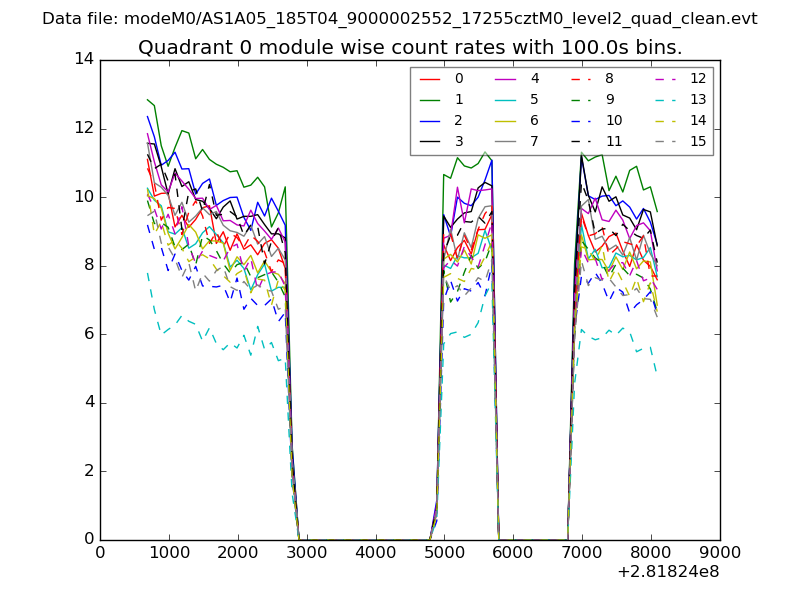

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

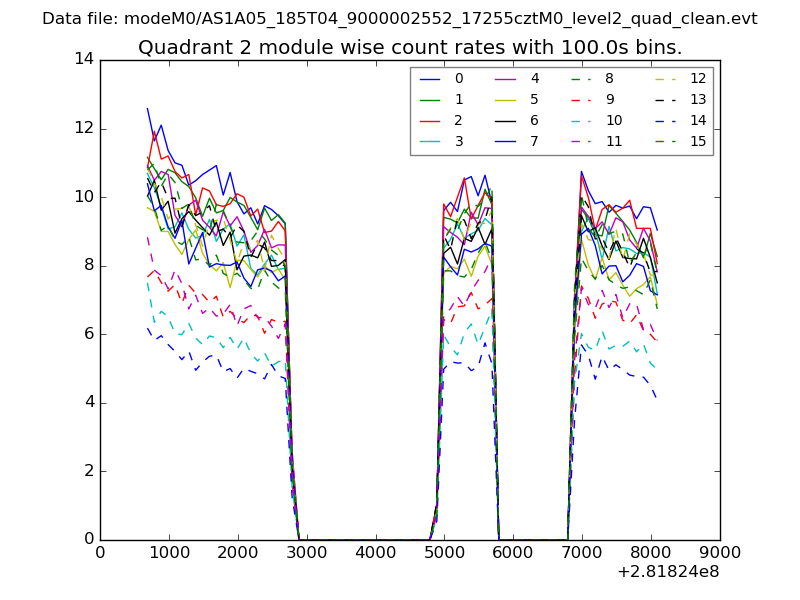

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

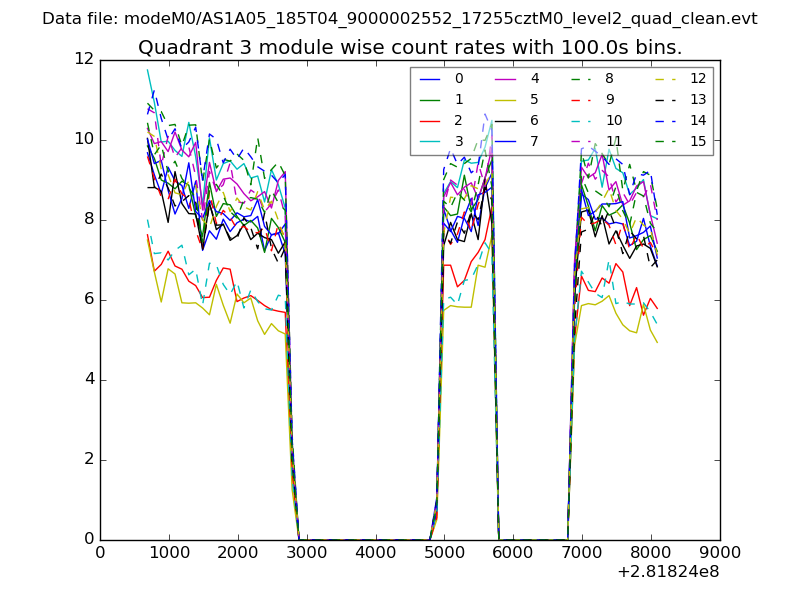

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

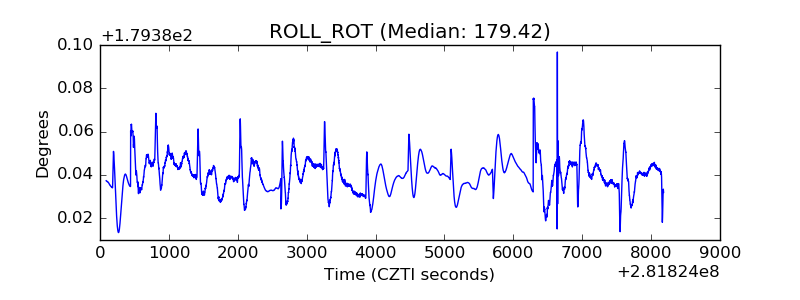

| _ROLL_ROT |  |
| _Roll_DEC |  |

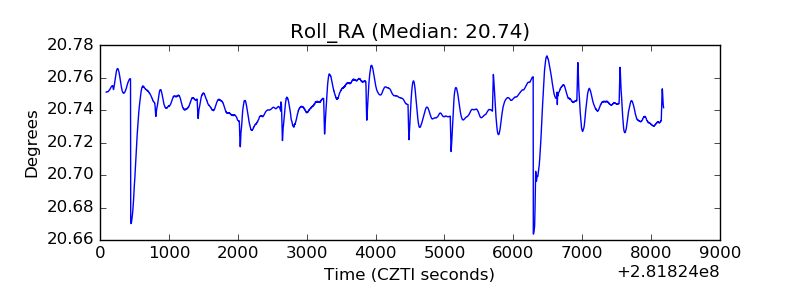

| _Roll_RA |  |

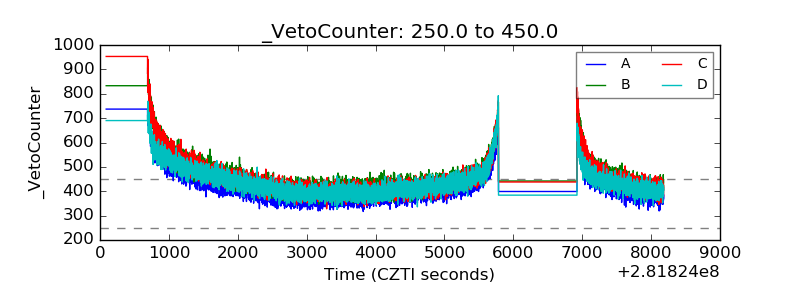

| Veto Counter |  |
