| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_010T02_9000002556_17294cztM0_level2.evt | modeM0/AS1A05_010T02_9000002556_17294cztM0_level2_quad_clean.evt |
| Size (bytes) | 570,119,040 | 97,827,840 |
| Size | 543.7 MB | 93.3 MB |
| Events in quadrant A | 3,474,123 | 645,952 |
| Events in quadrant B | 3,518,237 | 646,887 |
| Events in quadrant C | 3,478,827 | 609,764 |
| Events in quadrant D | 6,320,094 | 572,146 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14930 | 2 |
| B | 0 | 15012 | 2 |
| C | 0 | 14964 | 2 |
| D | 0 | 23582 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7001 | 111 | 1.585488% |
| B | 7002 | 129 | 1.842331% |
| C | 7002 | 148 | 2.113682% |
| D | 7002 | 790 | 11.282491% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9161 | 7001 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9162 | 7002 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9162 | 7003 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9162 | 7002 | 510 | 510 | 5.57% | 7.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7684 | 37.39 | 904 | 888 | 181.8 |
| A | 3 | 137 | 6700 | 31.97 | 904 | 888 | 181.8 |
| A | 12 | 194 | 6611 | 31.48 | 904 | 888 | 181.8 |
| B | 12 | 111 | 20840 | 115.58 | 896 | 874 | 172.7 |
| B | 11 | 111 | 18218 | 100.4 | 896 | 874 | 172.7 |
| B | 14 | 111 | 15949 | 87.27 | 896 | 874 | 172.7 |
| C | 14 | 238 | 131345 | 655.39 | 853 | 859 | 199.1 |
| C | 3 | 233 | 25266 | 122.59 | 853 | 859 | 199.1 |
| C | 13 | 61 | 5865 | 25.14 | 853 | 859 | 199.1 |
| D | 13 | 232 | 2693782 | 13261.18 | 840 | 815 | 203.1 |
| D | 1 | 52 | 176405 | 864.67 | 840 | 815 | 203.1 |
| D | 11 | 176 | 113671 | 555.74 | 840 | 815 | 203.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

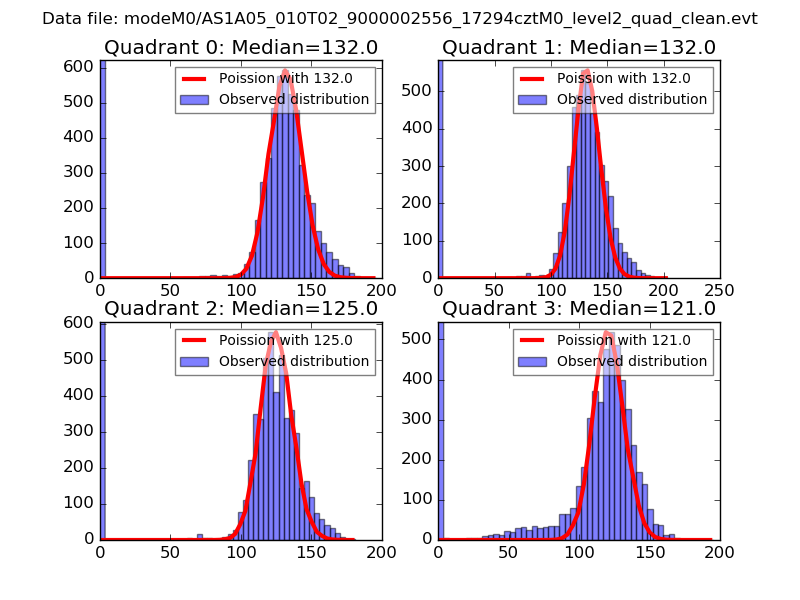

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

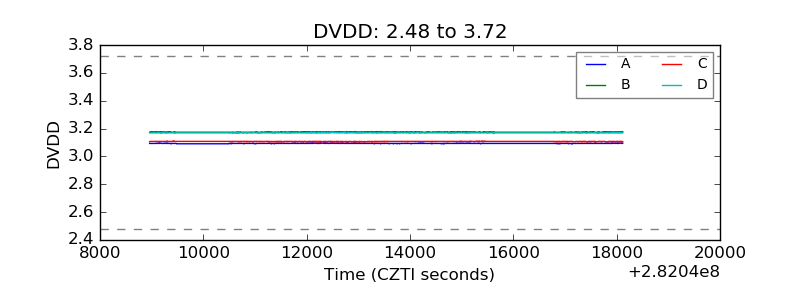

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

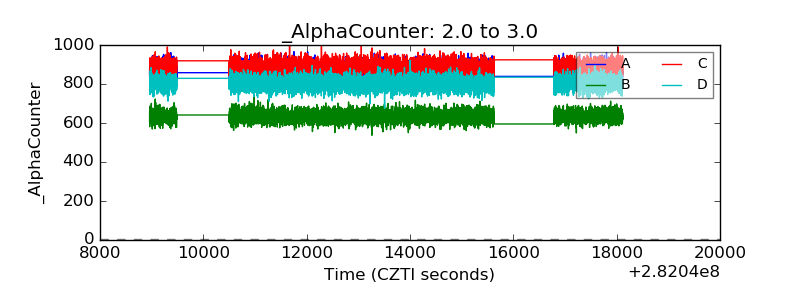

| Alpha Counter |  |

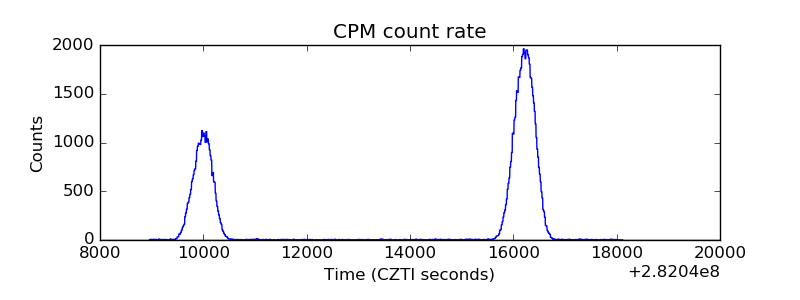

| _CPM_Rate |  |

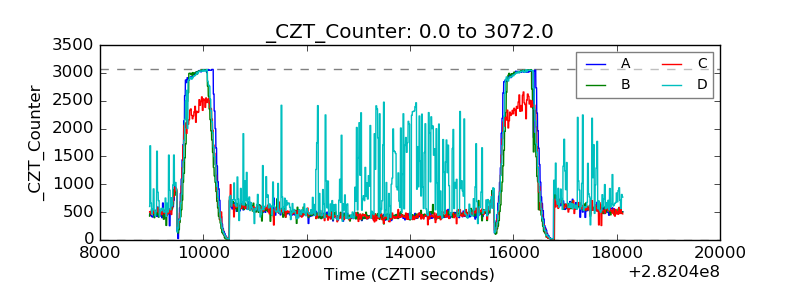

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

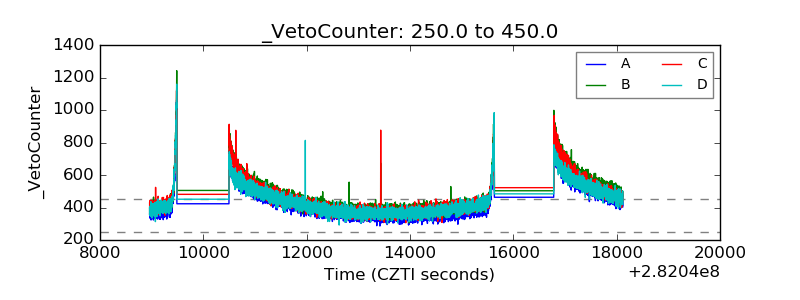

| Veto Counter |  |
