| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_010T02_9000002556_17314cztM0_level2.evt | modeM0/AS1A05_010T02_9000002556_17314cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,018,240 | 93,265,920 |
| Size | 517.9 MB | 88.9 MB |
| Events in quadrant A | 3,150,217 | 609,818 |
| Events in quadrant B | 3,234,408 | 616,598 |
| Events in quadrant C | 3,156,918 | 577,864 |
| Events in quadrant D | 6,438,403 | 541,833 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14072 | 3 |
| B | 0 | 14158 | 2 |
| C | 0 | 14042 | 2 |
| D | 0 | 23773 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6858 | 32 | 0.466608% |
| B | 6858 | 45 | 0.656168% |
| C | 6858 | 65 | 0.947798% |
| D | 6858 | 675 | 9.842520% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7613 | 6859 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7613 | 6859 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7613 | 6859 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7613 | 6859 | 762 | 762 | 10.01% | 11.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7116 | 37.88 | 819 | 803 | 166.7 |
| A | 3 | 137 | 6134 | 31.98 | 819 | 803 | 166.7 |
| A | 12 | 194 | 5861 | 30.35 | 819 | 803 | 166.7 |
| B | 12 | 111 | 19306 | 117.11 | 819 | 797 | 158.0 |
| B | 11 | 111 | 16449 | 99.03 | 819 | 797 | 158.0 |
| B | 14 | 111 | 14367 | 85.86 | 819 | 797 | 158.0 |
| C | 14 | 238 | 120057 | 653.7 | 777 | 784 | 182.5 |
| C | 13 | 61 | 5364 | 25.1 | 777 | 784 | 182.5 |
| C | 3 | 233 | 4606 | 20.95 | 777 | 784 | 182.5 |
| D | 11 | 176 | 2742636 | 14638.12 | 767 | 743 | 187.3 |
| D | 5 | 222 | 660977 | 3524.78 | 767 | 743 | 187.3 |
| D | 1 | 52 | 96548 | 511.47 | 767 | 743 | 187.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

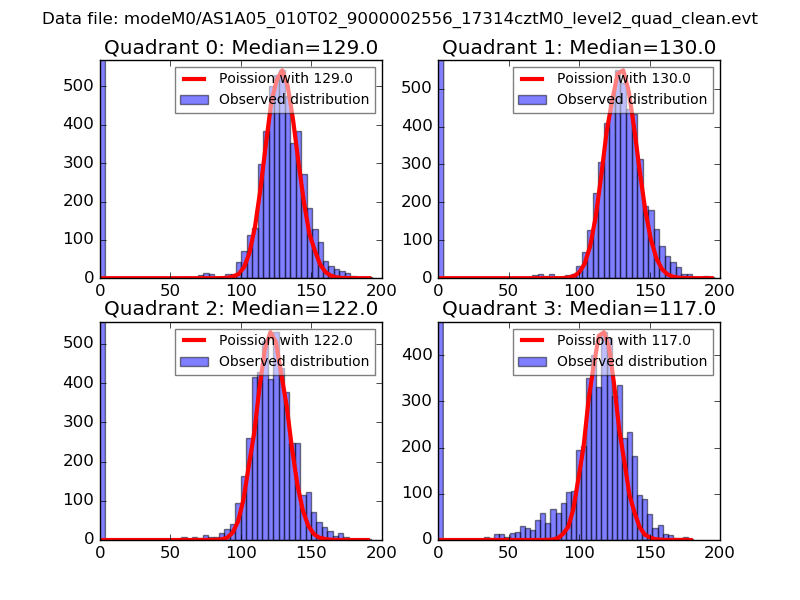

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

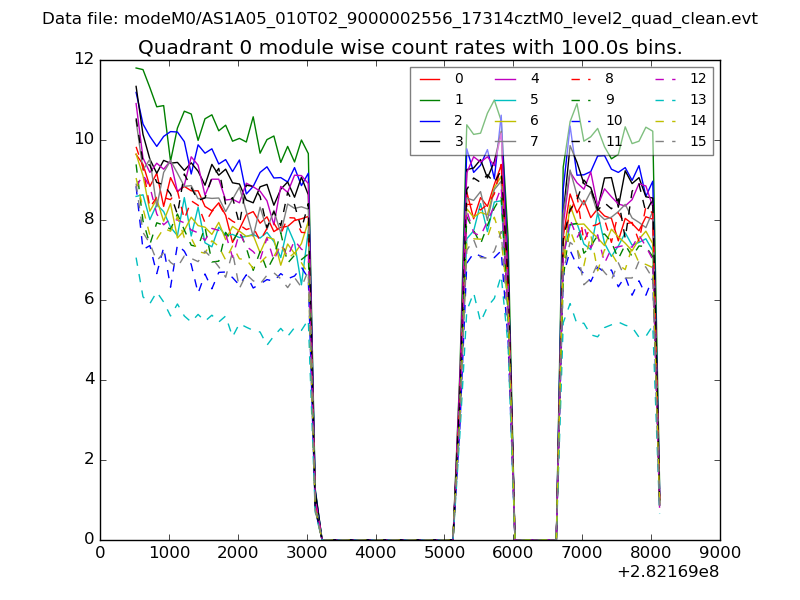

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

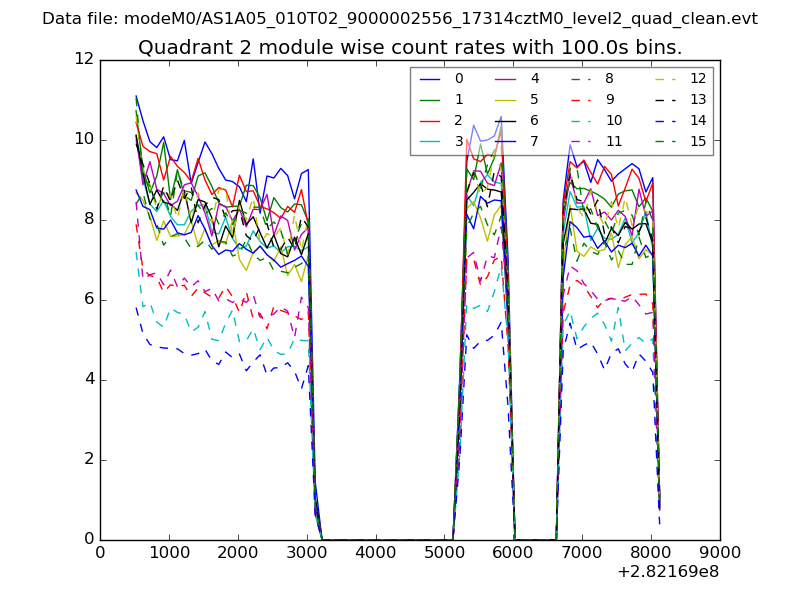

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

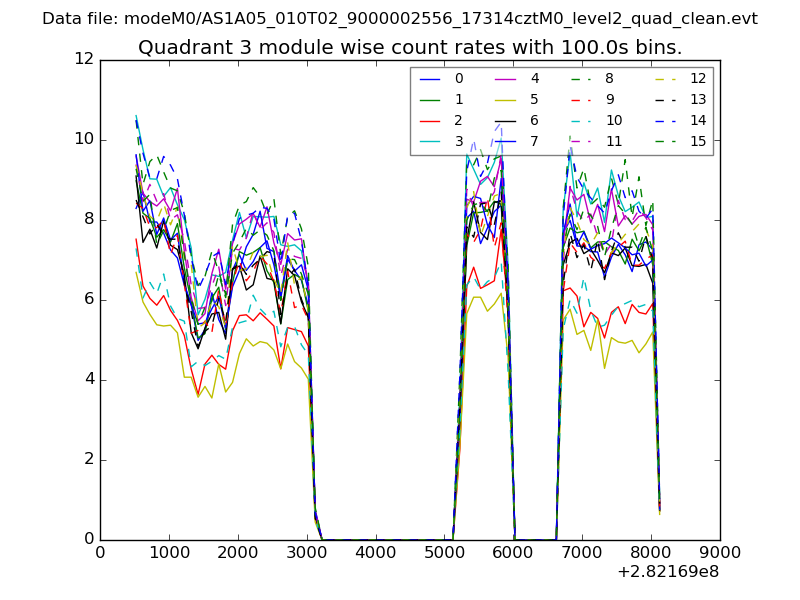

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

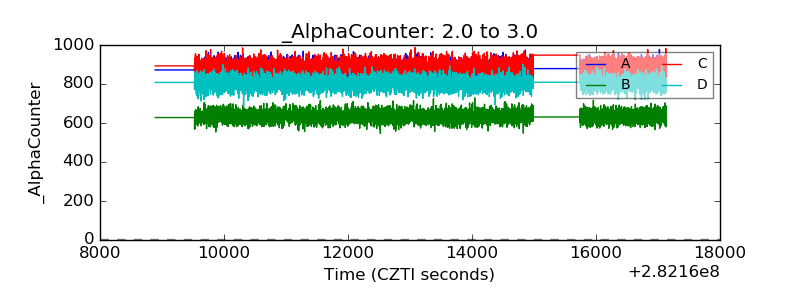

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
