| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_169T01_9000002558_17328cztM0_level2.evt | modeM0/AS1A05_169T01_9000002558_17328cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,472,320 | 104,313,600 |
| Size | 438.2 MB | 99.5 MB |
| Events in quadrant A | 3,231,637 | 689,669 |
| Events in quadrant B | 3,329,224 | 694,048 |
| Events in quadrant C | 3,288,861 | 649,964 |
| Events in quadrant D | 3,596,027 | 644,367 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14233 | 2 |
| B | 0 | 14402 | 2 |
| C | 0 | 14291 | 2 |
| D | 0 | 15625 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6907 | 22 | 0.318517% |
| B | 6907 | 35 | 0.506732% |
| C | 6907 | 54 | 0.781816% |
| D | 6907 | 57 | 0.825250% |

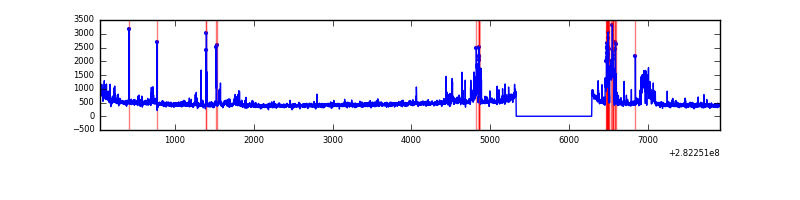

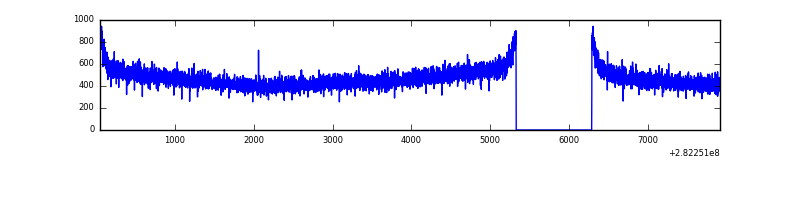

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7867 | 6908 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7867 | 6908 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7867 | 6908 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7867 | 6908 | 40 | 40 | 0.51% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7174 | 37.56 | 841 | 823 | 169.1 |
| A | 3 | 137 | 6567 | 33.97 | 841 | 823 | 169.1 |
| A | 12 | 194 | 6023 | 30.76 | 841 | 823 | 169.1 |
| B | 4 | 173 | 34048 | 206.8 | 840 | 821 | 160.7 |
| B | 12 | 111 | 19774 | 117.96 | 840 | 821 | 160.7 |
| B | 11 | 111 | 17486 | 103.72 | 840 | 821 | 160.7 |
| C | 14 | 238 | 126593 | 671.33 | 800 | 807 | 187.4 |
| C | 3 | 233 | 41413 | 216.72 | 800 | 807 | 187.4 |
| C | 13 | 61 | 5713 | 26.18 | 800 | 807 | 187.4 |
| D | 5 | 222 | 467842 | 2402.2 | 803 | 780 | 194.4 |
| D | 1 | 52 | 60772 | 308.55 | 803 | 780 | 194.4 |
| D | 2 | 234 | 22879 | 113.66 | 803 | 780 | 194.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

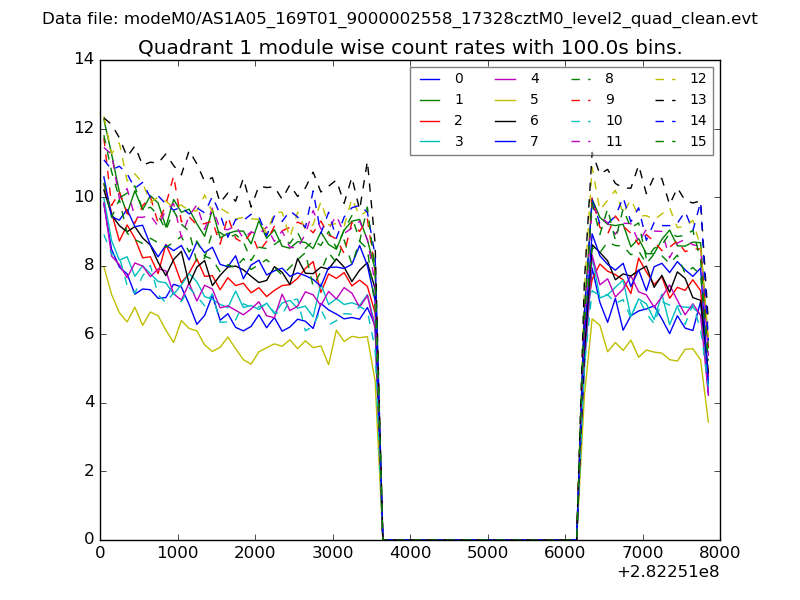

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

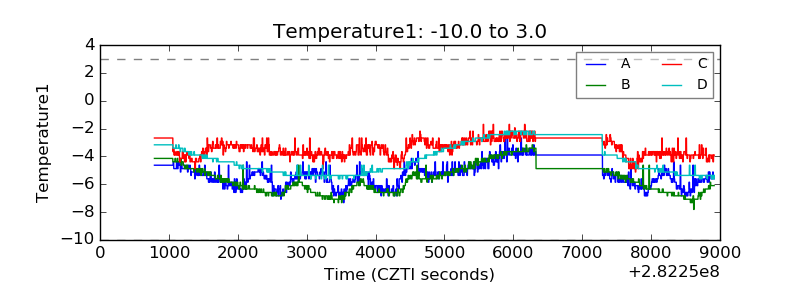

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

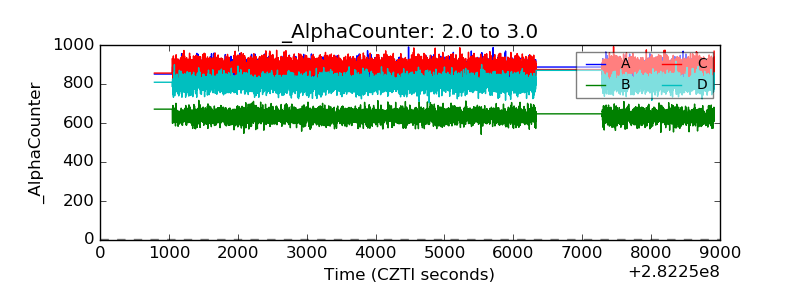

| Alpha Counter |  |

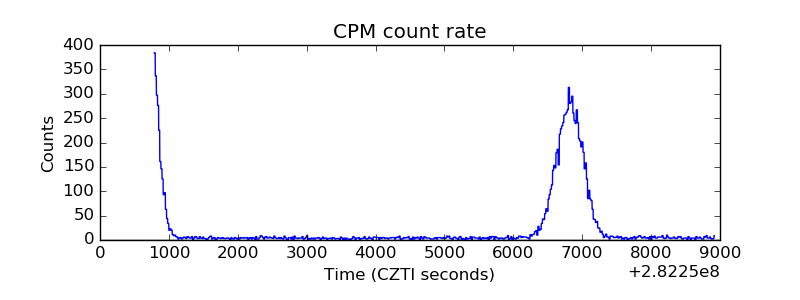

| _CPM_Rate |  |

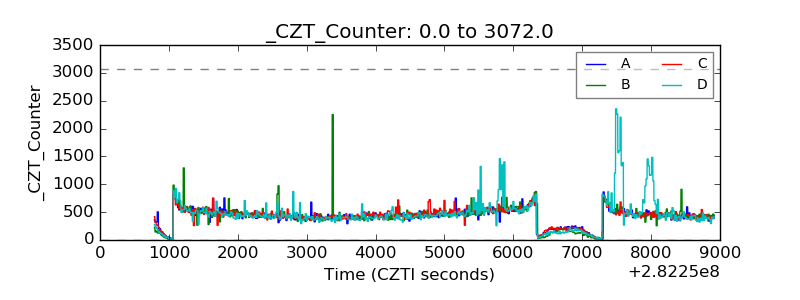

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

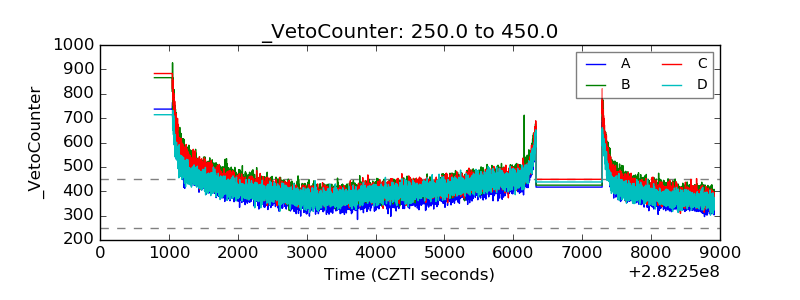

| Veto Counter |  |
