| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_169T01_9000002558_17339cztM0_level2.evt | modeM0/AS1A05_169T01_9000002558_17339cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,780,800 | 85,262,400 |
| Size | 459.5 MB | 81.3 MB |
| Events in quadrant A | 3,434,691 | 551,010 |
| Events in quadrant B | 3,515,284 | 552,857 |
| Events in quadrant C | 3,624,001 | 518,833 |
| Events in quadrant D | 3,583,703 | 514,449 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14363 | 2 |
| B | 0 | 14626 | 2 |
| C | 0 | 14994 | 3 |
| D | 0 | 15061 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6373 | 161 | 2.526283% |
| B | 6373 | 182 | 2.855798% |
| C | 6372 | 237 | 3.719397% |
| D | 6373 | 172 | 2.698886% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8833 | 6373 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8833 | 6374 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8832 | 6373 | 8 | 8 | 0.09% | 0.13% |  |
| D | 8833 | 6374 | 30 | 30 | 0.34% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7791 | 38.93 | 893 | 876 | 177.6 |
| A | 12 | 194 | 6410 | 31.15 | 893 | 876 | 177.6 |
| A | 3 | 137 | 6389 | 31.04 | 893 | 876 | 177.6 |
| B | 0 | 230 | 22837 | 132.53 | 886 | 867 | 165.8 |
| B | 12 | 111 | 19752 | 113.92 | 886 | 867 | 165.8 |
| B | 11 | 111 | 17491 | 100.28 | 886 | 867 | 165.8 |
| C | 3 | 233 | 189863 | 968.58 | 844 | 850 | 195.1 |
| C | 14 | 238 | 132166 | 672.92 | 844 | 850 | 195.1 |
| C | 5 | 112 | 11365 | 53.88 | 844 | 850 | 195.1 |
| D | 5 | 222 | 301882 | 1457.13 | 852 | 829 | 206.6 |
| D | 2 | 152 | 44420 | 210.99 | 852 | 829 | 206.6 |
| D | 2 | 120 | 22069 | 102.8 | 852 | 829 | 206.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

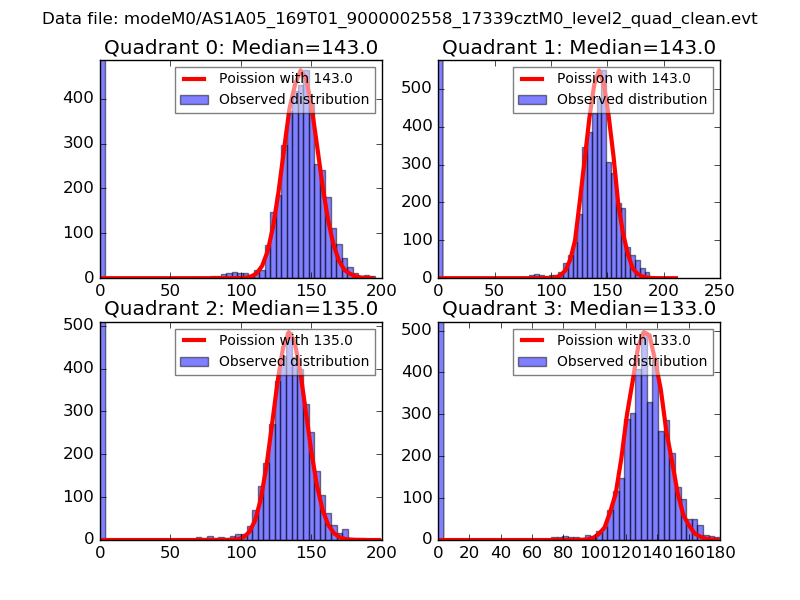

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

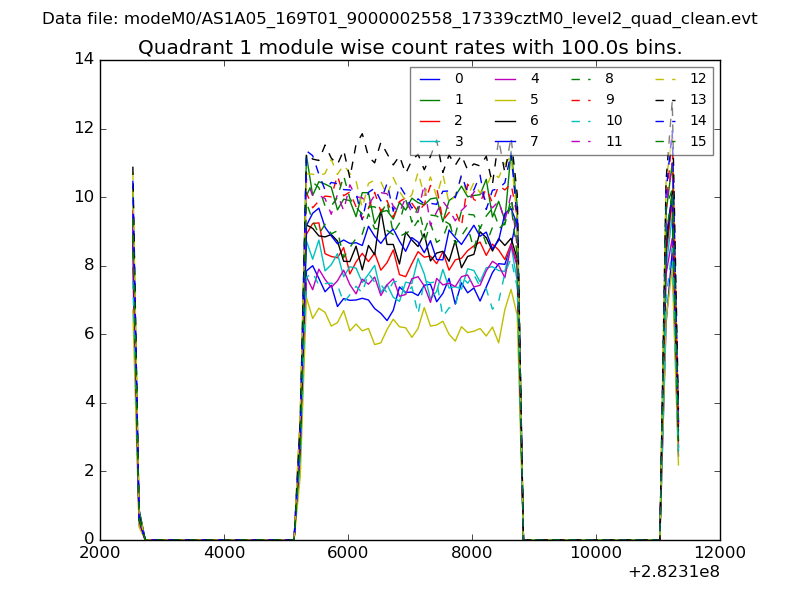

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

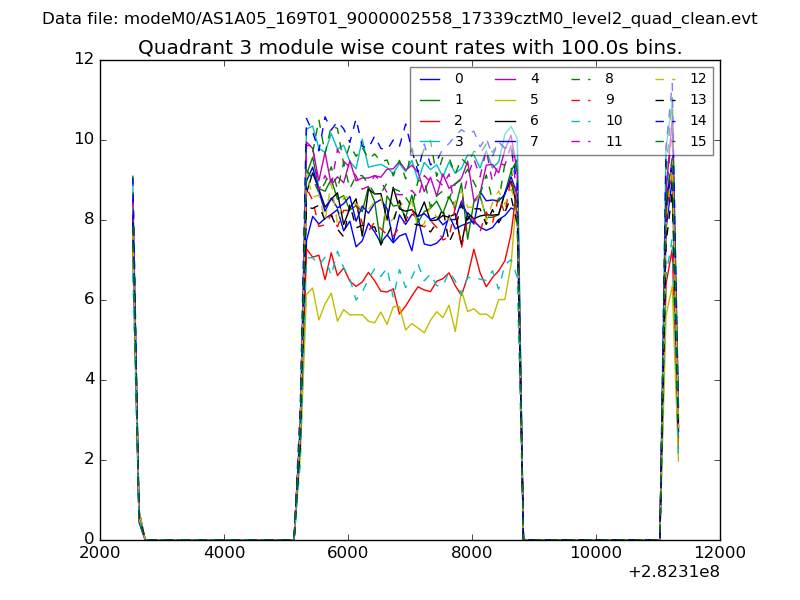

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

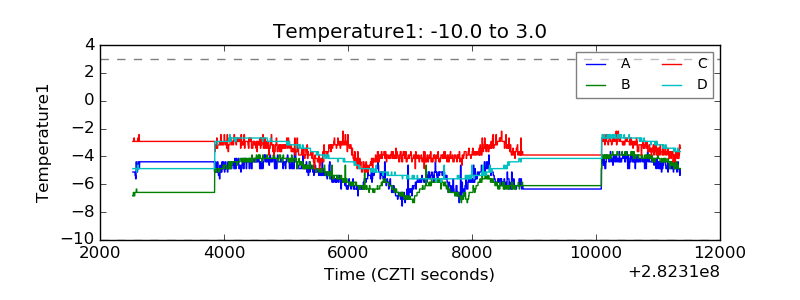

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

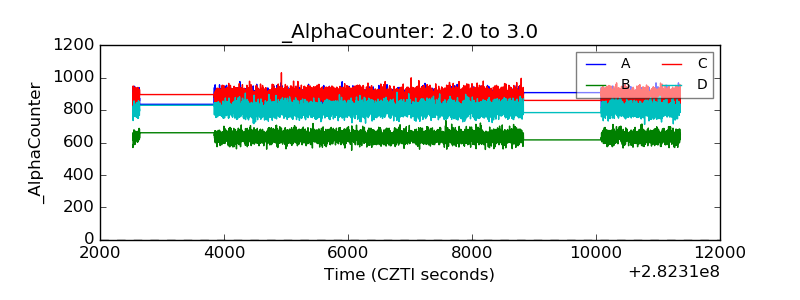

| Alpha Counter |  |
| _CPM_Rate |  |

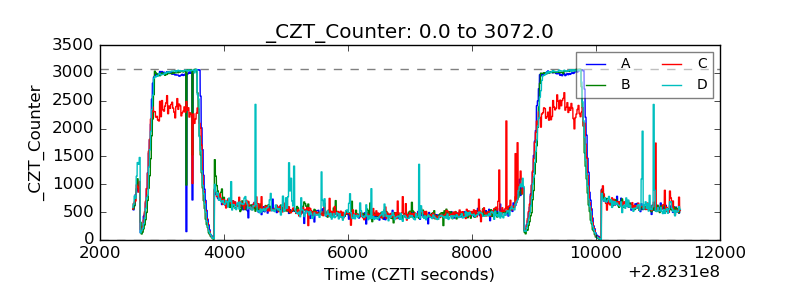

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

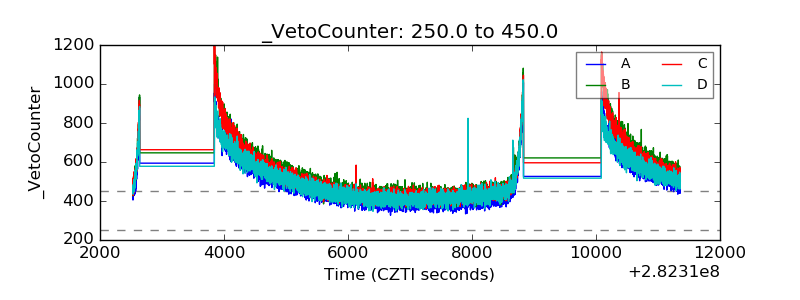

| Veto Counter |  |
