| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_169T01_9000002558_17342cztM0_level2.evt | modeM0/AS1A05_169T01_9000002558_17342cztM0_level2_quad_clean.evt |
| Size (bytes) | 153,771,840 | 39,280,320 |
| Size | 146.6 MB | 37.5 MB |
| Events in quadrant A | 1,040,397 | 266,609 |
| Events in quadrant B | 1,085,131 | 269,930 |
| Events in quadrant C | 1,034,578 | 251,381 |
| Events in quadrant D | 1,349,282 | 246,682 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4449 | 1 |
| B | 0 | 4560 | 1 |
| C | 0 | 4441 | 1 |
| D | 0 | 5454 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2137 | 4 | 0.187178% |
| B | 2137 | 7 | 0.327562% |
| C | 2137 | 12 | 0.561535% |
| D | 2137 | 36 | 1.684605% |

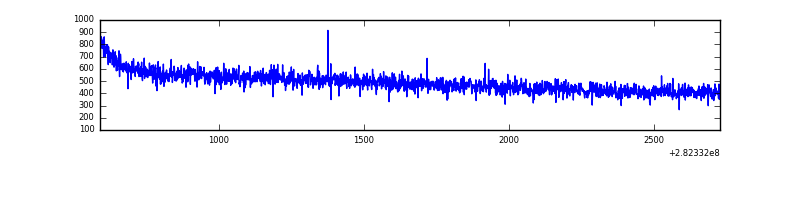

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2137 | 2137 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2137 | 2137 | 2 | 2 | 0.09% | 0.09% |  |
| C | 2137 | 2137 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2137 | 2137 | 30 | 30 | 1.40% | 1.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 2332 | 36.86 | 270 | 266 | 56.1 |
| A | 3 | 137 | 2096 | 32.65 | 270 | 266 | 56.1 |
| A | 12 | 194 | 1913 | 29.38 | 270 | 266 | 56.1 |
| B | 4 | 173 | 20451 | 374.2 | 271 | 265 | 53.9 |
| B | 0 | 229 | 8188 | 146.87 | 271 | 265 | 53.9 |
| B | 12 | 111 | 6184 | 109.72 | 271 | 265 | 53.9 |
| C | 14 | 238 | 40299 | 658.8 | 252 | 254 | 60.8 |
| C | 3 | 233 | 7434 | 118.12 | 252 | 254 | 60.8 |
| C | 5 | 112 | 2181 | 31.7 | 252 | 254 | 60.8 |
| D | 5 | 222 | 303873 | 4808.31 | 253 | 245 | 63.1 |
| D | 2 | 152 | 46776 | 736.87 | 253 | 245 | 63.1 |
| D | 13 | 238 | 34072 | 535.69 | 253 | 245 | 63.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

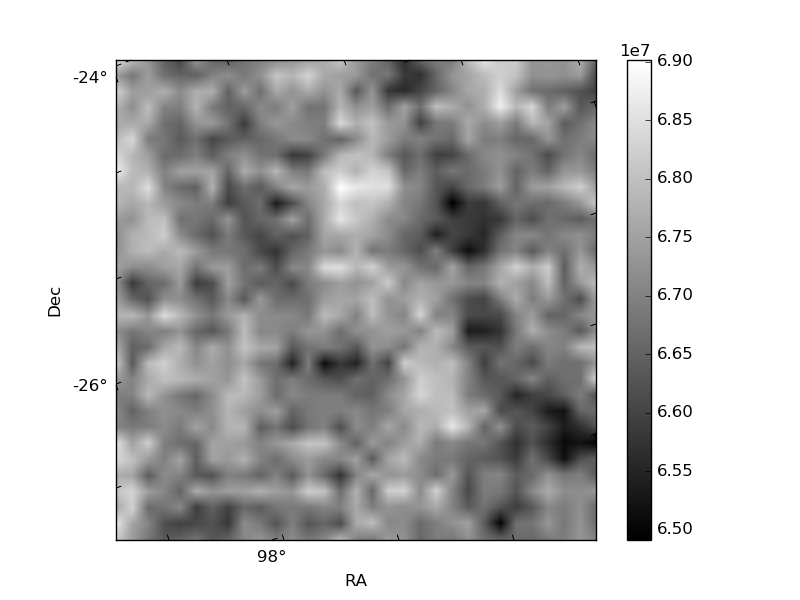

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

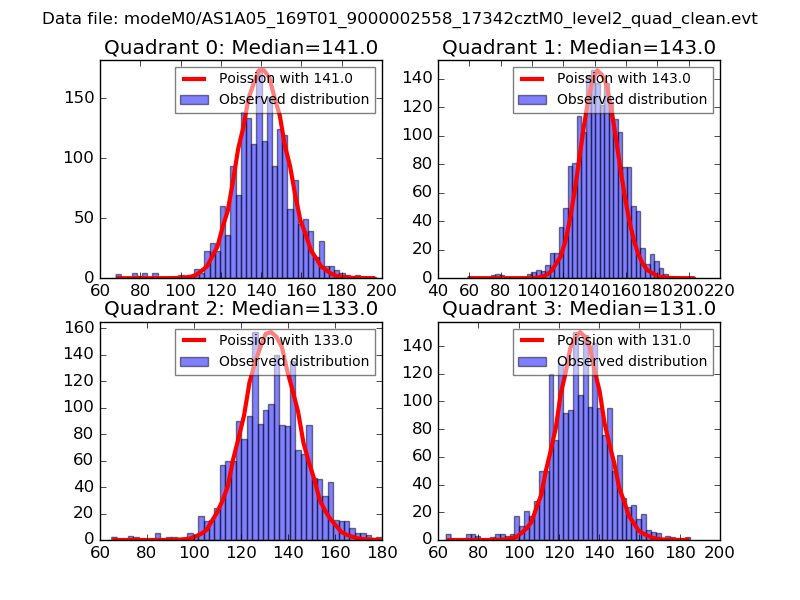

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

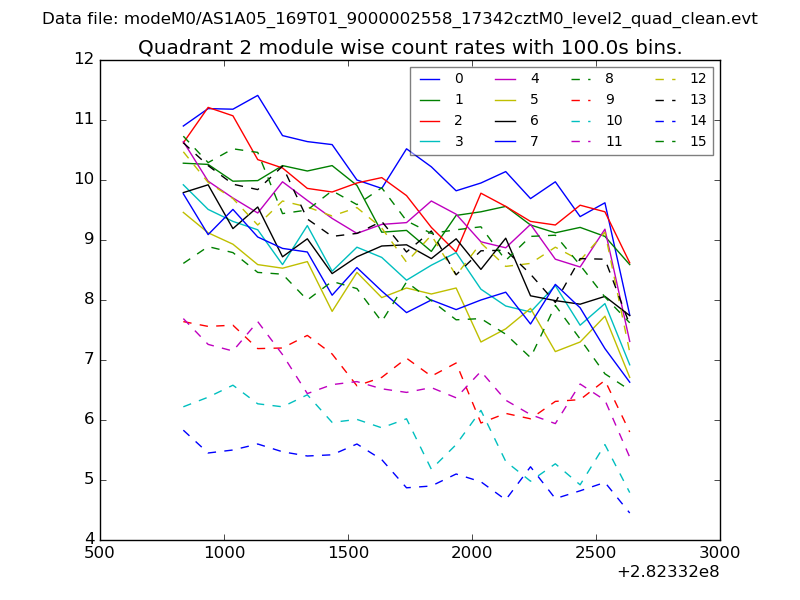

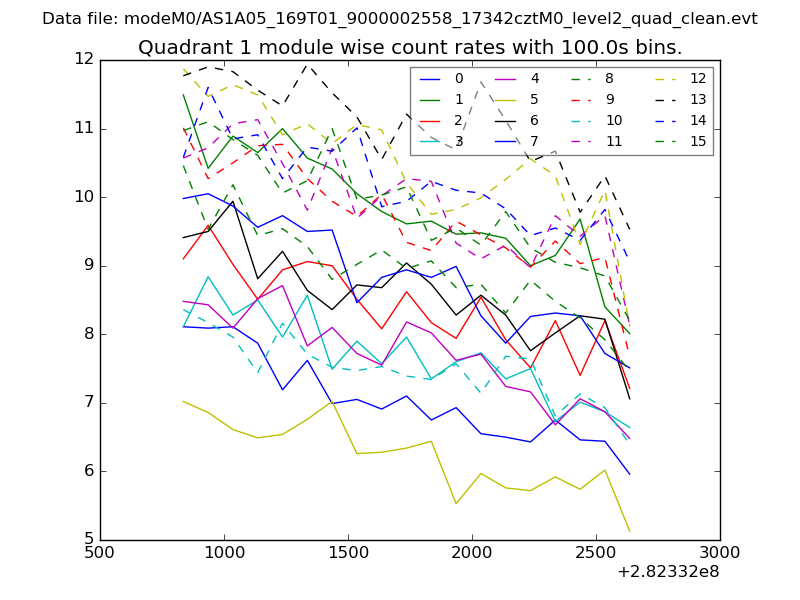

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

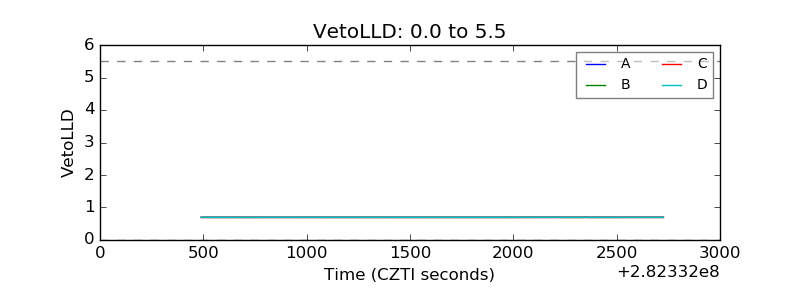

| Veto LLD |  |
| Alpha Counter |  |

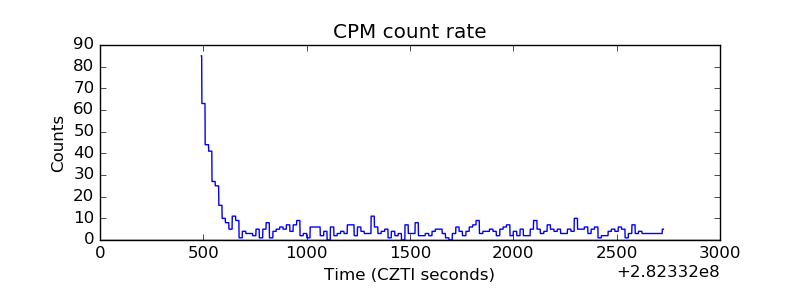

| _CPM_Rate |  |

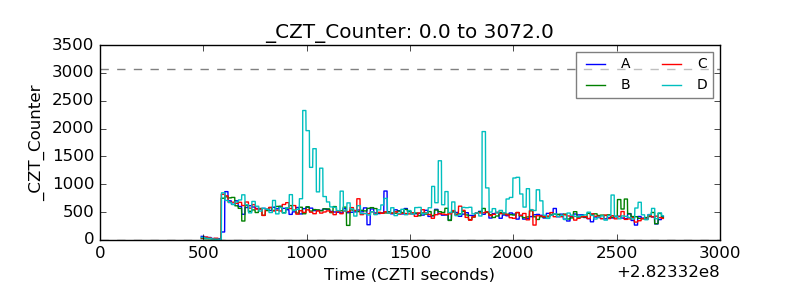

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
