| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_165T12_9000002562_17354cztM0_level2.evt | modeM0/AS1A05_165T12_9000002562_17354cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,249,600 | 79,637,760 |
| Size | 478.0 MB | 75.9 MB |
| Events in quadrant A | 3,535,557 | 504,248 |
| Events in quadrant B | 3,639,582 | 506,631 |
| Events in quadrant C | 3,534,060 | 475,034 |
| Events in quadrant D | 4,026,316 | 468,248 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14690 | 2 |
| B | 0 | 15098 | 2 |
| C | 0 | 14696 | 2 |
| D | 0 | 16362 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6555 | 110 | 1.678108% |
| B | 6555 | 112 | 1.708619% |
| C | 6555 | 138 | 2.105263% |
| D | 6554 | 164 | 2.502289% |

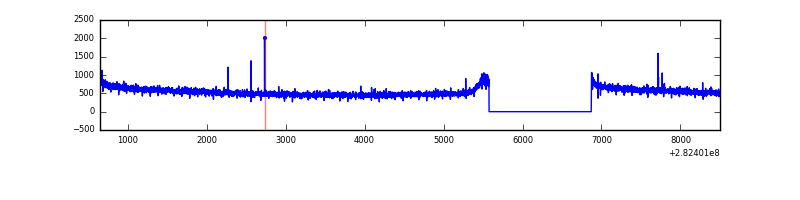

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7850 | 6555 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7850 | 6555 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7850 | 6556 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7849 | 6555 | 49 | 49 | 0.62% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8265 | 40.56 | 917 | 901 | 181.6 |
| A | 12 | 194 | 6666 | 31.75 | 917 | 901 | 181.6 |
| A | 15 | 174 | 6370 | 30.12 | 917 | 901 | 181.6 |
| B | 4 | 216 | 63940 | 374.05 | 910 | 891 | 168.6 |
| B | 12 | 111 | 18971 | 107.26 | 910 | 891 | 168.6 |
| B | 11 | 111 | 16562 | 92.97 | 910 | 891 | 168.6 |
| C | 14 | 238 | 137671 | 695.98 | 858 | 866 | 196.6 |
| C | 3 | 233 | 47097 | 235.2 | 858 | 866 | 196.6 |
| C | 13 | 61 | 6085 | 26.55 | 858 | 866 | 196.6 |
| D | 13 | 232 | 365506 | 1760.22 | 870 | 847 | 207.2 |
| D | 10 | 70 | 116187 | 556.75 | 870 | 847 | 207.2 |
| D | 13 | 189 | 74315 | 354.63 | 870 | 847 | 207.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

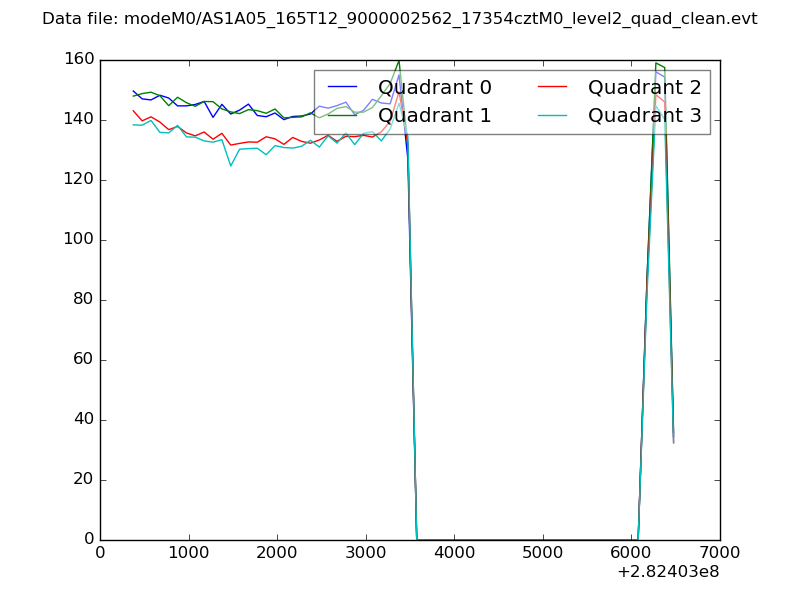

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

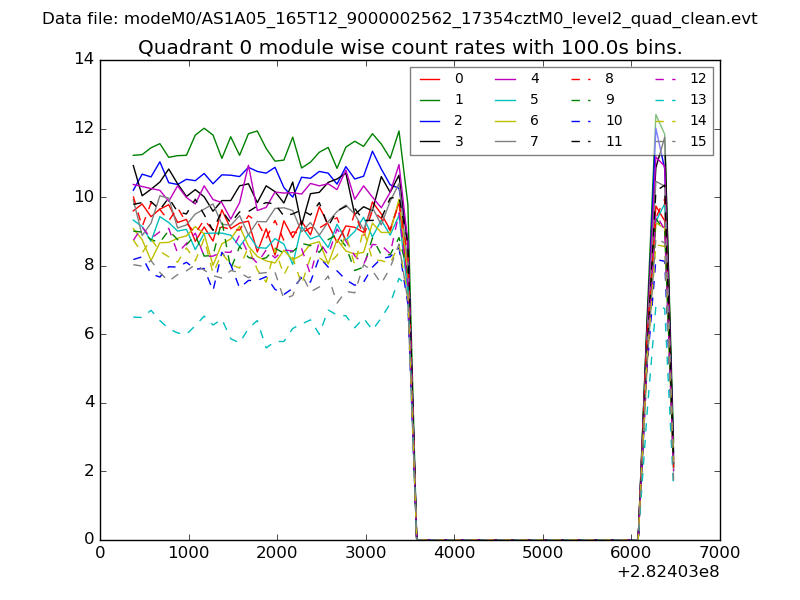

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

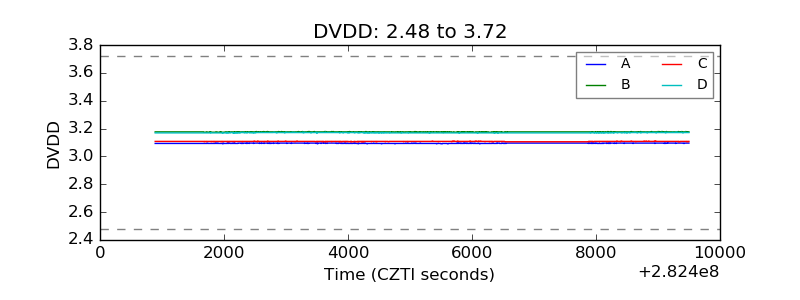

| D_VDD |  |

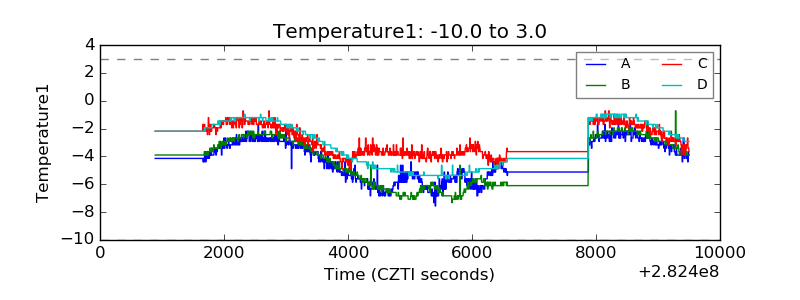

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

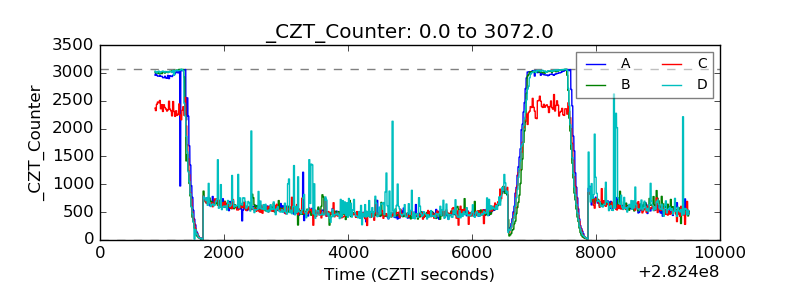

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

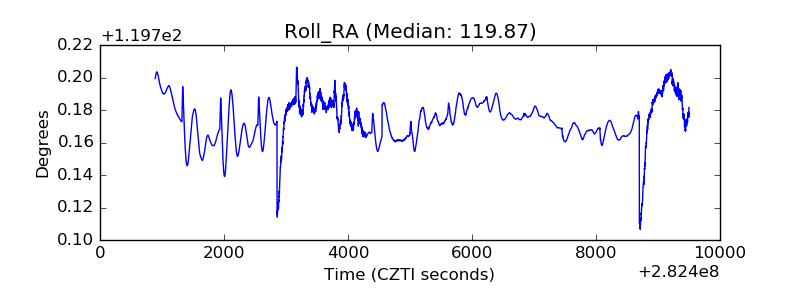

| _Roll_RA |  |

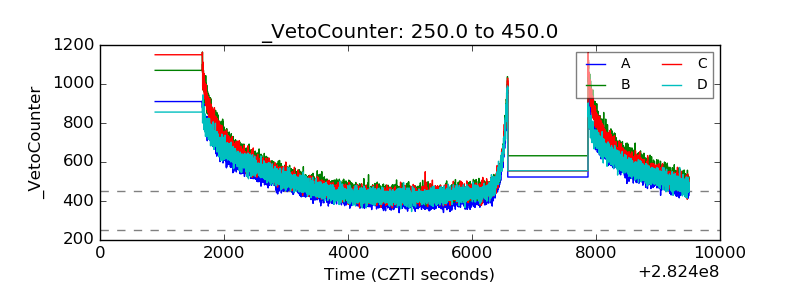

| Veto Counter |  |
