| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_165T12_9000002562_17364cztM0_level2.evt | modeM0/AS1A05_165T12_9000002562_17364cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,225,600 | 79,148,160 |
| Size | 415.1 MB | 75.5 MB |
| Events in quadrant A | 3,006,502 | 495,843 |
| Events in quadrant B | 3,028,395 | 503,970 |
| Events in quadrant C | 3,068,790 | 479,773 |
| Events in quadrant D | 3,639,015 | 467,665 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13171 | 1 |
| B | 0 | 13127 | 1 |
| C | 0 | 13242 | 1 |
| D | 0 | 15091 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6445 | 52 | 0.806827% |
| B | 6446 | 54 | 0.837729% |
| C | 6445 | 90 | 1.396431% |
| D | 6445 | 83 | 1.287820% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

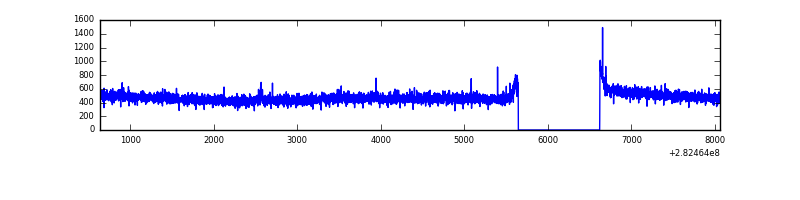

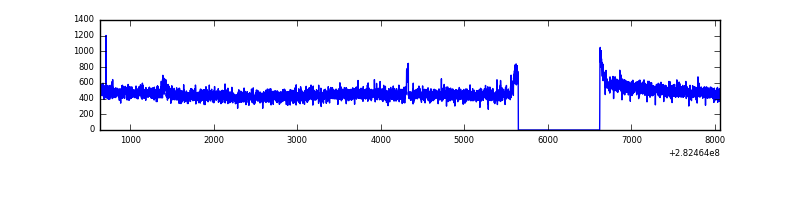

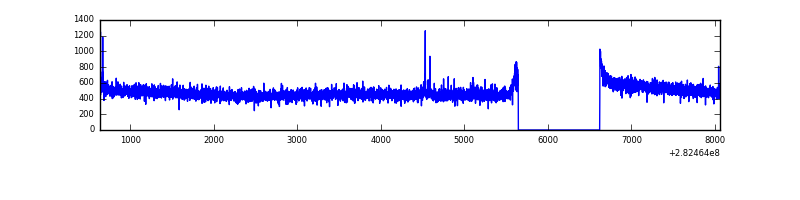

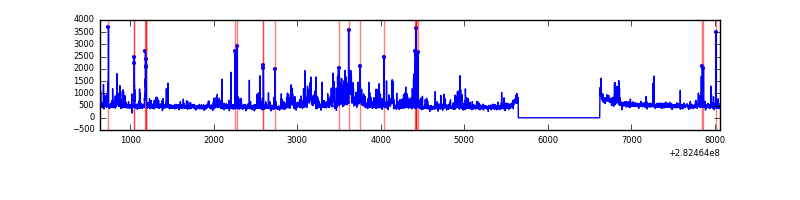

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7420 | 6446 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7421 | 6446 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7420 | 6445 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7420 | 6445 | 25 | 25 | 0.34% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 191 | 17785 | 108.37 | 778 | 763 | 157.1 |
| A | 0 | 226 | 6717 | 37.91 | 778 | 763 | 157.1 |
| A | 3 | 137 | 5884 | 32.6 | 778 | 763 | 157.1 |
| B | 12 | 111 | 17910 | 116.47 | 773 | 753 | 147.3 |
| B | 11 | 111 | 15941 | 103.1 | 773 | 753 | 147.3 |
| B | 14 | 111 | 13893 | 89.2 | 773 | 753 | 147.3 |
| C | 14 | 238 | 116372 | 657.46 | 752 | 754 | 175.9 |
| C | 3 | 233 | 12131 | 64.7 | 752 | 754 | 175.9 |
| C | 14 | 128 | 9743 | 51.12 | 752 | 754 | 175.9 |
| D | 5 | 222 | 316472 | 1710.15 | 759 | 735 | 184.6 |
| D | 1 | 52 | 204300 | 1102.59 | 759 | 735 | 184.6 |
| D | 13 | 232 | 133964 | 721.62 | 759 | 735 | 184.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

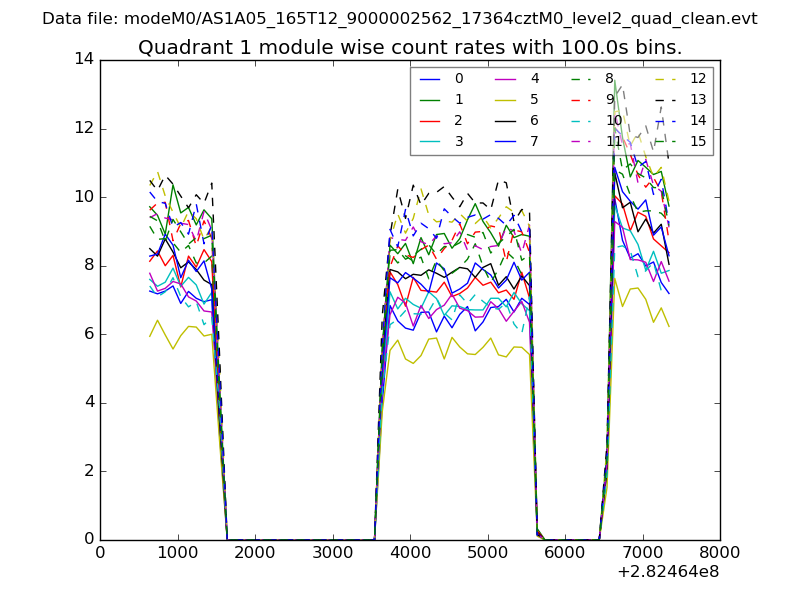

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

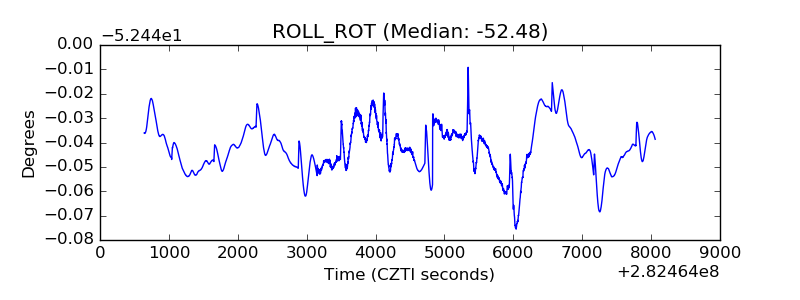

| _ROLL_ROT |  |
| _Roll_DEC |  |

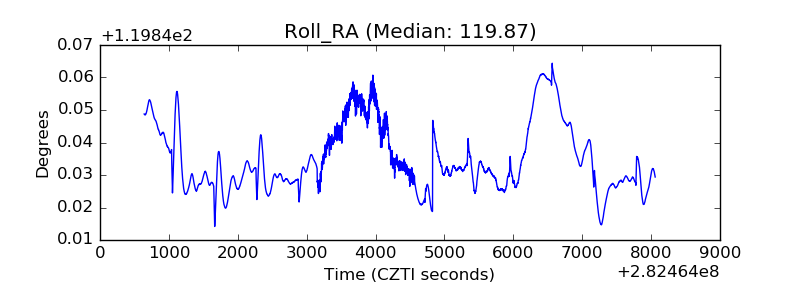

| _Roll_RA |  |

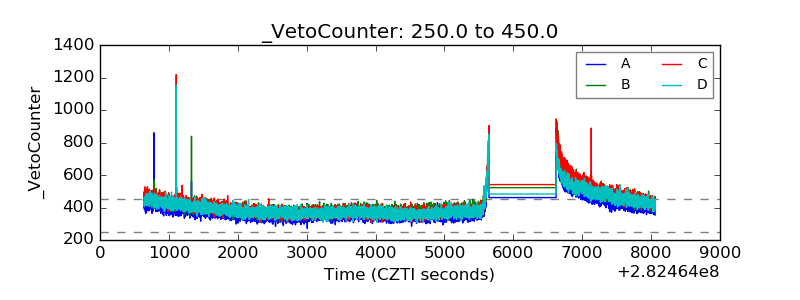

| Veto Counter |  |
