| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_198T01_9000002578_17417cztM0_level2.evt | modeM0/AS1A05_198T01_9000002578_17417cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,290,880 | 101,194,560 |
| Size | 506.7 MB | 96.5 MB |
| Events in quadrant A | 3,605,361 | 643,379 |
| Events in quadrant B | 3,925,052 | 651,534 |
| Events in quadrant C | 3,848,643 | 621,305 |
| Events in quadrant D | 4,187,746 | 612,260 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15914 | 2 |
| B | 0 | 16601 | 2 |
| C | 0 | 16082 | 2 |
| D | 0 | 17715 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7714 | 57 | 0.738916% |
| B | 7714 | 127 | 1.646357% |
| C | 7714 | 123 | 1.594504% |
| D | 7714 | 133 | 1.724138% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7869 | 7716 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7869 | 7716 | 8 | 8 | 0.10% | 0.10% |  |
| C | 7869 | 7716 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7869 | 7716 | 75 | 75 | 0.95% | 0.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 15226 | 75.35 | 929 | 911 | 190.0 |
| A | 4 | 2 | 11038 | 53.3 | 929 | 911 | 190.0 |
| A | 0 | 226 | 8180 | 38.26 | 929 | 911 | 190.0 |
| B | 0 | 219 | 59419 | 323.93 | 930 | 906 | 180.6 |
| B | 7 | 220 | 51686 | 281.12 | 930 | 906 | 180.6 |
| B | 15 | 35 | 34231 | 184.49 | 930 | 906 | 180.6 |
| C | 14 | 238 | 135674 | 646.49 | 885 | 888 | 208.5 |
| C | 5 | 218 | 131649 | 627.19 | 885 | 888 | 208.5 |
| C | 3 | 233 | 65811 | 311.4 | 885 | 888 | 208.5 |
| D | 11 | 176 | 249942 | 1145.15 | 896 | 870 | 217.5 |
| D | 13 | 189 | 159814 | 730.77 | 896 | 870 | 217.5 |
| D | 7 | 38 | 90403 | 411.64 | 896 | 870 | 217.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

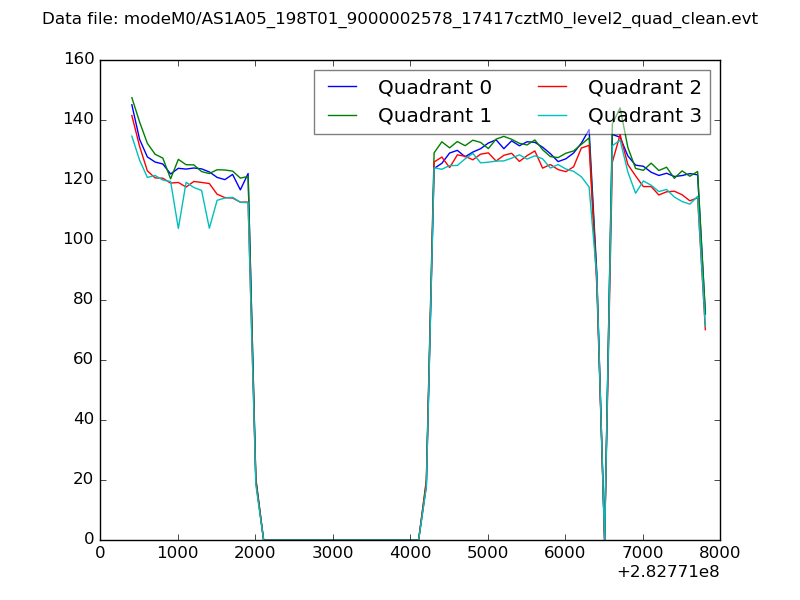

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

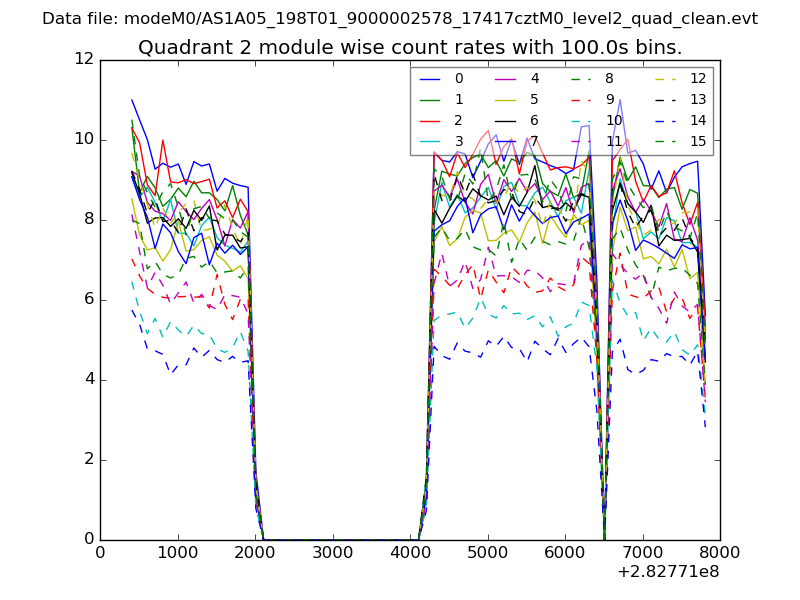

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

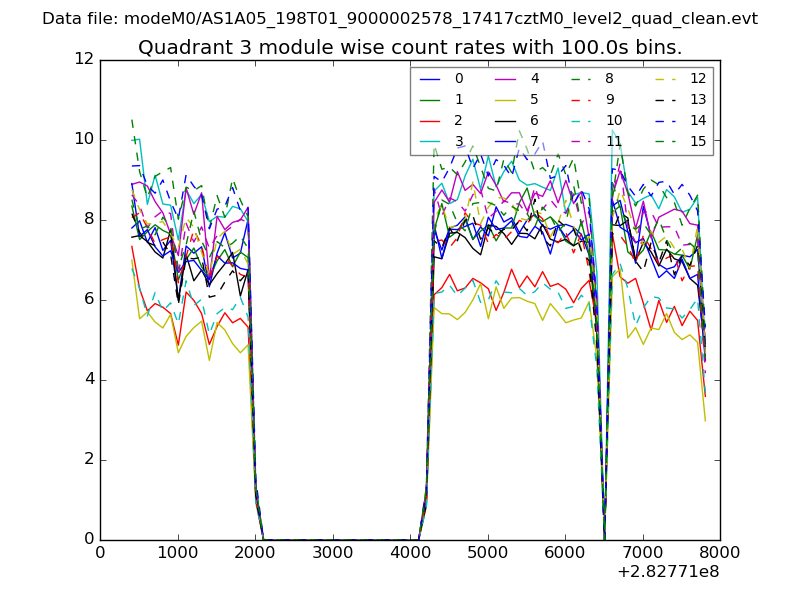

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

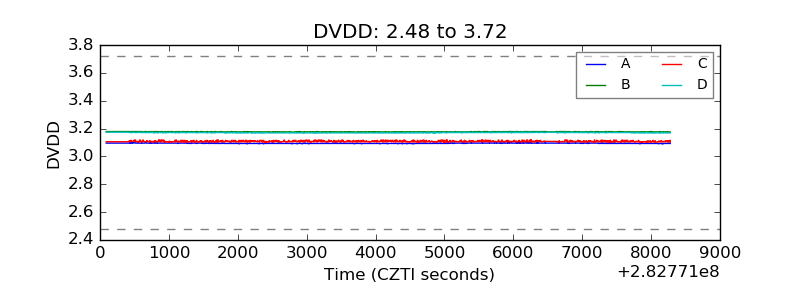

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

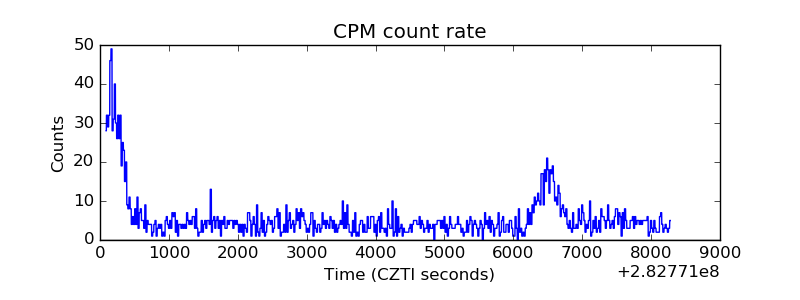

| _CPM_Rate |  |

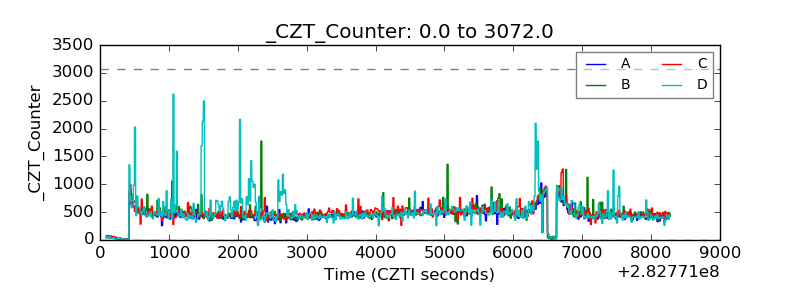

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
