| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_198T01_9000002578_17421cztM0_level2.evt | modeM0/AS1A05_198T01_9000002578_17421cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,309,602,240 | 214,390,080 |
| Size | 1.2 GB | 204.5 MB |
| Events in quadrant A | 8,735,729 | 1,323,341 |
| Events in quadrant B | 9,371,270 | 1,338,155 |
| Events in quadrant C | 9,206,267 | 1,286,557 |
| Events in quadrant D | 11,080,051 | 1,252,279 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38438 | 4 |
| B | 0 | 39846 | 5 |
| C | 0 | 38620 | 4 |
| D | 0 | 45740 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 384 | 0 |
| B | 0 | 384 | 0 |
| C | 0 | 384 | 0 |
| D | 0 | 384 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18753 | 197 | 1.050499% |
| B | 18753 | 270 | 1.439770% |
| C | 18753 | 291 | 1.551752% |
| D | 18753 | 567 | 3.023516% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20968 | 18756 | 1 | 1 | 0.00% | 0.01% |  |
| B | 20968 | 18755 | 8 | 8 | 0.04% | 0.04% |  |
| C | 20968 | 18756 | 0 | 0 | 0.00% | 0.00% |  |
| D | 20968 | 18757 | 326 | 326 | 1.55% | 1.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 20238 | 39.48 | 2264 | 2212 | 456.6 |
| A | 0 | 226 | 19814 | 38.55 | 2264 | 2212 | 456.6 |
| A | 3 | 137 | 17078 | 32.56 | 2264 | 2212 | 456.6 |
| B | 15 | 35 | 129487 | 292.81 | 2269 | 2213 | 434.7 |
| B | 0 | 219 | 128628 | 290.84 | 2269 | 2213 | 434.7 |
| B | 0 | 197 | 97333 | 218.84 | 2269 | 2213 | 434.7 |
| C | 14 | 238 | 330900 | 645.56 | 2166 | 2182 | 509.2 |
| C | 5 | 218 | 270106 | 526.17 | 2166 | 2182 | 509.2 |
| C | 3 | 233 | 83050 | 158.82 | 2166 | 2182 | 509.2 |
| D | 13 | 232 | 1371538 | 2564.31 | 2183 | 2123 | 534.0 |
| D | 1 | 255 | 377656 | 703.21 | 2183 | 2123 | 534.0 |
| D | 10 | 70 | 364122 | 677.86 | 2183 | 2123 | 534.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

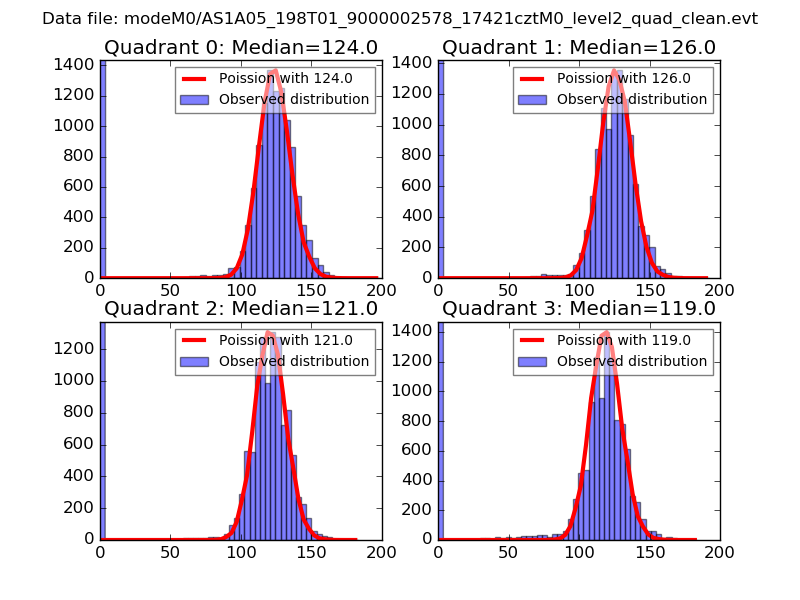

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

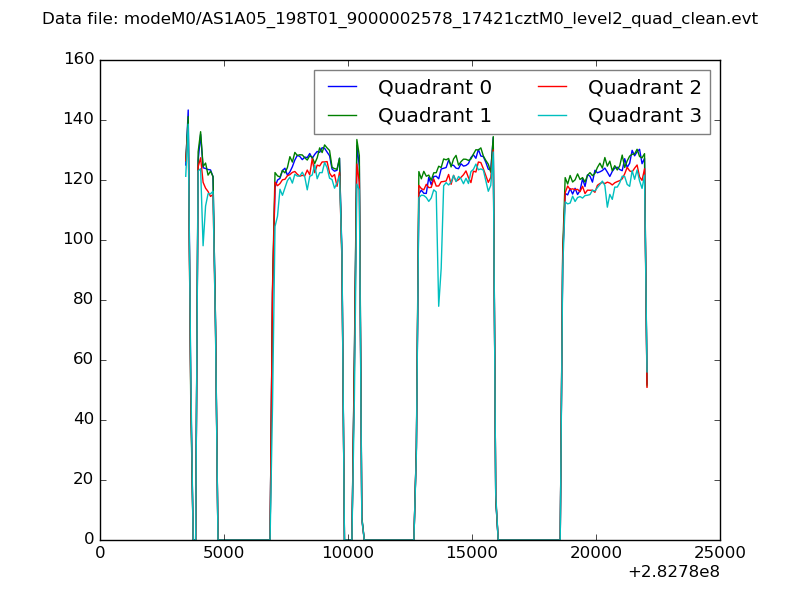

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

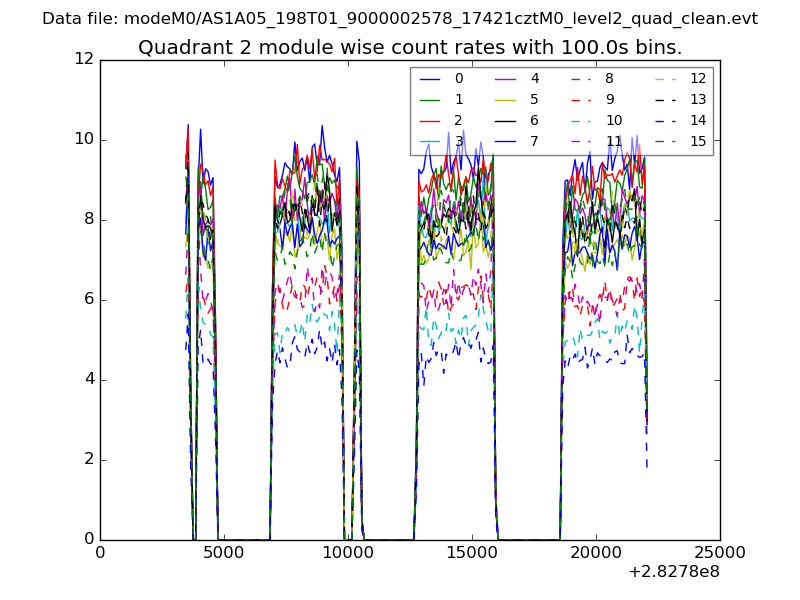

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

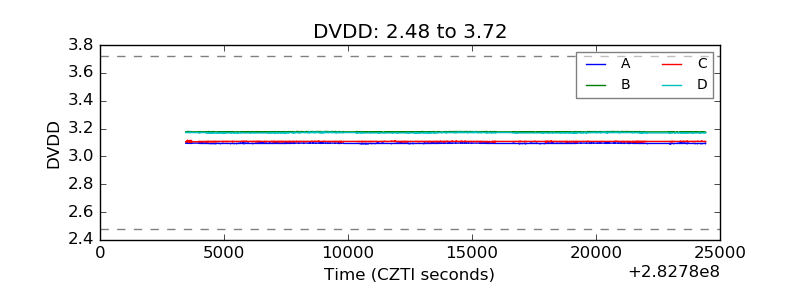

| D_VDD |  |

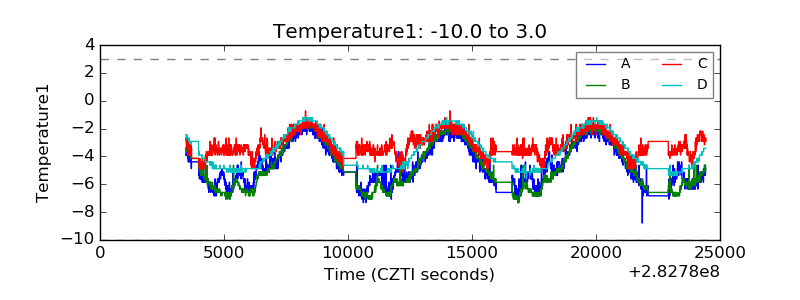

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

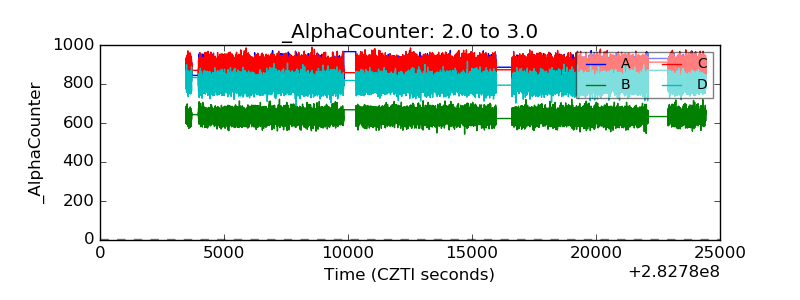

| Alpha Counter |  |
| _CPM_Rate |  |

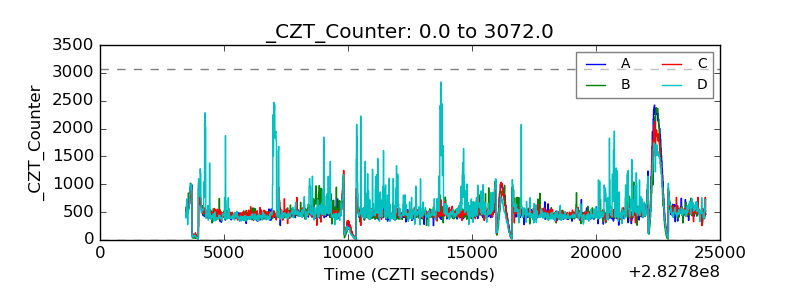

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

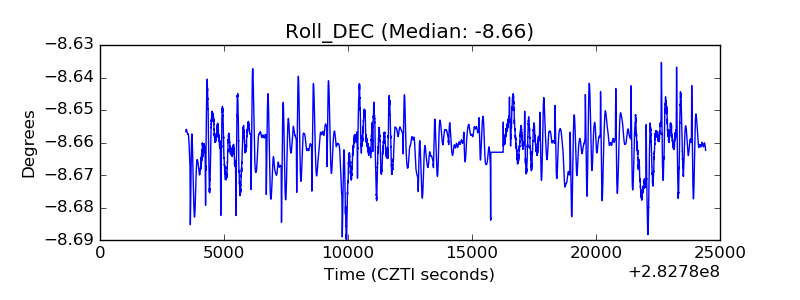

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
