| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_198T01_9000002578_17425cztM0_level2.evt | modeM0/AS1A05_198T01_9000002578_17425cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,740,480 | 98,916,480 |
| Size | 476.6 MB | 94.3 MB |
| Events in quadrant A | 3,344,824 | 657,304 |
| Events in quadrant B | 3,788,507 | 664,582 |
| Events in quadrant C | 3,337,888 | 625,373 |
| Events in quadrant D | 4,235,921 | 608,589 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14085 | 2 |
| B | 0 | 15389 | 2 |
| C | 0 | 14016 | 2 |
| D | 0 | 16873 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6303 | 97 | 1.538950% |
| B | 6303 | 107 | 1.697604% |
| C | 6303 | 120 | 1.903855% |
| D | 6303 | 200 | 3.173092% |

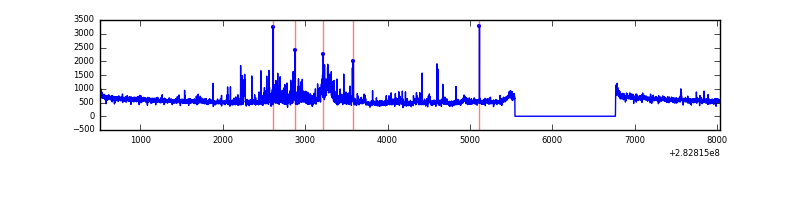

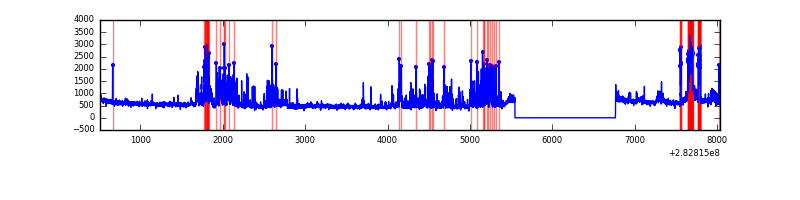

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7523 | 6303 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7523 | 6303 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7523 | 6303 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7523 | 6303 | 121 | 121 | 1.61% | 1.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 210 | 22266 | 125.27 | 857 | 841 | 171.0 |
| A | 15 | 174 | 18194 | 101.46 | 857 | 841 | 171.0 |
| A | 0 | 226 | 7614 | 39.6 | 857 | 841 | 171.0 |
| B | 7 | 220 | 115416 | 722.86 | 847 | 829 | 158.5 |
| B | 0 | 219 | 103682 | 648.84 | 847 | 829 | 158.5 |
| B | 4 | 48 | 84833 | 529.93 | 847 | 829 | 158.5 |
| C | 14 | 238 | 127095 | 685.26 | 798 | 805 | 184.3 |
| C | 5 | 218 | 64240 | 344.2 | 798 | 805 | 184.3 |
| C | 3 | 233 | 17844 | 92.46 | 798 | 805 | 184.3 |
| D | 13 | 232 | 565979 | 2854.76 | 817 | 795 | 198.0 |
| D | 11 | 176 | 195608 | 984.01 | 817 | 795 | 198.0 |
| D | 2 | 33 | 120802 | 606.16 | 817 | 795 | 198.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

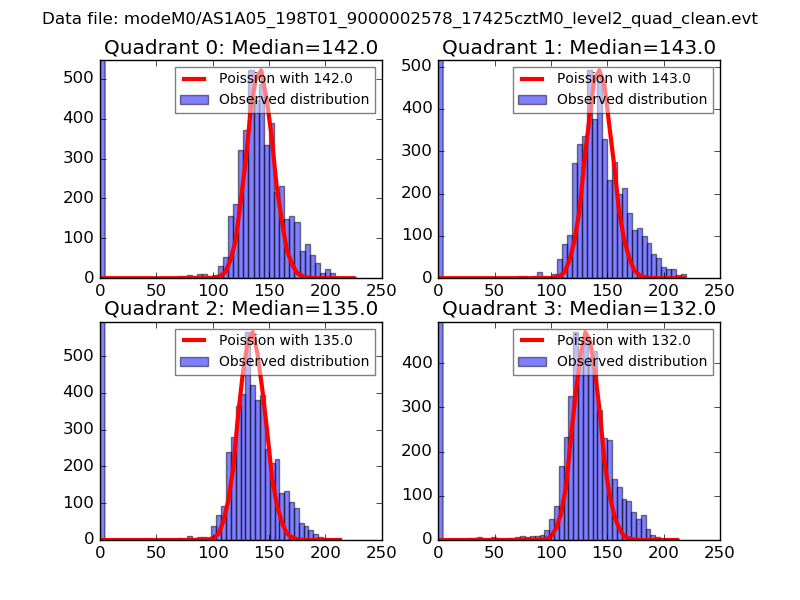

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

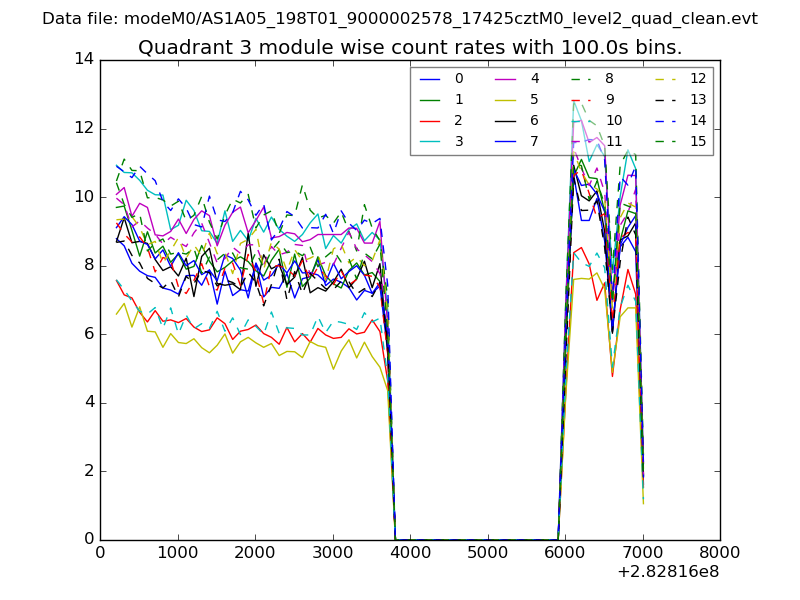

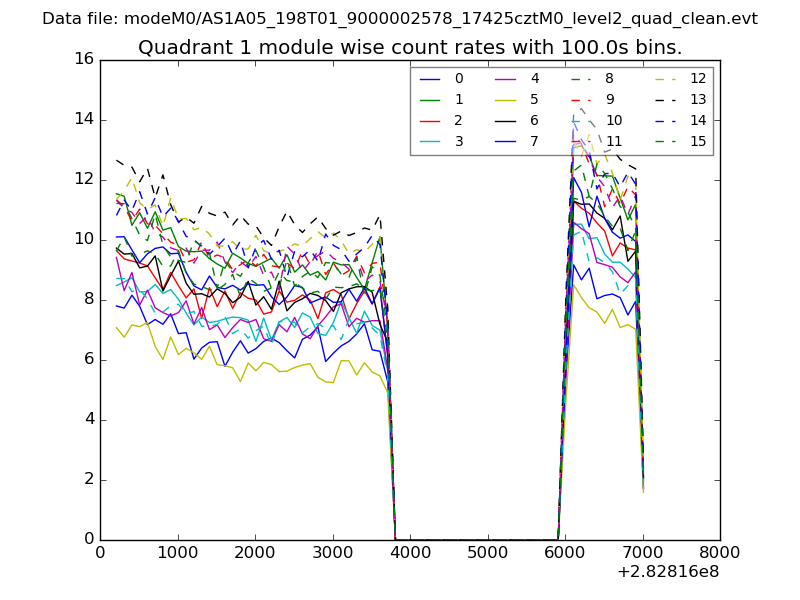

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

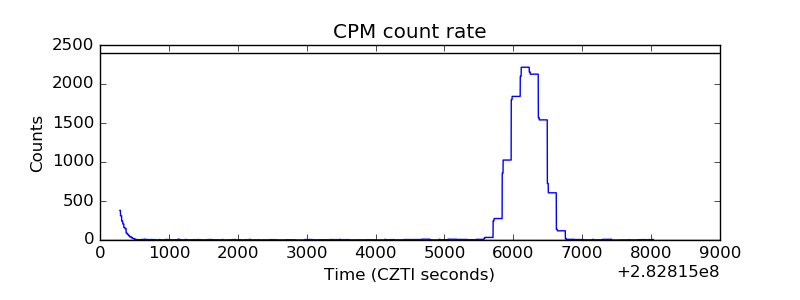

| _CPM_Rate |  |

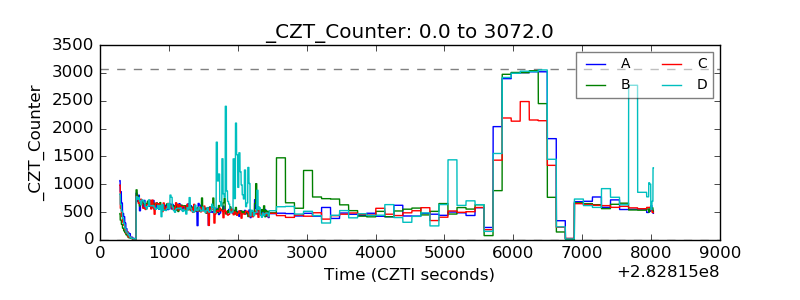

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

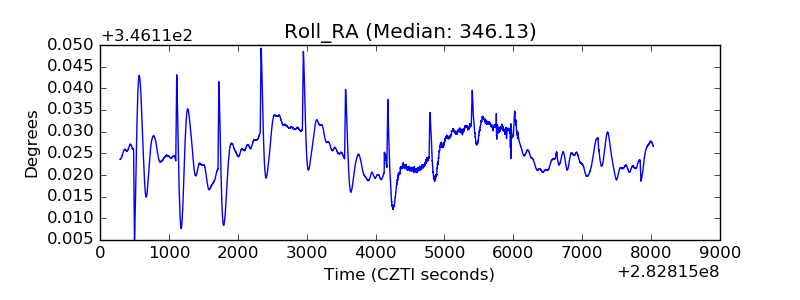

| _Roll_RA |  |
| Veto Counter |  |
