| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_068T01_9000002580_17437cztM0_level2.evt | modeM0/AS1A05_068T01_9000002580_17437cztM0_level2_quad_clean.evt |
| Size (bytes) | 94,078,080 | 26,196,480 |
| Size | 89.7 MB | 25.0 MB |
| Events in quadrant A | 695,239 | 178,056 |
| Events in quadrant B | 674,475 | 181,028 |
| Events in quadrant C | 698,089 | 172,227 |
| Events in quadrant D | 694,512 | 168,468 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2780 | 1 |
| B | 0 | 2697 | 1 |
| C | 0 | 2792 | 1 |
| D | 0 | 2759 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1237 | 7 | 0.565885% |
| B | 1236 | 4 | 0.323625% |
| C | 1236 | 12 | 0.970874% |
| D | 1236 | 11 | 0.889968% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1237 | 1237 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1236 | 1236 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1236 | 1236 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1236 | 1236 | 6 | 6 | 0.49% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 20318 | 555.89 | 173 | 170 | 36.2 |
| A | 15 | 174 | 7089 | 190.9 | 173 | 170 | 36.2 |
| A | 0 | 226 | 1550 | 38.07 | 173 | 170 | 36.2 |
| B | 12 | 111 | 3739 | 103.8 | 171 | 167 | 34.4 |
| B | 11 | 111 | 3244 | 89.42 | 171 | 167 | 34.4 |
| B | 15 | 19 | 2913 | 79.8 | 171 | 167 | 34.4 |
| C | 14 | 238 | 25178 | 623.29 | 165 | 167 | 40.1 |
| C | 5 | 218 | 16014 | 394.92 | 165 | 167 | 40.1 |
| C | 5 | 219 | 7502 | 182.79 | 165 | 167 | 40.1 |
| D | 13 | 232 | 39579 | 930.91 | 168 | 163 | 42.3 |
| D | 11 | 176 | 13332 | 311.02 | 168 | 163 | 42.3 |
| D | 2 | 234 | 3670 | 82.83 | 168 | 163 | 42.3 |

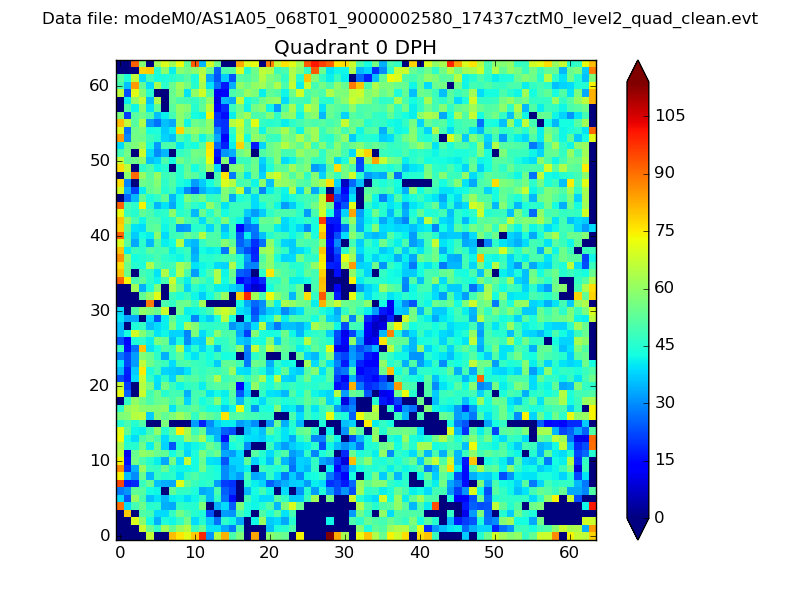

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

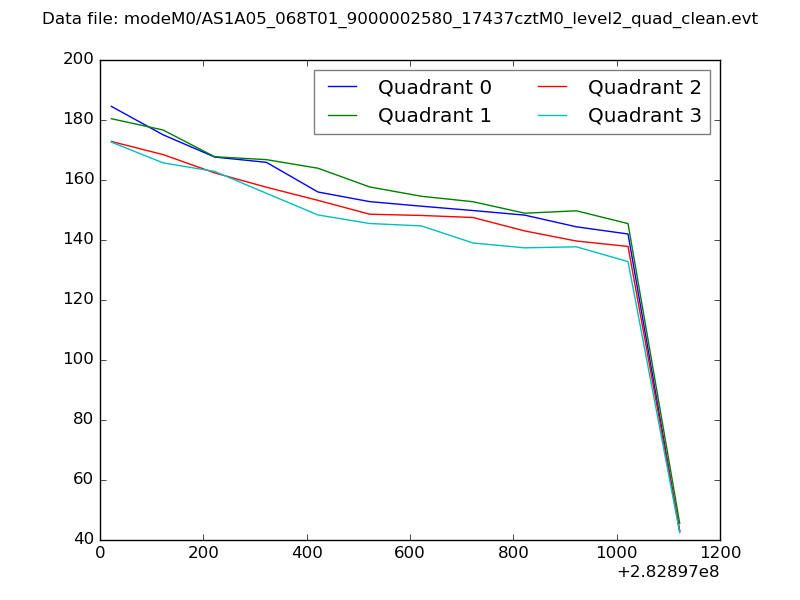

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

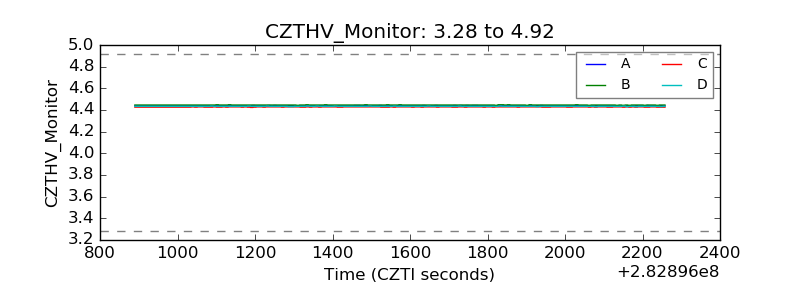

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

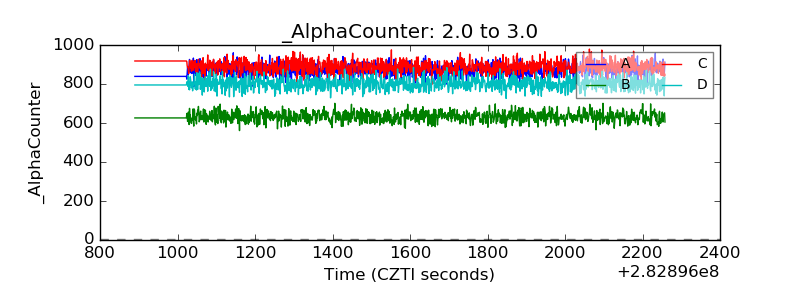

| Alpha Counter |  |

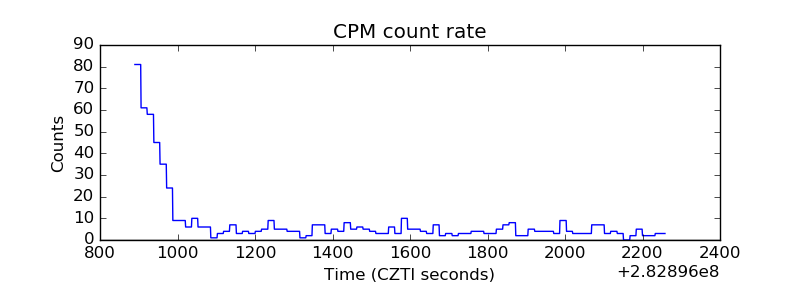

| _CPM_Rate |  |

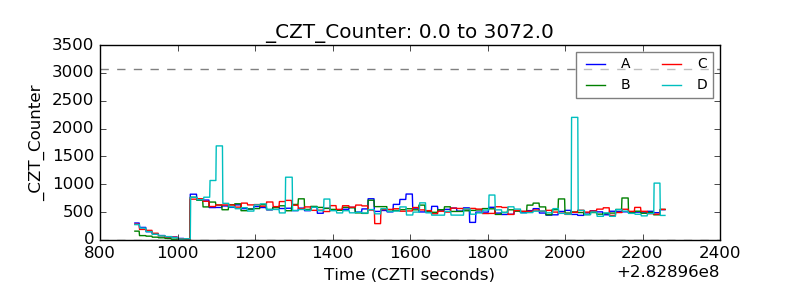

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

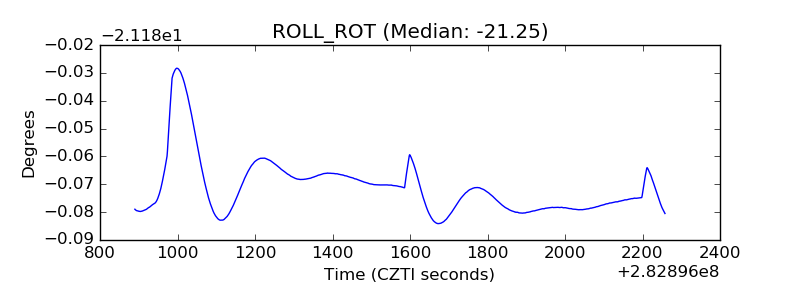

| _ROLL_ROT |  |
| _Roll_DEC |  |

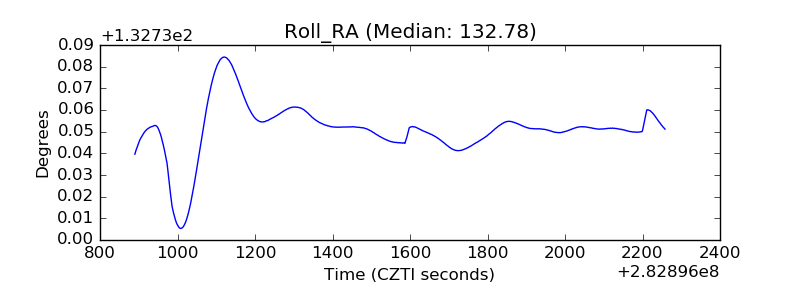

| _Roll_RA |  |
| Veto Counter |  |
