| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_068T01_9000002580_17439cztM0_level2.evt | modeM0/AS1A05_068T01_9000002580_17439cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,782,080 | 78,050,880 |
| Size | 449.0 MB | 74.4 MB |
| Events in quadrant A | 3,138,912 | 492,525 |
| Events in quadrant B | 3,183,498 | 498,401 |
| Events in quadrant C | 3,317,456 | 474,747 |
| Events in quadrant D | 4,200,332 | 468,349 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13070 | 1 |
| B | 0 | 13109 | 1 |
| C | 0 | 13354 | 1 |
| D | 0 | 16370 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6148 | 46 | 0.748211% |
| B | 6149 | 36 | 0.585461% |
| C | 6149 | 56 | 0.910717% |
| D | 6149 | 181 | 2.943568% |

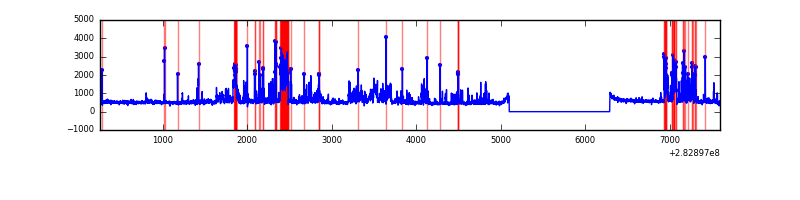

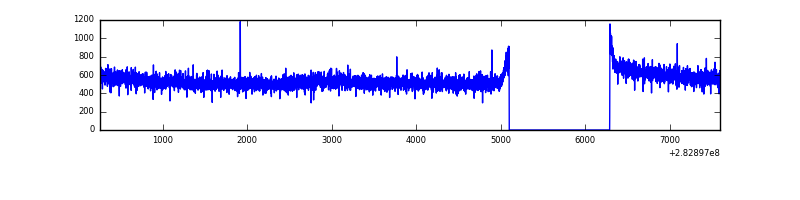

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7338 | 6148 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7339 | 6150 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7339 | 6150 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7339 | 6150 | 140 | 140 | 1.91% | 2.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 18178 | 107.85 | 810 | 795 | 161.2 |
| A | 15 | 174 | 8352 | 46.89 | 810 | 795 | 161.2 |
| A | 0 | 226 | 7202 | 39.75 | 810 | 795 | 161.2 |
| B | 12 | 111 | 17582 | 110.36 | 800 | 782 | 152.2 |
| B | 11 | 111 | 15239 | 94.97 | 800 | 782 | 152.2 |
| B | 14 | 111 | 12726 | 78.46 | 800 | 782 | 152.2 |
| C | 14 | 238 | 119562 | 660.66 | 772 | 780 | 179.8 |
| C | 5 | 218 | 104093 | 574.62 | 772 | 780 | 179.8 |
| C | 5 | 219 | 43499 | 237.6 | 772 | 780 | 179.8 |
| D | 11 | 176 | 645525 | 3433.22 | 782 | 760 | 187.8 |
| D | 13 | 232 | 419401 | 2229.17 | 782 | 760 | 187.8 |
| D | 13 | 189 | 106632 | 563.74 | 782 | 760 | 187.8 |

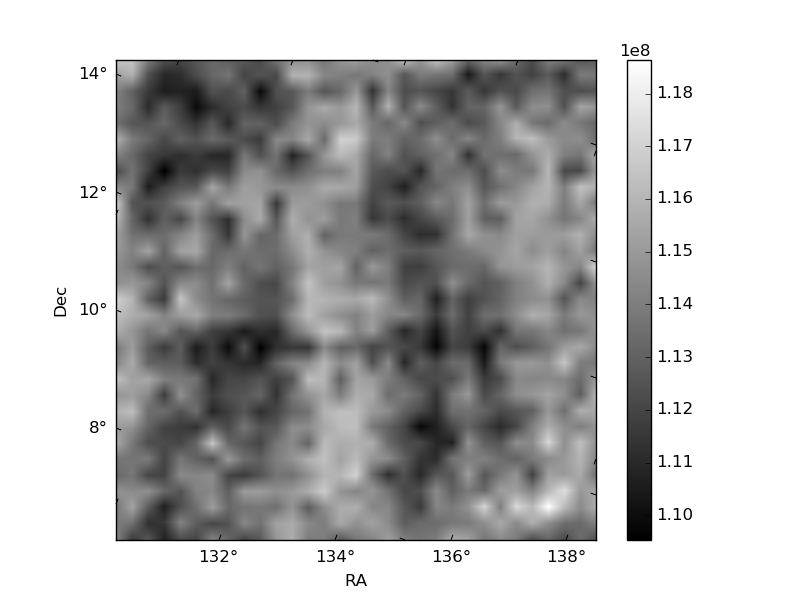

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

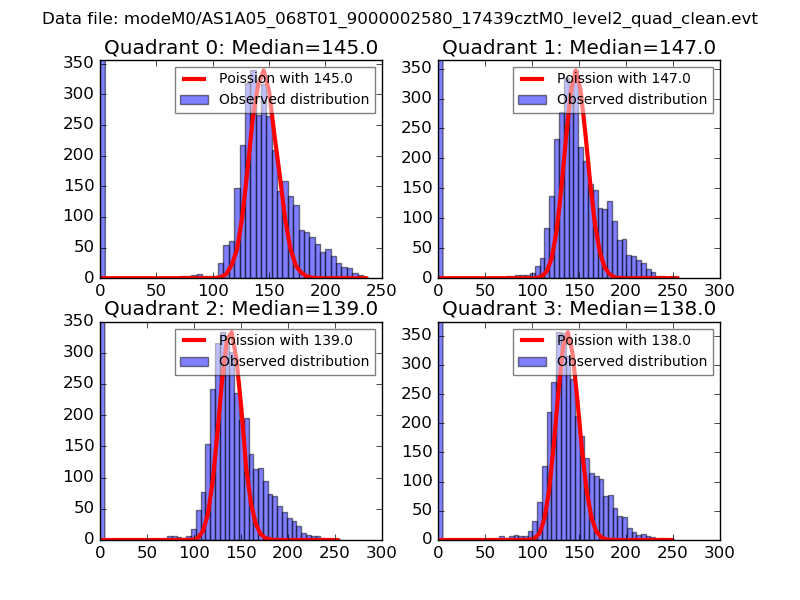

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

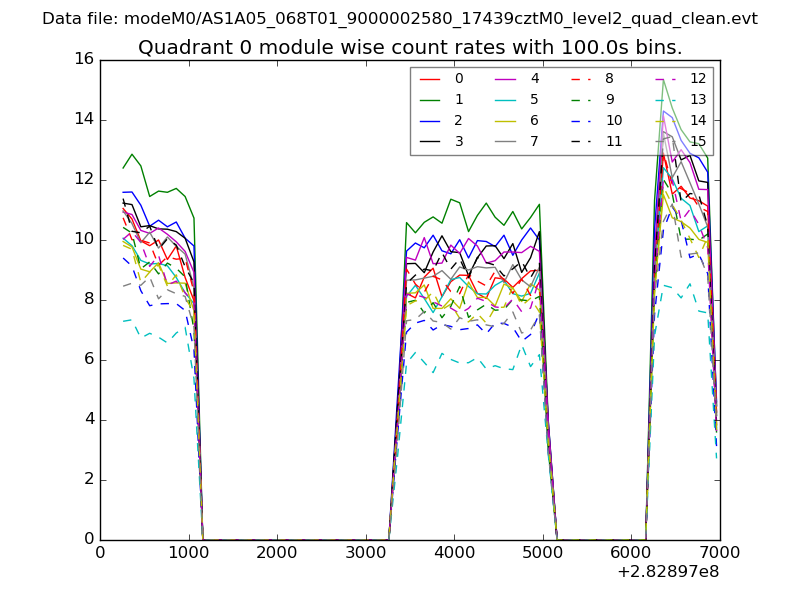

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

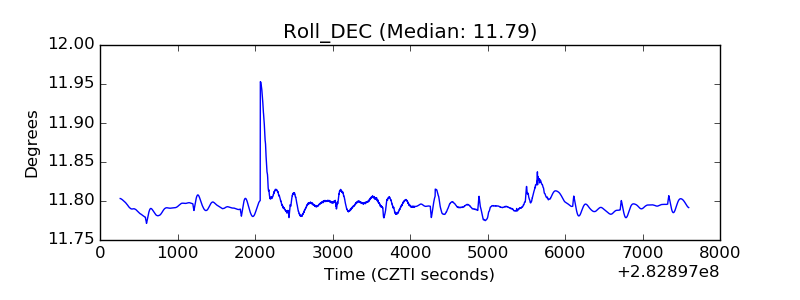

| _Roll_DEC |  |

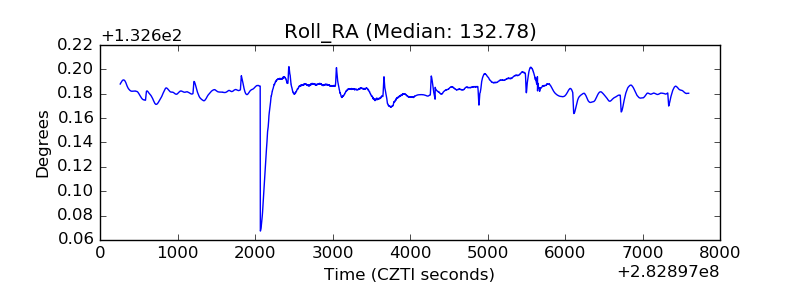

| _Roll_RA |  |
| Veto Counter |  |
