| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_068T01_9000002580_17440cztM0_level2.evt | modeM0/AS1A05_068T01_9000002580_17440cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,772,160 | 73,100,160 |
| Size | 459.5 MB | 69.7 MB |
| Events in quadrant A | 3,253,499 | 457,637 |
| Events in quadrant B | 3,374,627 | 459,667 |
| Events in quadrant C | 3,551,690 | 440,203 |
| Events in quadrant D | 3,999,823 | 432,907 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13410 | 2 |
| B | 0 | 13788 | 2 |
| C | 0 | 14409 | 3 |
| D | 0 | 15811 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6054 | 50 | 0.825900% |
| B | 6055 | 72 | 1.189100% |
| C | 6054 | 82 | 1.354476% |
| D | 6054 | 172 | 2.841097% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7344 | 6055 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7345 | 6056 | 19 | 19 | 0.26% | 0.31% |  |
| C | 7344 | 6055 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7344 | 6055 | 104 | 104 | 1.42% | 1.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 13429 | 75.34 | 843 | 830 | 167.2 |
| A | 0 | 226 | 7609 | 40.54 | 843 | 830 | 167.2 |
| A | 12 | 194 | 6229 | 32.29 | 843 | 830 | 167.2 |
| B | 7 | 220 | 66132 | 418.53 | 828 | 812 | 156.1 |
| B | 0 | 230 | 26204 | 162.7 | 828 | 812 | 156.1 |
| B | 12 | 111 | 17580 | 107.44 | 828 | 812 | 156.1 |
| C | 3 | 233 | 158168 | 849.95 | 803 | 811 | 185.1 |
| C | 14 | 238 | 126753 | 680.26 | 803 | 811 | 185.1 |
| C | 5 | 218 | 110583 | 592.92 | 803 | 811 | 185.1 |
| D | 13 | 232 | 513597 | 2611.92 | 815 | 793 | 196.3 |
| D | 7 | 238 | 212406 | 1077.83 | 815 | 793 | 196.3 |
| D | 13 | 189 | 80606 | 406.52 | 815 | 793 | 196.3 |

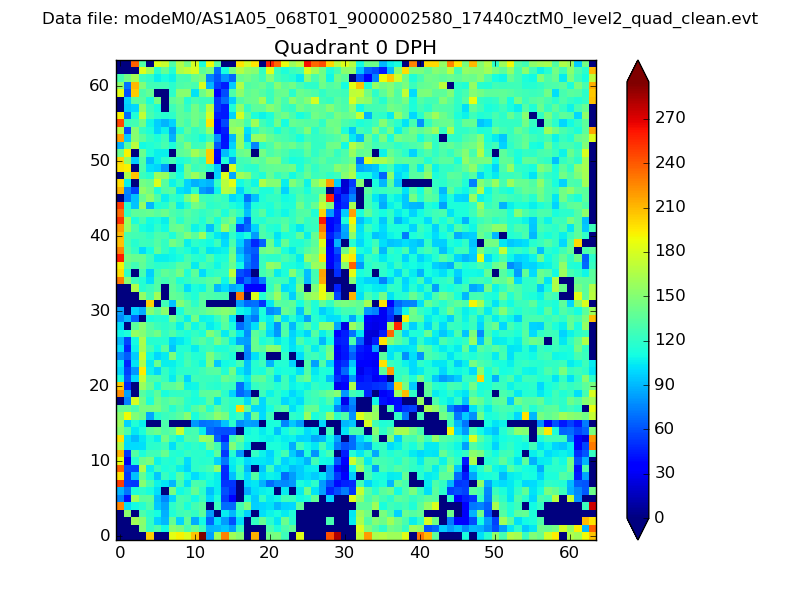

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

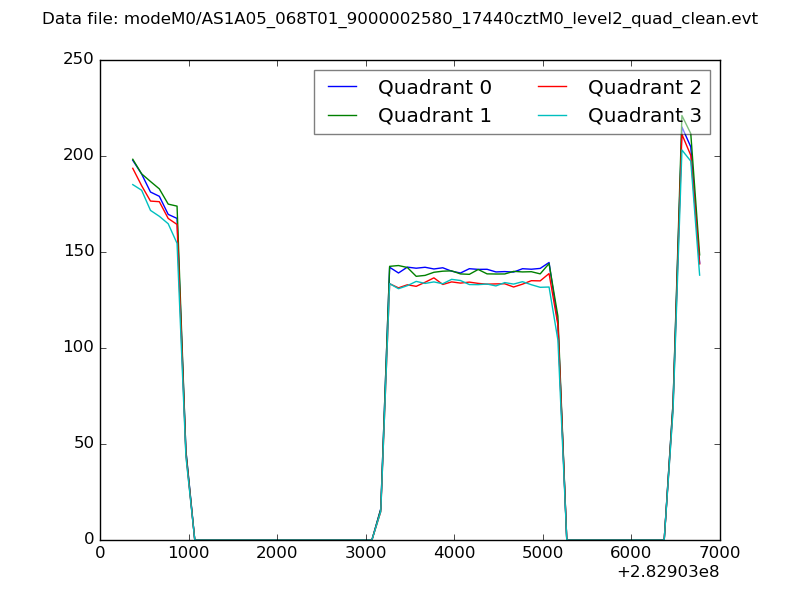

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

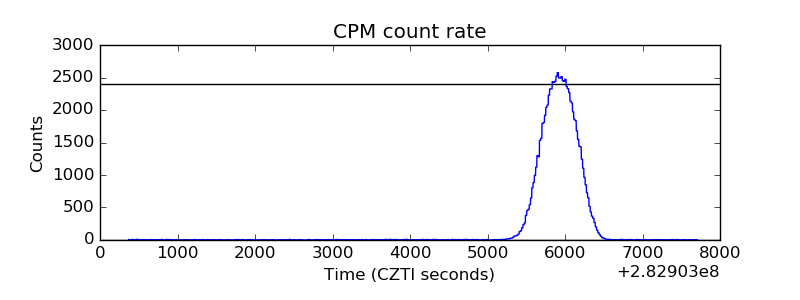

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

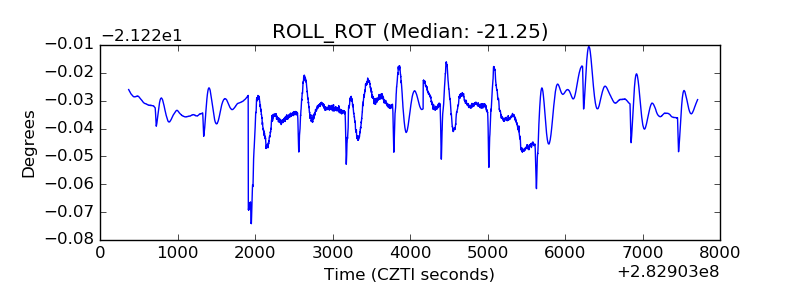

| _ROLL_ROT |  |

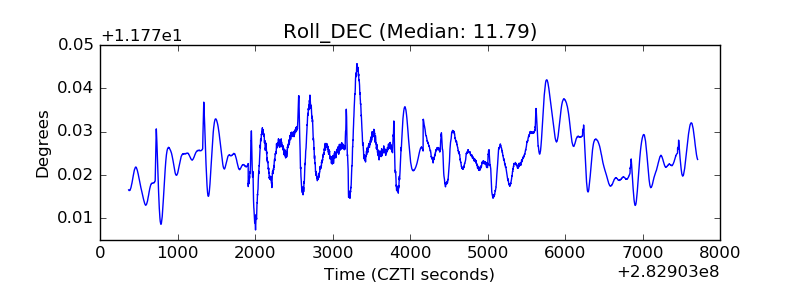

| _Roll_DEC |  |

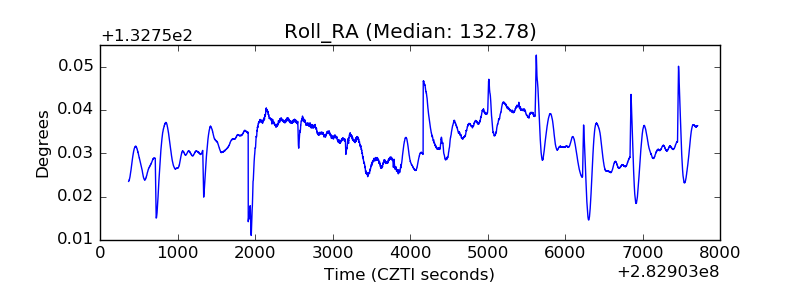

| _Roll_RA |  |
| Veto Counter |  |
