| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_068T01_9000002580_17441cztM0_level2.evt | modeM0/AS1A05_068T01_9000002580_17441cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,032,640 | 67,777,920 |
| Size | 492.1 MB | 64.6 MB |
| Events in quadrant A | 3,595,815 | 408,698 |
| Events in quadrant B | 3,711,623 | 407,855 |
| Events in quadrant C | 3,910,477 | 390,920 |
| Events in quadrant D | 3,969,931 | 391,922 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14733 | 2 |
| B | 0 | 15084 | 2 |
| C | 0 | 16044 | 2 |
| D | 0 | 16174 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6490 | 111 | 1.710324% |
| B | 6490 | 141 | 2.172573% |
| C | 6490 | 158 | 2.434515% |
| D | 6490 | 119 | 1.833590% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7805 | 6490 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7805 | 6490 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7805 | 6490 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7805 | 6490 | 22 | 22 | 0.28% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8518 | 41.15 | 934 | 916 | 184.7 |
| A | 12 | 194 | 6979 | 32.82 | 934 | 916 | 184.7 |
| A | 3 | 137 | 6012 | 27.58 | 934 | 916 | 184.7 |
| B | 0 | 230 | 35725 | 200.56 | 922 | 902 | 173.6 |
| B | 0 | 197 | 34325 | 192.5 | 922 | 902 | 173.6 |
| B | 12 | 111 | 19442 | 106.78 | 922 | 902 | 173.6 |
| C | 14 | 238 | 140898 | 680.64 | 896 | 907 | 205.7 |
| C | 5 | 218 | 129553 | 625.48 | 896 | 907 | 205.7 |
| C | 3 | 233 | 122754 | 592.43 | 896 | 907 | 205.7 |
| D | 13 | 189 | 163399 | 737.24 | 917 | 893 | 220.4 |
| D | 1 | 52 | 124148 | 559.17 | 917 | 893 | 220.4 |
| D | 13 | 232 | 92633 | 416.2 | 917 | 893 | 220.4 |

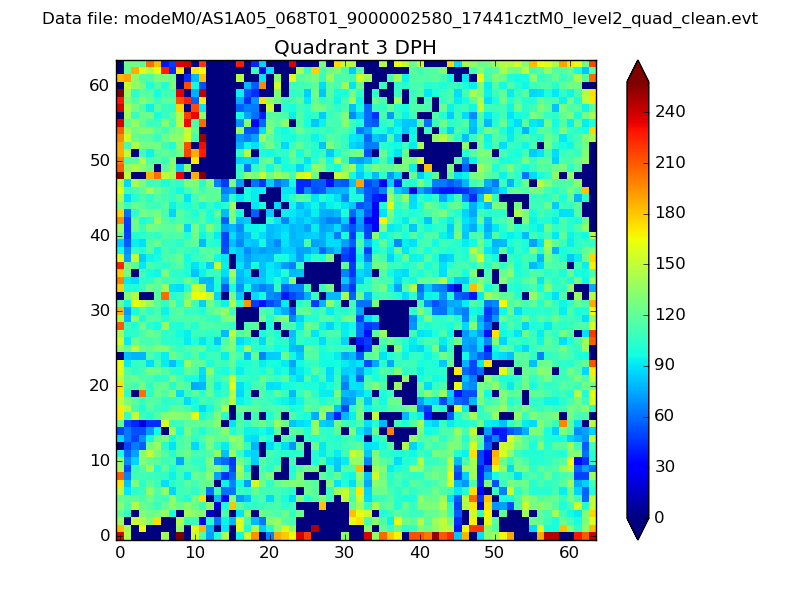

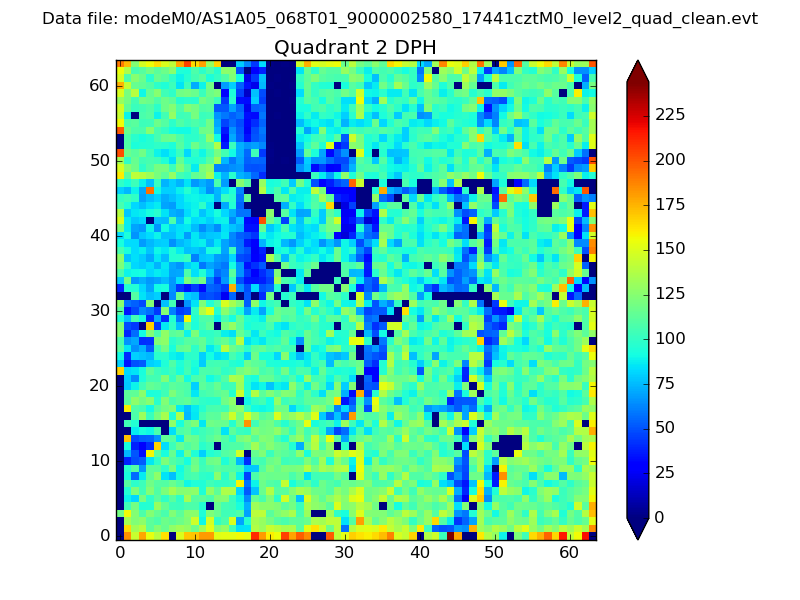

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

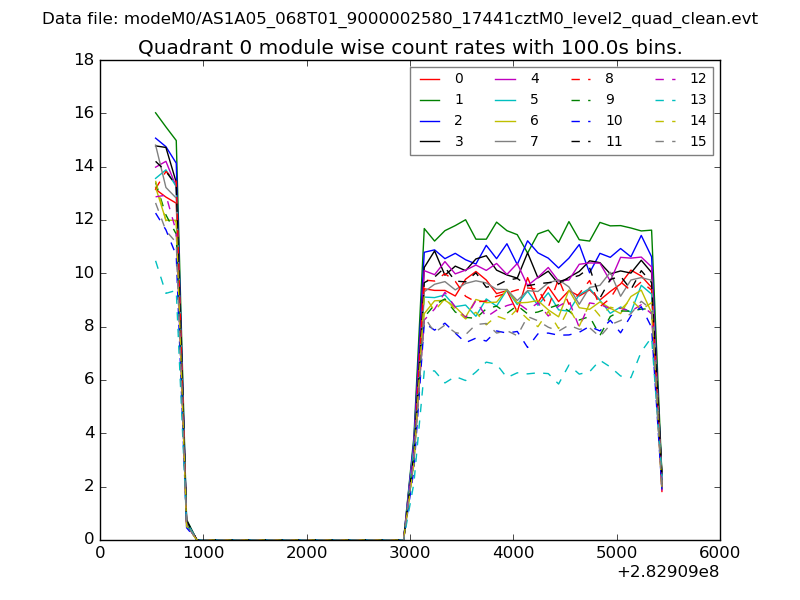

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

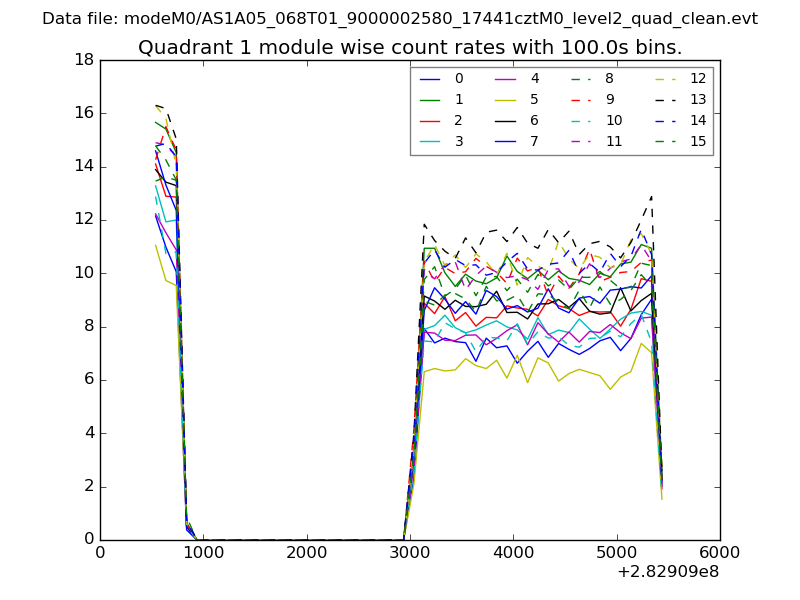

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

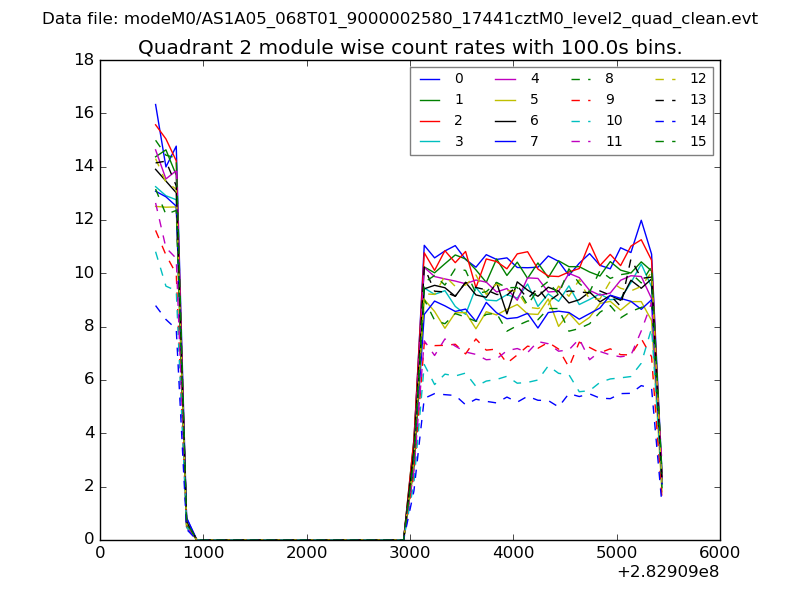

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

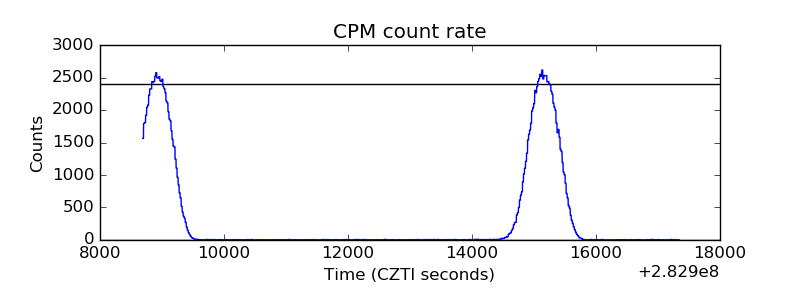

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

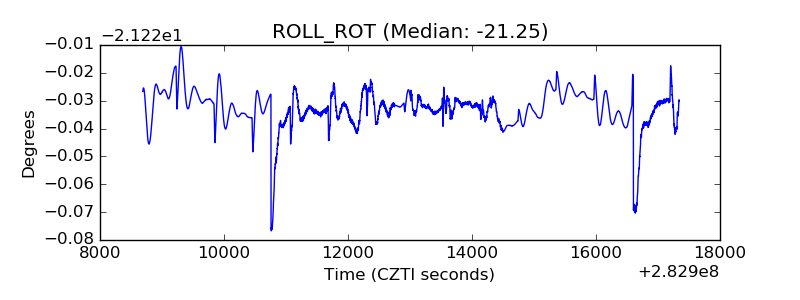

| _ROLL_ROT |  |

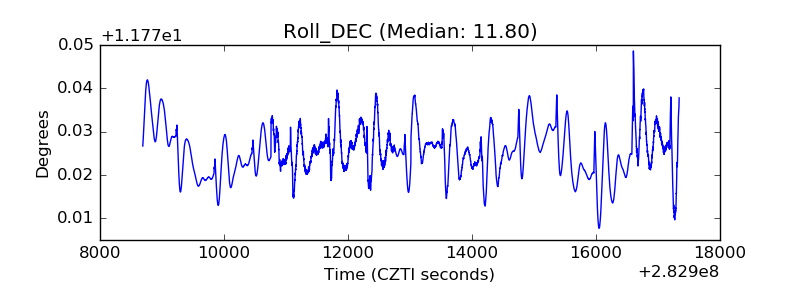

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
