| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_068T01_9000002580_17442cztM0_level2.evt | modeM0/AS1A05_068T01_9000002580_17442cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,713,600 | 65,891,520 |
| Size | 473.7 MB | 62.8 MB |
| Events in quadrant A | 3,461,997 | 397,158 |
| Events in quadrant B | 3,507,762 | 393,886 |
| Events in quadrant C | 3,672,804 | 380,199 |
| Events in quadrant D | 3,970,021 | 380,818 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14252 | 2 |
| B | 0 | 14417 | 2 |
| C | 0 | 15099 | 2 |
| D | 0 | 16091 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6343 | 64 | 1.008986% |
| B | 6343 | 74 | 1.166640% |
| C | 6343 | 85 | 1.340060% |
| D | 6343 | 110 | 1.734195% |

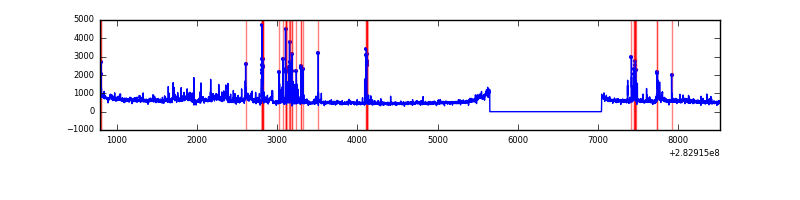

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7738 | 6344 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7738 | 6344 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7738 | 6344 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7738 | 6344 | 46 | 46 | 0.59% | 0.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 191 | 22953 | 124.26 | 892 | 879 | 177.6 |
| A | 0 | 226 | 8117 | 40.75 | 892 | 879 | 177.6 |
| A | 0 | 254 | 7059 | 34.79 | 892 | 879 | 177.6 |
| B | 12 | 111 | 18720 | 107.68 | 884 | 865 | 165.8 |
| B | 0 | 230 | 16779 | 95.98 | 884 | 865 | 165.8 |
| B | 11 | 111 | 16155 | 92.22 | 884 | 865 | 165.8 |
| C | 14 | 238 | 134285 | 675.34 | 858 | 867 | 197.6 |
| C | 5 | 218 | 114811 | 576.77 | 858 | 867 | 197.6 |
| C | 3 | 233 | 66786 | 333.67 | 858 | 867 | 197.6 |
| D | 1 | 52 | 331814 | 1567.95 | 873 | 849 | 211.1 |
| D | 13 | 189 | 232580 | 1097.83 | 873 | 849 | 211.1 |
| D | 13 | 232 | 44974 | 209.04 | 873 | 849 | 211.1 |

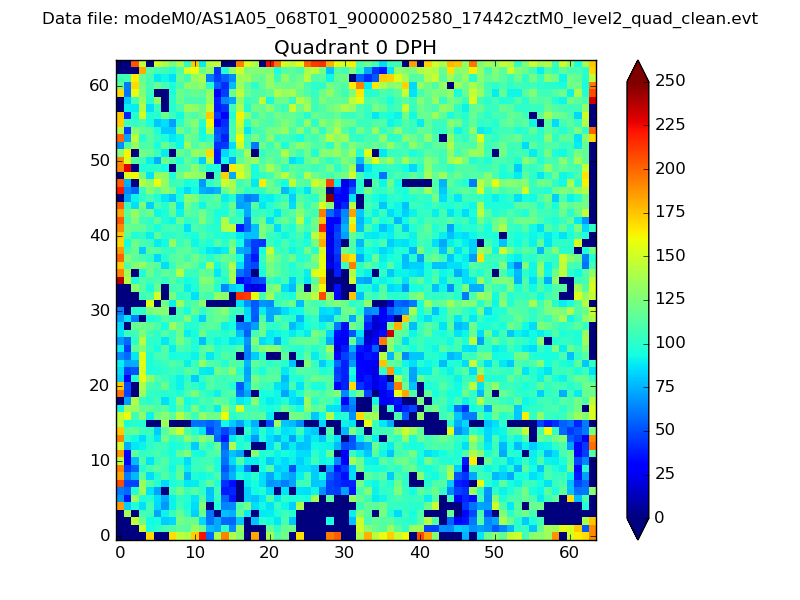

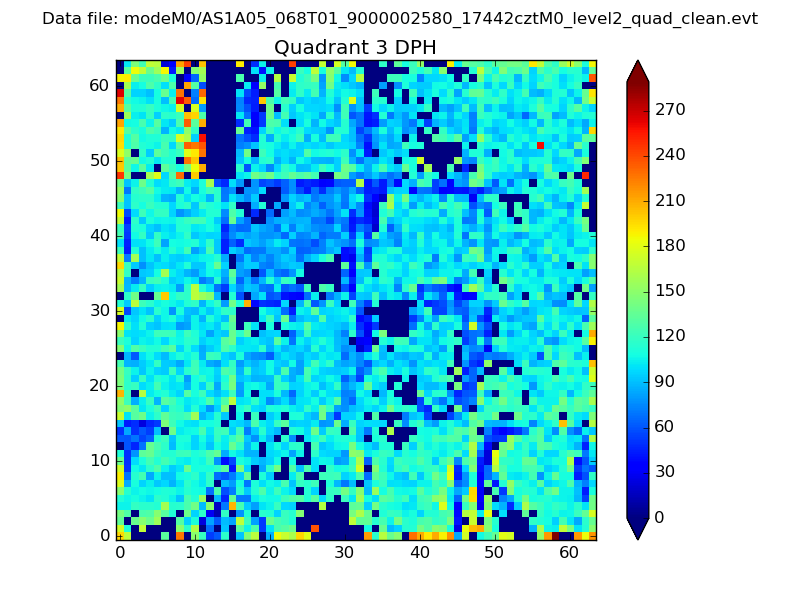

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

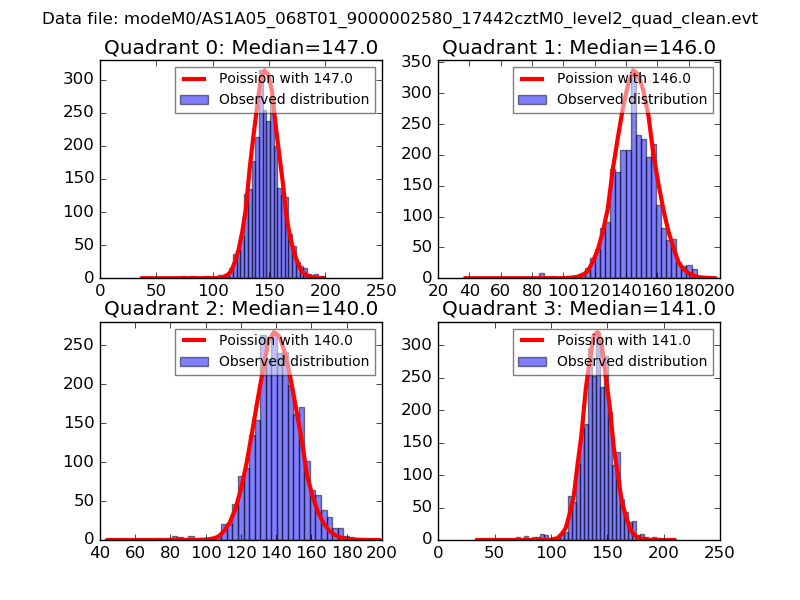

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

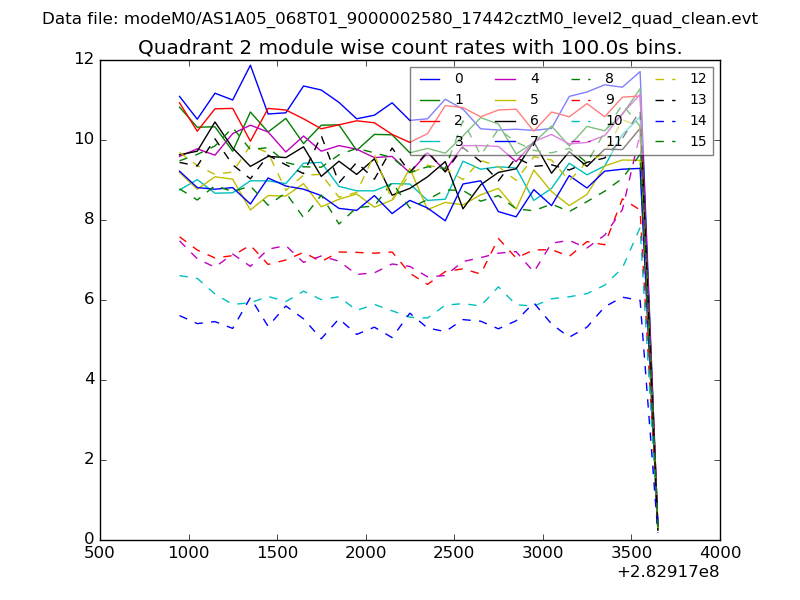

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

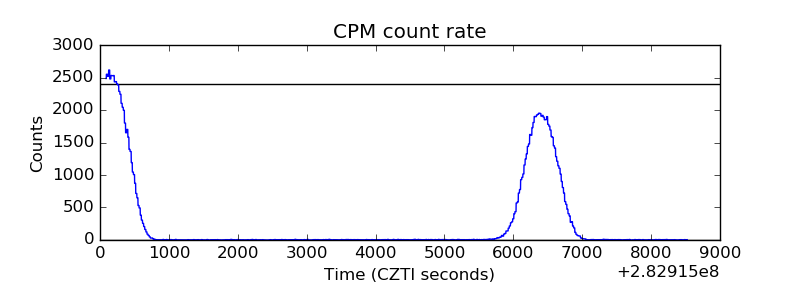

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

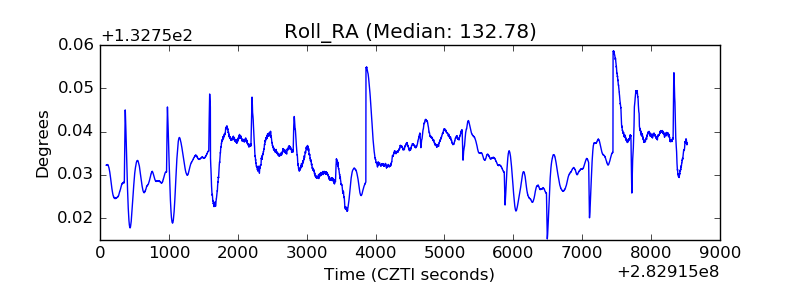

| _Roll_RA |  |

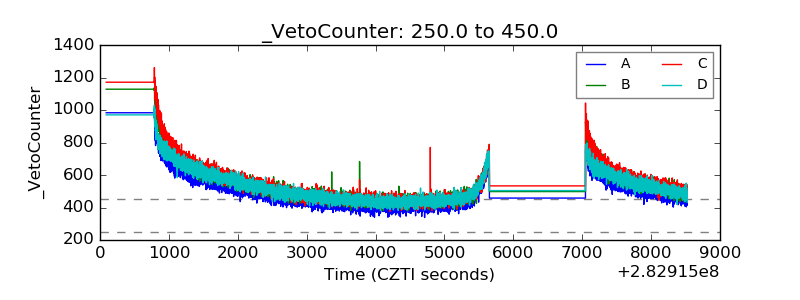

| Veto Counter |  |
