| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_068T01_9000002580_17443cztM0_level2.evt | modeM0/AS1A05_068T01_9000002580_17443cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,946,560 | 74,381,760 |
| Size | 452.9 MB | 70.9 MB |
| Events in quadrant A | 3,303,509 | 462,471 |
| Events in quadrant B | 3,360,453 | 460,704 |
| Events in quadrant C | 3,551,497 | 445,008 |
| Events in quadrant D | 3,740,805 | 444,615 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13707 | 2 |
| B | 0 | 13951 | 2 |
| C | 0 | 14504 | 2 |
| D | 0 | 15177 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6295 | 98 | 1.556791% |
| B | 6295 | 111 | 1.763304% |
| C | 6295 | 152 | 2.414615% |
| D | 6295 | 128 | 2.033360% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7525 | 6296 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7525 | 6295 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7525 | 6296 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7525 | 6296 | 31 | 31 | 0.41% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 191 | 27353 | 154.11 | 852 | 836 | 172.1 |
| A | 0 | 226 | 7560 | 39.08 | 852 | 836 | 172.1 |
| A | 12 | 194 | 6317 | 31.85 | 852 | 836 | 172.1 |
| B | 12 | 111 | 18596 | 111.5 | 847 | 827 | 159.4 |
| B | 11 | 111 | 15879 | 94.45 | 847 | 827 | 159.4 |
| B | 14 | 111 | 13057 | 76.74 | 847 | 827 | 159.4 |
| C | 14 | 238 | 128103 | 666.4 | 821 | 829 | 191.0 |
| C | 3 | 233 | 123581 | 642.72 | 821 | 829 | 191.0 |
| C | 5 | 218 | 93054 | 482.88 | 821 | 829 | 191.0 |
| D | 1 | 52 | 223047 | 1101.7 | 834 | 812 | 201.7 |
| D | 13 | 189 | 172982 | 853.51 | 834 | 812 | 201.7 |
| D | 11 | 176 | 107174 | 527.28 | 834 | 812 | 201.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

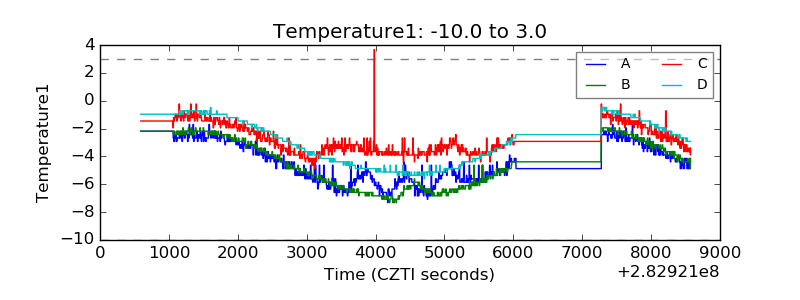

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

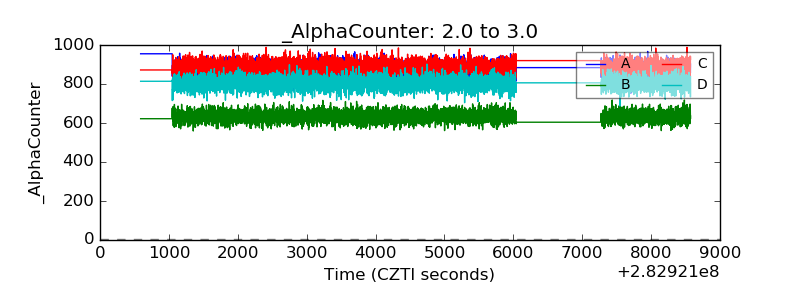

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

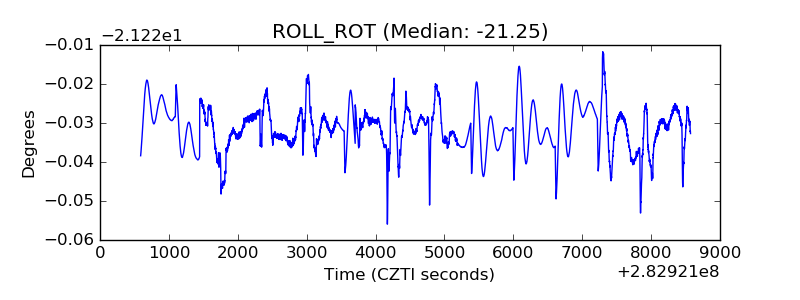

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

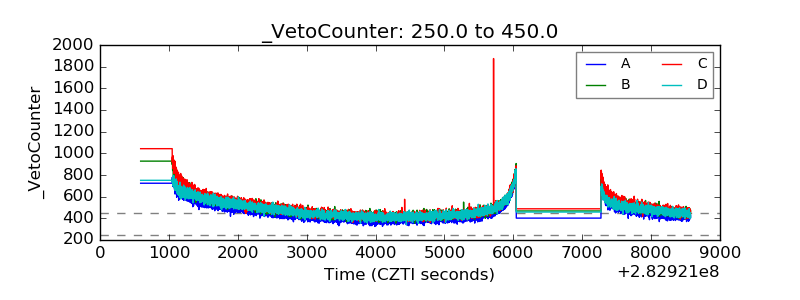

| Veto Counter |  |
