| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_068T01_9000002580_17447cztM0_level2.evt | modeM0/AS1A05_068T01_9000002580_17447cztM0_level2_quad_clean.evt |
| Size (bytes) | 216,835,200 | 35,205,120 |
| Size | 206.8 MB | 33.6 MB |
| Events in quadrant A | 1,451,642 | 221,403 |
| Events in quadrant B | 1,503,713 | 219,534 |
| Events in quadrant C | 1,564,193 | 211,717 |
| Events in quadrant D | 1,851,267 | 209,071 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6208 | 1 |
| B | 0 | 6301 | 1 |
| C | 0 | 6407 | 1 |
| D | 0 | 7442 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2858 | 87 | 3.044087% |
| B | 2858 | 125 | 4.373688% |
| C | 2858 | 138 | 4.828551% |
| D | 2859 | 99 | 3.462749% |

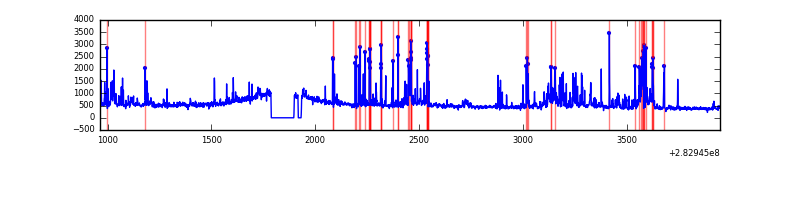

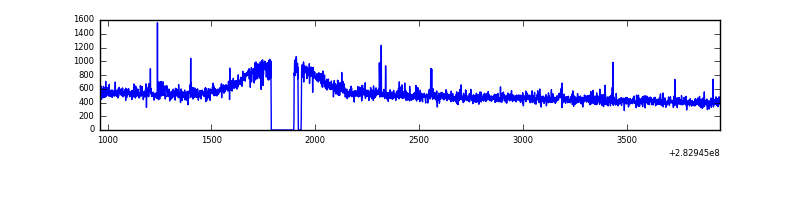

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2983 | 2860 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2983 | 2860 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2983 | 2860 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2984 | 2861 | 55 | 55 | 1.84% | 1.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 4 | 3303 | 36.78 | 376 | 367 | 79.8 |
| A | 0 | 226 | 3252 | 36.14 | 376 | 367 | 79.8 |
| A | 3 | 137 | 2918 | 31.95 | 376 | 367 | 79.8 |
| B | 12 | 111 | 8912 | 113.38 | 377 | 367 | 75.4 |
| B | 11 | 111 | 7586 | 95.79 | 377 | 367 | 75.4 |
| B | 14 | 111 | 6224 | 77.71 | 377 | 367 | 75.4 |
| C | 14 | 238 | 53615 | 609.38 | 359 | 360 | 87.4 |
| C | 3 | 233 | 50039 | 568.46 | 359 | 360 | 87.4 |
| C | 5 | 218 | 48089 | 546.15 | 359 | 360 | 87.4 |
| D | 13 | 232 | 158334 | 1736.78 | 362 | 350 | 91.0 |
| D | 13 | 189 | 157299 | 1725.4 | 362 | 350 | 91.0 |
| D | 1 | 52 | 46978 | 512.6 | 362 | 350 | 91.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

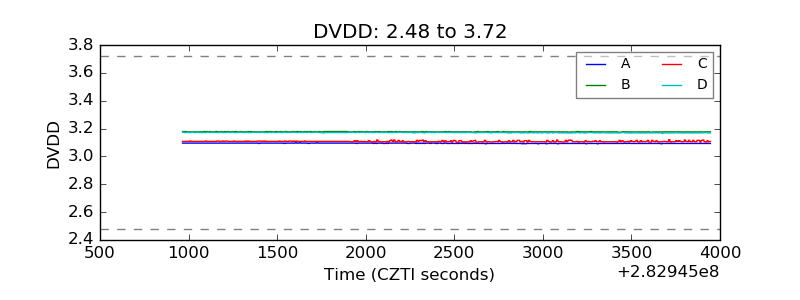

| D_VDD |  |

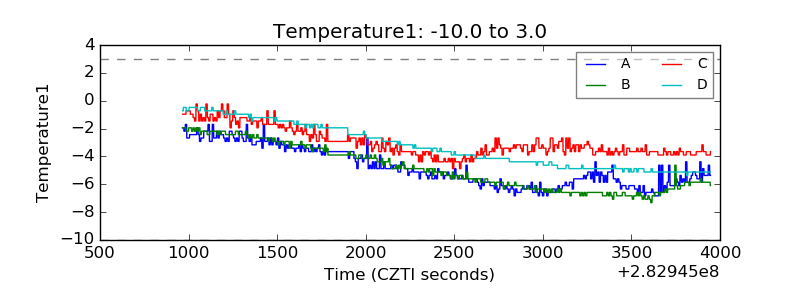

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

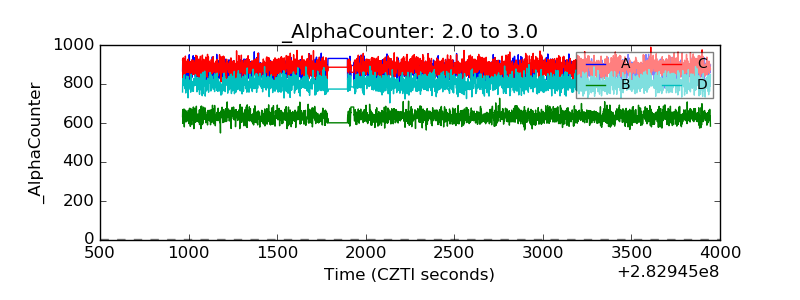

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

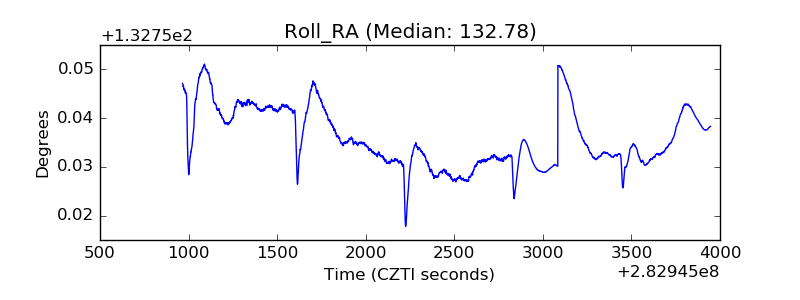

| _Roll_RA |  |
| Veto Counter |  |
