| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_067T01_9000002582_17469cztM0_level2.evt | modeM0/AS1T03_067T01_9000002582_17469cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,959,040 | 92,278,080 |
| Size | 490.1 MB | 88.0 MB |
| Events in quadrant A | 3,202,213 | 620,494 |
| Events in quadrant B | 3,209,790 | 630,586 |
| Events in quadrant C | 2,952,848 | 605,055 |
| Events in quadrant D | 5,818,416 | 544,266 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13173 | 2 |
| B | 0 | 13076 | 2 |
| C | 0 | 12377 | 2 |
| D | 0 | 21126 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5635 | 87 | 1.543922% |
| B | 5635 | 75 | 1.330967% |
| C | 5635 | 74 | 1.313221% |
| D | 5635 | 963 | 17.089618% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6920 | 5636 | 24 | 24 | 0.35% | 0.43% |  |
| B | 6920 | 5636 | 24 | 24 | 0.35% | 0.43% |  |
| C | 6920 | 5636 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6919 | 5635 | 719 | 719 | 10.39% | 12.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 312866 | 2097.7 | 747 | 733 | 148.8 |
| A | 14 | 4 | 6886 | 41.35 | 747 | 733 | 148.8 |
| A | 0 | 226 | 6623 | 39.58 | 747 | 733 | 148.8 |
| B | 7 | 220 | 206105 | 1512.4 | 741 | 726 | 135.8 |
| B | 5 | 172 | 16405 | 115.46 | 741 | 726 | 135.8 |
| B | 0 | 189 | 15517 | 108.92 | 741 | 726 | 135.8 |
| C | 14 | 238 | 111854 | 667.85 | 722 | 727 | 166.4 |
| C | 5 | 218 | 18065 | 104.2 | 722 | 727 | 166.4 |
| C | 3 | 233 | 5603 | 29.3 | 722 | 727 | 166.4 |
| D | 10 | 70 | 1072481 | 6454.66 | 687 | 667 | 166.1 |
| D | 12 | 233 | 922523 | 5551.58 | 687 | 667 | 166.1 |
| D | 11 | 176 | 749260 | 4508.16 | 687 | 667 | 166.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

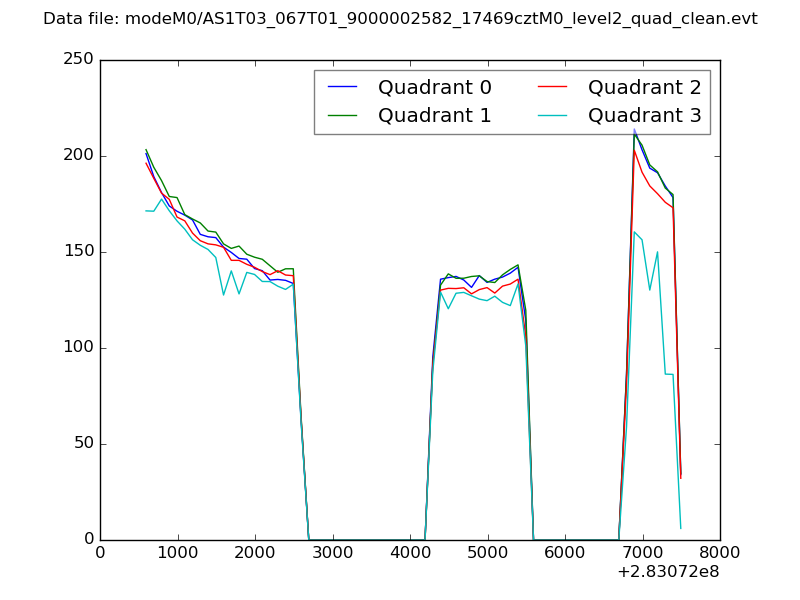

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

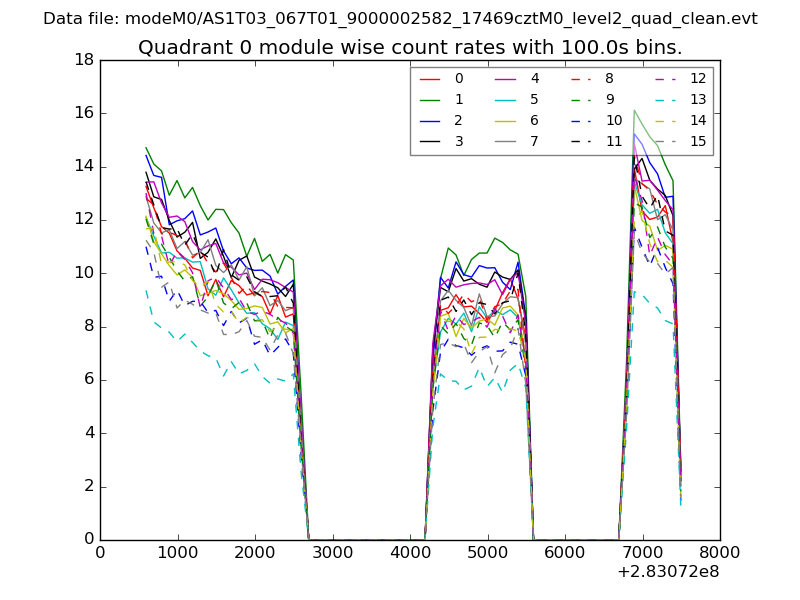

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

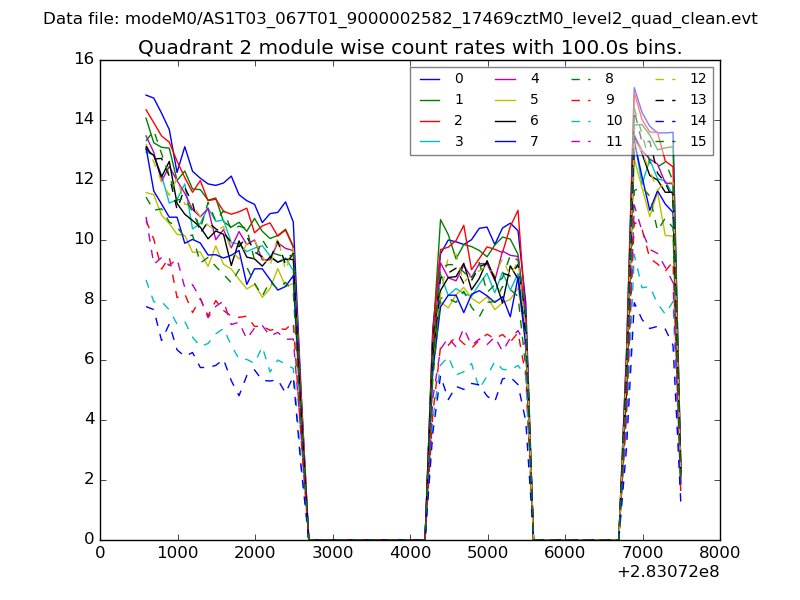

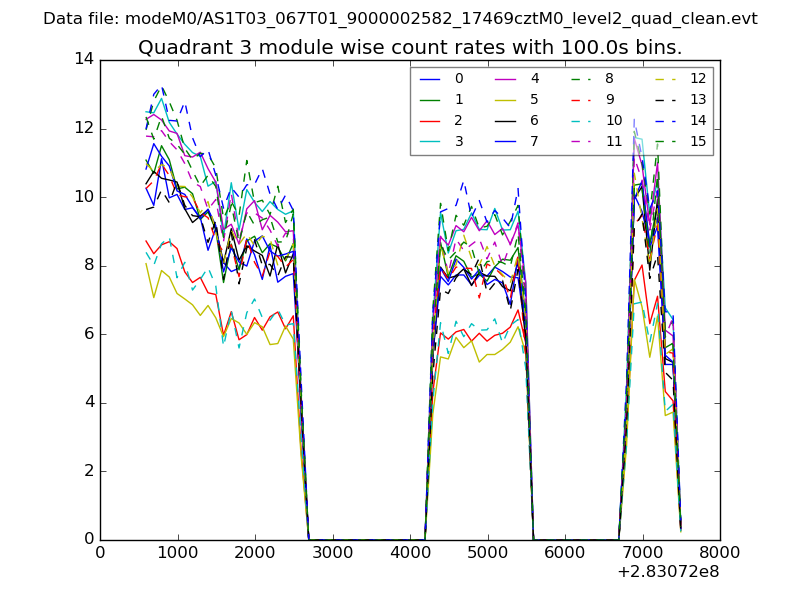

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

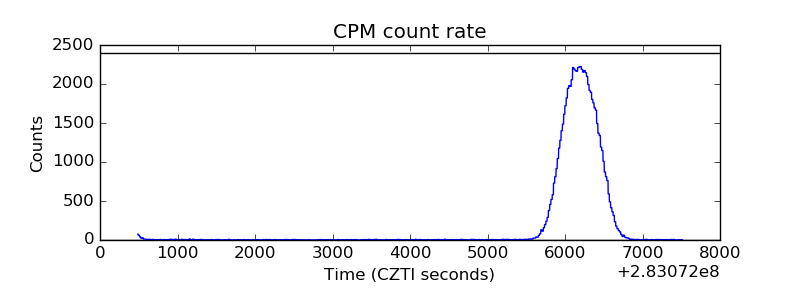

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
