| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_198T01_9000002586_17474cztM0_level2.evt | modeM0/AS1A05_198T01_9000002586_17474cztM0_level2_quad_clean.evt |
| Size (bytes) | 290,214,720 | 52,830,720 |
| Size | 276.8 MB | 50.4 MB |
| Events in quadrant A | 1,975,118 | 339,557 |
| Events in quadrant B | 2,024,783 | 347,171 |
| Events in quadrant C | 1,894,642 | 332,284 |
| Events in quadrant D | 2,642,243 | 318,996 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8126 | 1 |
| B | 0 | 8210 | 1 |
| C | 0 | 7776 | 1 |
| D | 0 | 10246 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3696 | 55 | 1.488095% |
| B | 3696 | 33 | 0.892857% |
| C | 3696 | 54 | 1.461039% |
| D | 3696 | 219 | 5.925325% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4186 | 3698 | 28 | 28 | 0.67% | 0.76% |  |
| B | 4186 | 3698 | 6 | 6 | 0.14% | 0.16% |  |
| C | 4186 | 3698 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4186 | 3698 | 133 | 133 | 3.18% | 3.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 126453 | 1278.07 | 479 | 470 | 98.6 |
| A | 4 | 2 | 6075 | 56.86 | 479 | 470 | 98.6 |
| A | 0 | 226 | 4269 | 38.54 | 479 | 470 | 98.6 |
| B | 12 | 18 | 61794 | 654.36 | 478 | 465 | 93.7 |
| B | 12 | 17 | 31708 | 333.35 | 478 | 465 | 93.7 |
| B | 4 | 216 | 19715 | 205.39 | 478 | 465 | 93.7 |
| C | 14 | 238 | 69523 | 638.5 | 455 | 457 | 108.2 |
| C | 5 | 218 | 39205 | 358.21 | 455 | 457 | 108.2 |
| C | 5 | 37 | 6521 | 56.06 | 455 | 457 | 108.2 |
| D | 10 | 70 | 501970 | 4481.89 | 452 | 438 | 111.9 |
| D | 7 | 238 | 236995 | 2113.97 | 452 | 438 | 111.9 |
| D | 13 | 232 | 101588 | 903.92 | 452 | 438 | 111.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

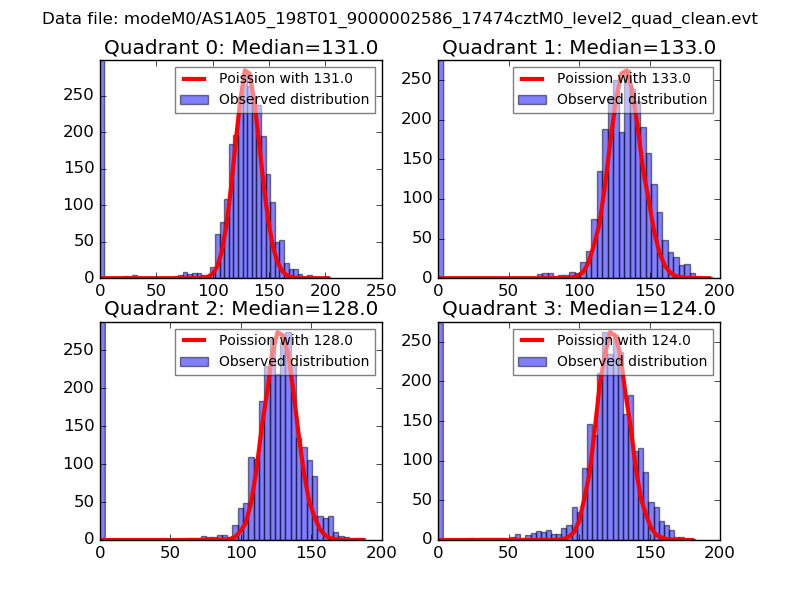

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
