| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_198T01_9000002586_17475cztM0_level2.evt | modeM0/AS1A05_198T01_9000002586_17475cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,708,480 | 105,894,720 |
| Size | 541.4 MB | 101.0 MB |
| Events in quadrant A | 3,716,654 | 683,312 |
| Events in quadrant B | 4,008,728 | 691,898 |
| Events in quadrant C | 3,696,332 | 661,689 |
| Events in quadrant D | 5,255,028 | 640,449 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16124 | 2 |
| B | 0 | 16809 | 2 |
| C | 0 | 15703 | 2 |
| D | 0 | 20654 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7615 | 56 | 0.735391% |
| B | 7616 | 73 | 0.958508% |
| C | 7616 | 57 | 0.748424% |
| D | 7616 | 330 | 4.332983% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

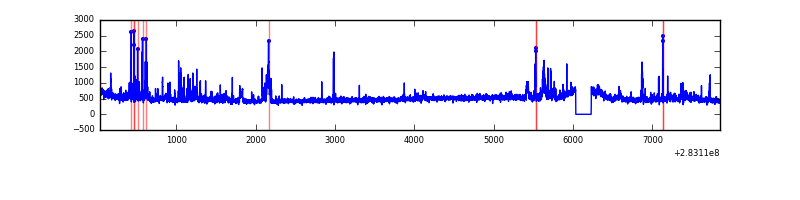

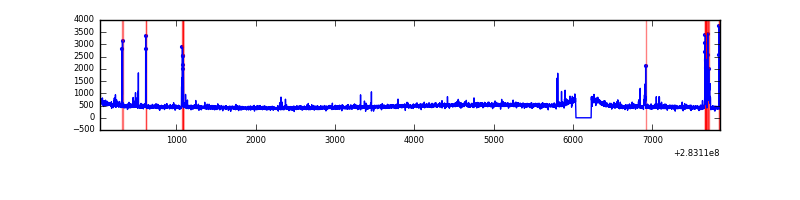

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7810 | 7616 | 23 | 23 | 0.29% | 0.30% |  |
| B | 7811 | 7617 | 11 | 11 | 0.14% | 0.14% |  |
| C | 7811 | 7617 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7811 | 7617 | 232 | 232 | 2.97% | 3.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 177291 | 942.59 | 919 | 900 | 187.1 |
| A | 0 | 226 | 8102 | 38.49 | 919 | 900 | 187.1 |
| A | 12 | 194 | 6916 | 32.15 | 919 | 900 | 187.1 |
| B | 0 | 230 | 62216 | 347.33 | 920 | 898 | 176.5 |
| B | 12 | 18 | 62169 | 347.06 | 920 | 898 | 176.5 |
| B | 4 | 216 | 53248 | 296.53 | 920 | 898 | 176.5 |
| C | 14 | 238 | 133230 | 643.53 | 876 | 877 | 205.7 |
| C | 5 | 218 | 95928 | 462.16 | 876 | 877 | 205.7 |
| C | 5 | 219 | 22413 | 104.71 | 876 | 877 | 205.7 |
| D | 7 | 238 | 636136 | 2946.6 | 875 | 848 | 215.6 |
| D | 13 | 189 | 625890 | 2899.08 | 875 | 848 | 215.6 |
| D | 10 | 70 | 433045 | 2004.62 | 875 | 848 | 215.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

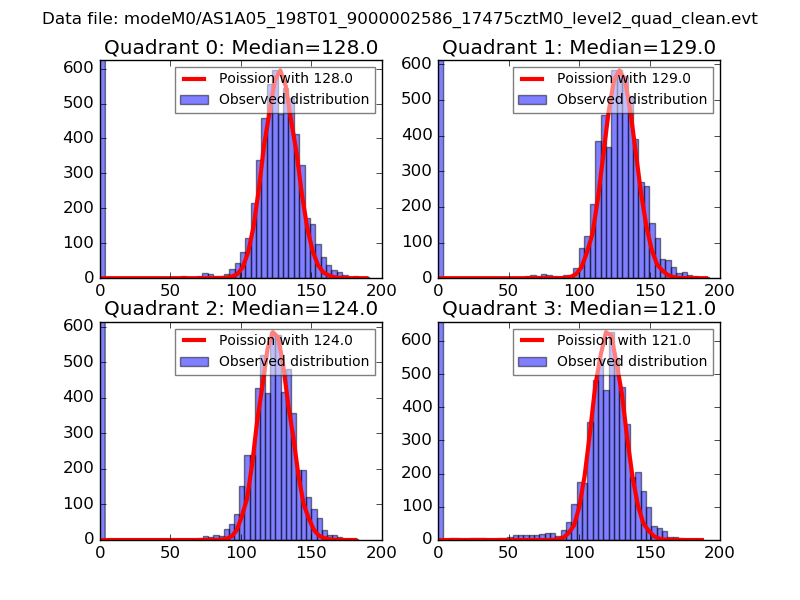

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

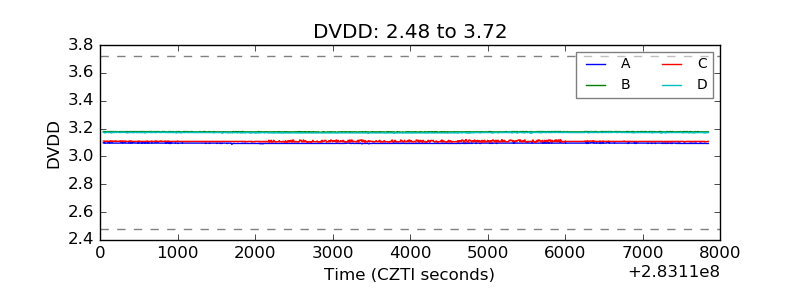

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

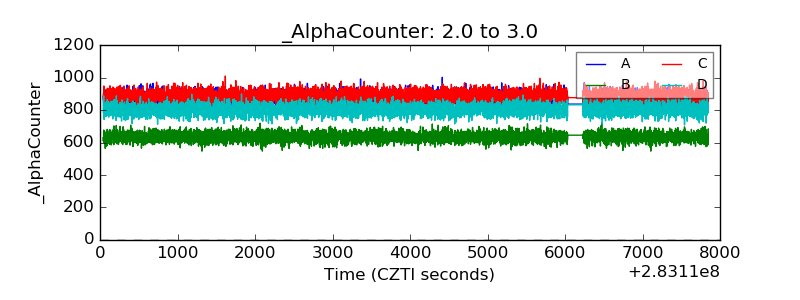

| Alpha Counter |  |
| _CPM_Rate |  |

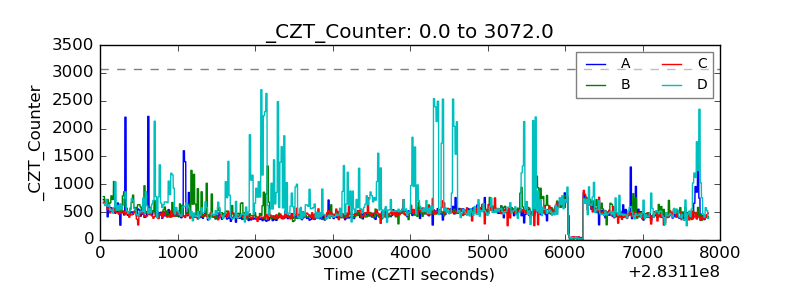

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

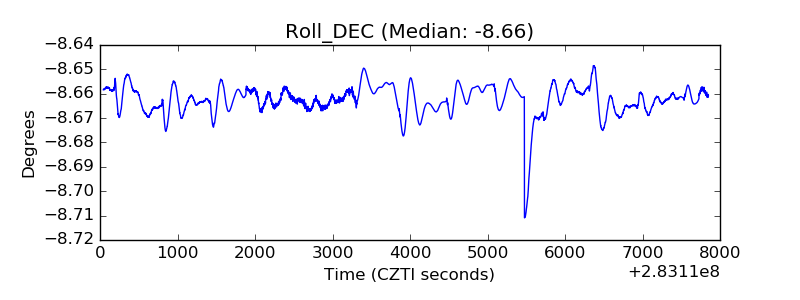

| _Roll_DEC |  |

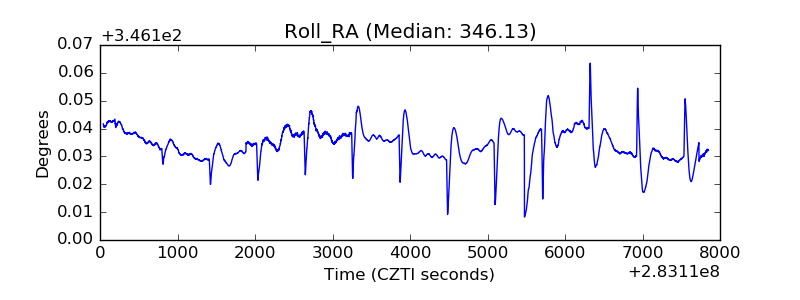

| _Roll_RA |  |
| Veto Counter |  |
