| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_194T05_9000002592_17489cztM0_level2.evt | modeM0/AS1A05_194T05_9000002592_17489cztM0_level2_quad_clean.evt |
| Size (bytes) | 340,508,160 | 52,306,560 |
| Size | 324.7 MB | 49.9 MB |
| Events in quadrant A | 2,174,112 | 323,161 |
| Events in quadrant B | 2,253,339 | 329,139 |
| Events in quadrant C | 2,245,432 | 316,083 |
| Events in quadrant D | 3,338,841 | 304,751 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 90 | 0 |
| B | 0 | 90 | 0 |
| C | 0 | 90 | 0 |
| D | 0 | 90 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9271 | 1 |
| B | 0 | 9501 | 1 |
| C | 0 | 9316 | 1 |
| D | 0 | 12870 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4413 | 98 | 2.220712% |
| B | 4413 | 112 | 2.537956% |
| C | 4413 | 124 | 2.809880% |
| D | 4413 | 283 | 6.412871% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4698 | 4415 | 2 | 2 | 0.04% | 0.05% |  |
| B | 4698 | 4415 | 1 | 1 | 0.02% | 0.02% |  |
| C | 4698 | 4415 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4698 | 4415 | 159 | 159 | 3.38% | 3.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 17157 | 143.84 | 561 | 547 | 115.5 |
| A | 0 | 226 | 4949 | 38.12 | 561 | 547 | 115.5 |
| A | 3 | 137 | 4141 | 31.12 | 561 | 547 | 115.5 |
| B | 15 | 33 | 45111 | 406.04 | 556 | 541 | 109.8 |
| B | 12 | 111 | 12848 | 112.12 | 556 | 541 | 109.8 |
| B | 0 | 230 | 12643 | 110.25 | 556 | 541 | 109.8 |
| C | 14 | 238 | 81910 | 641.43 | 535 | 537 | 126.9 |
| C | 5 | 218 | 44467 | 346.28 | 535 | 537 | 126.9 |
| C | 3 | 233 | 14737 | 111.93 | 535 | 537 | 126.9 |
| D | 1 | 52 | 901941 | 6490.67 | 538 | 523 | 138.9 |
| D | 11 | 176 | 192513 | 1382.43 | 538 | 523 | 138.9 |
| D | 13 | 189 | 96534 | 691.33 | 538 | 523 | 138.9 |

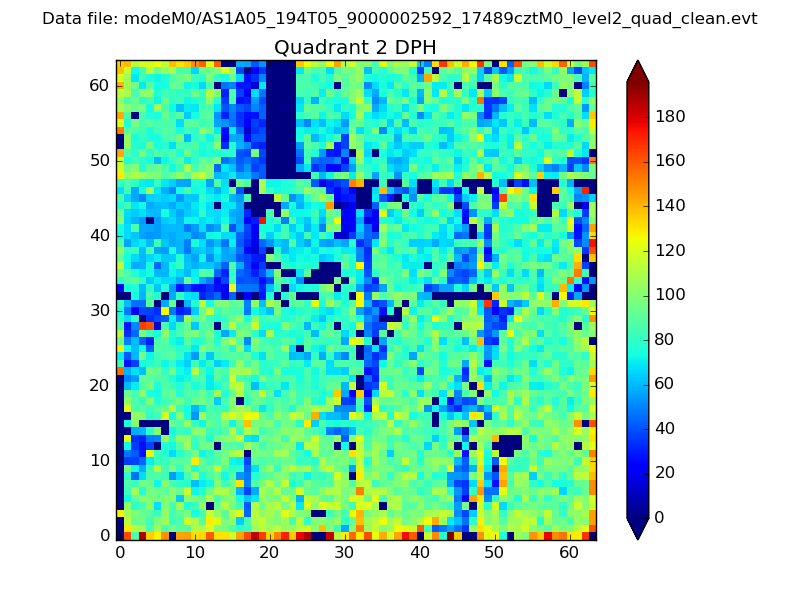

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

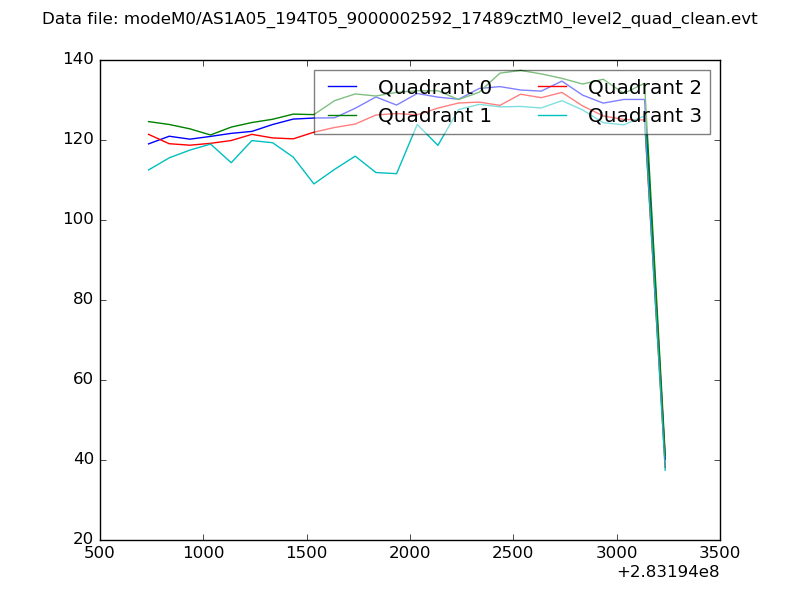

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

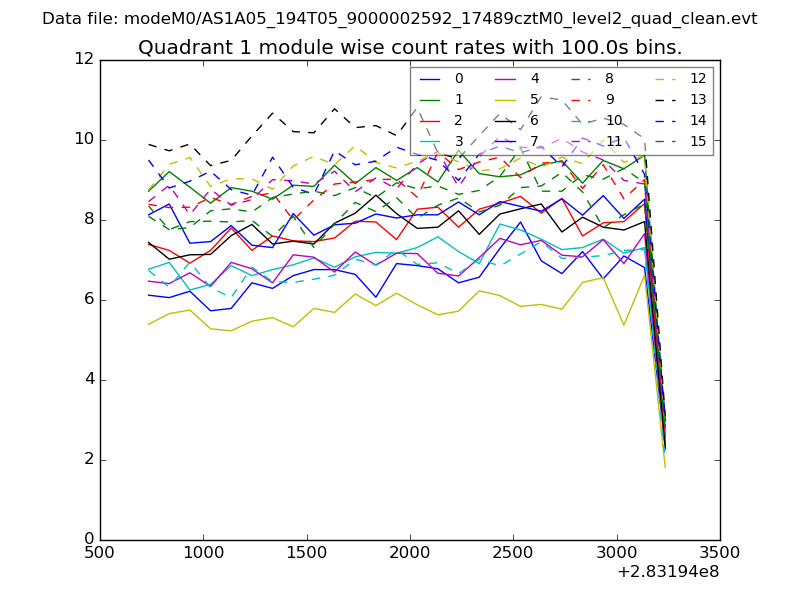

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

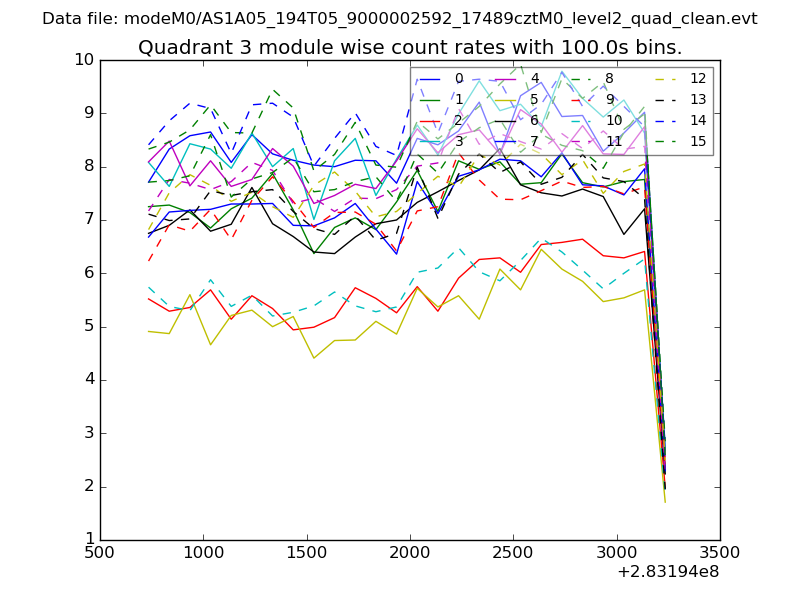

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

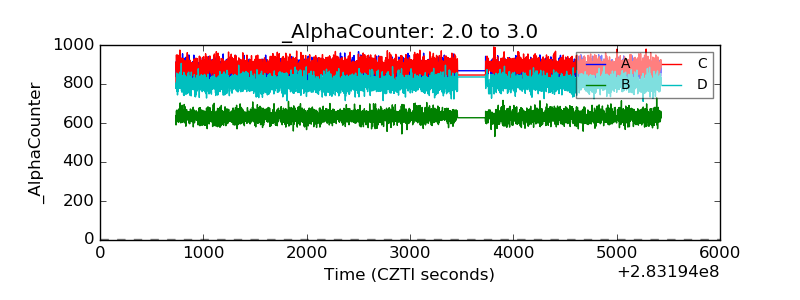

| Alpha Counter |  |

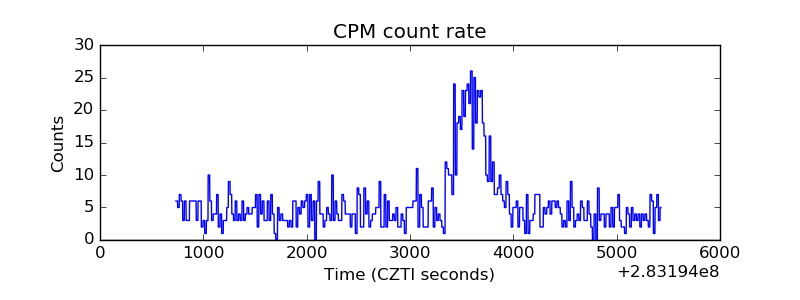

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

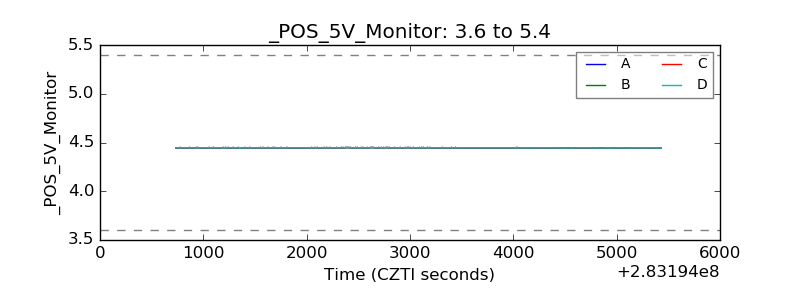

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
