| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_194T05_9000002592_17495cztM0_level2.evt | modeM0/AS1A05_194T05_9000002592_17495cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,453,333,760 | 435,294,720 |
| Size | 2.3 GB | 415.1 MB |
| Events in quadrant A | 15,706,413 | 2,747,525 |
| Events in quadrant B | 16,309,562 | 2,795,236 |
| Events in quadrant C | 16,191,741 | 2,690,299 |
| Events in quadrant D | 23,794,974 | 2,613,347 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 690 | 0 |
| B | 0 | 690 | 0 |
| C | 0 | 690 | 0 |
| D | 0 | 690 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 69706 | 6 |
| B | 0 | 70983 | 6 |
| C | 0 | 69896 | 6 |
| D | 0 | 94380 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 34045 | 165 | 0.484653% |
| B | 34046 | 300 | 0.881161% |
| C | 34046 | 312 | 0.916407% |
| D | 34046 | 1334 | 3.918228% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38070 | 34051 | 4 | 4 | 0.01% | 0.01% |  |
| B | 38071 | 34052 | 32 | 32 | 0.08% | 0.09% |  |
| C | 38071 | 34052 | 1 | 1 | 0.00% | 0.00% |  |
| D | 38071 | 34052 | 990 | 990 | 2.60% | 2.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 96189 | 112.86 | 4057 | 3967 | 817.1 |
| A | 0 | 226 | 35734 | 38.88 | 4057 | 3967 | 817.1 |
| A | 3 | 137 | 29916 | 31.76 | 4057 | 3967 | 817.1 |
| B | 7 | 220 | 166127 | 209.49 | 4044 | 3942 | 774.2 |
| B | 0 | 230 | 112890 | 140.72 | 4044 | 3942 | 774.2 |
| B | 12 | 111 | 92649 | 114.58 | 4044 | 3942 | 774.2 |
| C | 14 | 238 | 599605 | 654.86 | 3887 | 3909 | 909.7 |
| C | 5 | 218 | 277541 | 300.81 | 3887 | 3909 | 909.7 |
| C | 3 | 233 | 81388 | 85.17 | 3887 | 3909 | 909.7 |
| D | 1 | 52 | 4129108 | 4364.99 | 3887 | 3781 | 945.1 |
| D | 11 | 176 | 2171555 | 2293.71 | 3887 | 3781 | 945.1 |
| D | 7 | 238 | 1377547 | 1453.58 | 3887 | 3781 | 945.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

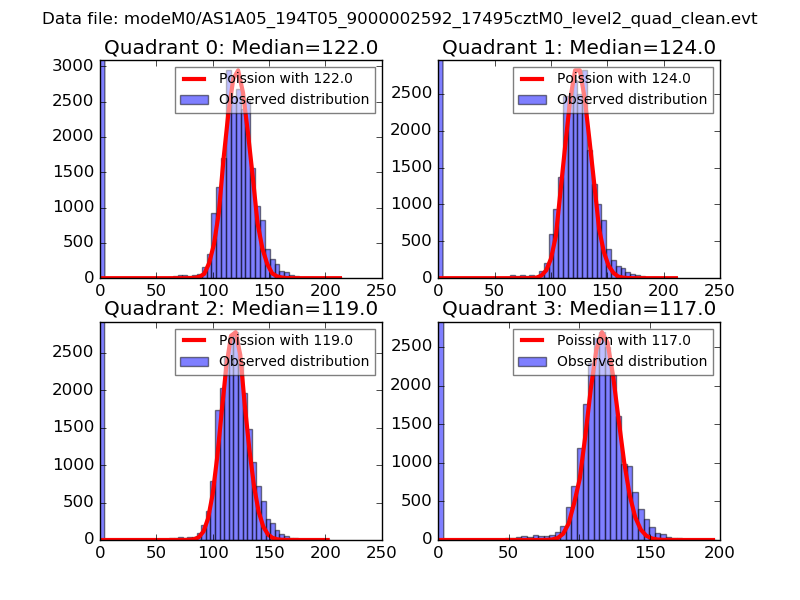

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

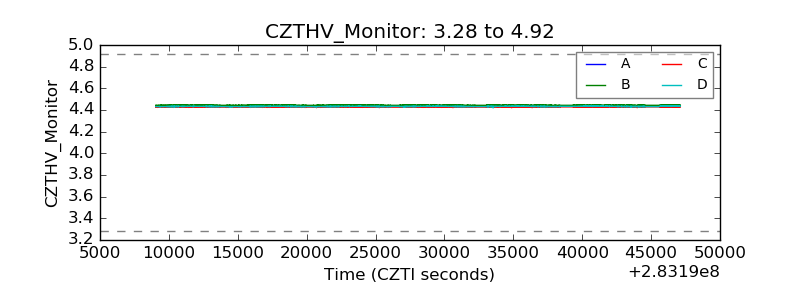

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

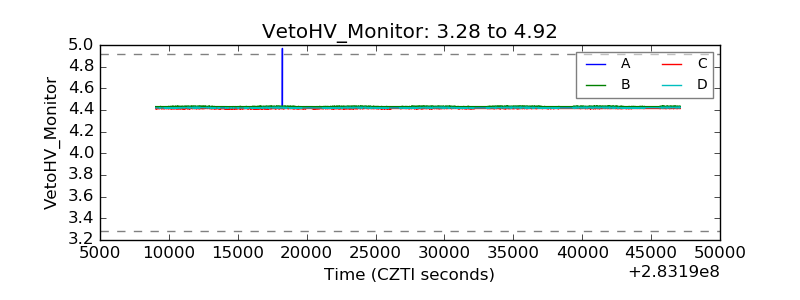

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

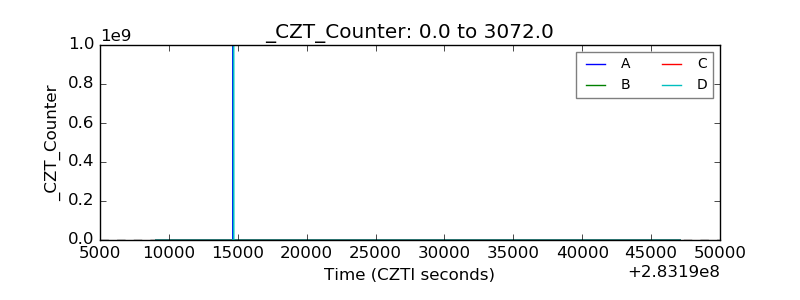

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

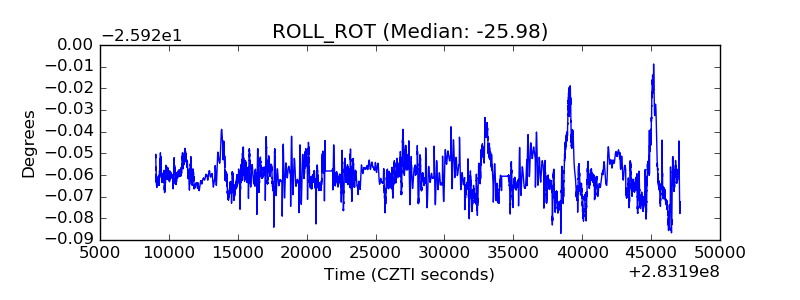

| _ROLL_ROT |  |
| _Roll_DEC |  |

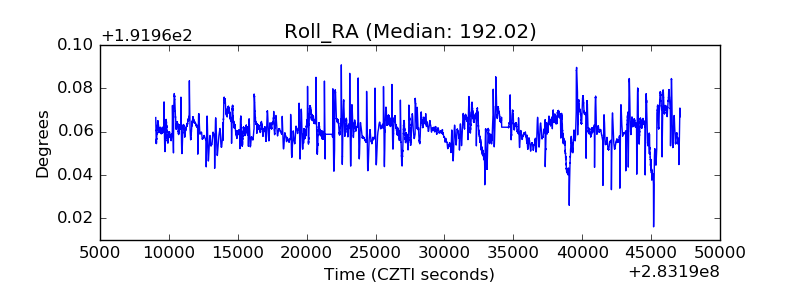

| _Roll_RA |  |
| Veto Counter |  |
