| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_194T05_9000002592_17497cztM0_level2.evt | modeM0/AS1A05_194T05_9000002592_17497cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,207,040 | 95,077,440 |
| Size | 425.5 MB | 90.7 MB |
| Events in quadrant A | 3,158,496 | 610,757 |
| Events in quadrant B | 3,213,359 | 628,323 |
| Events in quadrant C | 3,298,708 | 601,753 |
| Events in quadrant D | 3,397,431 | 581,415 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13472 | 2 |
| B | 0 | 13625 | 2 |
| C | 0 | 13686 | 2 |
| D | 0 | 14385 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6557 | 32 | 0.488028% |
| B | 6557 | 52 | 0.793046% |
| C | 6557 | 77 | 1.174318% |
| D | 6557 | 85 | 1.296325% |

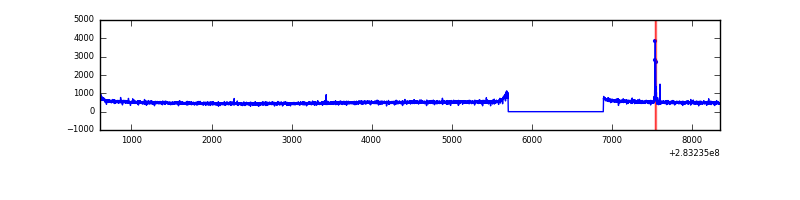

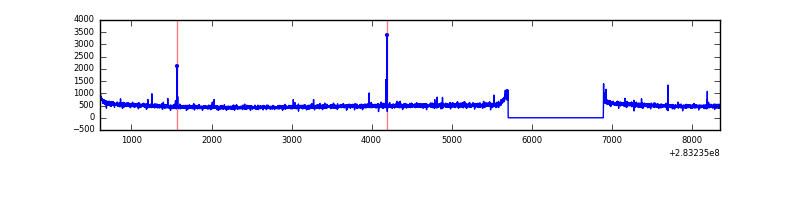

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7747 | 6558 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7747 | 6558 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7747 | 6558 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7747 | 6557 | 52 | 52 | 0.67% | 0.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7175 | 38.55 | 821 | 803 | 165.3 |
| A | 12 | 194 | 6044 | 31.71 | 821 | 803 | 165.3 |
| A | 3 | 137 | 5835 | 30.44 | 821 | 803 | 165.3 |
| B | 12 | 111 | 18197 | 112.41 | 819 | 799 | 154.8 |
| B | 11 | 111 | 15810 | 96.99 | 819 | 799 | 154.8 |
| B | 14 | 111 | 13141 | 79.74 | 819 | 799 | 154.8 |
| C | 14 | 238 | 123074 | 665.12 | 786 | 792 | 183.8 |
| C | 5 | 218 | 64303 | 345.45 | 786 | 792 | 183.8 |
| C | 9 | 54 | 26412 | 139.35 | 786 | 792 | 183.8 |
| D | 1 | 52 | 111973 | 578.57 | 789 | 767 | 192.2 |
| D | 13 | 189 | 110347 | 570.11 | 789 | 767 | 192.2 |
| D | 7 | 238 | 54296 | 278.49 | 789 | 767 | 192.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

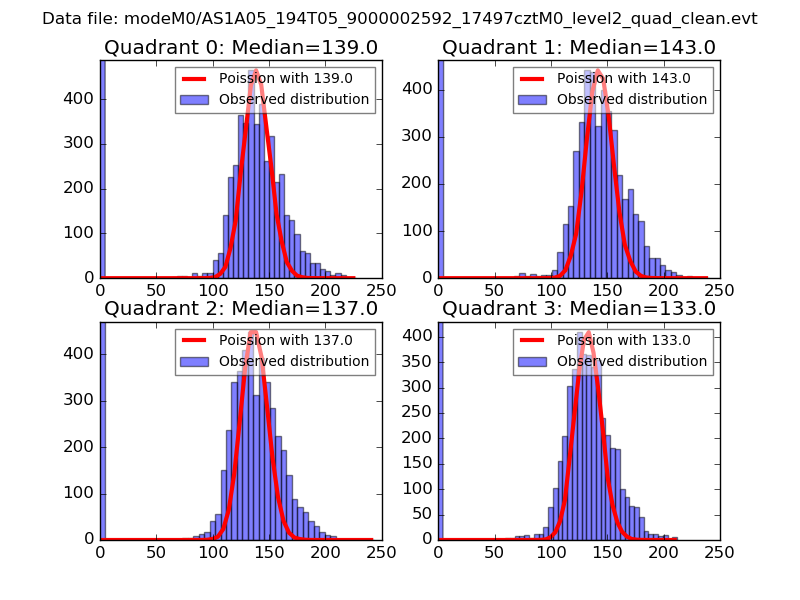

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

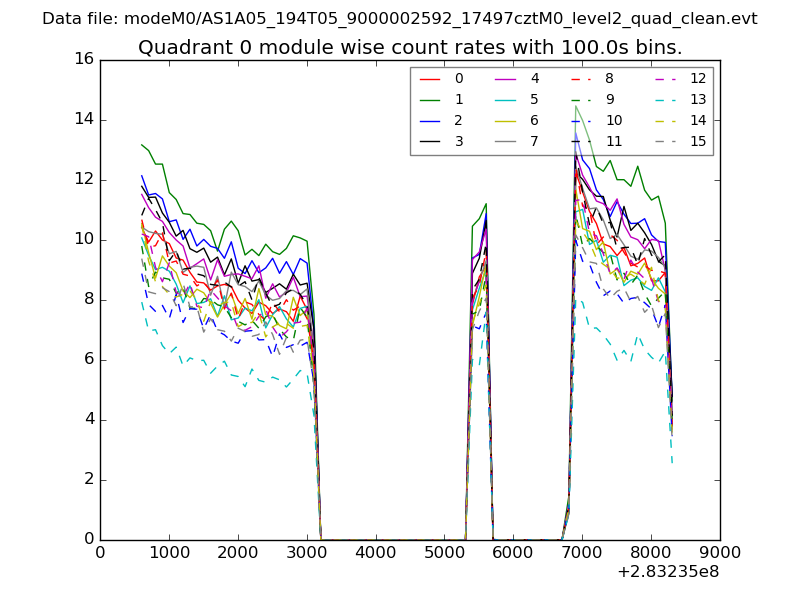

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

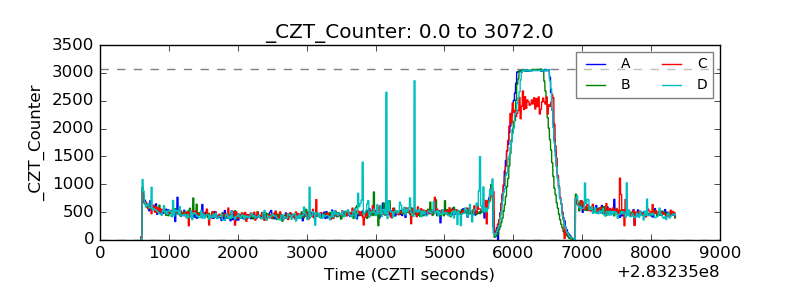

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

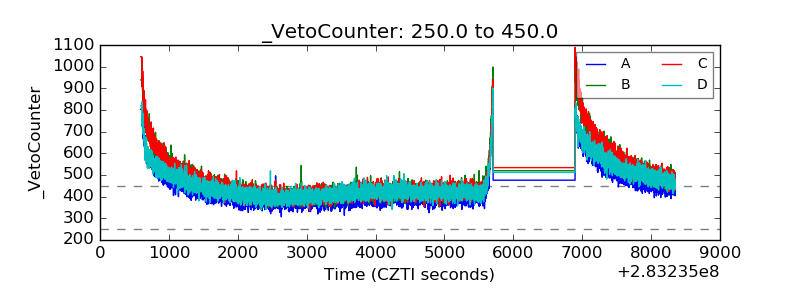

| Veto Counter |  |
