| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_068T01_9000002594_17501cztM0_level2.evt | modeM0/AS1T03_068T01_9000002594_17501cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,791,040 | 105,549,120 |
| Size | 435.6 MB | 100.7 MB |
| Events in quadrant A | 3,291,070 | 711,334 |
| Events in quadrant B | 3,227,329 | 711,685 |
| Events in quadrant C | 3,206,215 | 677,454 |
| Events in quadrant D | 3,676,814 | 652,072 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13653 | 2 |
| B | 0 | 13476 | 2 |
| C | 0 | 13283 | 2 |
| D | 0 | 14939 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6361 | 107 | 1.682125% |
| B | 6362 | 108 | 1.697579% |
| C | 6362 | 90 | 1.414649% |
| D | 6362 | 259 | 4.071047% |

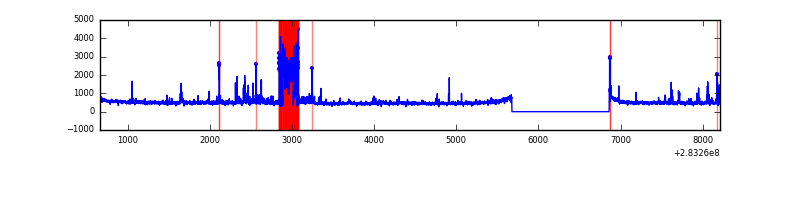

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7546 | 6362 | 13 | 13 | 0.17% | 0.20% |  |
| B | 7547 | 6363 | 18 | 18 | 0.24% | 0.28% |  |
| C | 7547 | 6363 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7547 | 6363 | 168 | 168 | 2.23% | 2.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 136831 | 836.8 | 807 | 791 | 162.6 |
| A | 13 | 210 | 49843 | 301.72 | 807 | 791 | 162.6 |
| A | 0 | 226 | 7055 | 38.53 | 807 | 791 | 162.6 |
| B | 7 | 220 | 87937 | 581.96 | 795 | 775 | 149.8 |
| B | 12 | 111 | 16735 | 106.56 | 795 | 775 | 149.8 |
| B | 5 | 172 | 14855 | 94.01 | 795 | 775 | 149.8 |
| C | 14 | 238 | 120229 | 680.86 | 764 | 769 | 175.5 |
| C | 5 | 218 | 61322 | 345.12 | 764 | 769 | 175.5 |
| C | 3 | 233 | 18476 | 100.92 | 764 | 769 | 175.5 |
| D | 10 | 70 | 505070 | 2768.58 | 770 | 750 | 182.2 |
| D | 13 | 189 | 85351 | 464.44 | 770 | 750 | 182.2 |
| D | 1 | 20 | 68656 | 372.79 | 770 | 750 | 182.2 |

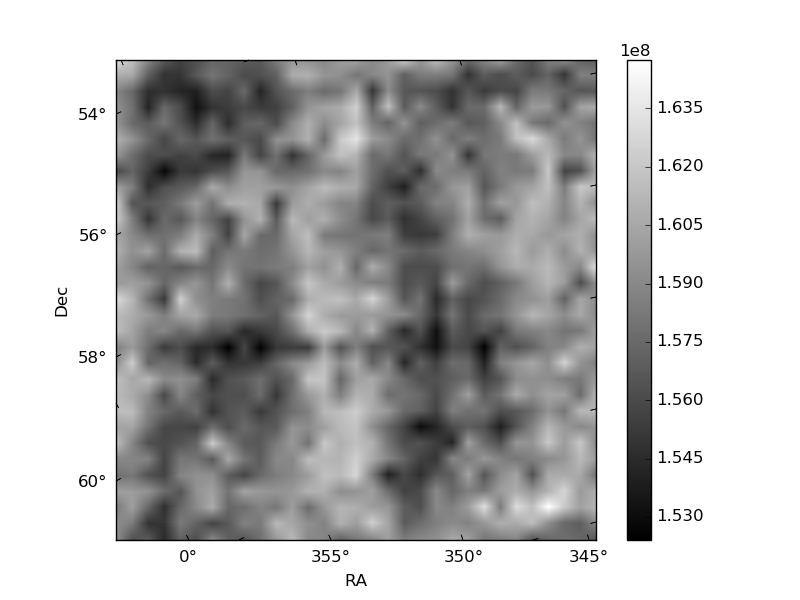

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

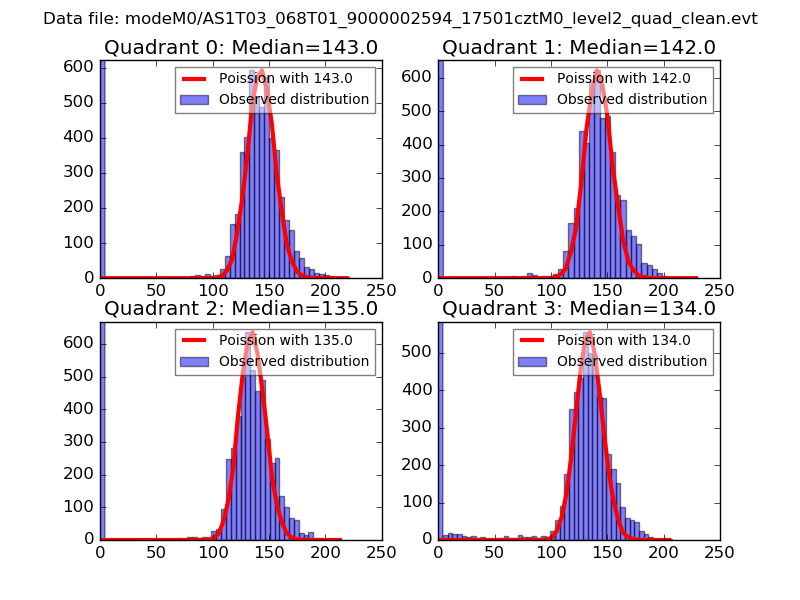

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

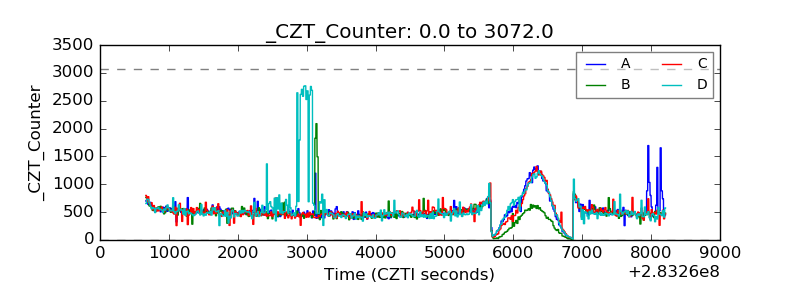

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

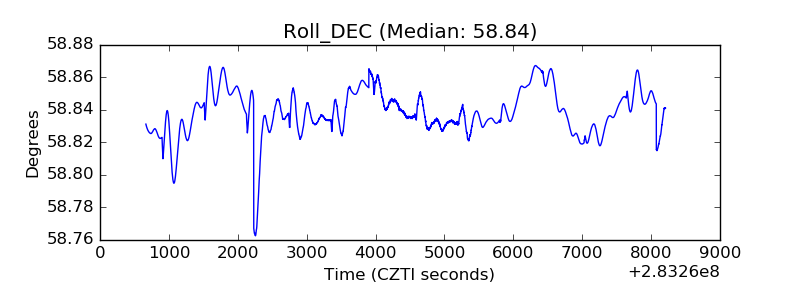

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
