| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_068T01_9000002594_17504cztM0_level2.evt | modeM0/AS1T03_068T01_9000002594_17504cztM0_level2_quad_clean.evt |
| Size (bytes) | 870,422,400 | 178,194,240 |
| Size | 830.1 MB | 169.9 MB |
| Events in quadrant A | 5,860,078 | 1,163,247 |
| Events in quadrant B | 6,114,930 | 1,165,119 |
| Events in quadrant C | 6,071,471 | 1,115,073 |
| Events in quadrant D | 7,450,761 | 1,072,158 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26261 | 2 |
| B | 0 | 26640 | 2 |
| C | 0 | 26237 | 2 |
| D | 0 | 31230 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 258 | 0 |
| B | 0 | 258 | 0 |
| C | 0 | 258 | 0 |
| D | 0 | 258 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12751 | 98 | 0.768567% |
| B | 12752 | 124 | 0.972396% |
| C | 12752 | 159 | 1.246863% |
| D | 12752 | 674 | 5.285445% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13456 | 12753 | 5 | 5 | 0.04% | 0.04% |  |
| B | 13457 | 12754 | 13 | 13 | 0.10% | 0.10% |  |
| C | 13457 | 12754 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13457 | 12754 | 467 | 467 | 3.47% | 3.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 37103 | 116.93 | 1509 | 1474 | 304.7 |
| A | 4 | 2 | 19794 | 60.12 | 1509 | 1474 | 304.7 |
| A | 0 | 226 | 13075 | 38.07 | 1509 | 1474 | 304.7 |
| B | 7 | 220 | 127906 | 442.85 | 1502 | 1461 | 285.5 |
| B | 12 | 111 | 33675 | 112.82 | 1502 | 1461 | 285.5 |
| B | 11 | 111 | 28900 | 96.1 | 1502 | 1461 | 285.5 |
| C | 14 | 238 | 222437 | 654.83 | 1450 | 1459 | 337.5 |
| C | 5 | 218 | 109138 | 319.09 | 1450 | 1459 | 337.5 |
| C | 3 | 233 | 76667 | 222.87 | 1450 | 1459 | 337.5 |
| D | 10 | 70 | 1313264 | 3736.08 | 1452 | 1409 | 351.1 |
| D | 13 | 189 | 461388 | 1309.99 | 1452 | 1409 | 351.1 |
| D | 11 | 176 | 58101 | 161.46 | 1452 | 1409 | 351.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

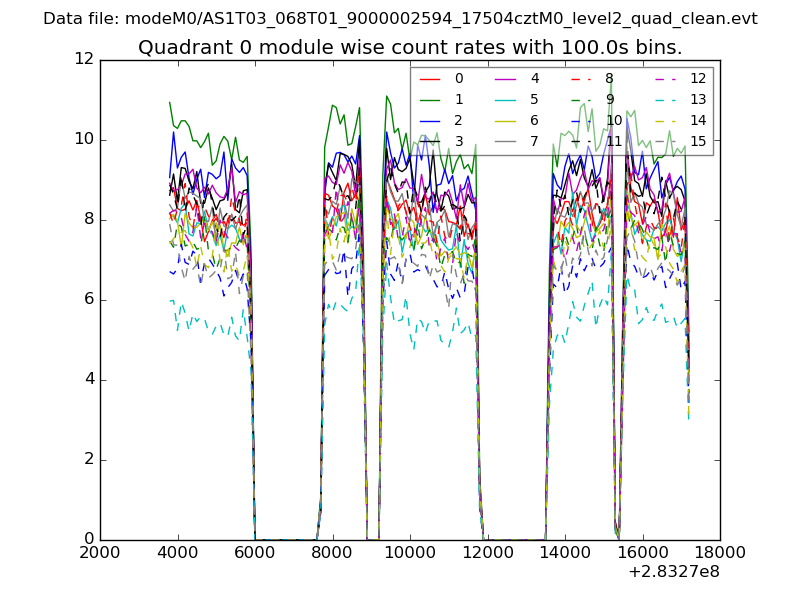

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

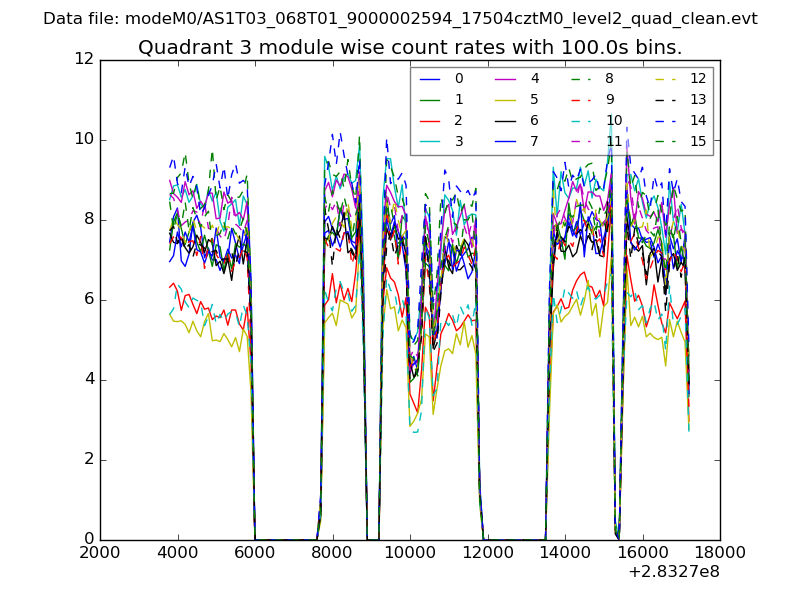

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
