| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_068T01_9000002594_17513cztM0_level2.evt | modeM0/AS1T03_068T01_9000002594_17513cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,059,520 | 108,717,120 |
| Size | 434.9 MB | 103.7 MB |
| Events in quadrant A | 3,393,154 | 736,505 |
| Events in quadrant B | 3,279,122 | 743,599 |
| Events in quadrant C | 3,262,686 | 690,606 |
| Events in quadrant D | 3,451,734 | 685,007 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14029 | 2 |
| B | 0 | 13627 | 2 |
| C | 0 | 13443 | 2 |
| D | 0 | 14243 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6256 | 98 | 1.566496% |
| B | 6256 | 113 | 1.806266% |
| C | 6256 | 106 | 1.694373% |
| D | 6256 | 111 | 1.774297% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7541 | 6256 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7541 | 6256 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7541 | 6256 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7541 | 6257 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 149073 | 883.89 | 844 | 829 | 167.7 |
| A | 0 | 226 | 7508 | 39.82 | 844 | 829 | 167.7 |
| A | 12 | 194 | 6240 | 32.26 | 844 | 829 | 167.7 |
| B | 12 | 111 | 17440 | 106.69 | 833 | 815 | 155.8 |
| B | 11 | 111 | 15502 | 94.25 | 833 | 815 | 155.8 |
| B | 14 | 111 | 13102 | 78.85 | 833 | 815 | 155.8 |
| C | 14 | 238 | 126423 | 701.13 | 783 | 787 | 179.2 |
| C | 5 | 218 | 39329 | 215.09 | 783 | 787 | 179.2 |
| C | 3 | 233 | 37486 | 204.8 | 783 | 787 | 179.2 |
| D | 1 | 52 | 254333 | 1327.17 | 803 | 780 | 191.0 |
| D | 13 | 189 | 104600 | 543.42 | 803 | 780 | 191.0 |
| D | 2 | 33 | 26987 | 137.18 | 803 | 780 | 191.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

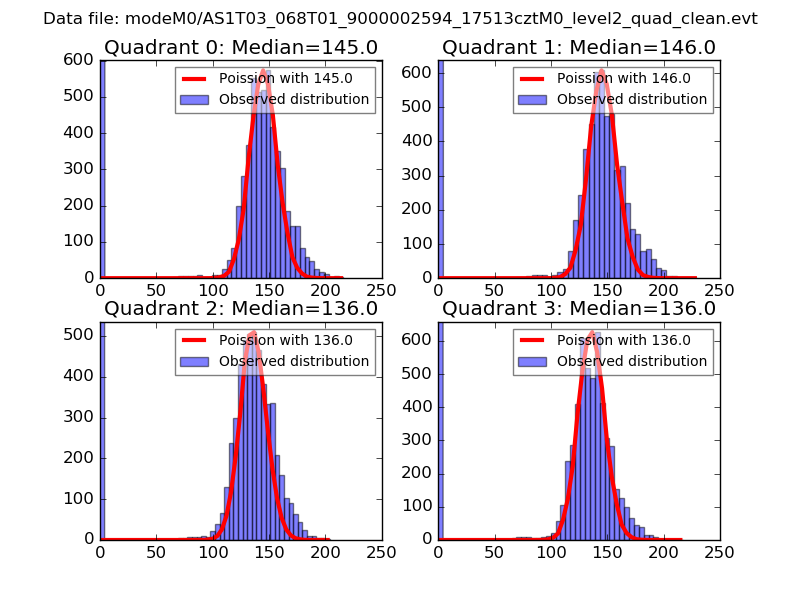

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

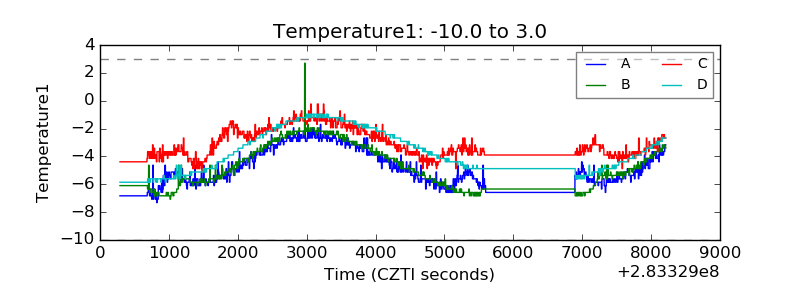

| Temperature 1 |  |

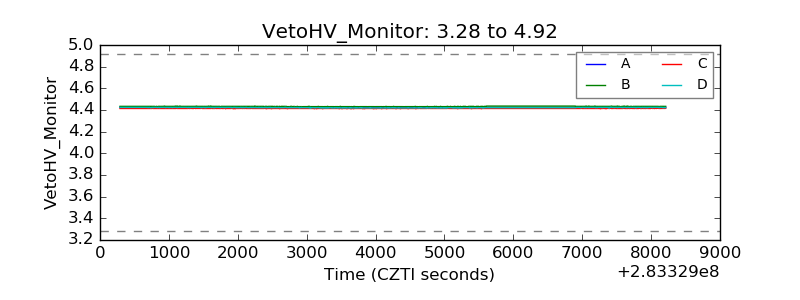

| Veto HV Monitor |  |
| Veto LLD |  |

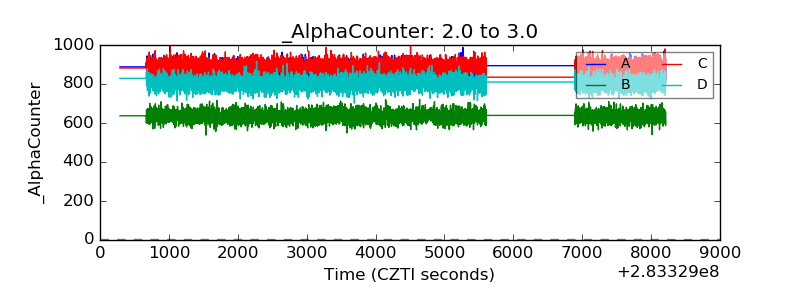

| Alpha Counter |  |
| _CPM_Rate |  |

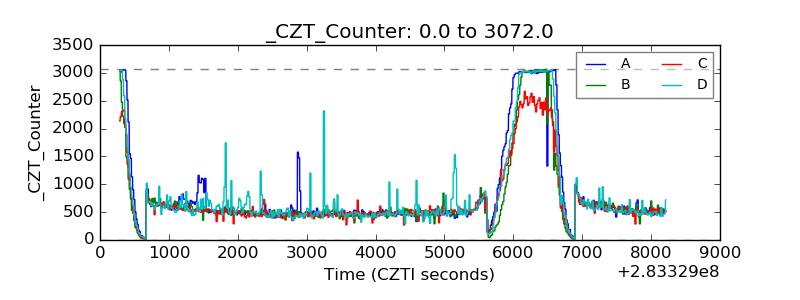

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
