| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_068T01_9000002594_17514cztM0_level2.evt | modeM0/AS1T03_068T01_9000002594_17514cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,777,920 | 120,205,440 |
| Size | 433.7 MB | 114.6 MB |
| Events in quadrant A | 3,471,877 | 825,523 |
| Events in quadrant B | 3,309,754 | 833,313 |
| Events in quadrant C | 3,275,450 | 769,044 |
| Events in quadrant D | 3,288,089 | 773,823 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14131 | 3 |
| B | 0 | 13615 | 3 |
| C | 0 | 13466 | 3 |
| D | 0 | 13702 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6292 | 150 | 2.383980% |
| B | 6292 | 129 | 2.050223% |
| C | 6291 | 134 | 2.130027% |
| D | 6291 | 126 | 2.002861% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

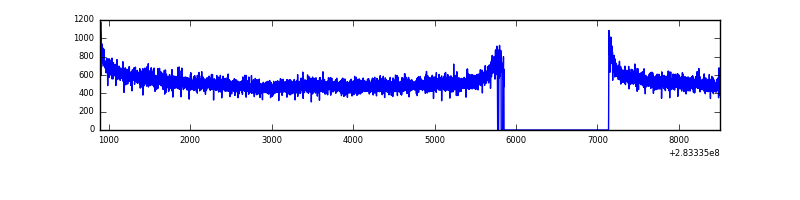

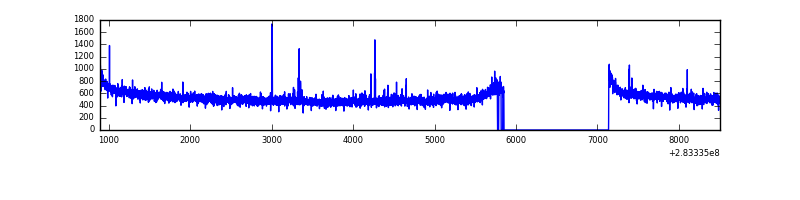

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7612 | 6294 | 15 | 15 | 0.20% | 0.24% |  |
| B | 7612 | 6294 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7611 | 6294 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7611 | 6293 | 29 | 29 | 0.38% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 189758 | 1112.1 | 854 | 839 | 169.9 |
| A | 0 | 226 | 7552 | 39.52 | 854 | 839 | 169.9 |
| A | 12 | 194 | 6372 | 32.57 | 854 | 839 | 169.9 |
| B | 12 | 111 | 17649 | 107.46 | 839 | 822 | 156.6 |
| B | 11 | 111 | 15553 | 94.07 | 839 | 822 | 156.6 |
| B | 0 | 219 | 13221 | 79.18 | 839 | 822 | 156.6 |
| C | 14 | 238 | 125402 | 690.34 | 788 | 794 | 180.5 |
| C | 3 | 233 | 40219 | 218.42 | 788 | 794 | 180.5 |
| C | 5 | 218 | 30592 | 165.08 | 788 | 794 | 180.5 |
| D | 13 | 189 | 67789 | 345.34 | 817 | 797 | 194.0 |
| D | 10 | 70 | 50556 | 256.5 | 817 | 797 | 194.0 |
| D | 7 | 238 | 44974 | 227.73 | 817 | 797 | 194.0 |

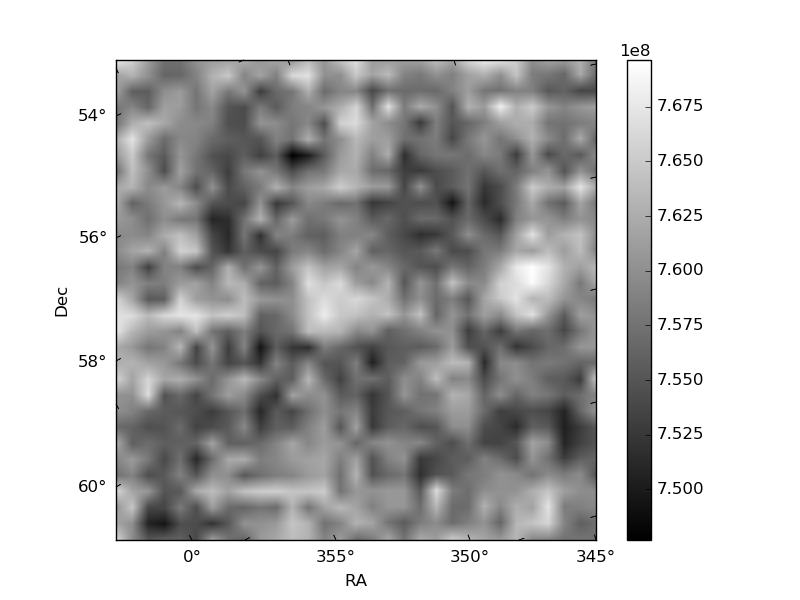

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

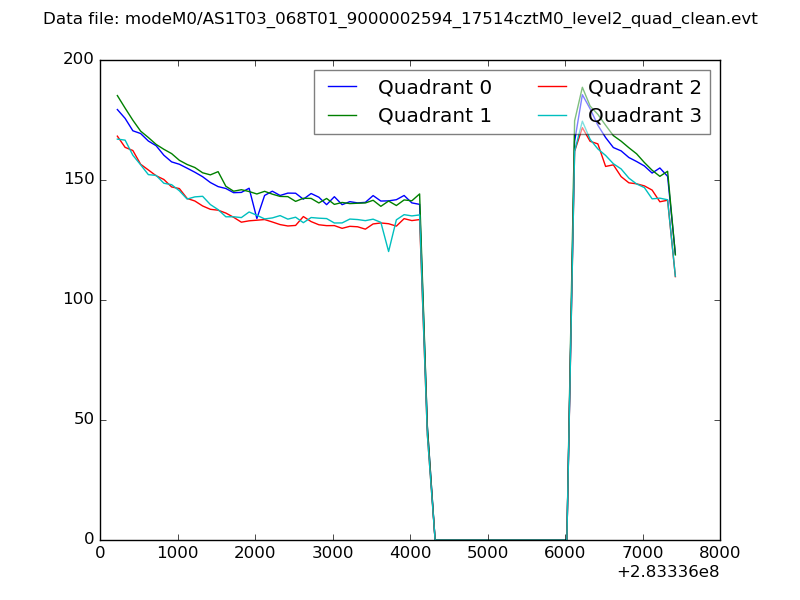

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

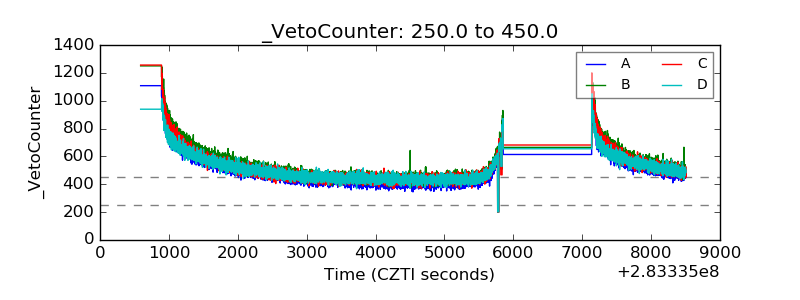

| Veto HV Monitor |  |
| Veto LLD |  |

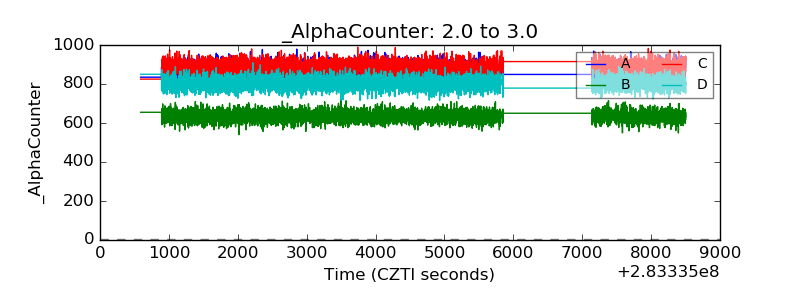

| Alpha Counter |  |
| _CPM_Rate |  |

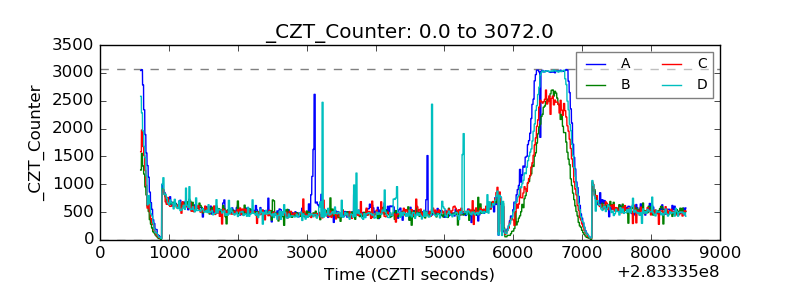

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

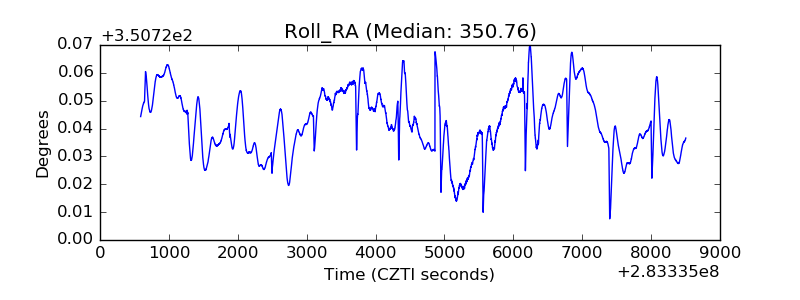

| _Roll_RA |  |
| Veto Counter |  |
